Inverter Duty Motors above 3.7kW are specialized electric motors designed to be paired with variable frequency drives, allowing flexible rotational speed adjustment according to the operational requirements of each system. Compared to standard motors, inverter duty motors can operate stably across a wide frequency range, optimizing performance, saving electrical energy, and enhancing production process control.

In terms of structure, Inverter Duty Motors above 3.7kW are equipped with high-voltage impulse insulation systems, high-quality bearings, efficient cooling systems, and robust housings, typically cast iron housings for large capacity ranges.

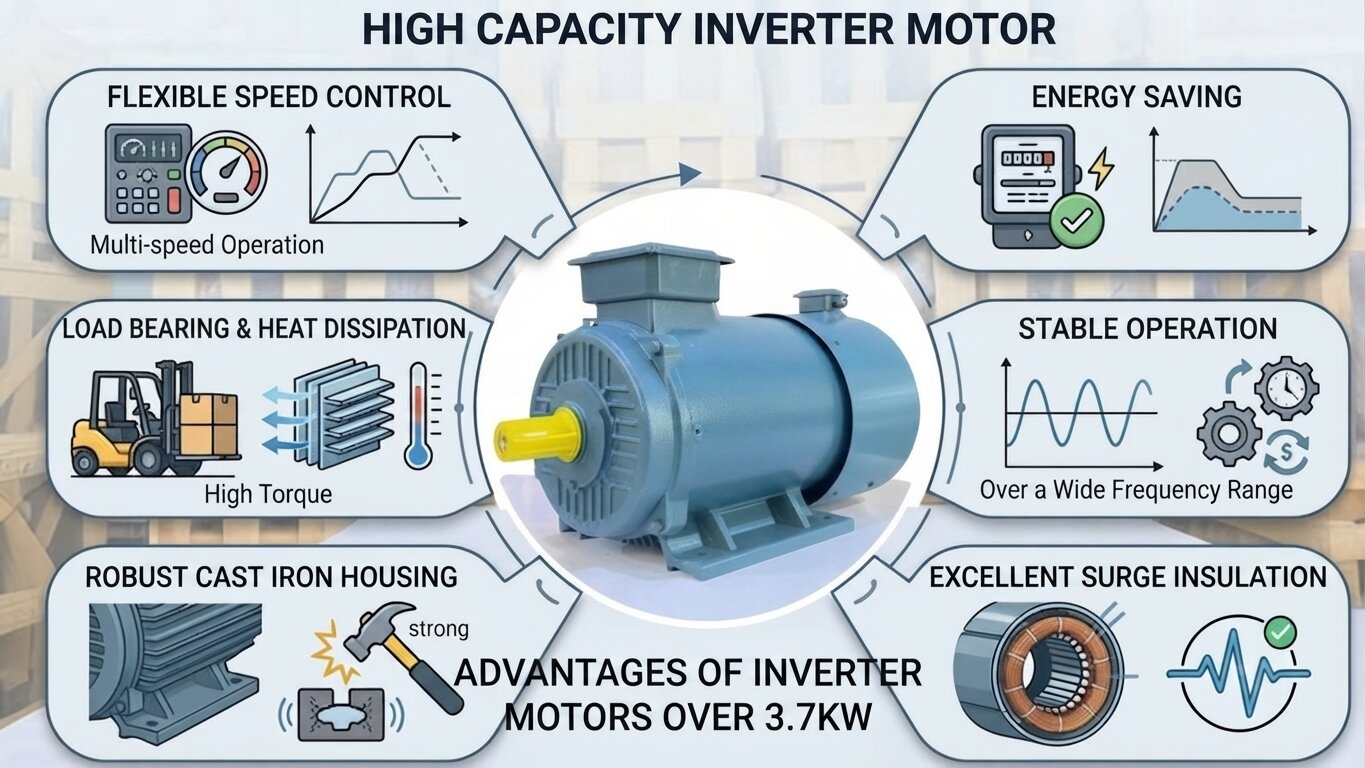

Key features of Inverter Duty Motors above 3.7kW

• Flexible speed adjustment: The motor can operate at various speed levels through the variable frequency drive, meeting the operational requirements of different machinery and production lines.
• Energy saving: Thanks to the ability to change speed according to actual demand, the motor helps reduce electricity consumption compared to the conventional fixed-speed operation method.
• Stable operation across a wide frequency range: The motor is designed to work continuously under changing frequency conditions, ensuring performance and stability when accelerating or decelerating.
• Good impulse-resistant insulation system: The windings use specialized insulation materials to withstand voltage impulses generated by the variable frequency drive, contributing to extended motor lifespan.
• Sturdy cast iron housing: Most Inverter Duty Motors above 3.7kW use cast iron housings to increase rigidity, reduce vibration, and suit industrial environments.
• High load capacity: The motor well meets applications requiring high torque and long-term continuous operation. Efficient heat dissipation helps the motor maintain a stable working temperature, especially when operating at low speeds for extended periods.

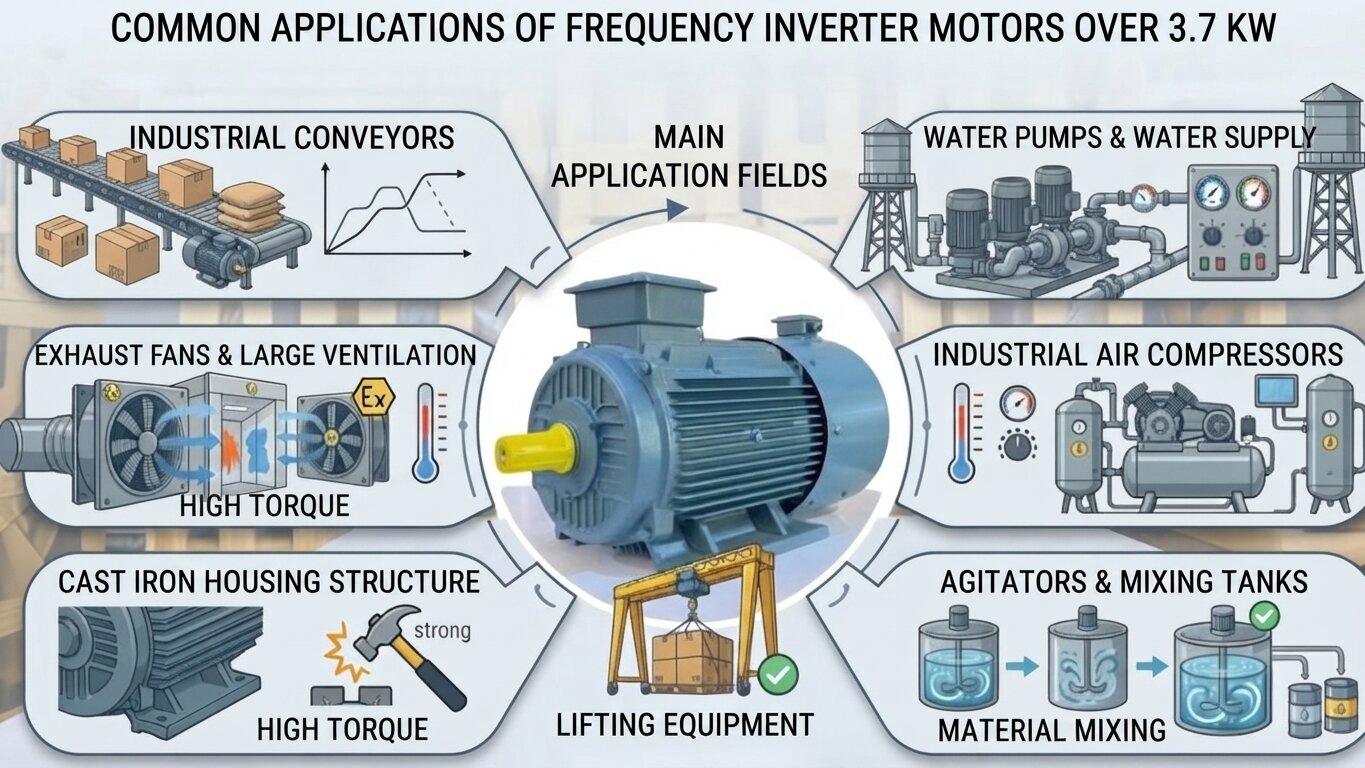

Popular applications of Inverter Duty Motors above 3.7kW

• Industrial conveyor systems: Inverter duty motors allow adjusting conveyor speed according to each production stage, ensuring stable goods transportation and enhanced operational efficiency.
• Large-capacity exhaust and ventilation fans: Changing fan speed according to actual demand significantly saves energy while maintaining appropriate airflow for each area.
• Water pumps and water supply systems: Inverter duty motors help flexibly adjust water flow and pressure, reducing sudden startup phenomena and extending equipment lifespan.
• Industrial air compressors: The ability to change rotational speed according to actual air consumption keeps the system operating stably and reduces electricity costs.
• Agitators and material mixing tanks: Stirring speed can be easily adjusted to suit each type of material, contributing to improved product quality.
• Lifting equipment and overhead cranes: Adjusting the load acceleration and deceleration speed ensures smooth operation, minimizes vibration, and enhances safety.

Prices of Inverter Duty Motors above 3.7kW at Thanh Thai Motor

Below is the reference price list for Inverter Duty Motors above 3.7kW updated by Thanh Thai Motor for your convenient reference and comparison. Product prices may vary depending on capacity, number of poles, motor housing material, and manufacturing brand.

Things to note when buying Inverter Duty Motors above 3.7kW

• Determine the correct working speed range: Not all motors are designed to run continuously at low or high speeds. Therefore, it is necessary to clearly define operational requirements before choosing.
• Choose power capacity suitable for the load: Calculate actual load and system working modes to choose appropriate motor power, avoiding overload or unnecessary excess capacity.
• Prioritize cast iron housing motors: For high-capacity inverter duty motors, cast iron housings help increase rigidity, reduce vibration, and enhance durability during continuous operation.
• Check compatibility with the variable frequency drive: Ensure that the motor and drive have matching parameters regarding voltage, capacity, and control mode for stable and efficient system operation.
• Pay attention to the cooling system: If the motor frequently operates at low speeds for long periods, consider models equipped with forced cooling fans to prevent overheating.
• Check installation dimensions: Before purchasing, cross-check shaft center height, shaft diameter, base dimensions, or flange sizes for easy new installation or replacement.

In addition, you can refer to the electric motor videos at Thanh Thai Motor. The video content compiles and shares a lot of practical technical knowledge about Inverter Duty Motors above 3.7kW, how to select appropriate power ratings, wiring with variable frequency drives, and important notes during installation and operation.

Frequently Asked Questions

Is it mandatory to use a variable frequency drive for Inverter Duty Motors above 3.7kW to operate?

No. The motor can still operate when powered directly like a standard motor. However, to harness speed adjustment capabilities and optimize operational efficiency, it is recommended to use them in combination with a variable frequency drive.

Why can bearings of Inverter Duty Motors wear out faster than standard motors?

Induced currents generated during variable frequency drive control can pass through the bearings, causing electrical corrosion over time. For high-capacity systems, insulated bearings or shaft current mitigation solutions may be required.

Can the motor speed be reduced to 10Hz or lower for continuous operation?

Yes, but the motor’s heat dissipation capacity must be considered. If the motor frequently works at low speeds for long periods, forced cooling fans should be used to prevent overheating.
