3-Phase Inverter Duty Motor 38kW 50Hp

The 3-Phase Inverter Duty Motor 38kW 50Hp belongs to the group of electric motors combined with advanced inverter technology, allowing changes in input frequency and voltage. As a result, rotation speed and torque are precisely controlled. With stable operation, energy savings, and high durability, the inverter duty motor is a reliable solution for heavy industries, continuous production lines, and large-scale infrastructure systems.

General design of the 3-Phase Inverter Duty Motor 38kW 50Hp

The inverter duty motor is built with a sturdy one-piece cast-iron housing, capable of reducing vibration and withstanding heavy loads. The entire surface is coated with anti-oxidation electrostatic paint, protecting the motor against harsh conditions such as high humidity, dust, and corrosive environments.

A prominent design feature is the independent forced cooling fan mounted at the rear, providing a strong and continuous airflow. As a result, the motor maintains a stable temperature even when operating under heavy load or low speed for extended periods.

Detailed structure of the inverter duty motor

The 3-Phase Inverter Duty Motor 38kW 50Hp is a 3-phase electric motor featuring the following important components:

• Stator: Wound with high-grade copper wire, offering good electrical conductivity, creating a strong magnetic field, and reducing thermal losses.
• Rotor: Composed of tightly pressed electrical steel laminations, ensuring high durability and high efficiency during operation.
• Terminal box: Designed separately into two compartments, one for the main power supply and one for the forced cooling fan, making wiring convenient.
• Forced cooling fan: Operates independently, supporting continuous cooling and protecting the motor when running continuously under heavy loads.
• Inverter circuit: Flexibly adjusts frequency, allowing the motor to change speed, reduce starting current, and enhance system safety.

Classification of the 3-Phase Inverter Duty Motor 38kW 50Hp

The 3-Phase Inverter Duty Motor 38kW 50Hp has various classifications based on the number of poles as follows:

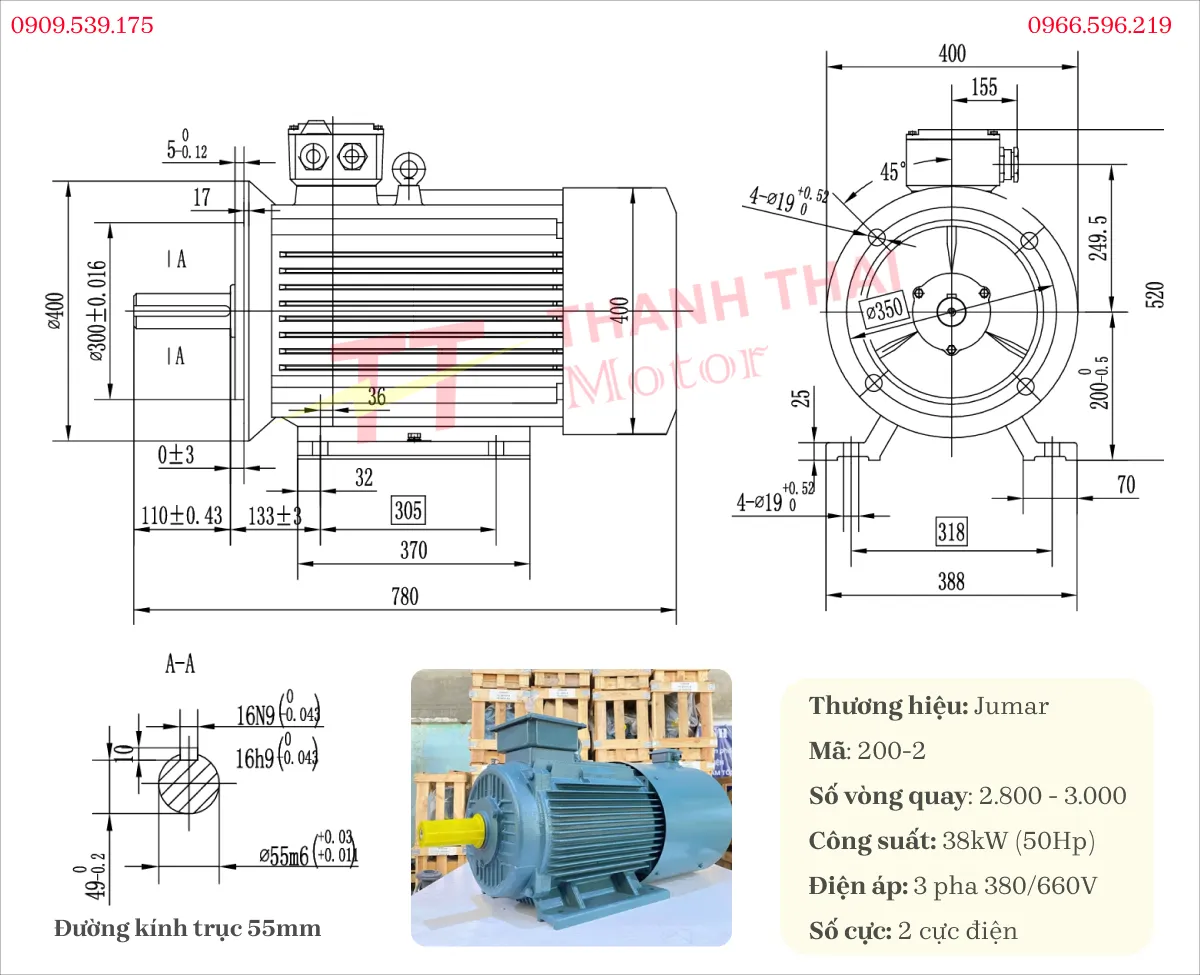

3-Phase Inverter Duty Motor 38kW 50Hp 2-pole (2800-3000 rpm)

Suitable for systems requiring high speed and fast load response. When combined with an inverter, the motor helps adjust flow flexibly, starts smoothly, and optimizes operating efficiency in various industrial environments.

Technical specifications

Model	200L
Shaft diameter	55mm
Keyway	16mm
Flange diameter	400mm
Dimensions	780mm * 395mm * 505mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Industrial Pumps and Fans: Controls water pump flow, high-capacity centrifugal exhaust/blowers, boilers, and mine ventilation systems. Helps save 20% – 40% of electricity.
• Air Compressors: Drives screw or piston systems, helping maintain stable compressed air pressure and reducing starting current.
• Mining and Construction Materials Industry: Applied in concrete batching plants, stone crushers, ball mills, and material conveyors.

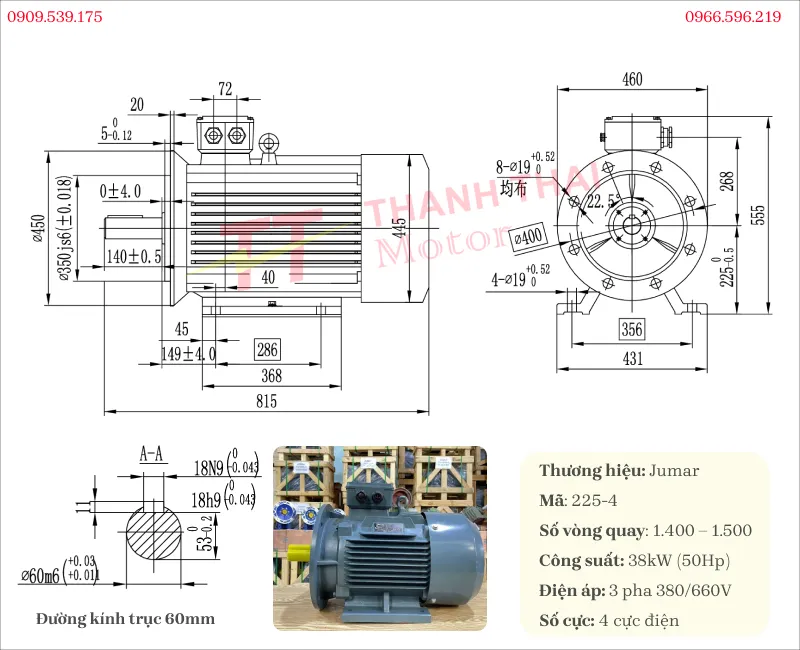

3-Phase Inverter Duty Motor 38kW 50Hp 4-pole (1,400 – 1,500 rpm)

Optimized for drive systems requiring a balance between speed and pulling force. Thanks to inverter adjustment, the motor operates smoothly, reduces vibration, and adapts well to various load modes in industrial production.

Technical specifications

Model	225S
Shaft diameter	60mm
Keyway	18mm
Flange diameter	450mm
Dimensions	825mm * 425mm * 560mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Industrial Presses and Mixers: Pellet presses, high-capacity mixers, and drying systems.
• Mechanical Machining & Automation Lines: Operates industrial lathes, milling machines, cutting machines, and high-capacity wood panel saws, where speed and torque need flexible adjustment according to each material type.
• Industrial Air Compressors: Helps reduce starting current, protects the electrical system, and maintains extremely stable output compressed air pressure.

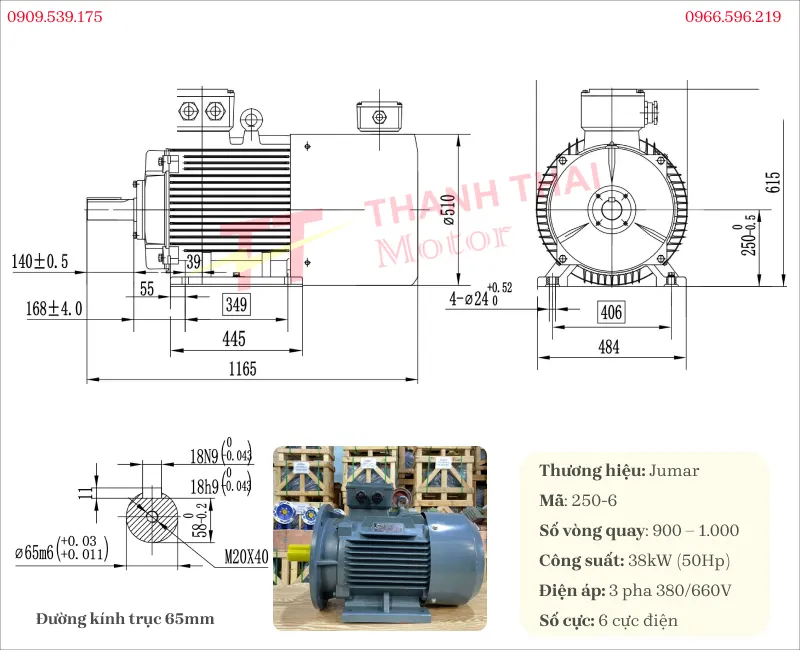

3-Phase Inverter Duty Motor 38kW 50Hp 6-pole (900 – 1,000 rpm)

Suitable for systems requiring stable torque at medium-low speed ranges. Thanks to inverter control, the motor operates smoothly, reduces mechanical shock loads, and maintains stable performance in continuous working environments.

Technical specifications

Model	250M
Shaft diameter	65mm
Keyway	18mm
Flange diameter	550mm
Dimensions	920mm * 490mm * 615mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Building Materials Production: Used in concrete batching plants, cement production lines, ball mills, and heavy conveyor systems.
• Mineral Mining: Operates ore crushers, long transport conveyors, and vibrating screening systems.
• Industrial Processing Machinery: Provides strong drive force for industrial pellet presses, large material mixers, drying systems, and automatic packaging systems.

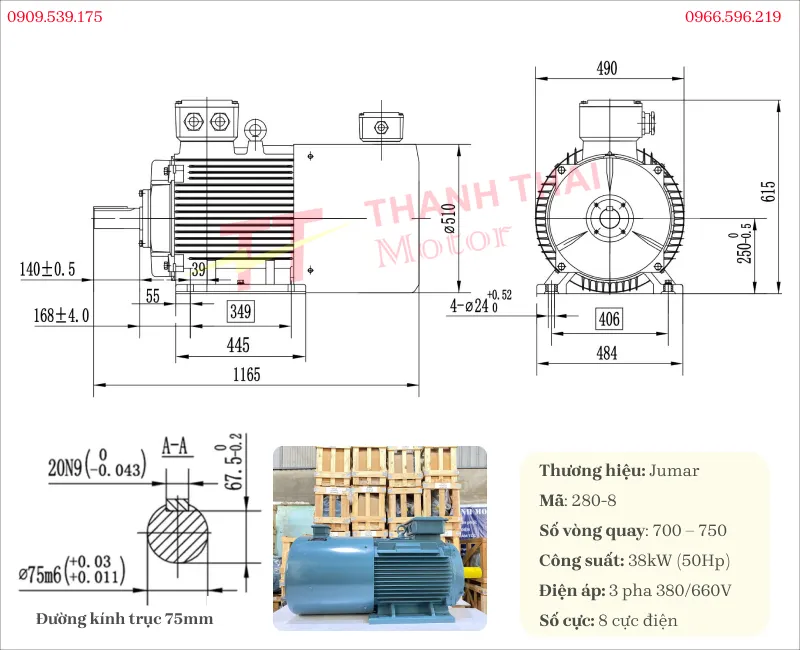

3-Phase Inverter Duty Motor 38kW 50Hp 8-pole (700 – 750 rpm)

Designed for heavy-duty low-speed systems, prioritizing high pulling force and high stability. When combined with an inverter, the motor helps precisely control speed, reduces load shock, and increases the durability of the entire drive system.

Technical specifications

Model	280S
Shaft diameter	75mm
Keyway	20mm
Flange diameter	550mm
Dimensions (demo)	995mm*550mm*680mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Heavy-duty Crushers and Conveyors: Generates extremely strong pulling force upon startup, ideal for stone crushers, industrial concrete mixers, and mineral mining conveyor systems.
• Large-scale Industrial Fan Systems: Optimized for centrifugal fans, dust collection fans, and mine ventilation fans requiring extremely high airflow and smooth operation at low speeds.
• Chemical Agitators and Flow Pumps: Suitable for wastewater treatment systems, large-scale pumping stations, or high-viscosity liquid agitators requiring high torque and slow rotation speeds.

The 3-Phase Inverter Duty Motor 38kW 50Hp offers various configuration choices according to different speed levels and load requirements, helping businesses easily optimize drive systems in production practice. For assistance in selecting the right model for your application, please contact Thành Thái Motor via hotline 0909.539.175.

What gearboxes can the 3-Phase Inverter Duty Motor 38kW 50Hp be combined with?

• Heavy-duty gearboxes: R-series inline helical gearbox, K-series helical bevel gearbox
• Worm gearboxes: WPA, WPS, WPO, WPX, and NMRV gearboxes

In addition, it can be combined with:

• Pulleys and shaft couplings: 55mm to 65mm

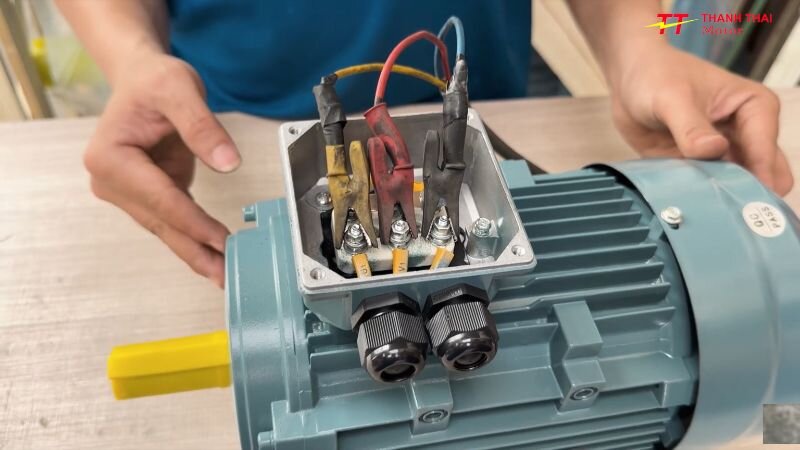

Guide to connecting a 3-phase electric motor

Step 1: Open the motor terminal box

• Prepare a Phillips screwdriver.
• Turn counterclockwise to remove the 4 fixing screws at the four corners of the terminal box cover located on the motor body.
• Lift off the terminal box cover to access the terminal posts inside.

Step 2: Identify terminal posts and connect power wires

• Prepare wires: Ensure you have prepared 3 wires for the 3-phase power supply (380V).
• Locate terminals: Observe the terminal board inside the terminal box. You will see terminal posts (usually 6 posts, where the 3 upper posts are pre-connected with copper bars in star or delta configuration depending on the setup). You will connect power to the 3 posts in the bottom row.
• Wiring procedure: Sequentially attach and tighten the 3 power wires to the terminal posts marked accordingly as follows:
  • Connect the first power wire to terminal U1.
  • Connect the second power wire to terminal V1.
  • Connect the third power wire to terminal W1.
• Note: Ensure that the connections are tight and make good contact to avoid arcing or phase loss during operation.

Step 3: Test run the motor

• After securely connecting the 3 power phases to the exact U1, V1, W1 terminals, clear any tools away from the rotation area of the motor shaft.
• Turn on the power supply to test. If the motor runs smoothly, evenly, and stably, the connection process is complete.
• Finally, reinstall the terminal box cover and tighten the 4 screws for safety protection.

The 3-Phase Inverter Duty Motor 38kW 50Hp is an effective drive solution for many industrial systems thanks to its flexible speed control, stable operation, and energy savings. For a more intuitive view of its structure, working principles, and practical applications, you can refer to the electric motor video in the detailed content section and combine it with additional aggregated video materials to easily select the configuration that suits your needs.
