3-Phase Inverter Duty Motor 7.5kW 10Hp

The 3-Phase Inverter Duty Motor 7.5kW 10Hp is a modern electric motor combined with an inverter, capable of changing frequency and input current to control rotational speed according to practical needs. Thanks to its fast load adaptability, this inverter duty motor is becoming the preferred choice in many industries, especially systems requiring high precision, stability, and high performance.

Design Overview of the 3-Phase Inverter Duty Motor 7.5kW 10Hp

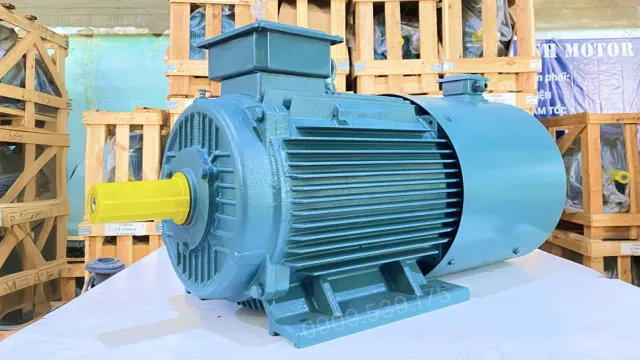

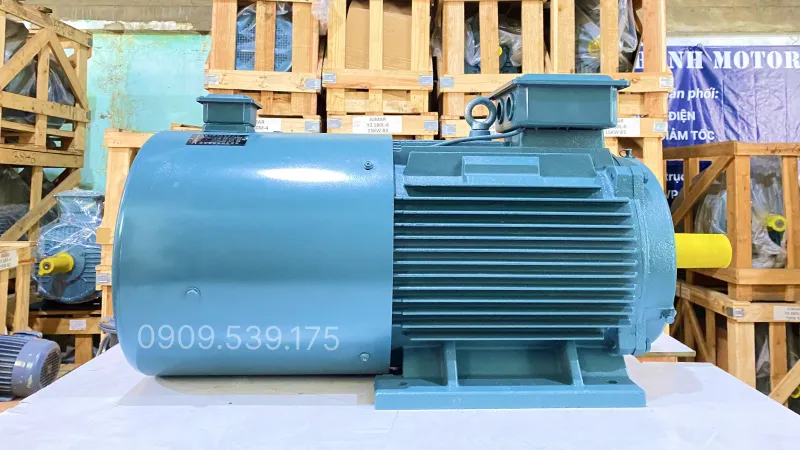

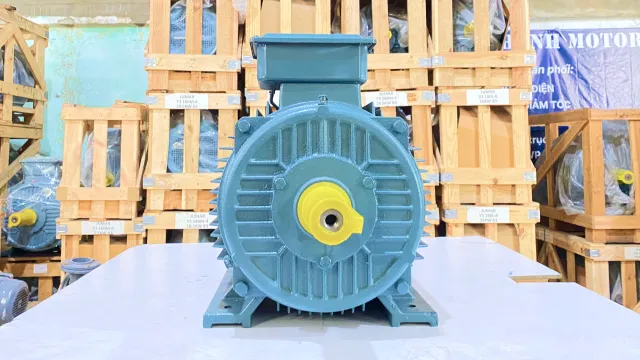

The inverter duty motor is manufactured on advanced technical lines, using a thick and sturdy cast iron housing. The anti-rust powder coating helps the motor withstand dusty, humid environments and mechanical impacts well.

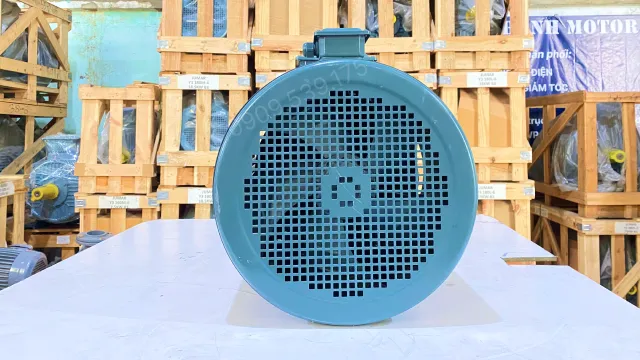

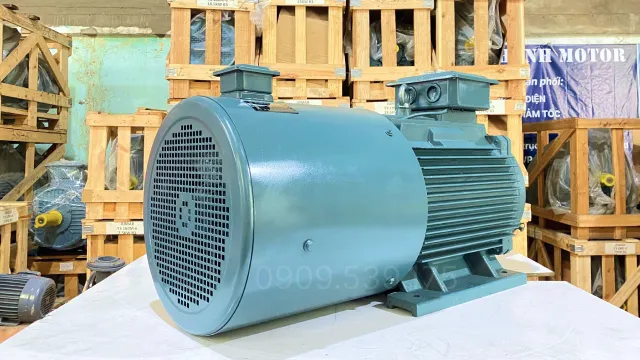

The highlight of this motor series is the independent forced cooling fan located at the rear. As a result, the motor is always continuously cooled even when running at low speeds or operating for long periods under heavy loads.

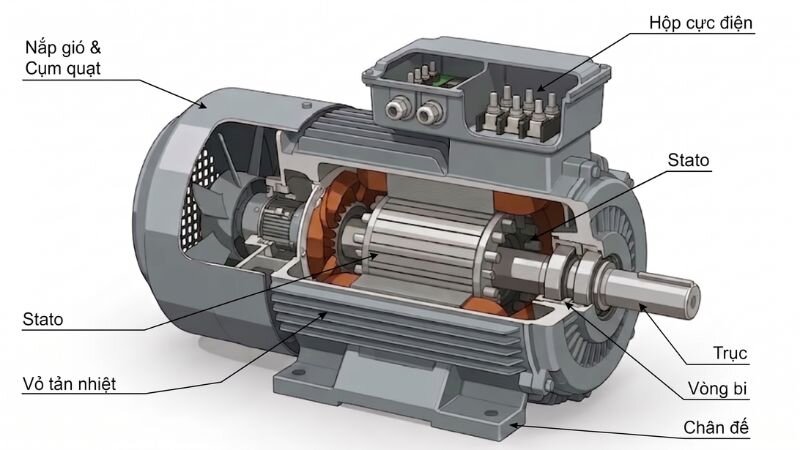

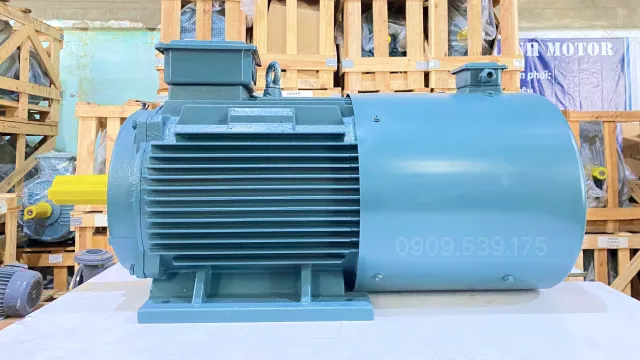

Detailed Structure of the 3-Phase Inverter Duty Motor

The 3-Phase Inverter Duty Motor 7.5kW 10Hp belongs to the 3-phase electric motor series with the following main structures:

• Stator: Pure copper windings help conduct electricity well, maintain a stable magnetic field, and limit heat generation.
• Rotor: Made of cold-stamped and tightly pressed electrical steel sheets (silicon steel). The rotor shaft undergoes dynamic balancing via digital CNC technology to eliminate centrifugal force, ensuring ultra-smooth operation without vibration even at high-frequency ranges.
• Terminal box: Consists of two parts, the front for connecting the main power source and the rear for supplying power to the forced cooling fan.
• Forced cooling fan: Operates independently, providing a strong airflow to help dissipate heat evenly and extend motor life.
• Inverter circuit: Converts alternating current into a variable-frequency power source, precisely controlling speed and torque.

Classification of the 3-Phase Inverter Duty Motor 7.5kW 10Hp

The 3-Phase Inverter Duty Motor 7.5kW 10Hp has different classification types. Choosing the correct number of poles will help optimize performance and increase the lifespan of the entire system.

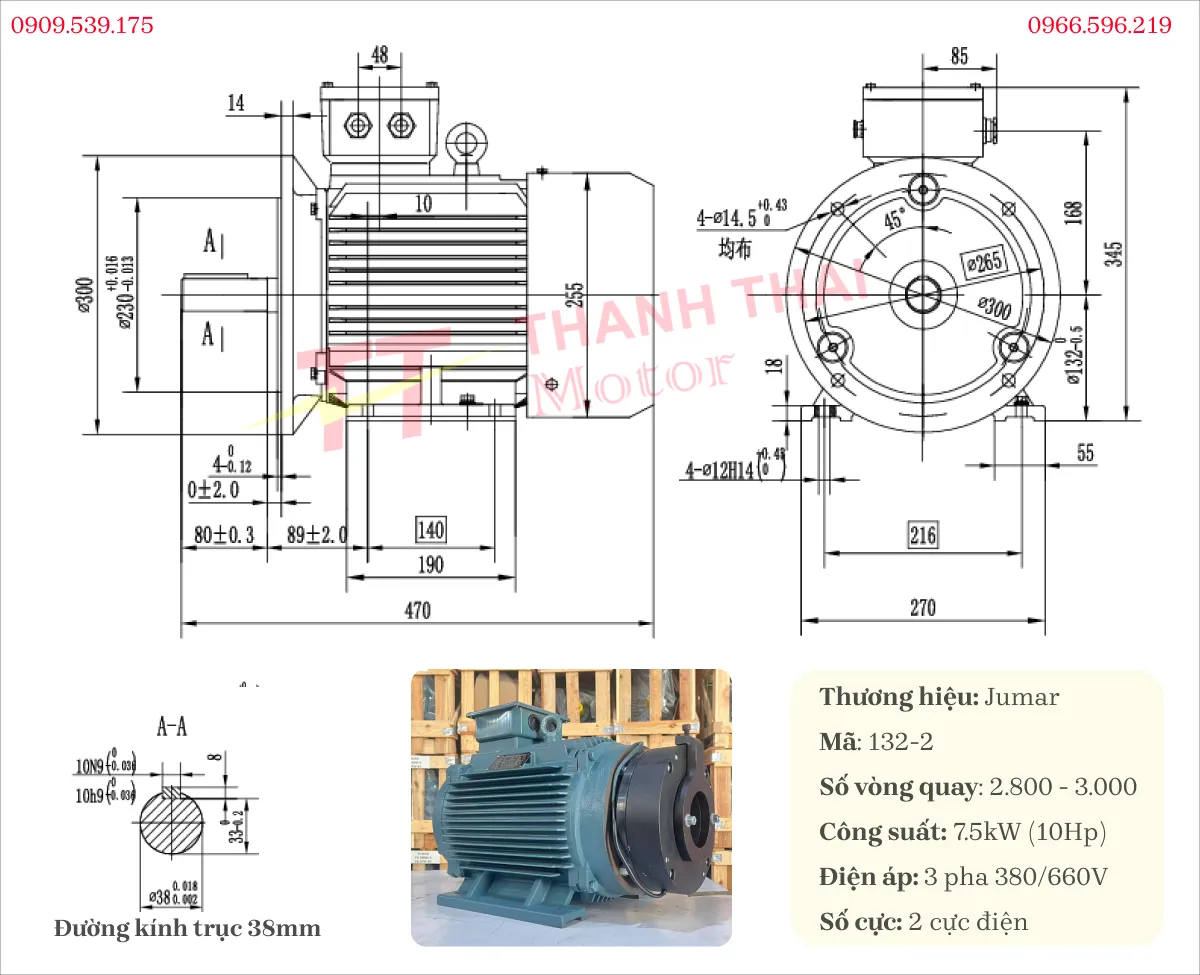

3-Phase Inverter Duty Motor 7.5kW 10Hp 2 Poles (2,800 – 3,000 rpm)

The 2-pole version of the 10 hp inverter motor stands out with an extremely large shaft rotation speed, generating powerful kinetic energy. This is the perfect solution for equipment prioritizing high speed over load pulling capacity.

Technical Specifications

Model	132S
Shaft diameter	38 mm
Keyway	10 mm
Spigot diameter	230 mm
Flange diameter	300 mm
Frequency	5 ~ 50 Hz
Dimensions	470mm * 270mm * 345mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Drive for industrial water supply pump stations, fire protection pumps requiring large flow and high head.
• Installed in centrifugal exhaust fan systems, workshop ventilation fans, and high-pressure exhaust gas treatment systems.
• Operates industrial grinding machines, cutting machines, and wood milling machines that require fast shaft rotation speeds for a smooth machined surface.

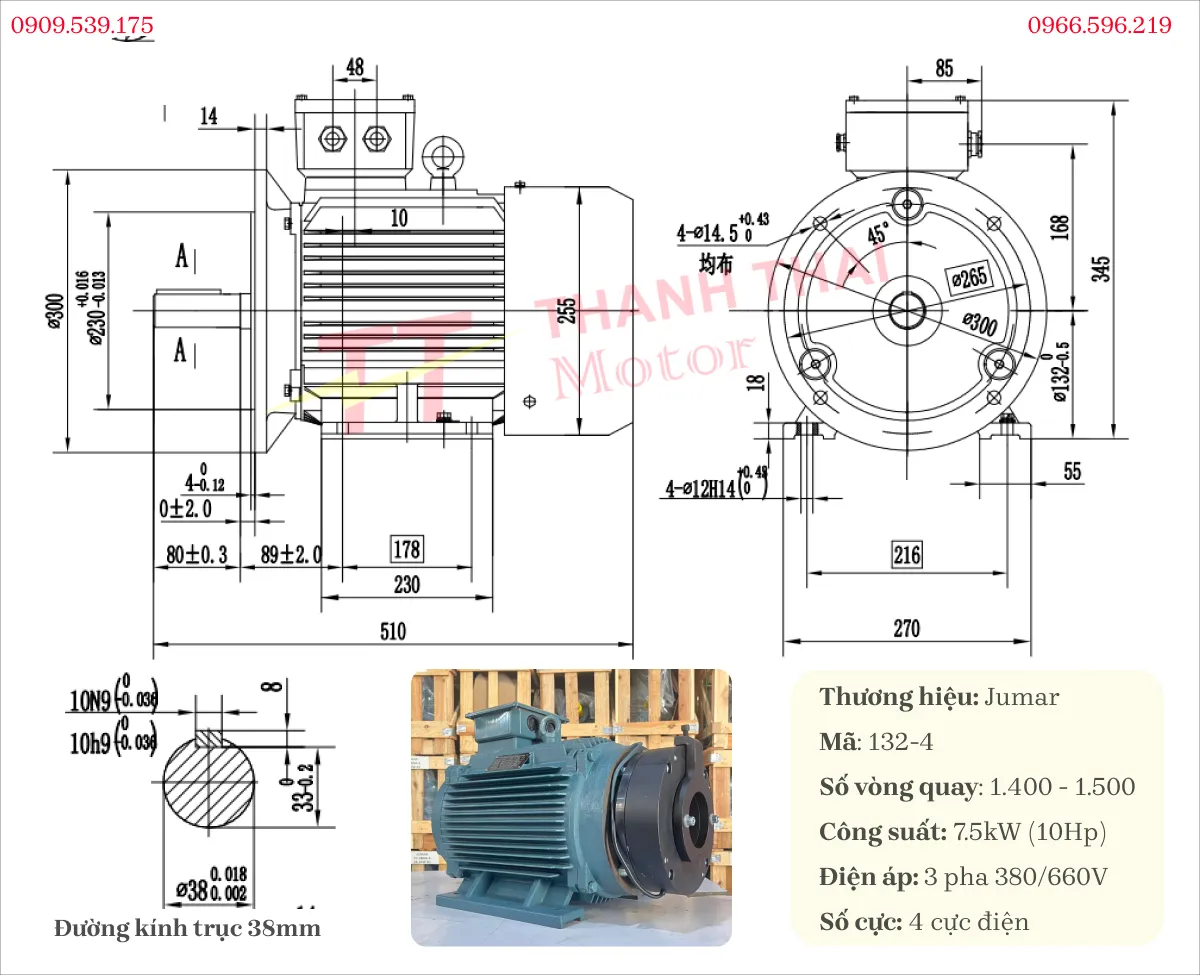

3-Phase Inverter Duty Motor 7.5kW 10Hp 4 Poles (1,400 – 1,500 rpm)

The 4-pole series provides an excellent balance between rotational speed and load-pulling force (torque). Therefore, this is the most popular and widely trusted motor version on the market today.

Technical Specifications

Model	132M
Shaft diameter	38 mm
Keyway	10 mm
Spigot diameter	230 mm
Flange diameter	300 mm
Frequency	5 ~ 50 Hz
Dimensions	510mm * 270mm * 345mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Driving conveyor systems and goods sorting lines in manufacturing plants and mining.
• Operating material mixers, industrial dough kneaders, and plastic pellet extruders.
• Integrated into mechanical machining lines, CNC machines, and automation robots.

3-Phase Inverter Duty Motor 7.5kW 10Hp 6 Poles (900 – 1,000 rpm)

With naturally slow rotation speeds, the 6-pole version generates very large and stable load-holding force. This motor is specially designed to handle heavy-load mechanical systems.

Technical Specifications

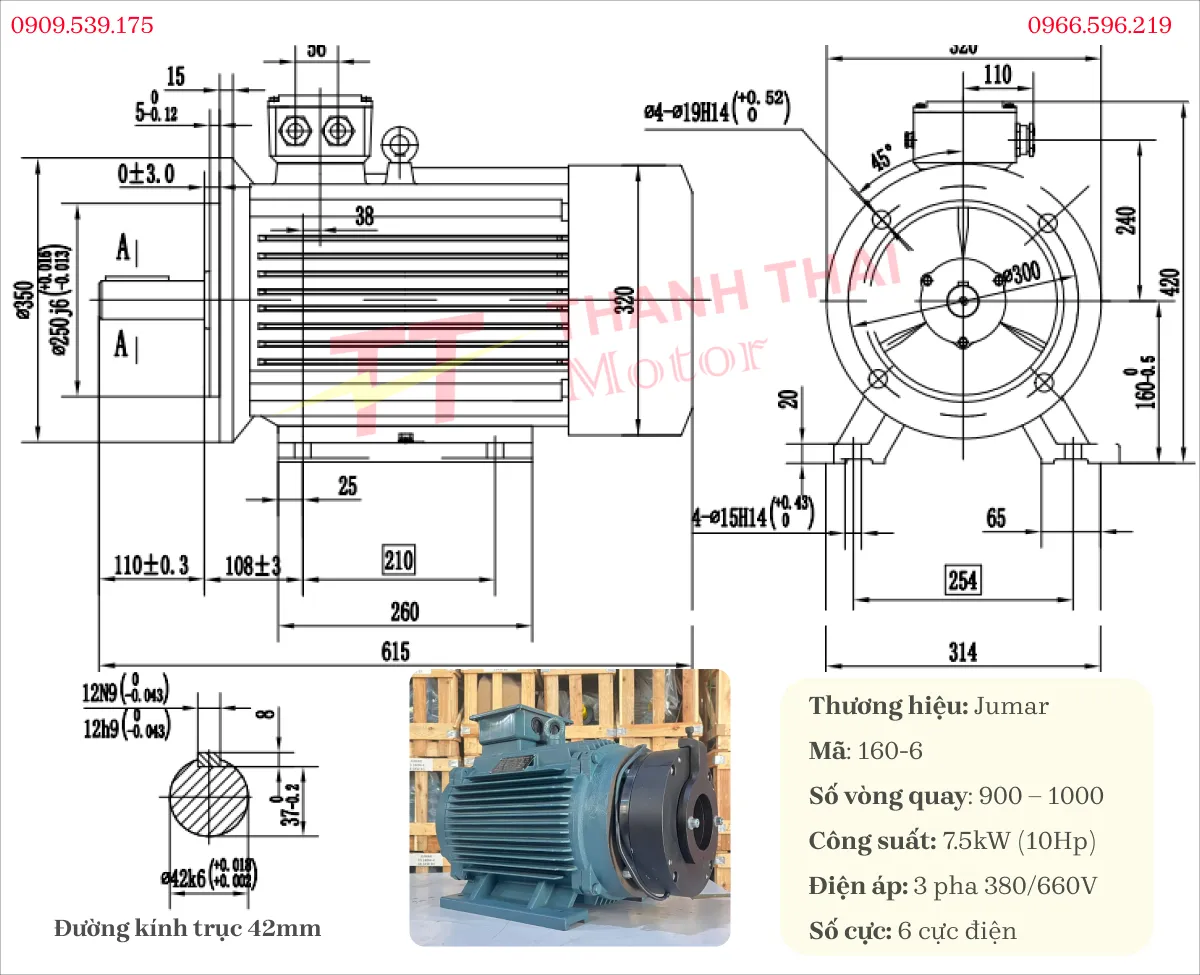

Model	160M
Shaft diameter	42 mm
Keyway	12 mm
Spigot diameter	250 mm
Flange diameter	350 mm
Frequency	5 ~ 50 Hz
Dimensions	615mm * 320mm * 420mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Provides powerful traction for high-viscosity chemical, paint, and solvent mixing tanks.
• Installed in lifting winch systems, electric wire rope hoists, or medium-scale overhead cranes.
• Applied in heavy-duty cement conveyor systems, stone crushers, and concrete mixers.

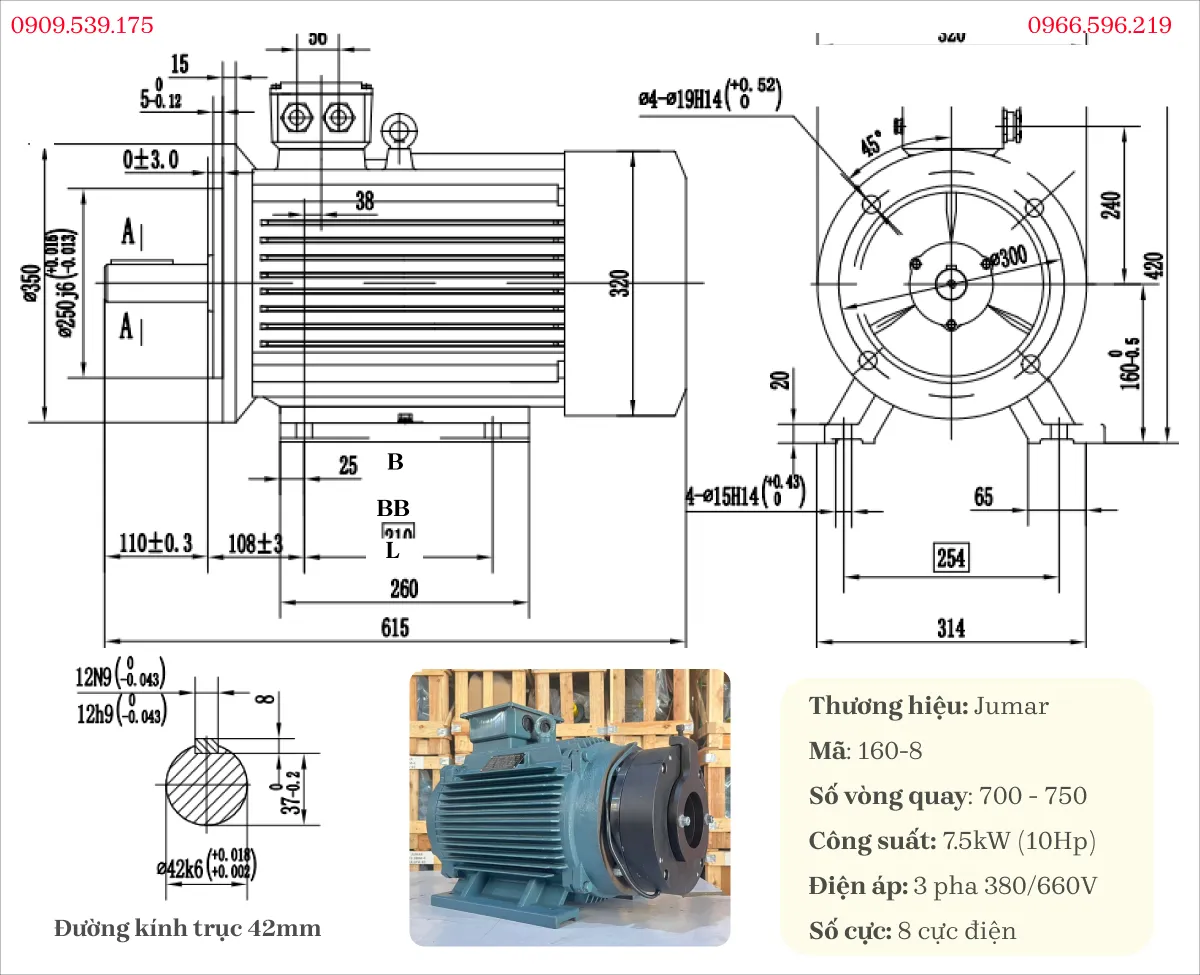

3-Phase Inverter Duty Motor 7.5kW 10Hp 8 Poles (700 – 750 rpm)

The slowly rotating 8-pole shaft of the 10 hp motor generates enormous torque, thoroughly solving the drive problem for super-heavy-load systems. This version helps engineers avoid having to design through multiple mechanical reduction stages.

Technical Specifications

Model	160L
Shaft diameter	42 mm
Keyway	12 mm
Spigot diameter	250 mm
Flange diameter	350 mm
Frequency	5 ~ 50 Hz
Dimensions	670mm * 320mm * 420mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Operating thick sludge scraper agitator systems at industrial wastewater treatment plants.
• Driving hydraulic presses and high-intensity rubber laminating machines.
• Installed on seaport gantry cranes and container lifting cranes requiring extreme traction and absolute safety.

What Gearboxes Can the 3-Phase Inverter Duty Motor 7.5kW 10Hp Be Combined With?

The 7.5kW motor is often assembled synchronously with gearboxes and auxiliary equipment such as:

• Worm gearboxes: WPS, WPA, WPX, WPO, WPDS, WPDA, WPDX, WPDO series sizes 155 and 175, and NMRV gearboxes sizes 130 and 150
• Heavy duty gearboxes: R-Series Inline Helical Gearbox, K-Series Helical Bevel Gearbox, F-Series Parallel Shaft Helical Gearbox, S-Series Helical Worm Gearbox, Cycloidal Gearbox

In addition, the 10 hp inverter motor can also be combined with:

• Pulleys and couplings: 38mm, 42mm shafts.
• Magnetic brakes: 5.5kW 7.5Hp magnetic brake, 7.5kW 10Hp magnetic brake, 11kW 15Hp magnetic brake, 15kW 20Hp magnetic brake.

Technical Standard Wiring Guide for 3-Phase Electric Motors

Wiring an inverter duty motor requires technicians to be extremely careful in separating the two distinct power source assemblies. Below is a detailed guide on how to set up the power supply for industrial inverter motors, helping technicians and users operate safely, quickly, and accurately.

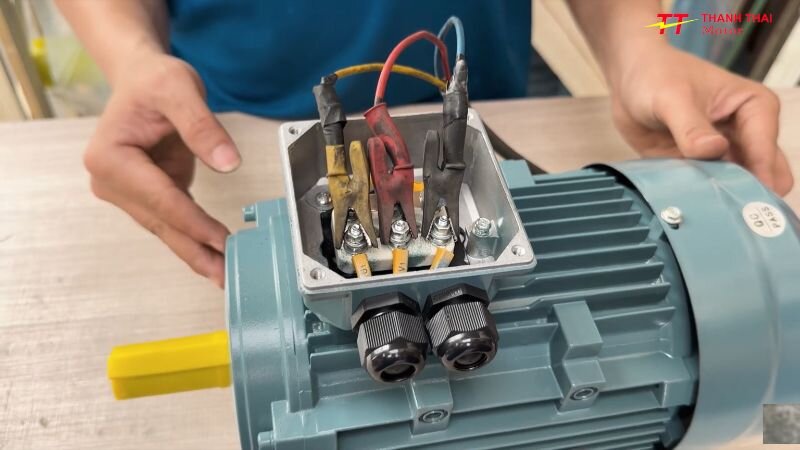

Stage 1: Handling the motor terminal box

• Prepare a screwdriver of a suitable size.
• Unscrew the 4 bolts/screws fixing the four corners of the connection assembly protective box cover.
• Open the box cover to access the internal electrical connection terminal studs.

Stage 2: Installing the 380V power transmission line

• Separate the 3 power cables carrying the 380V current.
• Directly connect these 3 cables to the 3 terminal stud locations marked with symbols: U1, V1, and W1, respectively.
• Use pliers or specialized tools to tighten the connections securely, preventing looseness that causes short circuits during machine vibration.

Stage 3: Powering up and inspection

• After closing the protective box cover safely, turn on the circuit breaker (CB) to supply 380V power.
• Evaluate the operating quality by observing the movement of the shaft to see if the motor starts smoothly and in the correct direction.

The 3-Phase Inverter Duty Motor 7.5kW 10Hp with a pure copper winding core combined with the Class F insulation standard helps the device completely resist the risks of overheating or magnetic field breakdown. To better understand circuit wiring methods and practical operating principles, please watch our synthesized technical guide videos or refer to Thanh Thai Motor’s electric motor video library.
