3-Phase Inverter Duty Motor 90kW 125Hp

The 3-Phase Inverter Duty Motor 90kW 125Hp is a high-power electric motor equipped with advanced inverter technology, allowing precise voltage and frequency control. As a result, rotational speed and torque are always balanced to suit operating needs, helping to save significant electricity while maintaining stability and durability for the entire system.

Overall design of the 3-Phase Inverter Duty Motor 90kW 125Hp

The inverter duty motor is a 3-Phase Electric Motor made from a single-piece cast iron housing, resistant to deformation. The entire surface is coated with a thick electrostatic paint layer, enhancing corrosion resistance and protecting the motor from moisture, dust, and chemical vapors in harsh environments.

A notable advantage is the separate forced cooling fan located at the rear of the motor. This fan creates a strong, stable, and continuous airflow, helping the motor cool down even when running at low speed or working for a long time under heavy loads.

Detailed structure of the 3-phase inverter duty motor

The inverter duty motor is modernly designed, ensuring high performance and durable operation with main components:

• Stator: Uses pure copper wire, ensuring optimal electrical conductivity and reduced energy loss.
• Rotor: Consists of tightly assembled electrical steel sheets, enhancing transmission efficiency and mechanical durability.
• Terminal box: Arranged into two separate compartments, convenient for connecting the main power supply and the forced cooling fan, while increasing safety levels.
• Forced cooling fan: Operates independently, maintaining efficient heat dissipation and protecting the motor in demanding environments.
• Inverter circuit: Allows flexible frequency changes, smooth startup, and limits inrush current.

Classification of the 3-Phase Inverter Duty Motor 90kW 125Hp by number of poles

The 3-Phase Inverter Duty Motor 90kW 125Hp includes classifications such as:

3-Phase Inverter Duty Motor 90kW 125Hp 2 poles (2,800-3,000 rpm)

Has a high rotational speed, suitable for systems requiring large flow rates and fast response capabilities. Combining an inverter helps the motor start smoothly, adjust speed flexibly, and save electricity during operation.

Technical specifications

Code	280M
Shaft diameter	65mm
Keyway	18
Flange diameter	550mm
Dimensions	1045mm* 550mm * 680mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Building materials & mining industry: Used for heavy conveyor systems, stone crushers, ball mills, and concrete mixers.
• HVAC systems: Used for industrial exhaust fans, large-capacity ventilation fans, and central air conditioning systems.
• Pump & water treatment systems: Serves water supply pumps for industrial zones, fire protection pumps, or large-scale wastewater treatment systems.

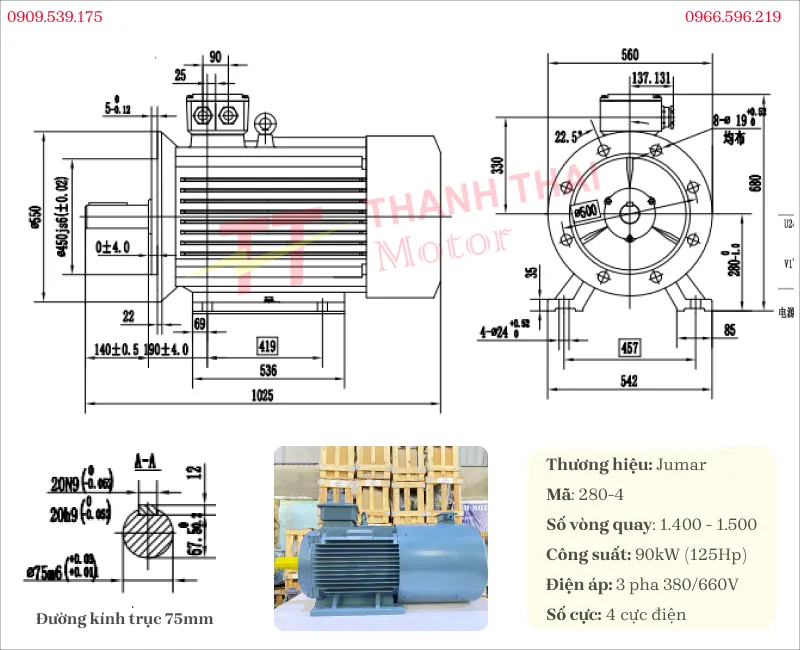

3-Phase Inverter Duty Motor 90kW 125Hp 4 poles (1,400 – 1,500 rpm)

Provides a balance between speed and torque, suitable for various heavy-duty industrial systems. Combining an inverter helps control speed accurately, reduce starting current, and improve long-term operating efficiency.

Technical specifications

Code	280M
Shaft diameter	75mm
Keyway	20
Flange diameter	550mm
Dimensions	1045mm * 550mm * 680mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Stone mining and minerals industry: Operates large-sized conveyors, stone crushing systems, vibrating screens, and heavy industrial exhaust fans.
• Processing and manufacturing industry: Provides power for wood pellet mills, grain flour mills, cashew processing systems, and industrial ice makers.
• Water treatment and aquaculture: Used for large-scale water supply/drainage pump stations, high-pressure pumps, or industrial shrimp and fish aeration fan systems.

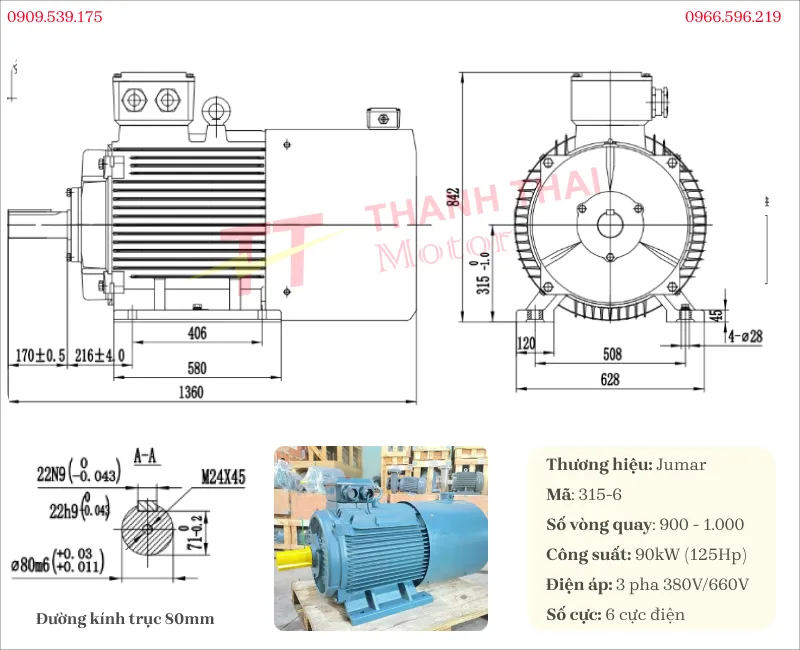

3-Phase Inverter Duty Motor 90kW 125Hp 6 poles (900 – 1,000 rpm)

Capable of generating large torque and stable operation at low speed ranges. Thanks to integrated inverter technology, the motor allows flexible speed adjustment, reduces vibration, and optimizes performance in continuously operating heavy-duty systems.

Technical specifications

Code	315M
Shaft diameter	80mm
Keyway	20
Flange diameter	660mm
Dimensions	1035 * 550mm * 680mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Large-capacity industrial fans: Used in dust extraction systems, boiler ventilation, metallurgy, or cooling towers.
• Aquaculture industry: Operates aerators and oxygen generators for large-scale shrimp and fish ponds.
• Mining and material processing: Pulls loads for conveyors, stone crushers, ore grinding mills, or equipment in the cement industry.

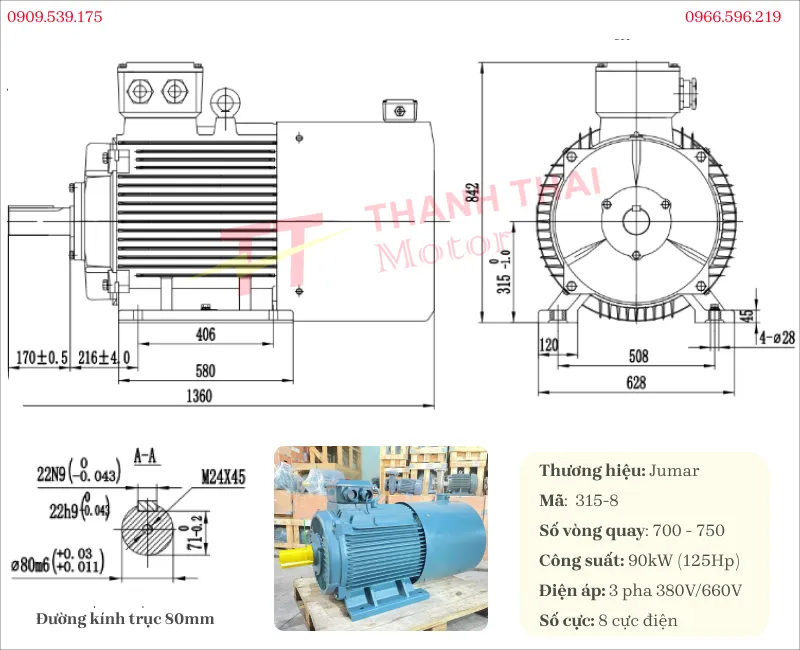

3-Phase Inverter Duty Motor 90kW 125Hp 8 poles (700 – 750 rpm)

Designed for heavy-duty systems requiring high traction force and stable operation at low speeds. When combined with an inverter, the motor helps control speed precisely, reduce vibration, and increase durability during continuous work.

Technical specifications

Code	315L
Shaft diameter	80mm
Keyway	20
Flange diameter	660mm
Dimensions	1045mm* 550mm * 680mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Mining and building materials industry: Operates stone crushers, soil compactors, high-capacity concrete mixers, and cement grinding systems.
• Heavy industry: Used in steel rolling mills, lifting equipment (cranes, hoists), hydraulic presses, and heavy-duty transfer conveyors.
• Industrial processing and manufacturing: Wood chippers, pellet presses, large material agitators, and high-flow industrial fans.

Each 3-Phase Inverter Duty Motor 90kW 125Hp configuration suits different load requirements and operating environments, so selecting the correct parameters is crucial to ensure stable and durable system operation. Contact Thanh Thai Motor via hotline 0909.539.175 for detailed technical support.

What types of gearboxes can the 3-Phase Inverter Duty Motor 90kW 125Hp be combined with?

• Gearbox: R, K, F, K
• Worm gearbox: WPA, WPS, WPO, WPX, WPDA, WPDS, WPDO, WPDX size 250

Instructions for wiring a 3-Phase Electric Motor

• Step 1: Use a screwdriver to remove 4 screws to take off the terminal box cover of the motor.
• Step 2: Connect 3 power supply wires (380V) to the terminals inside the terminal box:
  • Connect the first power wire to terminal U1.
  • Connect the second power wire to terminal V1.
  • Connect the third power wire to terminal W1.
  • Use pliers to tighten and securely fix the connections.
• Step 3: Power up the motor to check if it is operating.

The 3-Phase Inverter Duty Motor 90kW 125Hp is a high-performance drive solution that allows flexible speed control, stable operation, and optimized energy in various heavy industrial systems. To better understand the structure, operating principle, as well as practical applications, you can refer to the electric motor video or watch the compilation video of inverter duty motor series to choose the configuration that suits your usage needs.
