3-Phase Inverter Duty Motor 132kW 180Hp

The 3-Phase Inverter Duty Motor 132kW 180Hp is a modern electric motor combined with advanced inverter technology, allowing precise control of voltage and frequency throughout operation. As a result, the motor’s rotational speed and torque can be flexibly varied to suit different working conditions, optimizing performance and saving energy.

Overall Design of the 3-Phase Inverter Duty Motor 132kW 180Hp

The Inverter Duty Motor is manufactured with a solid cast iron housing of great thickness, ensuring load-bearing capacity, vibration reduction, and deformation resistance even when working in heavy industrial environments. The entire motor surface is coated with high-quality electrostatic paint to resist oxidation, protecting it against moisture, oil mist, and corrosive chemicals.

At the rear of the motor body, an independently operating forced cooling fan is installed, creating a strong and continuous airflow to help the motor maintain a stable temperature even during extended operation.

Detailed Structure of the 3-Phase Inverter Duty Motor

The Inverter Duty Motor is a 3-phase electric motor designed synchronously, ensuring high performance and durable operation thanks to its main components:

• Stator: Wound with 100% pure copper wire, offering good heat resistance, reduced power loss, and increased durability.
• Rotor: Assembled from electrical steel laminations, helping to increase transmission efficiency and overload capacity.
• Terminal box: Designed into 2 separate compartments to separate the main power supply and the forced cooling fan, ensuring safety and easy connection.
• Forced cooling fan: Operates independently, providing stable cooling for the motor in harsh environments.
• Inverter circuit: Flexibly adjusts frequency, helping the motor run smoothly, reducing vibration, and saving electricity.

Classification of the 3-Phase Inverter Duty Motor 132kW 180Hp by Pole Count

Depending on operational and speed requirements, the 3-Phase Inverter Duty Motor 132kW 180Hp has the following versions:

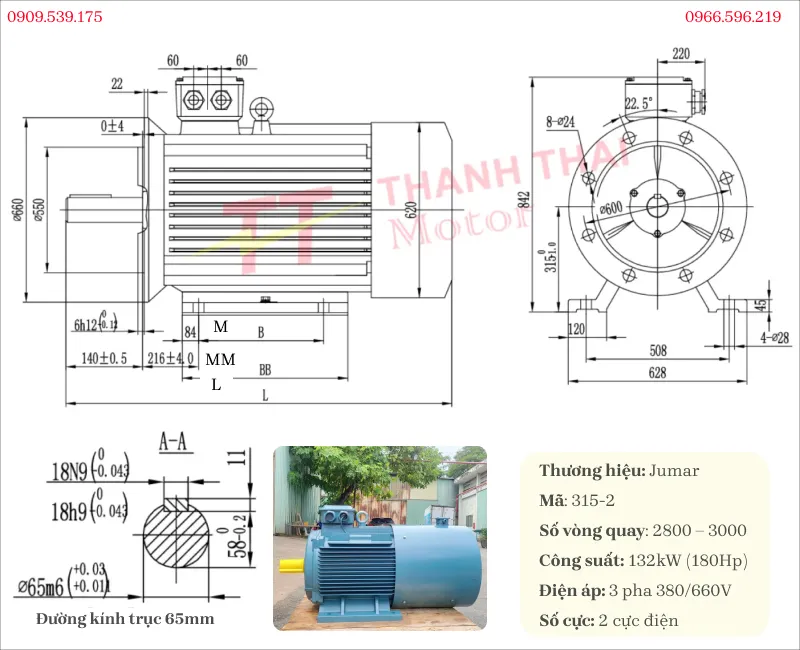

3-Phase Inverter Duty Motor 132kW 180Hp 2-Pole (2800 – 3000 rpm)

Designed for applications requiring high rotational speed, flexible control, and optimal operating performance in heavy-duty industrial environments.

Technical Specifications

Code	315M
Shaft diameter	65mm
Key	18
Flange diameter	660mm
Dimensions	1300mm * 635mm * 840mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• High-power industrial fan systems: Used for boiler fans, metallurgical furnace fans, and factory dust collection systems. The combination of an inverter helps precisely adjust air flow instead of using mechanical valves.
• High-capacity centrifugal pumps: Applied in municipal water supply pumps, fire protection pumps, cooling tower circulation pumps, or wastewater treatment. The inverter easily controls water output pressure and flow rate.
• Heavy industrial processing industry: Provides driving force for large crushers (in agricultural and mineral processing), presses, and screw air compressors.

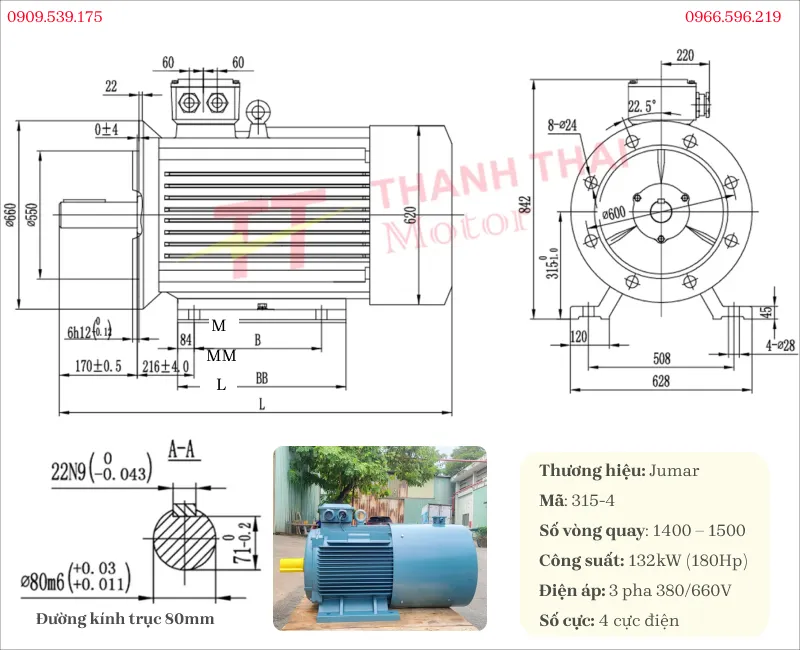

3-Phase Inverter Duty Motor 132kW 180Hp 4-Pole (1400 – 1500 rpm)

An effective transmission solution for industrial systems requiring a balance between rotational speed, torque, and flexible speed adjustment capabilities.

Technical Specifications

Code	315M
Shaft diameter	80mm
Key	22
Flange diameter	660mm
Dimensions	1335mm * 635mm * 845mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Heavy industrial production: Operates large conveyors, pile drivers, stone crushers, industrial exhaust fans, or air compressors.
• Processing and aquaculture: Drives large industrial aquaculture oxygen aeration fan systems, rice milling machines, or large agricultural grinders.
• Environmental treatment: Directly drives ultra-high capacity centrifugal pump assemblies at water supply and drainage stations, or municipal wastewater treatment pumps.

3-Phase Inverter Duty Motor 132kW 180Hp 6-Pole (900 – 1000 rpm)

Noted for its high torque and flexible speed adjustment capability, suitable for heavy-duty systems requiring stable and continuous operation.

Technical Specifications

Code	315L
Shaft diameter	80mm
Key	22
Flange diameter	660mm
Dimensions	1335mm * 635mm * 845mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Mining & Processing: Operates stone crushing systems, mineral grinding, agricultural processing, and large concrete mixers requiring high load capacity.
• Heavy industry: Runs large conveyors, cargo cranes, and high-capacity centrifugal exhaust fan systems.
• HVAC systems: Controls high-pressure exhaust/blower fans in factories and buildings.

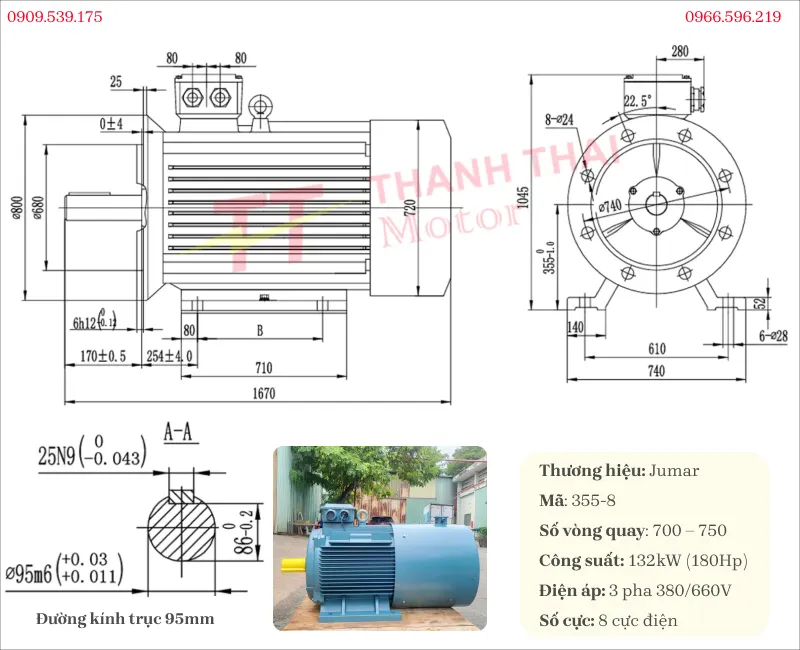

3-Phase Inverter Duty Motor 132kW 180Hp 8-Pole (700 – 750 rpm)

Designed to generate very high torque at low speeds while allowing precise speed adjustment, effectively meeting heavy-duty industrial systems.

Technical Specifications

Code	355M
Shaft diameter	95mm
Key	25
Flange diameter	800mm
Dimensions	1540mm * 1010mm * 730mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Mining and construction materials industry: Specially used for stone crushers, coal crushers, ore crushers, and large-capacity concrete mixers.
• Wood and agricultural processing industry: Operates wood chipper systems, wood flour grinders, wood pellet presses, and large drying lines.
• Metallurgy and mechanical manufacturing: Used for heavy-load conveyors (transporting ore, coal), and hydraulic presses.

Choosing the right 3-Phase Inverter Duty Motor 132kW 180Hp will help the system operate stably, adjust speed flexibly, and optimize electricity usage efficiency. Contact hotline 0909.539.175 for prompt consultation from Thành Thái Motor.

What gearboxes can the 3-Phase Inverter Duty Motor 132kW 180Hp be combined with?

• Heavy-duty gearboxes: R, K, F, S series

In addition, it can also be combined with:

• Coupling: shaft 65mm and above

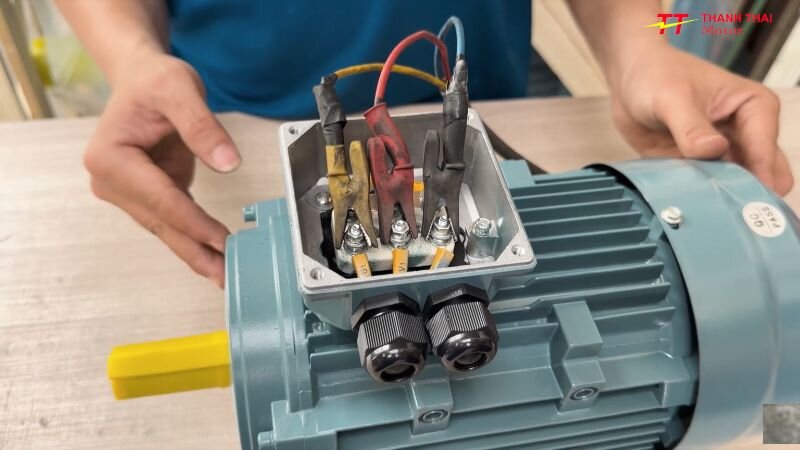

Guide to Wiring a 3-Phase Electric Motor

• Step 1: Preparation and terminal box opening: Use a screwdriver to remove the 4 screws on the motor terminal box cover.
• Step 2: Determine connection positions: Observe the terminal box of the 3-phase motor, where the wiring terminals are clearly labeled U1, V1, and W1.
• Step 3: Connect the power wires:
  • Connect the first power wire to terminal U1.
  • Connect the second power wire to terminal V1.
  • Connect the third power wire to terminal W1.
• Step 4: Completion: After connecting the power wires, check the connections again and supply power to operate the motor.

Choosing the right 3-Phase Inverter Duty Motor 132kW 180Hp will help the system operate efficiently, save energy, and maintain long-term stability. For additional reference, you can watch the electric motor video to better understand the technical characteristics of the product. In addition, the video summarizing industrial motor lines will also help you compare and choose the right solution for your actual usage needs.
