3-Phase Inverter Duty Motor 110kW 150Hp

The 3-Phase Inverter Duty Motor 110kW 150Hp is an electric motor integrated with modern inverter technology to precisely control voltage and frequency. Therefore, the rotation speed and torque are always flexibly adjusted to suit each working mode. Below, Thanh Thai Motor will introduce this inverter duty motor in more detail!

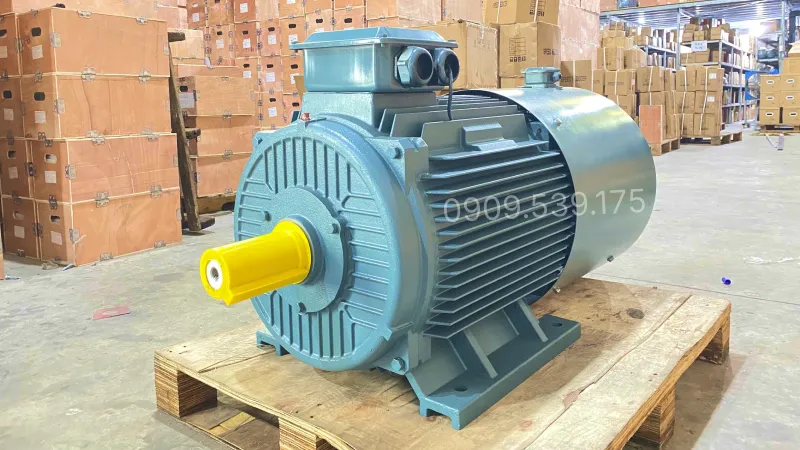

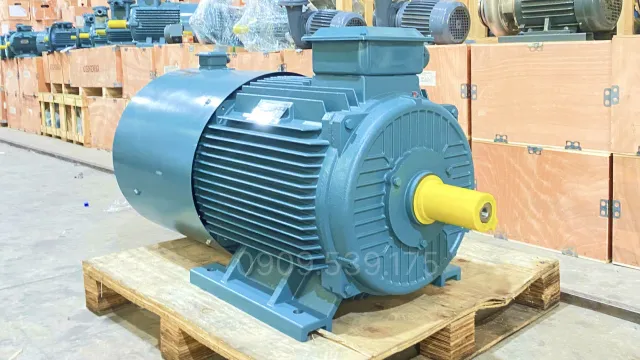

Overall design of the 3-Phase Inverter Duty Motor 110kW 150Hp

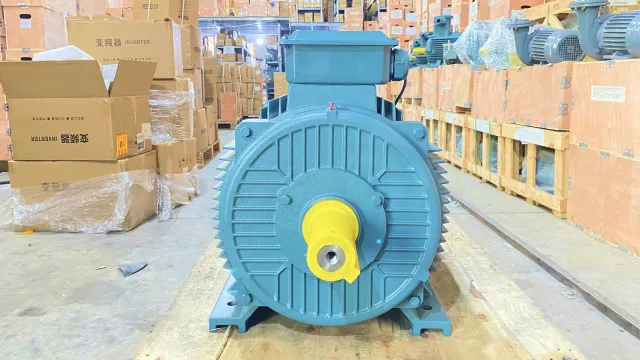

The inverter duty motor is made of a monolithic cast iron housing, creating rigidity and minimizing deformation when working continuously in strong vibration environments. A thick electrostatic paint layer evenly covers the entire surface to resist oxidation, preventing the impact of moisture, dust, and corrosive chemicals.

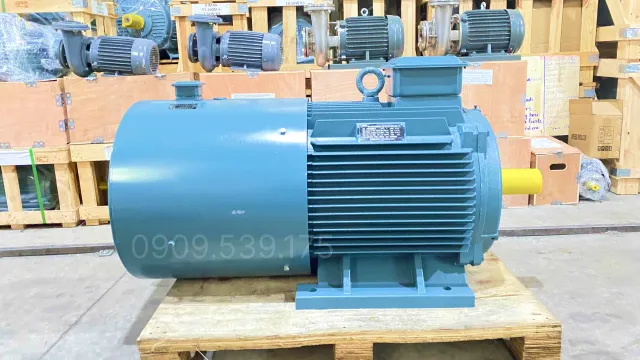

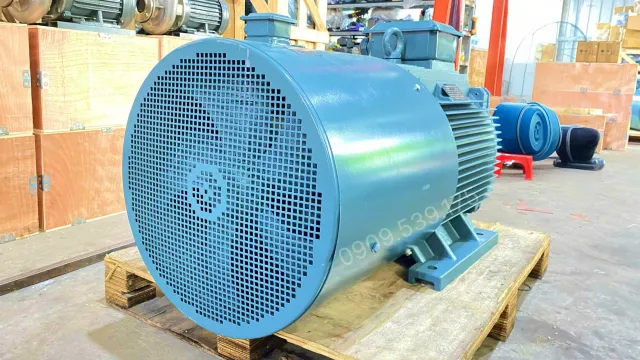

The motor is also equipped with an independently operating forced cooling fan located at the rear of the body. This strong, stable, and continuous airflow ensures the motor is always cooled.

Detailed structure of the 3-phase inverter duty motor

The 3-Phase Inverter Duty Motor 110kW 150Hp is a 3-phase electric motor synchronously designed with the following main components:

• Stator: Completely wound with pure copper wire, reducing power loss and increasing winding durability.
• Rotor: Composed of tightly pressed electrical steel laminations, enhancing transmission efficiency and load-bearing capacity.
• Terminal box: Divided into 2 separate compartments for the main power supply and the forced cooling fan, making wiring easy and increasing safety.
• Forced cooling fan: Operates independently, maintains stable temperature, and protects the motor in harsh working environments.
• Inverter circuit: Capable of flexibly changing frequency, helping smooth operation.

Classification of the 3-Phase Inverter Duty Motor 110kW 150Hp by pole count

Depending on speed requirements, the 3-Phase Inverter Duty Motor 110kW 150Hp has the following versions:

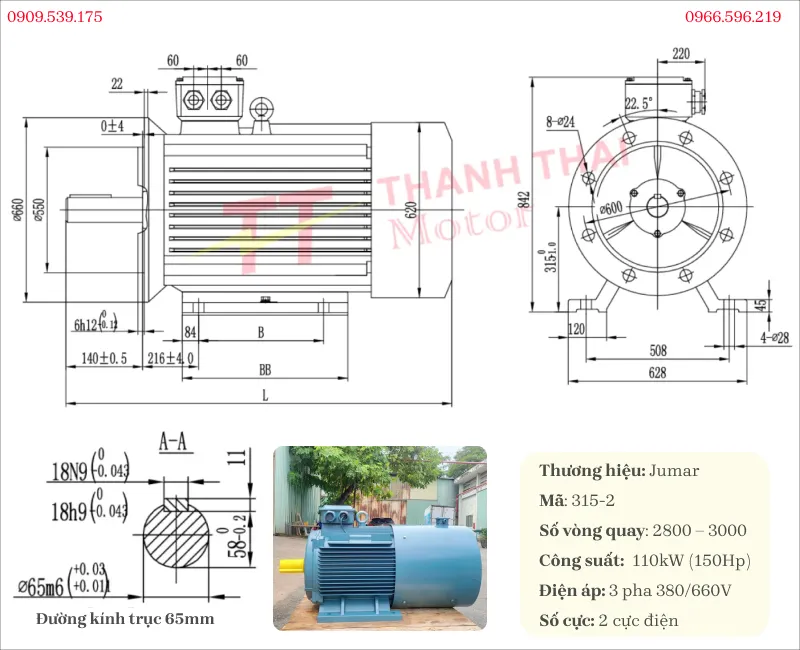

3-Phase Inverter Duty Motor 110kW 150Hp 2 pole (2800 – 3000 rpm)

Featuring high rotation speed, it well meets applications requiring high flow rates and precise control. Thanks to the integrated inverter, the motor operates smoothly, soft-starts, and saves electricity effectively.

Technical specifications

Code	315S
Shaft diameter	65mm
Keyway	18
Flange diameter	660mm
Dimensions	1195mm * 635mm * 845mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Heavy industrial pump systems: Multistage centrifugal pumps, high-rise building water supply pumps, fire protection/fighting pumps, and hydroelectric pumps.
• Industrial suction/blower fan systems: Boiler fans, high-capacity centrifugal exhaust fans in metallurgy, mineral mining, and wood processing.
• Air compressors & Vacuum pumps: Provide powerful rotational force for large industrial screw air compressors or water-ring vacuum pumps.

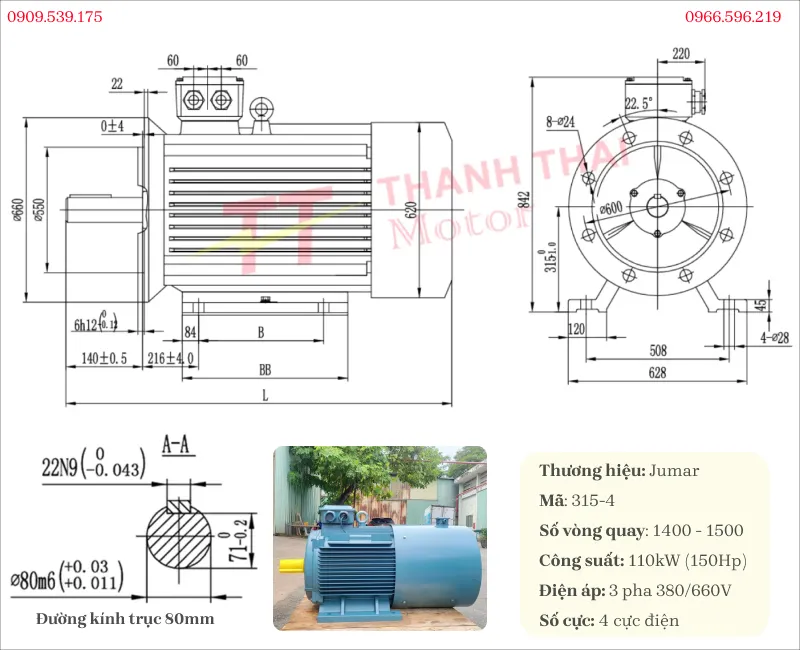

3-Phase Inverter Duty Motor 110kW 150Hp 4 pole (1400 – 1500 rpm)

Delivers a balance between speed and torque, suitable for heavy-duty systems requiring stable operation. Combining with an inverter helps adjust speed flexibly, reduce power consumption, and enhance equipment lifespan.

Technical specifications

Code	315S
Shaft diameter	80mm
Keyway	22
Flange diameter	660mm
Dimensions	1230mm * 635mm * 845mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Agriculture – Forestry – Fishery processing: Operating wood shredding systems, stone crushers, cashew processing machines, and high-capacity oxygen aeration machines in aquaculture.
• Building materials production & mining: Driving stone conveyors, pile driving machines, ore crushers, and sand screening systems.
• Air compressors & cooling systems: Providing powerful and stable rotational force for large screw air compressor assemblies or industrial cooling chiller systems.

3-Phase Inverter Duty Motor 110kW 150Hp 6 pole (900 – 1000 rpm)

Possesses large torque and stable operation capabilities at low speeds. When combined with an inverter, the motor helps control speed precisely, reduces vibration, and optimizes efficiency for continuously operating heavy-duty systems.

Technical specifications

Code	315L
Shaft diameter	80mm
Keyway	22
Flange diameter	660mm
Dimensions	1335mm * 635mm * 845mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Building materials industry: Operating concrete mixing plants, stone crushers, brick pressing machines, and heavy material transport conveyors.
• Water treatment & Environment: Driving high-capacity water pumps, seafood aquaculture aeration machines, and industrial boiler suction/blower fans.
• Mining & Mechanical engineering: Used in large industrial drilling machines, metal cutting machines, or heavy goods lifting winch systems.

3-Phase Inverter Duty Motor 110kW 150Hp 8 pole (700 – 750 rpm)

Designed for heavy-duty applications requiring high torque and low rotation speed. Thanks to flexible control from the inverter, the motor operates smoothly, stably, and well meets continuous industrial working requirements.

Technical specifications

Code	315L
Shaft diameter	80mm
Keyway	22
Flange diameter	660mm
Dimensions	1310mm * 635mm * 845mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Mining and metallurgy: Driving industrial suction/blower fans, rolling mills, and coal conveyor systems.
• Processing and environmental industry: Used for garbage compactors, large-capacity sludge pressing machines, waste shredders, and heavy material mixing machines.
• Industrial pump/compressor systems: Running large-flow water pumping stations, chemical pumps, oil pumps, and factory-scale air compressor and refrigeration compression systems.

Thanks to its flexible speed-changing capability, the 110kW 150Hp inverter duty motor is widely used in modern pumping, fan, and industrial machinery systems. Thanh Thai Motor is always ready to support technical consultation via hotline 0909.539.175.

Which gearbox can the 3-Phase Inverter Duty Motor 110kW 150Hp be combined with?

• Heavy-duty gearbox: Cycloidal Gearbox, K-Series Helical Bevel Gearbox, R-Series Inline Helical Gearbox, S-Series Helical Worm Gearbox, F-Series Parallel Shaft Helical Gearbox

In addition, it can also be combined with:

• Coupling and pulley: 75mm

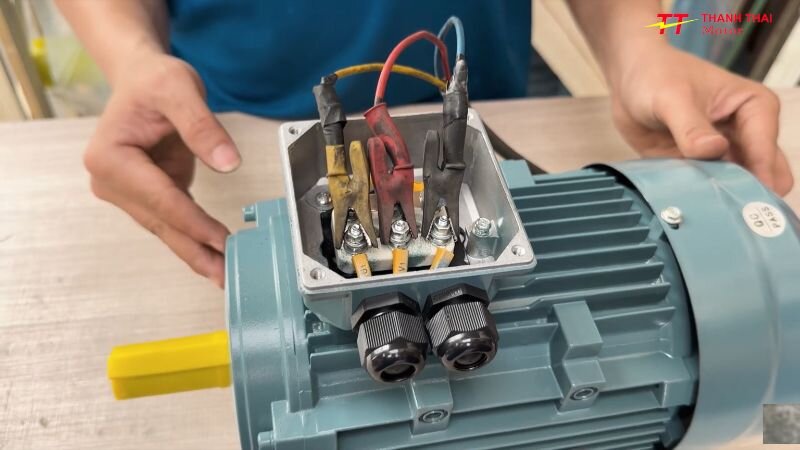

Guide to connecting the 3-phase electric motor

• Step 1: Use a screwdriver to remove 4 screws to open the terminal box cover of the motor.
• Step 2: Prepare 3 power wires of 380V and identify the connection terminals U1, V1, W1 inside the terminal box.
• Step 3: Sequentially connect the 3 power wires to the 3 terminals U1, V1, W1. Then, use pliers to tighten the nuts, ensuring a secure connection.
• Step 4: Finally, supply power to run a test and check the motor’s operation.

The 3-Phase Inverter Duty Motor 110kW 150Hp is a large-capacity drive solution that helps control speed flexibly, operate stably, and save electricity. With the ability to combine with many heavy-duty gearbox lines, the product is suitable for industrial systems requiring high durability and performance. Customers can refer to the electric motor video or view the summary video to better understand the structure and practical application of the product.
