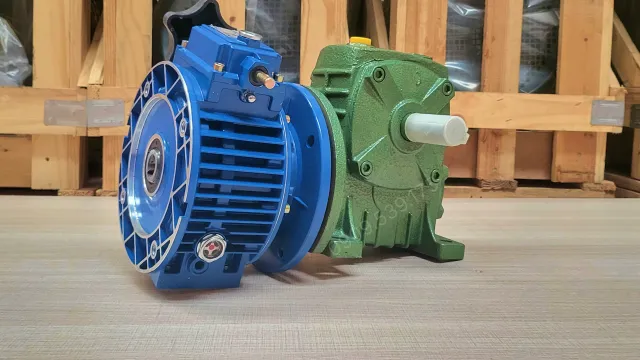

2-Stage UDL Gearbox 1.5kW – WPDA 80

The 2-Stage UDL Gearbox 1.5kW – WPDA 80 is a gearbox line featuring a perfect combination of a mechanical speed variator (UDL) and a worm gearbox, suitable for conveyor belts, packaging machines, processing machines, and automation systems requiring low speed but high torque.

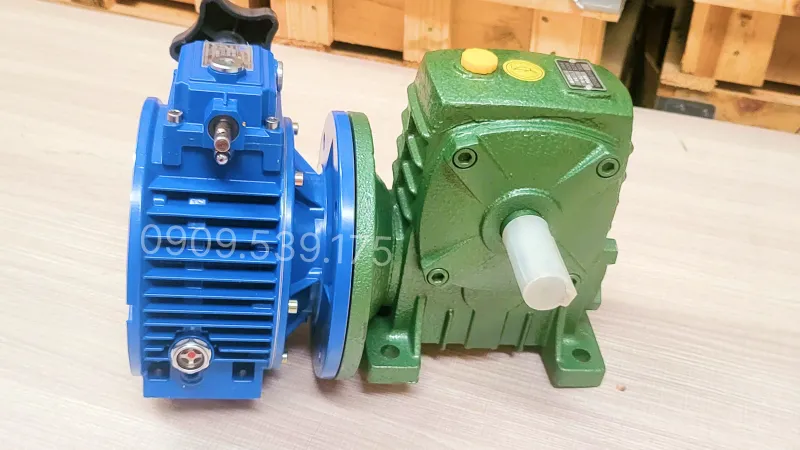

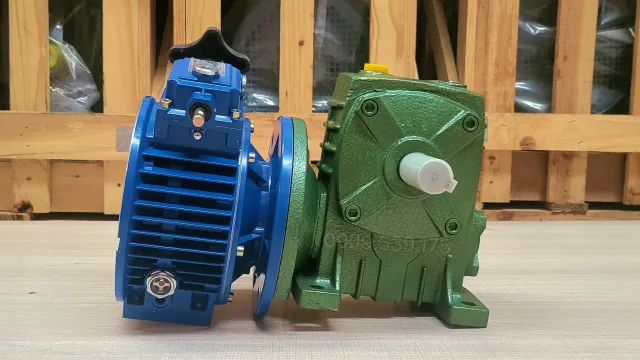

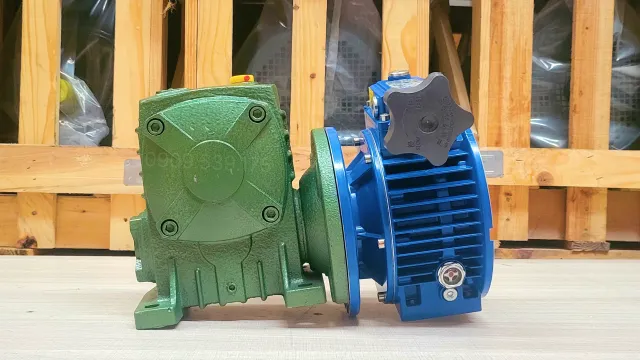

General Design of the 2-Stage UDL Gearbox 1.5kW – WPDA 80

The Mechanical Speed Variator 1.5kW 2Hp is directly mounted to the WPDA 80 worm gearbox. This device is assembled with an electric motor, specifically a 3-phase electric motor of 5.5kW 7.5Hp and a 3-phase electric motor of 7.5kW 10Hp.

• As a 2-stage gearbox designed with a robust, modern style, it ensures stable operation under continuous industrial conditions.
• The gearbox housing is made of high-grade aluminum alloy and cast iron, reducing weight while maintaining structural rigidity and excellent heat dissipation.
• The industrial blue paint finish not only enhances aesthetics but also provides effective corrosion resistance against humid and dusty environments.
• The UDL unit is directly mounted onto the WPDA 80 gearbox, forming a compact yet powerful 2-stage drive assembly that significantly increases output torque.
• The black speed control knob positioned on the UDL body allows users to easily adjust the speed without stopping the machine or changing mechanical mechanisms.

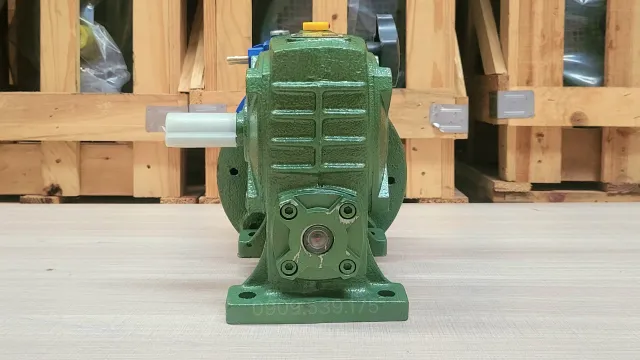

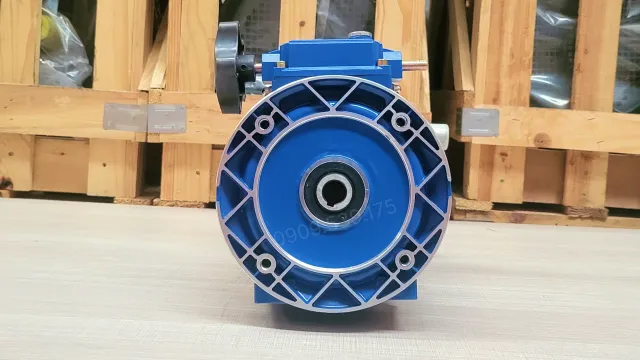

Structure of the 2-Stage UDL Gearbox 1.5kW – WPDA 80

As a 2-stage gearbox structured by combining a mechanical speed variator (UDL) with a WPDA worm gearbox featuring a compact and unique design, its internal structure is meticulously crafted with precision-engineered components, ensuring high efficiency and durability:

• UDL 1.5kW 2Hp Mechanical Speed Variator: Allows smooth acceleration and deceleration, with precise adjustment during operation.
• WPDA 80 Worm and Worm Wheel Assembly: Made of hardened alloy steel with a high-grade bronze worm wheel, ensuring stable power transmission, reduced friction, and extended lifespan.
• Input Shaft: Directly connected to the motor via the UDL unit, ensuring stable power transmission.
• Output Shaft: Available in solid or hollow configurations, delivering high torque, stable speed, and durable operation.
• Breather Plug & Oil Cap: Helps balance pressure, cool down, and maintain lubrication oil quality over long periods.
• Housing: Made of thick cast aluminum, vibration-resistant and providing good heat dissipation in harsh working environments.

Technical Specifications of the 2-Stage UDL Gearbox 1.5kW – WPDA 80

Below are the technical specifications of the 2-Stage UDL Gearbox 1.5kW – WPDA 80

Specifications of the UDL 1.5kW 2Hp Mechanical Speed Variator

The data below demonstrates the rotational speed control and fine-tuning capability before transmitting force to the final gearbox

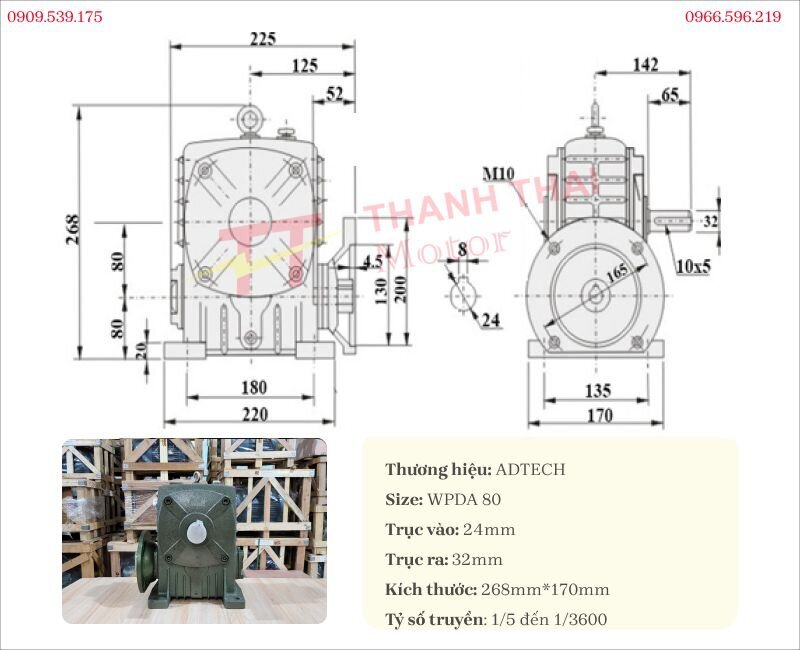

Technical Specifications of WPDA 80 Worm Gearbox

These parameters describe the mechanical characteristics at the final output

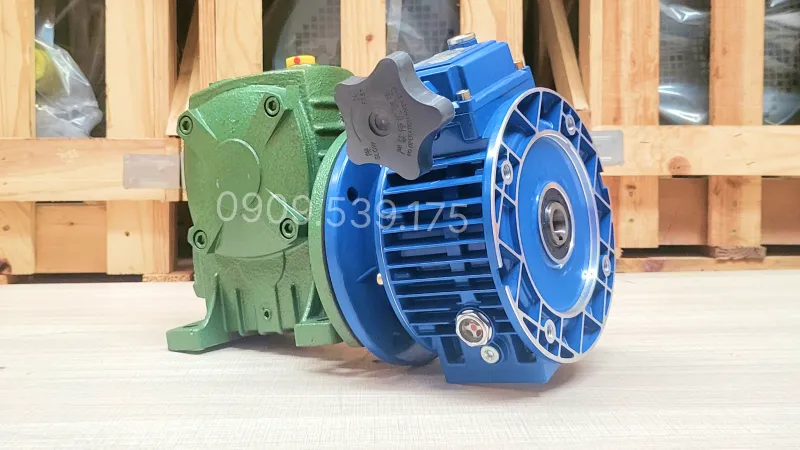

Applications of the 2-Stage UDL Gearbox 1.5kW – WPDA 80

With flexible speed control, smooth and durable operation, the 2-stage worm gearbox, thanks to its outstanding advantages and flexible speed regulation, is the perfect choice for machinery systems requiring stable speed, high torque, and high efficiency.

• Thanks to its stable performance and flexible speed adjustment capability, the UDL – WPDA 80 gearbox is widely applied in various fields.
• Conveyors, assembly lines, automated cargo transportation systems.
• Agitators, mixers, grinders, dryers, filling machines.
• Packaging machines, labeling machines, industrial presses, and cutting machines.
• Printing machines, textile machines, metal bending machines, mechanical processing equipment.
• Lifting equipment, turntables, screw conveyors, automated robots.
• Applications in agriculture, food processing, and water treatment.

Installation Guide for the 2-Stage UDL Gearbox 1.5kW – WPDA 80

To ensure the 2-Stage UDL Gearbox 1.5kW – WPDA 80 operates stably, transmits motion accurately, and achieves high efficiency, please follow these installation steps:

• Step 1: Mount the 1.5kW electric motor to the UDL mechanical speed variator. Insert the motor shaft into position, align the key with the keyway, press the flange firmly, and evenly tighten the fixing bolts.
• Step 2: Connect the output of the UDL speed variator to the WPDA 80 worm gearbox. Align the two shafts, check concentricity, and tighten the bolts to ensure a secure connection.
• Step 3: Check the entire drive assembly, add lubrication oil if necessary, and manually rotate the shaft to ensure there is no jamming before supplying power for a no-load test run.

After proper technical installation, the UDL 1.5kW – WPDA 80 drive system will provide flexible speed regulation, stable deceleration, and increased torque, making it suitable for conveyors, agitators, mixers, packaging machines, and various other industrial equipment.

Watch the instructional gearbox video from Thành Thái Motor to learn how to properly install, fill with oil, operate, and maintain the gearbox. The video compilation provides practical procedures to help the equipment operate stably, durably, and achieve optimal performance.
