2-Stage UDL Gearbox 1.5kW – WPDA 100

The 2-Stage UDL Gearbox 1.5kW – WPDA 100 is a premium industrial transmission product line, constructed by assembling a mechanical speed variator (UDL) combined with a worm gearbox. This combination helps the device adjust speed flexibly, increases output torque, and ensures smooth, stable, and durable operation over a long period. With a modern design, sturdy structure, and easy speed adjustment capability, this product is an optimal transmission solution that enhances operational efficiency and saves maintenance costs.

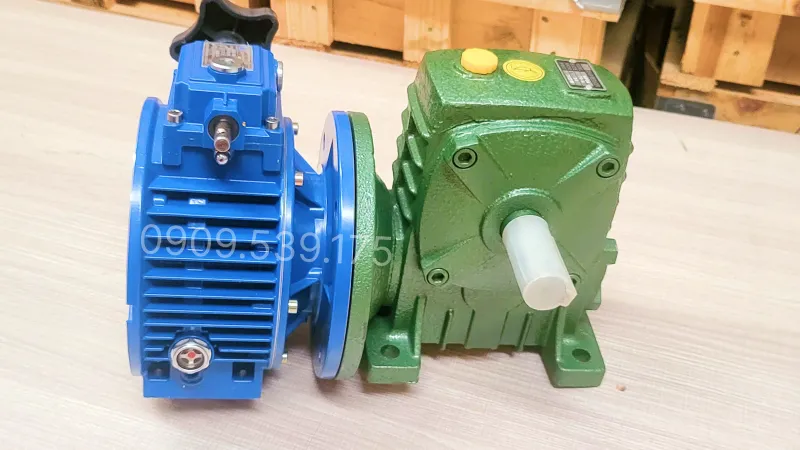

Overview Design of the 2-Stage UDL Gearbox 1.5kW – WPDA 100

As a compact and unique gearbox product line, energy-saving, and powerful, the 2-stage gearbox is built with a durable, sturdy, and user-friendly design, meeting high technical standards in heavy industrial working environments.

• The gearbox housing is made of monolithic aluminum alloy and cast iron, helping dissipate heat quickly, withstand heavy loads, and resist rust and corrosion during continuous operation.
• The industrial blue electrostatic painted surface not only creates an aesthetic look but also helps prevent oxidation, dust, and grease adhesion.
• The UDL speed variator is installed directly in front of the WPDA 100 gearbox, featuring a convenient speed adjustment knob, allowing users to change the rotation speed even while the machine is running.
• The two-stage transmission system between UDL and WPDA significantly increases output torque while maintaining stable speed and high efficiency.

Internal Structure of the 2-Stage UDL Gearbox 1.5kW – WPDA 100

The Mechanical Speed Variator 1.5kW 2Hp is directly coupled with the WPDA 100 worm gearbox, delivering powerful operation, increasing output torque, and reducing overall dimensions for convenient installation in various positions.

This equipment series is coupled with an electric motor, specifically a 3-Phase Electric Motor paired with a 5.5kW 7.5Hp 3-Phase Electric Motor and a 7.5kW 10Hp 3-Phase Electric Motor.

• Inside the UDL – WPDA 100 gearbox is a precision mechanical system ensuring durable and efficient operation:
• The UDL mechanical speed variator is directly connected to the 1.5kW (2HP) electric motor, allowing continuous and stable speed adjustment.
• The WPDA 100 worm and worm gear assembly is made of hardened alloy steel, while the worm gear is crafted from high-grade phosphor bronze, ensuring smooth transmission, reduced friction, and lower noise.
• The input shaft receives transmission from the UDL, while the output shaft of the WPDA 100 provides high torque, low speed, and stability.
• The easy-to-operate speed adjustment knob allows quick adjustment of fast and slow speeds according to practical requirements.
• The breather plug and oil cap help reduce heat, balance pressure, protect lubricating oil, and extend equipment lifespan.

Specifications of the 2-Stage UDL Gearbox 1.5kW – WPDA 100

Below are the basic technical specifications of the UDL 1.5kW – WPDA 100 gearbox

Specifications of the UDL 1.5kW 2Hp Speed Variator

The data below demonstrates the capability to control and fine-tune rotational speed before transmitting power to the final gearbox

Specifications of the WPDA 100 Worm Gearbox

The shaft dimensions and specifications of the WPDA 100 serve as the basis for technicians to machine couplings and connect directly to the production line.

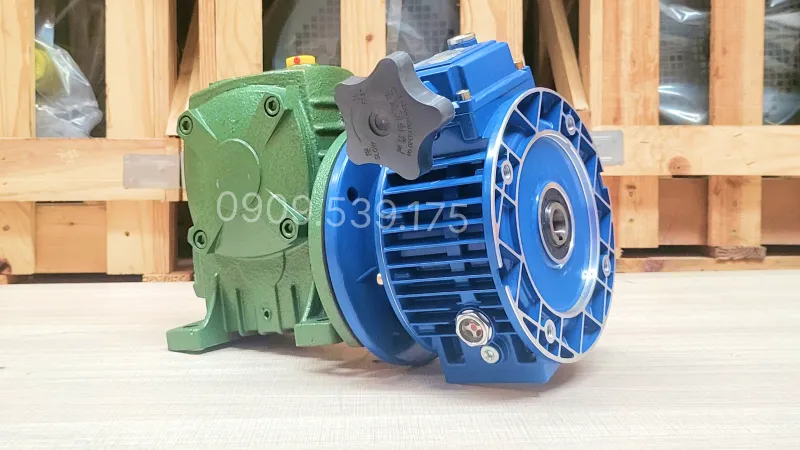

Applications of the 2-Stage UDL Gearbox 1.5kW – WPDA 100

With a robust design and flexible speed control capability, it is widely applied in various industries:

• Conveyors, assembly lines, and automated goods transportation systems.
• Agitators, mixers, grinders, and dryers in the food, pharmaceutical, and chemical sectors.
• Packaging machines, filling machines, and labeling machines in automated production lines.
• Textile machines, printing machines, cutting machines, mechanical processing machines, and metal bending machines.
• Lifting equipment, turntables, industrial robots, and roller conveyors.
• Applications in agriculture, water treatment, and systems requiring frequent speed changes.

Installation Guide for the 2-Stage UDL Gearbox 1.5kW – WPDA 100

To ensure the transmission system operates stably and achieves high efficiency, install the 2-stage UDL Gearbox 1.5kW – WPDA 100 according to the following steps:

• Step 1: Install the 1.5kW motor onto the first UDL speed variator. Align the shaft, keyway, and flange correctly, then tighten the bolts.
• Step 2: Connect the first UDL to the second UDL. Check that the two shafts are coaxial and the joints are secure before fixing them.
• Step 3: Install the output of the second UDL to the WPDA 100 gearbox. Accurately align the shaft and keyway, evenly tighten the bolts, and manually rotate the shaft to test before operation.

After complete installation, the 2-stage UDL – WPDA 100 transmission system provides flexible speed adjustment, efficient reduction, and increased torque, making it suitable for conveyors, agitators, mixers, and various industrial equipment.
