WPDA 100 Worm Gearbox

The WPDA 100 worm gearbox is a specialized drive device used to reduce rotational speed and increase torque in industrial mechanical systems. With a right-angle input-output shaft design, durable cast iron housing, and stable operation, the gearbox delivers high efficiency in applications such as conveyors, mixers, pressing systems, food processing machinery, etc. This is an ideal choice for businesses needing a robust and durable drive solution.

General design of the WPDA 100 worm gearbox

The worm gear gearbox features a sturdy design, larger in size than smaller series like WPDA 80 and WPDA 50, suitable for medium and large-capacity systems. The housing is made of solid cast iron with high load-bearing capacity, coated with high-quality electrostatic paint to enhance oxidation and rust resistance, ensuring durability in humid environments or conditions with mild chemicals.

In addition, the input and output shafts are arranged perpendicularly to each other, making it easy to change the drive direction and save installation space. When combined with an electric motor, the device forms a gear motor that increases torque and ensures stable system operation.

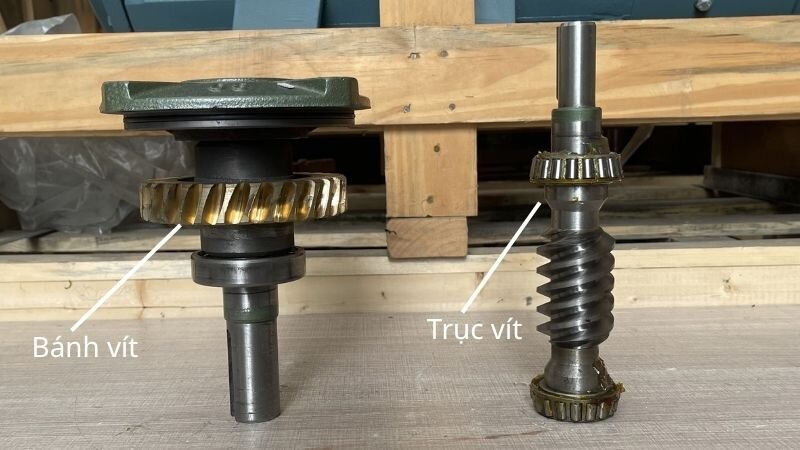

Detailed internal structure of the WPDA 100 worm gearbox

Inside the WPDA 100 gearbox is a combination of precisely machined mechanical components with high load-bearing and wear-resistant capabilities:

• Worm shaft: Made from heat-treated alloy steel, with a hard-plated surface to increase wear resistance and ensure stable long-term transmission.
• Worm gear: Manufactured from high-quality alloy bronze with self-lubricating properties, helping to reduce friction during transmission and extend the lifespan of the entire system.
• Bearings: Premium quality is used to reduce friction between rotating components, minimizing vibration and noise during operation.
• Housing: Made of solid cast FC iron, thick and sturdy, protecting the entire internal transmission mechanism while limiting deformation when operating under heavy loads.
• Transmission mechanism: The worm shaft meshes perfectly with the worm gear at a fixed gear ratio, providing efficient, stable speed reduction without output jerks.

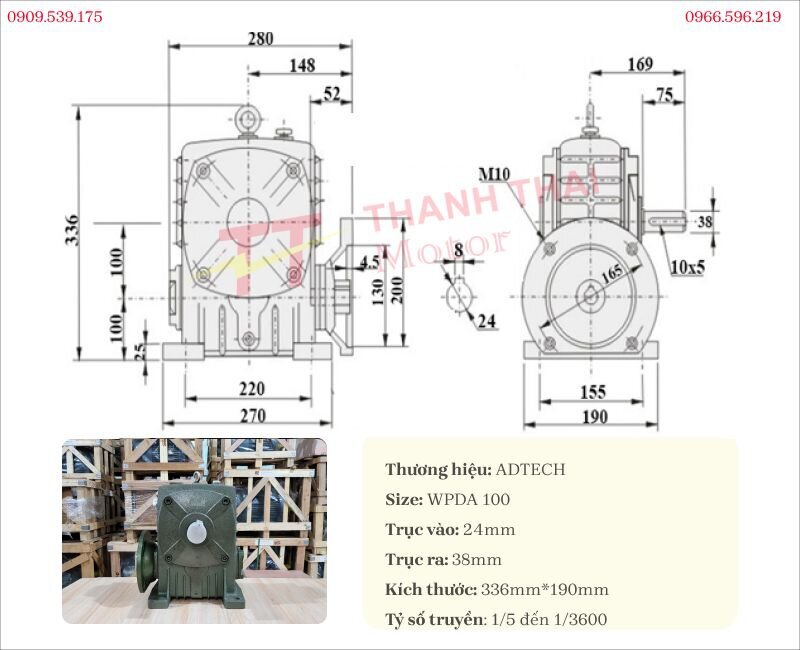

Technical specifications of the WPDA 100 gearbox

The WPDA 100 gearbox possesses a durable design, precise machining, and excellent load-bearing capacity

Functions and applications of the WPDA 100 worm gearbox

• Food processing industry: Mixers, juice squeezers, packaging machines, ensuring a stable and efficient processing procedure.
• Water and environmental treatment industry: Agitators, sludge dewatering machines, increasing efficiency in wastewater treatment systems.
• Machine building and mechanical machining industry: Lathes, cutting machines, drilling machines, supporting precise speed adjustment in production.
• Textile and fabric dyeing industry: Dyeing machines, weaving machines, helping adjust rotational speed and ensuring continuous production.
• Conveyor systems: Used in conveyors and conveyor belts, helping transport materials stably and efficiently.
• Heavy industry and automation: Hoisting machines, pressing machines, grinding machines, supporting stable operation in heavy industrial applications.

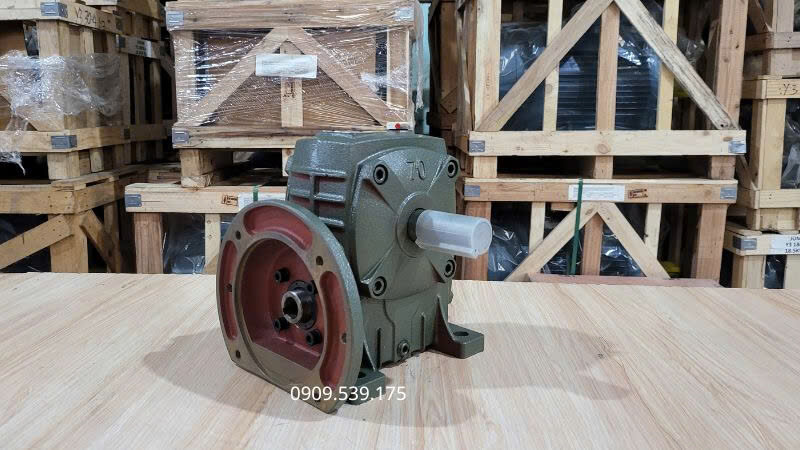

How to add oil to the worm gearbox

For the gearbox to operate stably and minimize wear, oiling must be carried out according to the correct procedure:

• Step 1: Turn off the power supply, open the drain plug to remove all old oil (for used gearboxes), then tighten the drain plug. New gearboxes can be filled with oil directly.
• Step 2: Remove the oil filler plug and pour new oil slowly. Observe the oil sight glass, stop when the oil level reaches about 1/2 of the sight glass.
• Step 3: Securely close the oil filler plug, check the joint positions, and wipe off any oil clinging to the housing before operation.

The WPDA worm gearbox features a sturdy cast iron housing structure, operates smoothly, and is suitable for various industrial drive systems. Through the instruction video by Thành Thái Motor, you will clearly understand the oiling, installation, and efficient operation processes of the device. In addition, follow more summary videos to update many useful technical tips and knowledge.
