Worm Gearbox WPX 120

Worm Gearbox WPX 120 is a high-capacity transmission device, specially used in machinery systems requiring high load capacity and continuous stable operation. With a sturdy design, superior mechanical durability, and efficient deceleration capability, this product optimally meets modern industrial production needs, from manufacturing plants to automated lines.

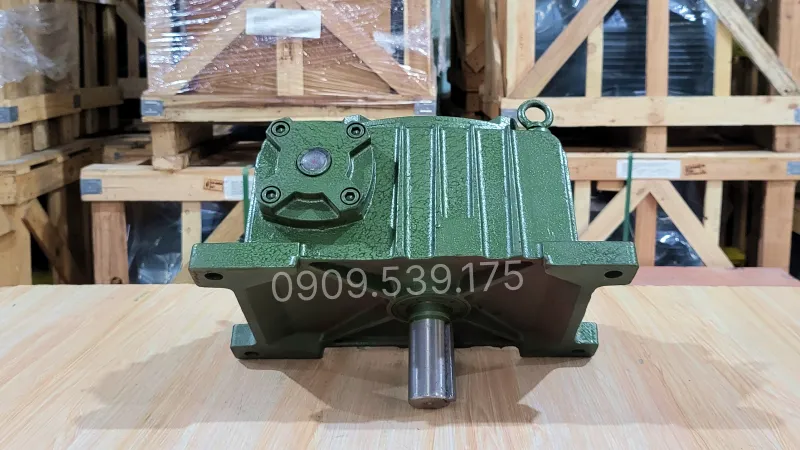

General design of Worm Gearbox WPX 120

The gearbox features a compact cubic structure, easy to arrange in complex installation spaces. The thick housing, cast from high-strength cast iron, helps the device minimize deformation during operation. The input and output shafts are designed at right angles, allowing flexible transmission direction changes while optimizing efficiency for various connection types. Flanges and bolt holes are precisely arranged, convenient for installation with electric motors or other mechanical transmission components.

When the worm gearbox is combined with an electric motor, it forms a complete gear motor, while simultaneously increasing torque, thereby enhancing operating efficiency for the entire system. This combination is particularly suitable for industrial applications such as heavy-duty conveyor belts, material mixers, packaging lines, or automated transmission systems in manufacturing plants.

Internal structure of Worm Gearbox WPX 120

Worm Gearbox WPX 120 is constructed from premium materials with a durable transmission mechanism, ensuring stable long-term operation such as:

• Worm shaft: Made from high-strength alloy steel, hardened and precision-ground to increase durability and reduce wear.
• Worm gear: Manufactured from bronze or brass alloy, featuring good self-lubricating properties and high wear resistance.
• Bearing: Supports stable shaft rotation, reduces vibration, and increases operating accuracy.
• Oil seal: Ensures oil tightness, minimizes leakage, and protects internal components.
• Housing: One-piece cast grey iron, shock-resistant, with good heat dissipation.
• External coating: Premium electrostatic paint, helping prevent rust and resist harsh environmental impacts.

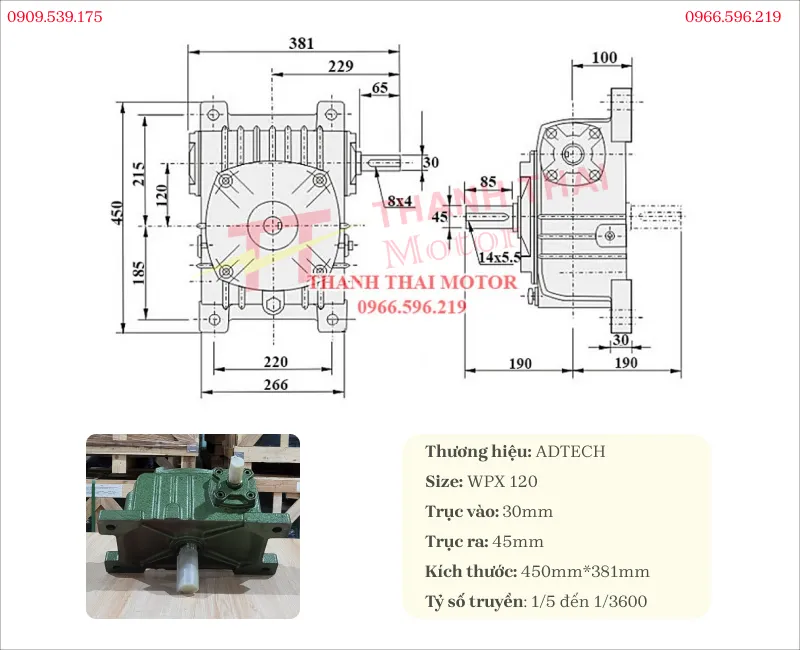

Technical specifications of Worm Gearbox WPX 120

Worm Gearbox WPX 120 easily integrates with various motor types and existing transmission systems, allowing users to customize according to actual usage needs. Can be coupled with a 3-phase 2.2kW 3Hp electric motor, 3-phase 3kW 4Hp electric motor, 3-phase 4.0kW 5.5Hp electric motor via pulleys, couplings, etc.

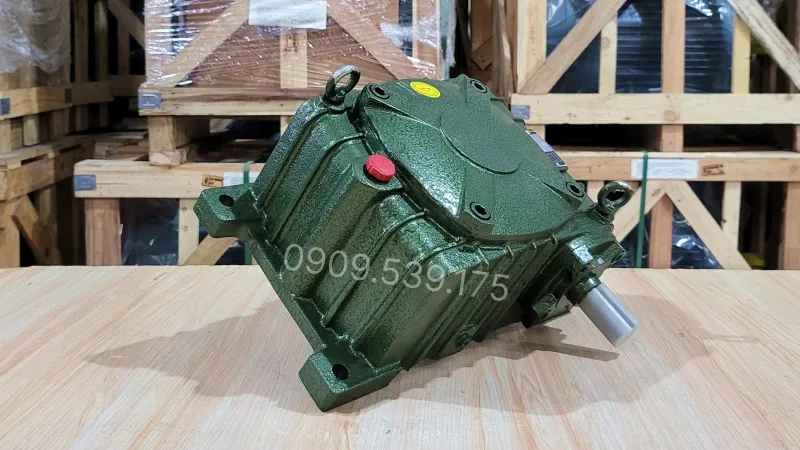

Applications of Worm Gearbox WPX 120

Thanks to its flexibility and transmission efficiency, WPX 120 is commonly used in many industries such as mechanical engineering, food processing, mining, water treatment, and production automation.

• Mechanical manufacturing industry: Used in pressing machines, rolling mills, lathes, and heavy industrial transmission systems.
• Mining and material processing industry: Installed in stone and sand conveyors, crushing equipment, or vibrating screens.
• Food processing and chemical industry: Applied in mixers, solution agitators, or filling equipment.
• Factory automation: Combined with motor systems to control conveyors, robotic arms, or automatic lifting tables.
• Environmental industry: Used in wastewater pump equipment, sludge separation machines, or exhaust gas treatment systems.

Decoding the specifications on the WPX worm gearbox nameplate

The specifications on the worm gearbox nameplate of the WPX series provide essential technical information, helping users easily identify the model, gear ratio, installation parameters, and select the right product suitable for the transmission system.

• Model (WPX): Indicates the gearbox series and frame size. Where WPX is the worm gearbox series.
• Size: Determines shaft dimensions, load capacity, and suitable power.
• Ratio (i): The gear ratio of the gearbox, representing the reduction rate of rotational speed from the input shaft to the output shaft. Common gear ratios include 10, 15, 20, 25, 30, 40, 50, 60, etc. The larger the gear ratio, the lower the output speed and the higher the torque.
• NO/ MFR Date: Batch parameter, manufacturing date information about the shipment.

Worm Gearbox WPX 120 is a reliable transmission solution for machinery systems requiring high torque, stable operation, and long service life. With a sturdy structure, efficient reduction capability, easy integration with electric motors, and diverse gear ratios, the product well meets the usage needs in various industries such as mechanical engineering, food processing, mining, environmental treatment, and automated production lines.

Additionally, Thanh Thai Motor provides gearbox videos and summary videos to help customers access technical information in a more intuitive way.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
