2-Stage Gearbox UDL 0.37kW – WPDA 60

The 2-Stage Gearbox UDL 0.37kW – WPDA 60 is a premium gearbox line combining a mechanical speed variator (UDL) and a worm gearbox, offering flexible speed adjustment, smooth operation, and stable transmission efficiency.

Thanks to its compact, sturdy design and easy speed adjustment, the UDL – WPDA 60 becomes an effective drive solution for many current industries.

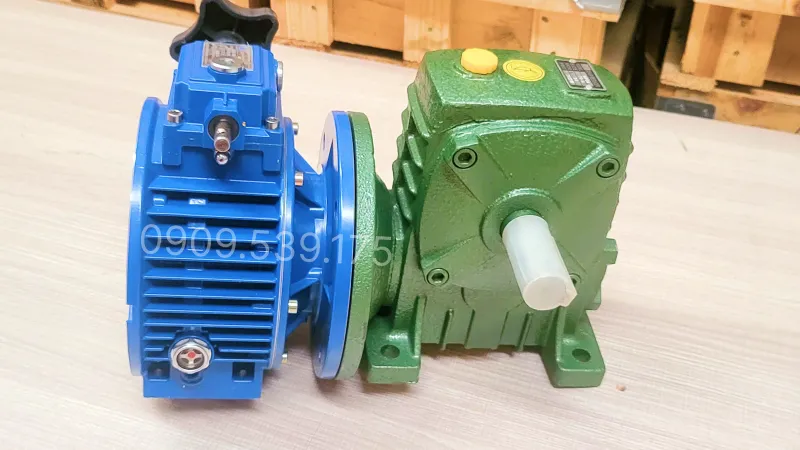

Overview Design of the 2-Stage Gearbox UDL 0.37kW – WPDA 60

A 2-stage gearbox is the combination of a 0.37kW 0.5Hp motor speed controller with the WPDA 60 worm gearbox, creating an optimal, modern design suitable for continuous industrial working environments.

The gearbox housing is made of precision-cast aluminum alloy and cast iron, helping the product dissipate heat quickly, withstand heavy loads, and effectively resist rust. The surface is coated with a signature blue color, which both enhances aesthetics and increases oxidation resistance while protecting the equipment from dust and moisture. The black speed adjustment knob located on the UDL body allows users to easily adjust the rotational speed without stopping the machine or changing the mechanical mechanism.

The UDL unit is directly connected to the WPDA 60 worm gearbox, forming a powerful 2-stage transmission assembly that helps increase output torque and maintain a stable speed during operation.

Internal Structure of the 2-Stage Gearbox UDL 0.37kW – WPDA 60

The main structure of the gearbox includes the following components:

• UDL mechanical speed variator connected directly to an electric motor, specifically a 3-phase electric motor – 3-phase electric motor 0.37kW 0.5Hp.
• The worm and worm wheel assembly of the WPDA 60 is made of hardened steel, ensuring high performance, durability, and high load capacity.
• Mechanical speed adjustment knob helps change speed quickly and slowly with precision.
• Breather plug and oil cap support pressure balancing, effective heat dissipation, and extend the life of the lubricating oil.
• The input shaft connects to the motor via the UDL unit, while the output shaft of the WPDA 60 generates high torque with slow and stable rotational speed.

Thanks to its rugged structure, high-quality materials, and optimal transmission mechanism, the 2-stage UDL – WPDA 60 gearbox operates stably with low wear and simple maintenance.

Technical Specifications of the 2-Stage Gearbox UDL 0.37kW – WPDA 60

Below are the detailed technical specifications of the UDL 0.37kW – WPDA60 gearbox

Technical Specifications of the UDL 0.37kW 0.5Hp Mechanical Speed Variator

Below is the basic technical information of the mechanical speed variator

Technical Specifications of the WPDA 60 Worm Gearbox

Below are the technical specifications of the WPDA worm gearbox

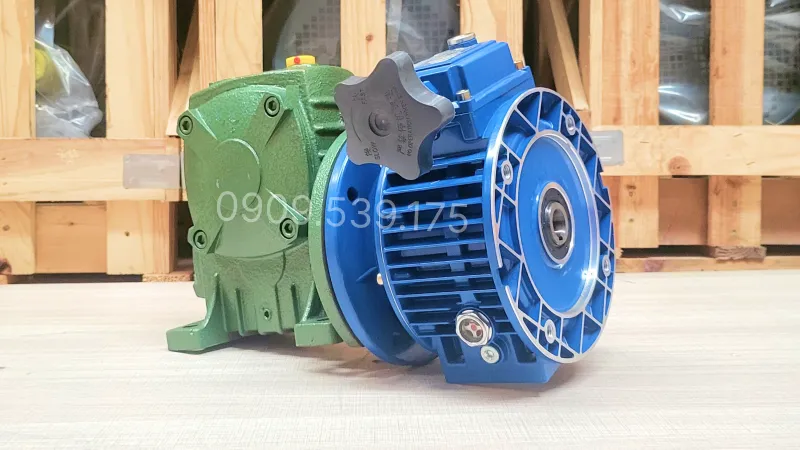

Applications of the 2-Stage Gearbox UDL 0.37kW – WPDA 60

For the 2-stage worm gearbox, thanks to its outstanding advantages and flexible speed regulation capabilities, the UDL – WPDA 60 gearbox is widely used in many production fields:

• Conveyors, conveyor belts, and material handling systems.
• Agitators, feed mixers.
• Packaging machines, filling machines, and labeling machines in automation lines.
• Textile machines, medical face mask production machines.

Installation Guide for the 2-Stage Gearbox UDL 0.37kW – WPDA 60

For the 2-stage UDL 0.37kW – WPDA 60 drive system to work stably and achieve optimal performance, perform the installation according to the following steps:

• Step 1: Install the 0.37kW electric motor into the UDL mechanical speed variator. Ensure that the motor shaft, key, and flange are correctly positioned before tightening the fixing bolts.
• Step 2: Connect the output of the UDL speed variator to the WPDA 60 worm gearbox. Check the concentricity between the two shafts, fit the flange snugly, and tighten the bolts evenly to avoid vibration during operation.
• Step 3: Check the joints, lubricating oil level, and shaft rotation capability. Then supply power for a no-load test run to evaluate smoothness, noise, and transmission capability of the equipment.

Thanh Thai Motor provides detailed gearbox video guides to help you easily perform installation, inspection, oil filling, and gearbox maintenance steps. Watch the summary video to use the equipment correctly, improve operating performance, and extend product lifespan.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
