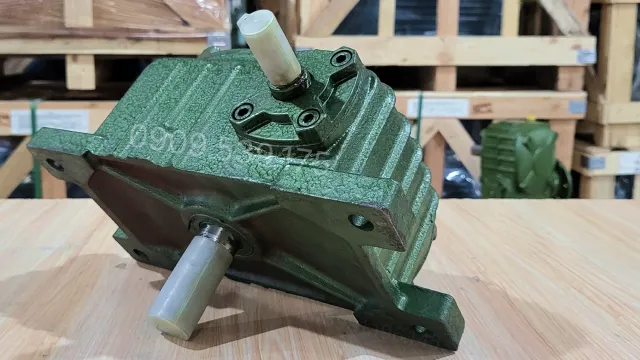

Worm Gearbox WPO 120

The Worm Gearbox WPO 120 is an optimal choice for systems requiring high transmission performance while ensuring durability and stability. With an offset input and output shaft layout (parallel shaft style), the gearbox not only saves space but also delivers outstanding efficiency during operation. The WPO gearbox product line is increasingly popular in Vietnam due to its durability, smooth operation, and cost-effectiveness suitable for various production scales.

Overview design of the Worm Gearbox WPO 120

The worm gearbox features a solid cast iron outer housing, providing rigidity and the ability to withstand high impact forces during operation. The internal shafts are made of stainless steel, ensuring stable and durable operation over time while minimizing wear and tear.

This Worm Gearbox WPO 120 is typically flexibly connected with an electric motor to form a more powerful and efficient operating unit known as a gear motor. This combination helps machinery run smoother, significantly increases pulling force, and adjusts rotational speed to suit specific operational requirements.

Additionally, the WPO 120 gearbox is coated with a special exterior paint layer to protect the machine from negative environmental and chemical impacts. This paint layer helps the machinery last longer and maintain stable working performance over a long period of use.

Detailed structure of the Worm Gearbox WPO 120

The WPO 120 gearbox is constructed with the following main components:

• Worm shaft: The main driving component, manufactured from high-grade stainless steel to ensure longevity and load-bearing capacity.
• Worm gear: The component that receives power from the worm shaft, made of copper alloy to reduce friction, ensure smooth operation, and maintain performance over the long term.
• Drive mechanism: The worm shaft and worm gear combine precisely to form an efficient gear reduction mechanism, helping the motor operate stably with low noise.

Thanks to its rational structure, the device enhances rotational speed control and saves energy during use.

Technical specifications of the Worm Gearbox WPO 120

The specifications below are used to determine installation capabilities and select the appropriate gear ratio for the system.

Functions and applications of the Worm Gearbox WPO 120

The WPO 120 product is used in various machinery and equipment, including:

• In the construction industry: Used for concrete mixers, crushers, pulley pullers, etc.
• In the food industry: Suitable for conveyors, packaging machines, labeling machines, etc.
• In civil and agricultural equipment: Used for water pump systems, automatic irrigation machines, car wash systems, etc.
• In the mechanical manufacturing field: Installed for CNC machines, lathes, grinders, etc.

Thanks to its design flexibility and high applicability, the WPO 120 gearbox can be easily integrated into various systems to improve operational performance.

Guide to distinguishing the input and output shafts of a gearbox

To distinguish the input and output shafts of a gearbox, you can follow these steps:

Step 1: Identify the motor mounting side

Observe the end of the gearbox with a flange or motor mounting hole. This is the input shaft position, receiving motion from the motor.

Step 2: Identify the power transmission side

Check the remaining shaft end of the gearbox. This is the output shaft, used to transmit torque to the equipment or working mechanism.

Step 3: Observe external details

Check the base, flange, oil filling hole, oil drain hole, and connecting bolts to identify the mounting style and condition of the gearbox.

Step 4: Check mounting dimensions

Compare the shaft diameter, flange dimensions, and bolt hole sizes with the specifications of the motor and the equipment to be connected.

Step 5: Check before putting into use

Ensure that the assembly positions, input shaft, and output shaft are correctly identified according to technical documentation before installation and operation.

In addition to this article, you can refer to the gearbox video for instructions on structure, component identification, and installation procedures. Meanwhile, comprehensive videos on the Thanh Thai Motor channel will provide additional information about motors, gearboxes, and practical drive applications.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The Worm Gearbox WPO 120 is a powerful, durable, and reliable drive device suitable for various high-performance industrial applications. With an optimal design and stable operating capability, this product will certainly be an indispensable part of your machinery system. Contact Thanh Thai Motor immediately for detailed consultation and to own this quality product at a preferential price!
