WPDX 175 Gear Motor 7.5kW 10Hp

The WPDX 175 Gear Motor 7.5kW 10Hp is a complete combination of an electric motor and a gearbox. The gear motor is responsible for reducing the rotational speed of the motor while increasing pulling force, helping machinery operate more smoothly and energy-efficiently.

With a robust design, high load capacity, and superior durability, this worm gear motor is suitable for many heavy industries and modern automation systems.

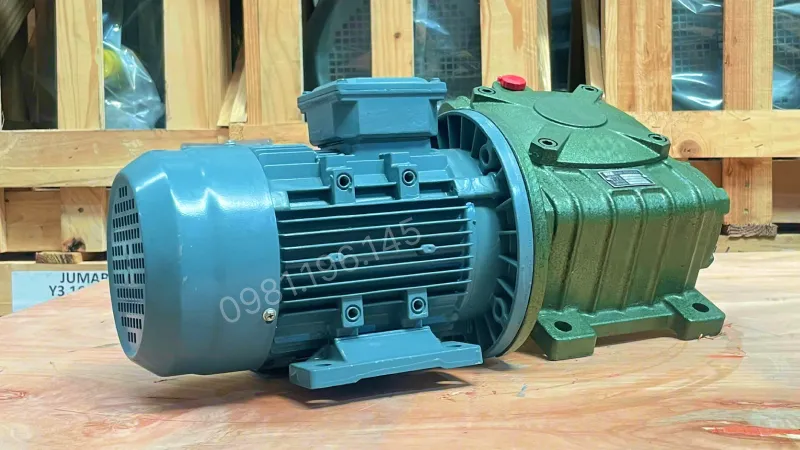

Design Overview of the WPDX 175 Gear Motor 7.5kW 10Hp

The WPDX 175 Gear Motor 7.5kW 10Hp is manufactured according to international standards, ensuring quality and stability under all working conditions. With the gearbox housing made of solid cast iron coated with anti-rust electrostatic paint, the device remains durable when working in high-humidity or dusty environments.

The motor core is wound with pure copper wire, enhancing electrical conductivity and minimizing energy loss. The motor shaft is made of hardened solid steel, helping to transmit stable torque, withstand heavy loads, and reduce vibration during operation. These two devices are connected via a flange; this rigid connection helps the unit operate smoothly.

Detailed Structure of the WPDX 175 Gear Motor 7.5kW 10Hp

As a product belonging to the gear motor segment above 3.7kW, this unit consists of the following main components:

• Electric Motor: A 3-phase 7.5kW 10Hp electric motor that operates stably, saves electricity, and is durable over time.
  • Motor housing: The entire outer housing is made of thick solid cast iron or cast aluminum, coated externally with electrostatic paint to prevent rust and provide good heat dissipation.
  • Stator – Stationary part: High-quality copper winding made of pure copper wrapped around the core, creating a strong magnetic field for smooth operation and minimal energy waste.
  • Rotor – Rotating part: Machined from engineering alloy steel sheets, accurately transmitting motion to the motor shaft.
  • Cooling fan: Installed at the rear of the motor to effectively dissipate heat, maintain stable temperatures during continuous operation, and prevent thermal overload.

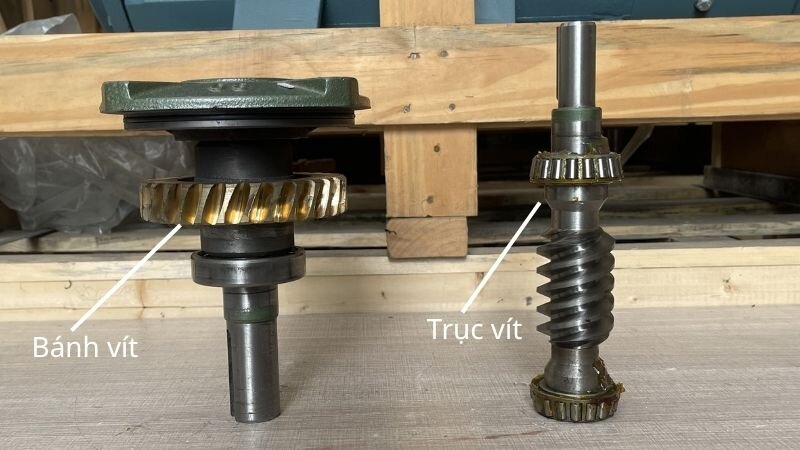

• WPDX 175 Worm Gearbox:
  • Gearbox housing: One-piece casting from solid cast iron, coated with electrostatic paint to prevent rust and corrosion, while enhancing the device’s aesthetics.
  • Worm shaft: Made of hardened alloy steel, capable of withstanding heavy loads with low wear.
  • Worm wheel: Machined from high-grade bronze, meshing perfectly with the worm shaft to reduce friction and noise.
  • Lubricating oil and oil seal: Internal lubricating oil ensures smooth gearbox operation and limits long-term wear. External oil seals prevent oil leakage that could damage the equipment.

Technical Specifications of the WPDX 175 7.5kW 10Hp Motor

When designing industrial mixer mechanisms, screw conveyors, or lifting systems, integrating the flanged drive assembly plays a pivotal role in optimizing transmission efficiency. The drawings and parameter table of the WPDX 175 gear motor combination below will clarify this force distribution structure.

Technical Specifications of the 3-Phase 7.5kW 10Hp Electric Motor

To ensure continuous load maintenance and maximize the conversion of electrical energy into torque force, the 3-phase electric motor is designed with strict mechanical standards. Let’s review the core parameters regarding shaft dimensions, Class F insulation class, and 300mm locating flange diameter summarized in detail below.

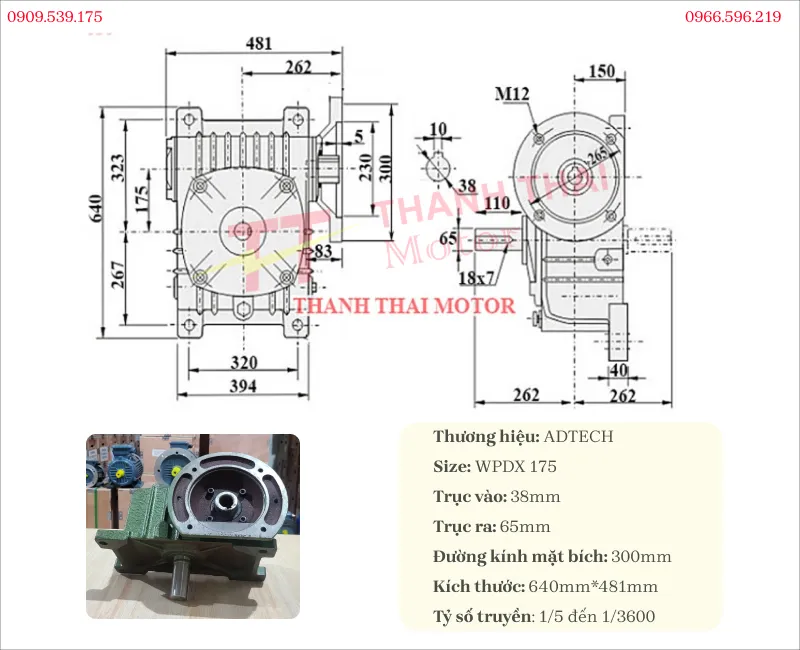

Technical Specifications of the WPDX 175 Gearbox

Below are the detailed parameters of the WPDX size 175 gearbox

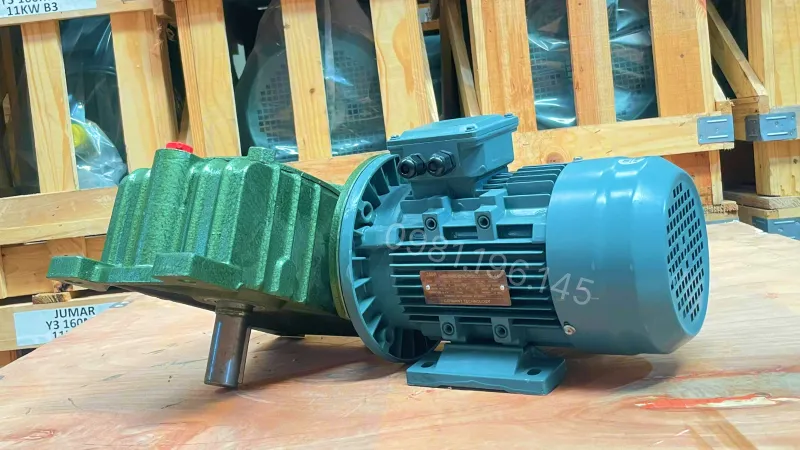

Practical Applications of the WPDX 175 Gear Motor 7.5kW 10Hp

This 3-phase gear motor series is widely applied in many industries such as:

• Industrial conveyor lines and heavy-duty goods transportation conveyors.
• Crushers, mixers, and agitators in building materials, food processing, and chemical production.
• Packaging, filling, and labeling systems in automated production lines.
• Lifting equipment, lifting tables, electric winches, industrial doors, and heavy-duty mechanical applications.

Step-by-Step Guide to Installing the WPDX Worm Gearbox with an Electric Motor

To ensure smooth drive system operation and prevent shaft jamming, users should perform assembly in the following correct sequence:

• Dimension survey: Measure and ensure that the motor shaft diameter fits completely with the input shaft of the gearbox.
• Assembly: Align the shaft centers straight, then push the electric motor flange tightly against the gearbox flange.
• Safety locking: Fasten bolts through the holes on the flange and tighten them evenly to securely fix the two components, preventing vibration during operation.

The WPDX 175 Gear Motor 7.5kW 10Hp features a pure copper wire wound stator combined with a 65mm hardened steel output shaft, helping the system generate strong torque pulling force, durable operation while maximizing energy savings.

Thanh Thai Motor has compiled a summary video of typical equipment and a series of in-depth gear motor videos to help customers easily choose the product that suits their needs.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
