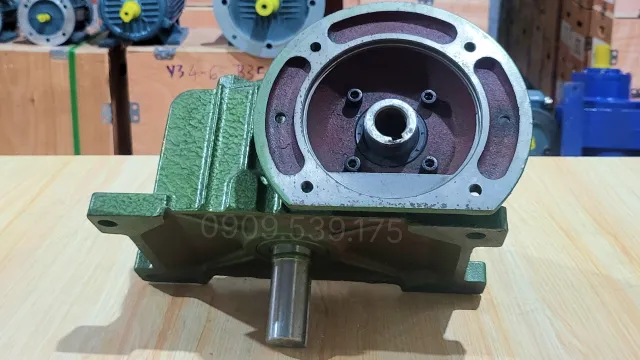

WPDX 175 Worm Gearbox

The WPDX 175 Worm Gearbox is a large-scale industrial transmission device, distinguished by its right-angle input-output shaft design and efficient speed reduction capability. With a sturdy structure, superior durability, and powerful operating capacity, this product is currently a top choice for mechanical engineering, manufacturing, and machine-building enterprises. Let’s explore more detailed information about this gearbox product and its applications in heavy industries with Thanh Thai Motor.

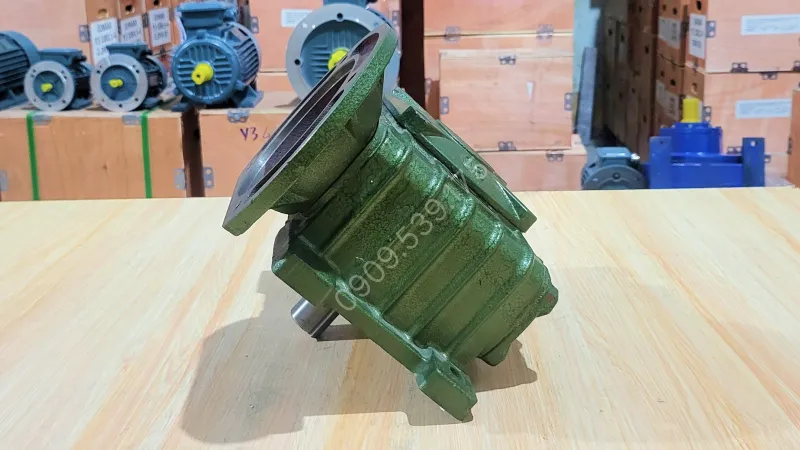

Overview design of the WPDX 175 Worm Gearbox

Gearboxes are typically connected directly to 3-phase electric motors via flanges, forming a high-capacity gear motor assembly. This design significantly increases torque and reduces output speed to meet the technical requirements of each application. The exterior electrostatic paint coating helps prevent corrosion, increasing the lifespan and overall durability of the equipment.

The worm gearbox combines directly with the electric motor to form a complete gear motor, optimizing transmission efficiency and reducing power loss during operation.

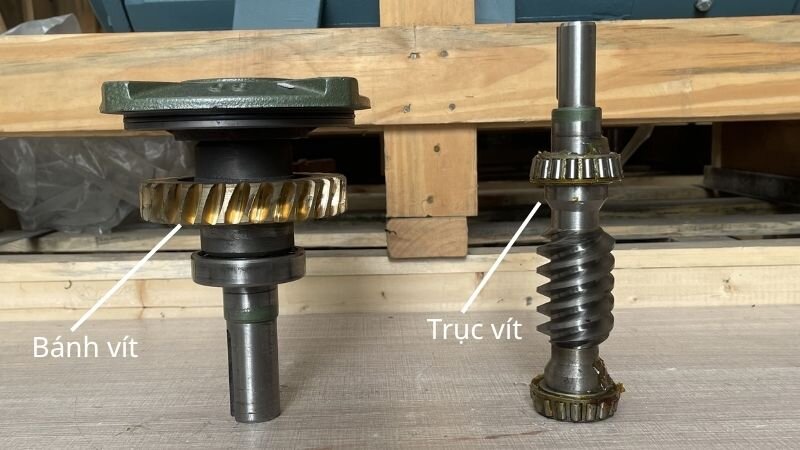

Internal structure of the WPDX worm gearbox

Inside the WPDX 175 gearbox, there are the following main components:

• Worm shaft: Machined from high-quality alloy steel, heat-treated to increase hardness and wear resistance.
• Worm gear: Made of solid cast brass with low friction, helping to transmit stable torque and reduce wear.
• Bearings – shaft bushings: Placed at key rotation points to help reduce friction and increase transmission accuracy.
• Meshing mechanism: The rotating worm shaft causes the worm gear to rotate slower, creating greater torque suitable for heavy loads.
• Heat dissipation part: The housing has cooling ribs to lower the temperature during long-term operation.

Technical specifications of the WPDX 175 Worm Gearbox

Below is a summary table of the main technical specifications of the WPDX 175 series so that customers and the technical team of Thanh Thai Motor can easily compare and select equipment suitable for project scale:

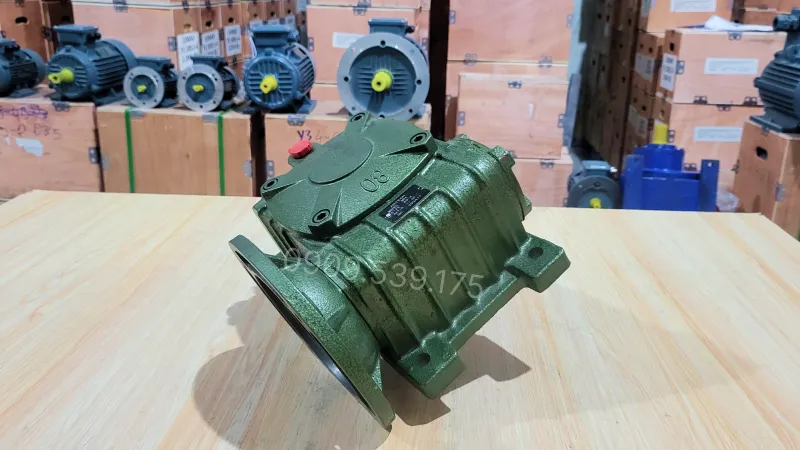

Applications of the WPDX 175 Worm Gearbox

The WPDX 175 gearbox is a top choice in heavy industrial applications where low rotational speed, high pulling force, and operational stability are required:

• Mining – metallurgy industry: Used for crushers, ore dressing machines, and heavy-duty winch systems.
• Cement – building materials industry: Used in conveyors, screw conveyors, and large industrial mixers.
• Wood processing – mechanical manufacturing industry: Installed in planers, hydraulic presses, and steel rolling machines.
• Agricultural industry: Used in agricultural product transportation systems, fertilizer mixers, and dryers.
• Special applications: Overhead crane lifting systems, cargo cranes, and high-capacity packaging machines.

Guide on how to add oil to the worm gearbox

During usage, the WPDX worm gearbox needs to be supplemented with lubricating oil at the right time to maintain torque transmission capability, reduce friction between the worm shaft and worm gear, and enhance equipment lifespan. You can follow these steps:

• Preparation before adding oil: Turn off the power supply, place the gearbox in a stable state, and prepare the correct recommended lubricating oil.
• Open the oil filler cap: Remove the oil filler plug on the gearbox body and check that there is no dust or impurities inside.
• Add oil to the specified level: Pour oil slowly and evenly until the oil level reaches the proper limit of the oil sight glass or oil check hole.
• Complete the oil addition: Tightly close the oil filler plug, wipe off any spilled oil on the outside to keep the equipment clean.
• Post-operation monitoring: Start the gearbox, run a trial for a short time, then recheck the oil level and the tightness of the assembly positions.

The WPDX 175 Worm Gearbox features a solid cast iron housing and a precise transmission mechanism, helping the WPDX 175 Worm Gearbox withstand heavy vibrations at concrete batching plants or specialized winch systems.

In addition to the article, gearbox videos and summary videos will help you access information more intuitively about product lines at Thanh Thai Motor such as: electric motors, gearboxes, gear motors, water pumps, Variable Frequency Drive, … and accessories such as pulleys and couplings.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
