WPDS 175 Gear Motor 7.5kW 10Hp

The WPDS 175 Gear Motor 7.5kW 10Hp is a gear motor commonly used in industrial transmission systems. The product combines a high-capacity electric motor and a hollow-input worm gearbox with a bell housing, delivering powerful torque, stable operation, and durability. This is an ideal choice for high-performance machinery such as conveyors, mixers, presses, or lifting equipment.

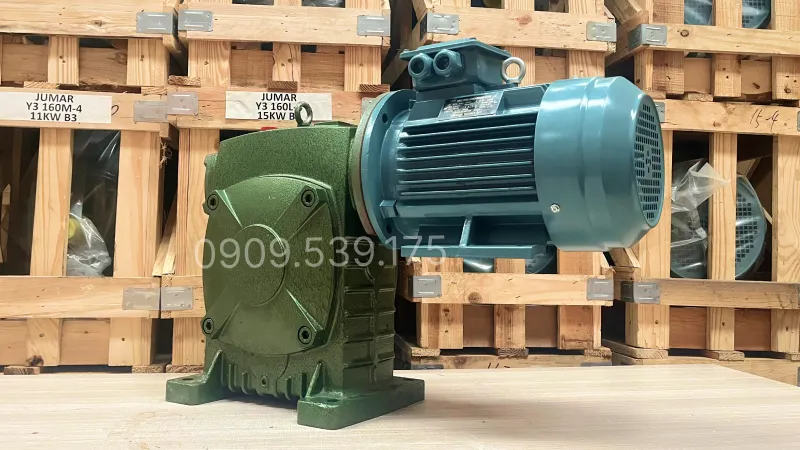

External Design of the WPDS 175 Gear Motor 7.5kW 10Hp

The WPDS 175 Gear Motor 7.5kW 10Hp is a worm gear motor featuring a sturdy and balanced exterior design. Its body is cast from solid iron to increase durability and reduce vibration during operation. The surface is coated with high-grade electrostatic paint to resist scratches, prevent rust, and withstand high-temperature environments.

The 3-phase electric motor is directly coupled with the shaft via the worm gearbox face, helping ensure stable transmission, minimizing energy loss, and facilitating easy maintenance. Details such as the flange input shaft, output shaft, and housing cover are precisely machined, providing high tightness and long-lasting durability.

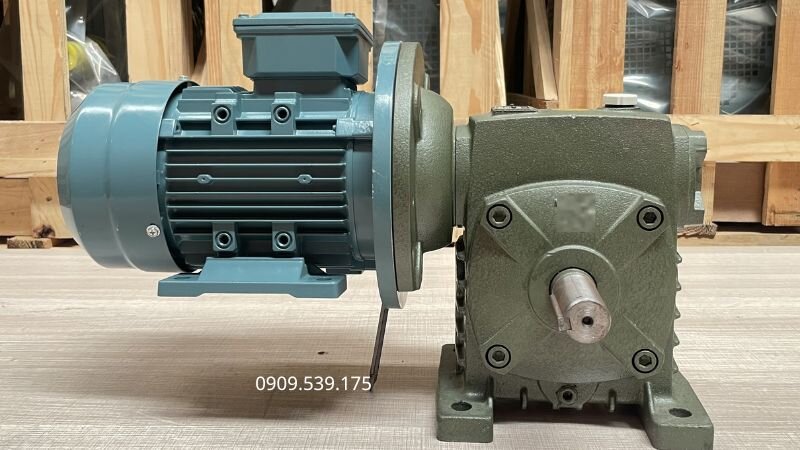

Structure of the WPDS 175 Gear Motor 7.5kW 10Hp

The WPDS 175 Gear Motor 7.5kW 10Hp belongs to the 3 phase gear motor series, featuring a robust structure, stable operation, and high service life. The main components of the gear motor include:

• 3-phase electric motor 7.5kW 10Hp:
  • Stator: Wound with 100% copper wire, increasing power transmission efficiency and reducing energy loss.
  • Rotor: The rotating part of the motor, dynamically balanced for smooth running, reduced vibration, and lower noise.
  • Bearings: High-quality bearings ensure smooth rotation and excellent long-term load capacity.
  • Cooling fan: Mounted at the rear of the motor for rapid heat dissipation, protecting the equipment during continuous operation.
• WPDS 175 worm gearbox:
  • Housing: Made of solid cast iron, capable of withstanding heavy loads and strong impacts, coated with anti-rust and anti-oxidation electrostatic paint.
  • Worm shaft: Machined from hardened steel, high load-bearing, providing stable torque transmission.
  • Worm wheel: Made of bronze alloy to reduce friction, ensuring quiet and durable operation over time.
  • Output shaft: Large size, capable of high loads, compatible with various mechanical equipment.
  • Oil seal: Protects internal components, prevents dust and grease leakage, ensuring a clean and stable operating process.

Technical Specifications of the WPDS 175 7.5kW 10Hp Gear Motor

Below is the technical specification table and drawing of the WPDS 175 7.5kW 10Hp gear motor

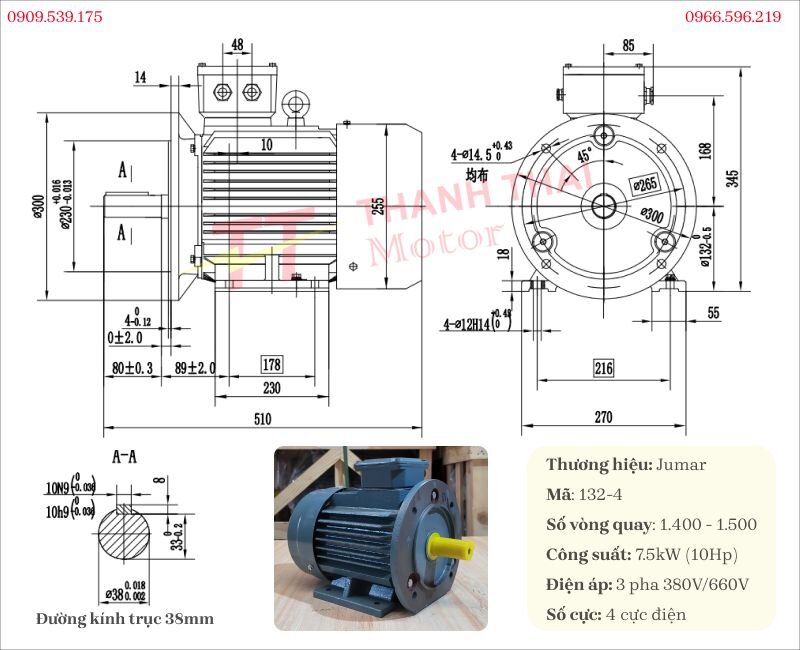

Technical Specifications of 3-Phase Electric Motor 7.5kW 10Hp

The drawing and technical specifications of the 3-phase electric motor 7.5kW 10Hp are as follows

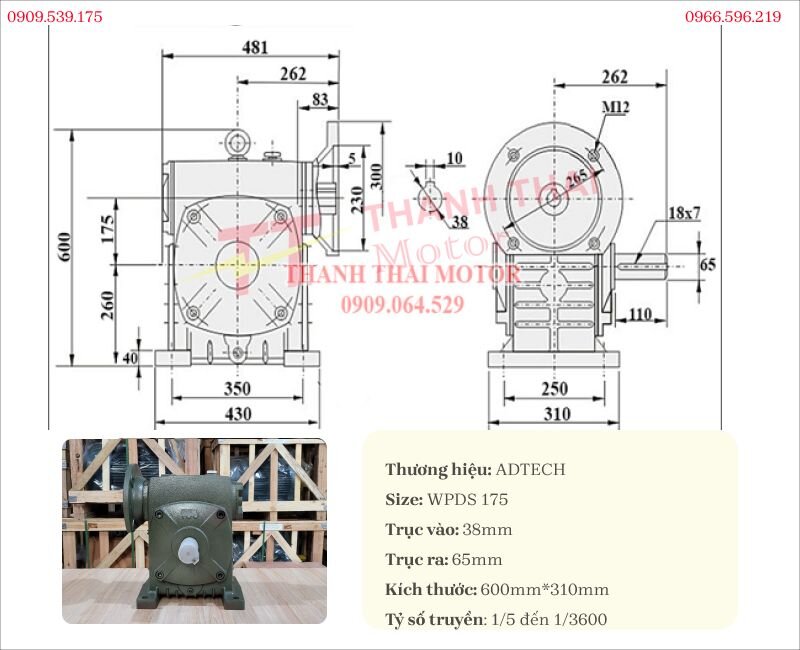

Technical Specifications of WPDS 175 Gearbox

The WPDS 175 gearbox specification table helps users quickly reference essential data before selecting and putting it into operation

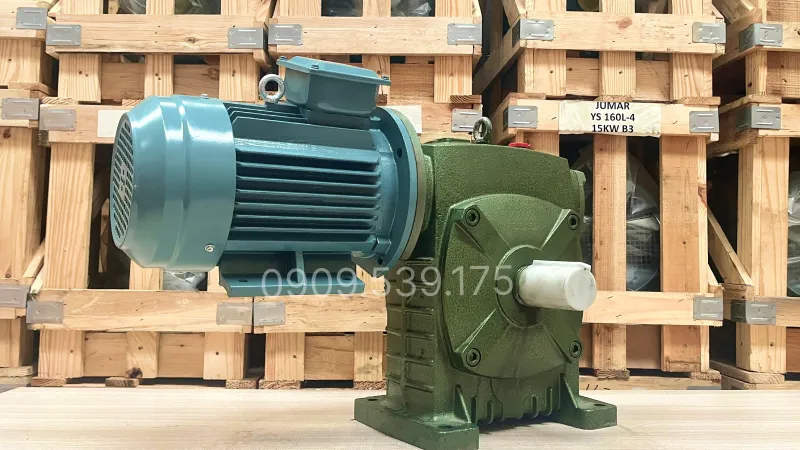

Applications of the WPDS 175 7.5kW 10Hp Worm Gear Motor

The gear motor line above 3.7kW is widely used in many industrial fields thanks to its high load capacity, stable operation, and long service life. Some common applications include:

• Used in material transport conveyors, ingredient mixers, packaging machines, and labeling machines.
• Lathes, milling machines, presses, and lifting systems.
• Installed in concrete mixers, cement conveyors, brick pressing machines, and stone crushers.
• Used in sludge agitators, wastewater pumps, and shrimp farming filtration and aeration systems.
• Applied in animal feed mixers, agricultural product transport conveyors, oil presses, and dryers.

Guide to Installing an Electric Motor with a WPDS Gearbox

To form a complete WPDS gear motor unit and ensure efficient system operation, users can follow these steps:

• Step 1: Position the electric motor and the WPDS gearbox on a flat surface, check the assembly positions, connection flanges, and the condition of connecting components before proceeding with installation.
• Step 2: Proceed to connect the motor to the gearbox by inserting the motor shaft into the proper input position of the WPDS. Then, tighten the fixing bolts and check the concentricity of the transmission assembly to ensure stable operation.

The gear motor video guiding how to connect an electric motor with a WPDS gearbox fully presents practical stages from equipment preparation, position alignment to complete assembly. The content is built visually and easy to follow, helping users quickly grasp the technical process, minimize errors during construction, and enhance the service life of the transmission system. Customers can watch more synthesized videos at Thanh Thai Motor to reference many effective installation and operation solutions.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
