WPDA 175 Gear Motor 7.5kW 10Hp

The WPDA 175 Gear Motor 7.5kW 10Hp is a complete combination of an electric motor (3-Phase Electric Motor) and a worm gearbox. The gear motor functions to reduce the output rotational speed of the motor while increasing torque to help machinery operate more powerfully, smoothly, and accurately.

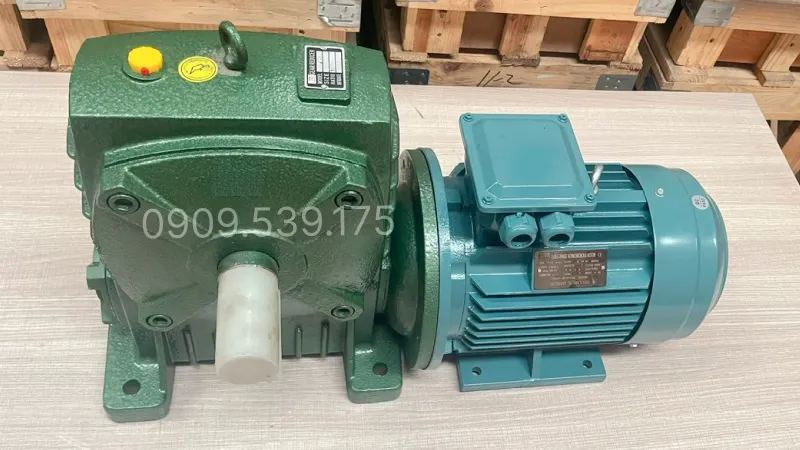

Overview of the WPDA 175 Gear Motor 7.5kW 10Hp

This worm gear motor series is manufactured according to international standards, ensuring high stability in all working conditions. With the gearbox housing cast from solid iron and coated with anti-rust electrostatic paint on the outside, it helps increase durability and operational capability in humid, dusty, or high-temperature environments.

The secure connection between the motor and the gearbox is flange-mounted type, ensuring high stability, reduced vibration, and lower noise during operation.

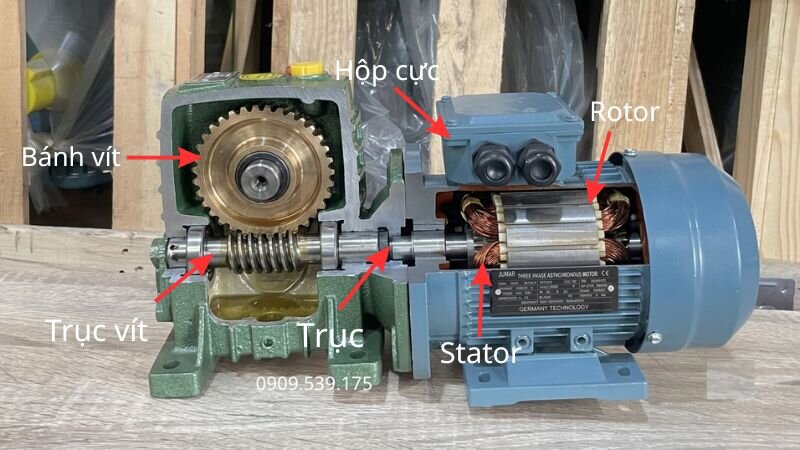

Detailed structure of the WPDA 175 Gear Motor 7.5kW 10Hp

The WPDA 175 Gear Motor 7.5kW 10Hp belongs to the large-capacity drive equipment group (gear motors above 3.7kW), consisting of two main parts:

• 3-Phase Electric Motor 7.5kW 10Hp
  • Motor housing: The outer shell is made of solid cast iron or cast aluminum, coated with anti-corrosion electrostatic paint for efficient heat dissipation.
  • Stator: Wound with pure copper wire to create a strong magnetic field, helping the motor run stably and save electricity.
  • Rotor: Made of engineered alloy steel, ensuring precise transmission and long service life.
  • Cooling fan: Installed at the rear to dissipate heat quickly and maintain motor performance during continuous long-term operation.
• WPDA 175 Worm Gearbox
  • Gearbox housing: Cast in one piece from thick cast iron, coated with anti-rust and anti-scratch electrostatic paint, enhancing the aesthetic appearance of the equipment.
  • Worm shaft: The entire shaft is made of high-grade alloy steel, hardened to withstand heavy loads and reduce wear.
  • Worm gear: The worm gear system is made of pure copper, ensuring smooth operation, reduced friction, and lower noise.
  • Lubricating oil and oil seal: Equipped with internal lubricating oil for smooth operation, while the oil seal prevents leakage and protects internal components from external impacts.

Specifications of the WPDA 175 Gear Motor 7.5kW 10Hp

Below is the detailed specification table of the WPDA 175 Gear Motor 7.5kW 10Hp

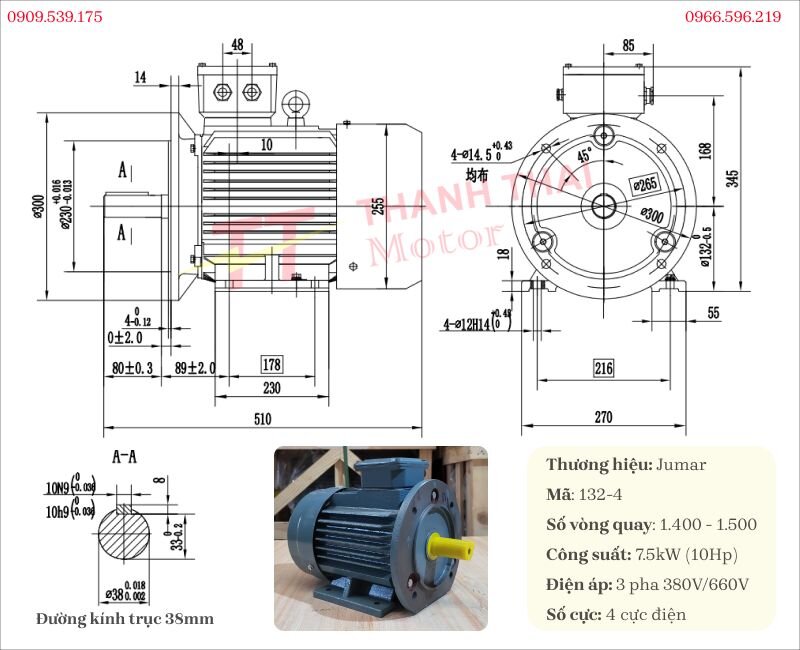

Specifications of the 3-Phase Electric Motor 7.5kW 10Hp

The 3-Phase Electric Motor 7.5kW 10Hp features a robust design

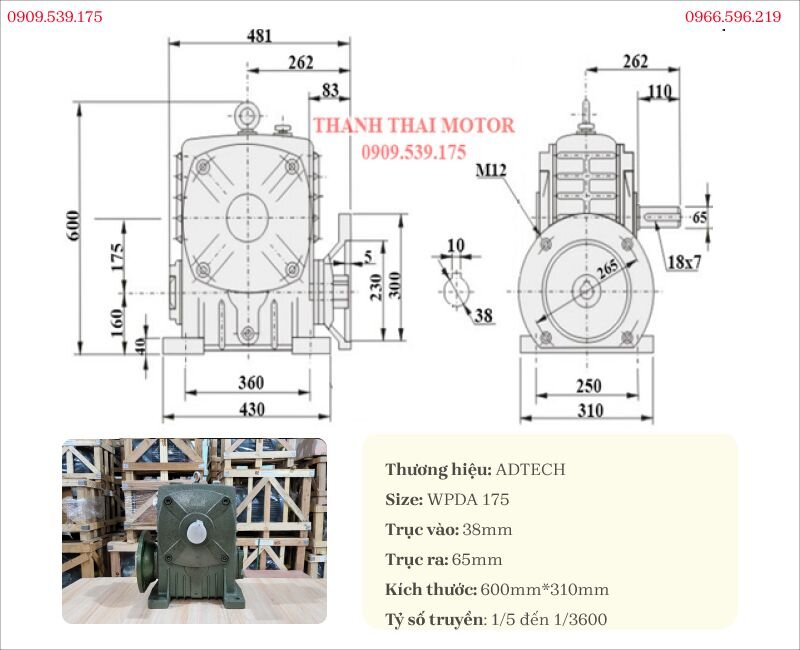

Specifications of the WPDA 175 Gearbox

The WPDA 175 gearbox is built with a robust structure, ensuring stable transmission processes

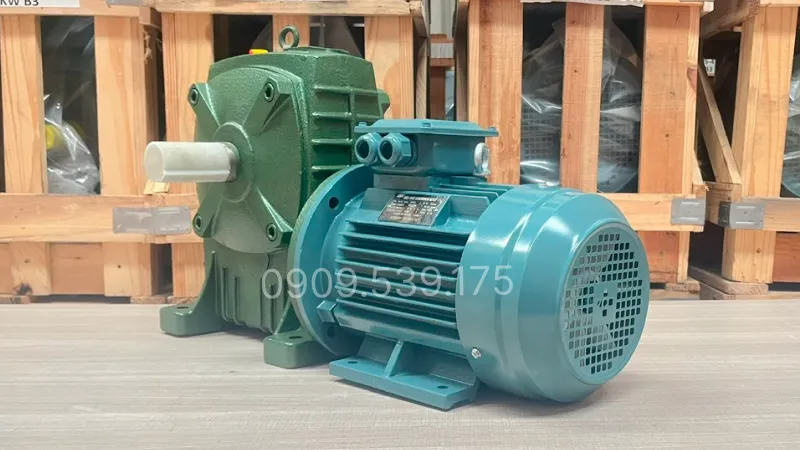

Practical applications of the WPDA 175 Gear Motor 7.5kW 10Hp

The 3 phase gear motor is widely used in mechanical systems and production lines such:

• Conveyors and transport belts for heavy goods in factories and warehouses.
• Crushers, mixers, and agitators in the food, chemical, and building materials industries.
• Automated packaging, filling, and labeling systems in manufacturing plants.
• Lifting equipment, electric hoists, industrial rolling doors, lifting tables, and heavy-duty machinery.

Detailed installation process guide

Below are the steps to connect the electric motor with the worm gearbox:

• Step 1: Place the electric motor and the WPDA gearbox on a flat surface, and perform precise alignment to ensure that the motor shaft and the input shaft of the gearbox are concentric with each other.
• Step 2: Use connection bolts to securely tighten between the motor flange and the gearbox body, ensuring stability during operation.

The gear motor installation instruction video provides a specific operational procedure, from alignment to complete assembly, helping users perform correctly according to technical standards, increase stability, and minimize errors when operating the system. Check out more detailed tutorial videos at Thanh Thai Motor.
