WPDS 200 Gear Motor 11kW 15Hp

The WPDS 200 Gear Motor 11kW 15Hp is a high-capacity gear motor widely used in drive systems requiring strong torque and high durability. The product is a perfect combination of an electric motor and a gearbox, offering stable operation, efficient speed reduction, and energy saving. Worm gear motors are extensively applied in industrial production lines such as conveyors, crushers, presses, mixers, or heavy-duty hoisting systems.

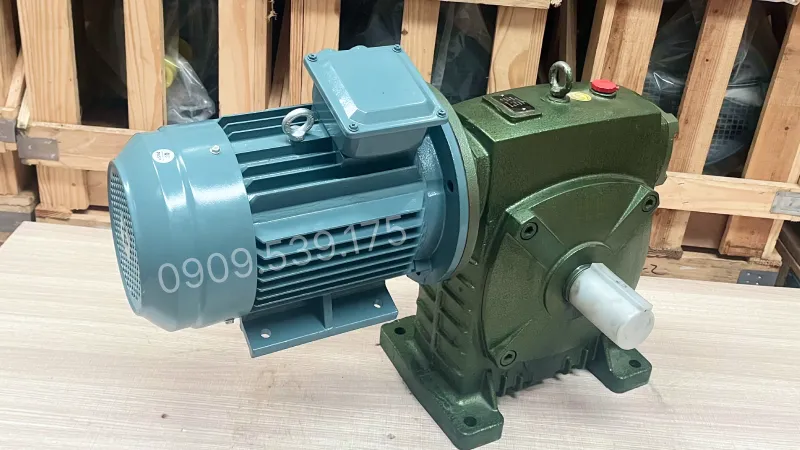

External design of the WPDS 200 Gear Motor 11kW 15Hp

The WPDS 200 Gear Motor 11kW 15Hp is designed with a sturdy appearance, meticulous in every detail, ensuring high aesthetic appeal and mechanical performance. The worm gearbox housing is cast from solid iron or high-quality alloy, allowing the device to withstand heavy loads, minimize vibrations, and increase lifespan. The surface is coated with premium electrostatic paint to resist corrosion, prevent scratches, and protect the motor from harsh working environments.

The 3-phase electric motor is directly mounted to the gearbox via a flange, ensuring stable power transmission, low power loss, and smooth operation. The input shaft, output shaft, and cover are precisely machined, providing high tightness and long-lasting durability.

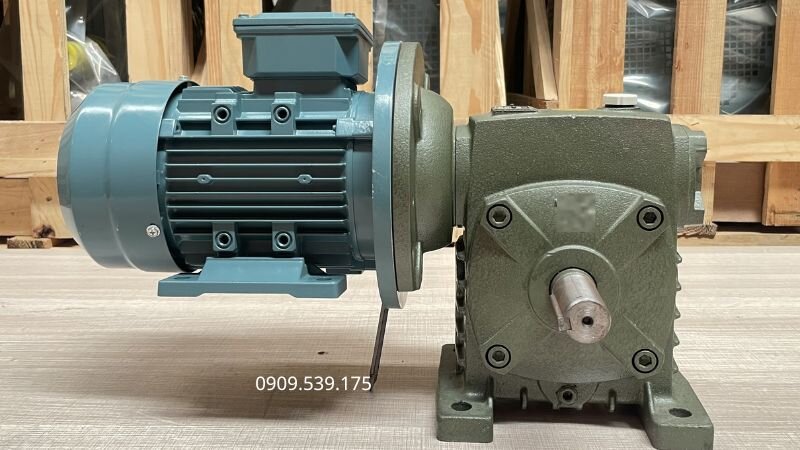

Structure of the WPDS 200 Gear Motor 11kW 15Hp

The WPDS 200 Gear Motor 11kW 15Hp belongs to the gear motor above 3.7kW category, featuring a solid structure, stable operation, and easy maintenance. The main components include:

• 3-phase electric motor 11kW 15Hp:
  • Stator: Wound with 100% copper wire, increasing efficiency and reducing electrical losses.
  • Rotor: Machined from silicon steel, perfectly dynamically balanced, reducing vibration and operating noise.
  • Bearing: Uses high-quality bearings with good load capacity, ensuring smooth movement.
  • Cooling fan: Installed at the rear of the motor, supporting rapid heat dissipation, helping the motor work stably even during continuous operation.
• WPDS 200 worm gearbox:
  • Housing: Made of solid cast iron, highly load-resistant, coated with anti-rust and anti-oxidation electrostatic paint.
  • Worm shaft: Machined from hardened steel, smooth surface to reduce friction, increase load capacity, and extend lifespan.
  • Worm gear: Made of high-grade bronze alloy, reducing wear, providing smooth and stable power transmission.
  • Output shaft: Large size, high rigidity, capable of flexible connection with various other transmission devices.
  • Oil seal: Prevents dust, water, and grease leakage, protecting internal components from wear and damage.

Technical specifications of the WPDS 200 Gear Motor 11kW 15Hp

Below is the technical specification table and drawing of the WPDS 200 gear motor 11kW 15Hp

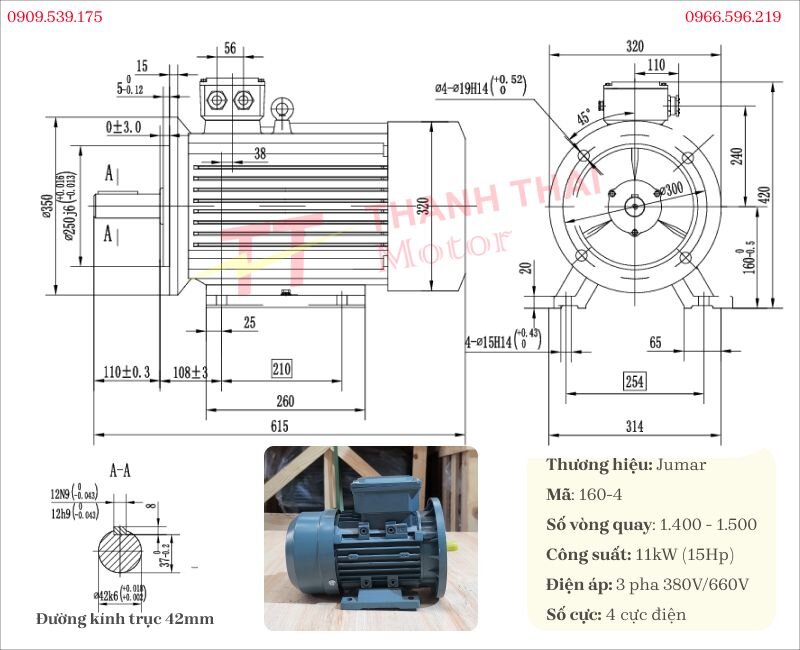

Technical specifications of the 3-phase electric motor 11kW 15Hp

The 3-phase electric motor 11kW 15Hp specifications and drawing are as follows

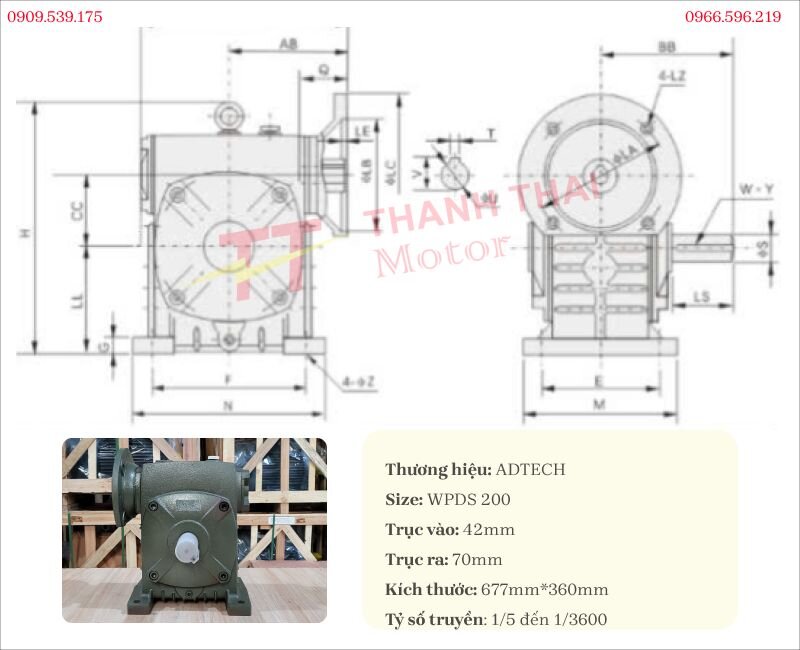

Technical specifications of the WPDS 200 gearbox

WPDS 200 gearbox drawing and technical specifications

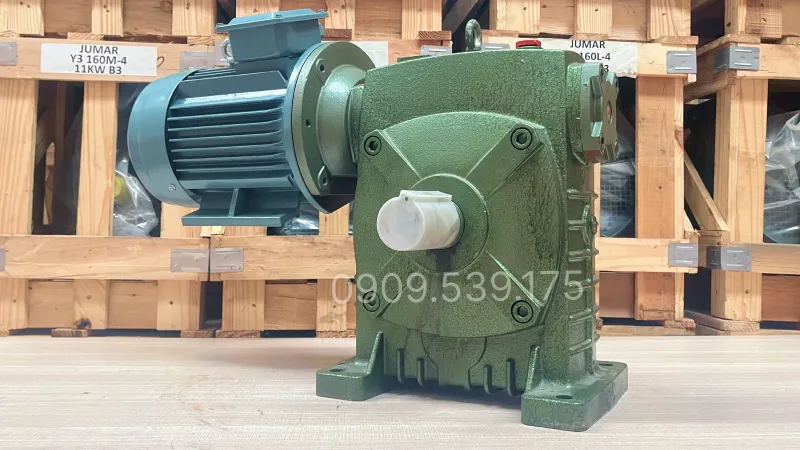

Applications of the WPDS 200 Gear Motor 11kW 15Hp

Thanks to its powerful, durable, and stable transmission capability, the 3-phase gear motor is widely applied in many industrial sectors, specifically:

• Used in industrial conveyors, stone crushers, brick pressing machines, and concrete mixers.
• Applied in cement production lines, animal feed processing, and wastewater treatment.
• Used for industrial agitators, material mixers, steel rolling mills, and hydraulic presses.
• Used for lifting systems, material pulling machines, labeling machines, and mechanical manufacturing equipment.

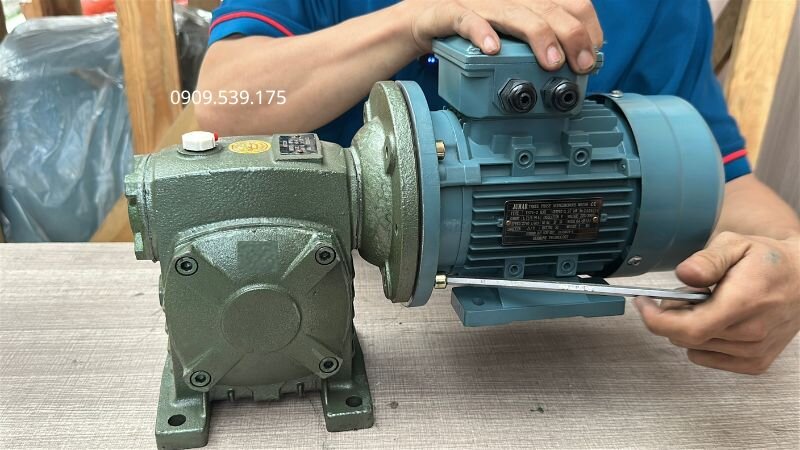

Instructions for assembling the electric motor with the WPDS gearbox

Below are the basic steps to complete the WPDS gear motor assembly quickly and correctly

• Step 1: Prepare the electric motor and the WPDS gearbox in a suitable installation area. Check the condition of the shaft, connecting flange, and accompanying accessories to ensure the assembly process goes smoothly.
• Step 2: Insert the motor shaft into the input end of the WPDS gearbox, precisely align the assembly position, and secure it with connecting bolts. After completion, recheck the sturdiness of the transmission assembly before putting it into operation.

The video guiding the installation of the WPDS gearbox with the electric motor details the practical connection process from preparation to product completion. Through visual images, viewers can easily grasp the necessary technical operations, minimize errors during assembly, and ensure stable and efficient system operation. Explore more summary videos at Thanh Thai Motor to find various transmission solutions suitable for each usage requirement.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
