WPDA 200 Gear Motor 11kW 15Hp

The WPDA 200 Gear Motor 11kW 15Hp belongs to the large-capacity gear motor line (gear motors over 3.7kW), comprising a 3-phase electric motor and a worm gearbox.

This perfect combination helps the transmission equipment run stably, reduce speed accurately, deliver high torque, and operate efficiently in heavy industrial environments. With high durability, a robust structure, and continuous operation without overheating, the worm gear motor is evaluated as one of the most powerful and reliable devices.

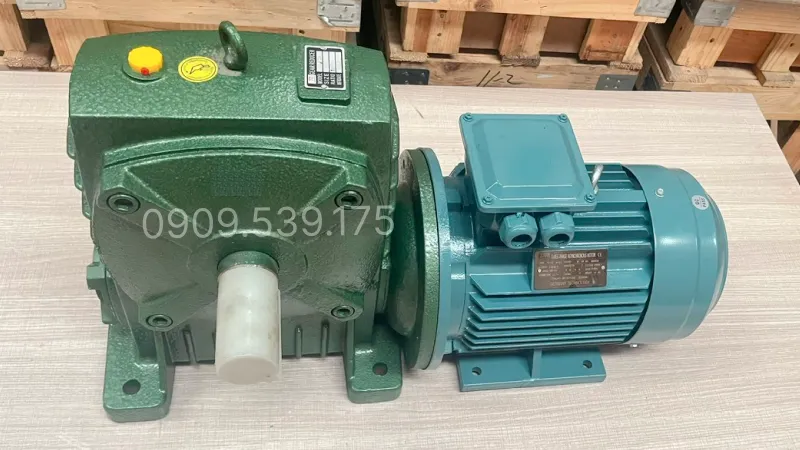

Overview of the WPDA 200 Gear Motor 11kW 15Hp

The WPDA 200 Gear Motor 11kW 15Hp features a sturdy structure, smooth transmission, and minimal vibration during operation. The gearbox housing is cast from solid, thick cast iron, offering excellent impact resistance and load capacity. The output shaft and worm shaft are meticulously machined from hardened alloy steel, enhancing power transmission and minimizing wear.

Inside, pure copper windings help the equipment operate stably, reduce power loss, and extend lifespan. A large cooling fan ensures that the 3-phase electric motor does not overheat when operating continuously for long periods. Thanks to its synchronous and precise design, the product delivers smooth transmission, ensuring optimal performance for the entire machinery system.

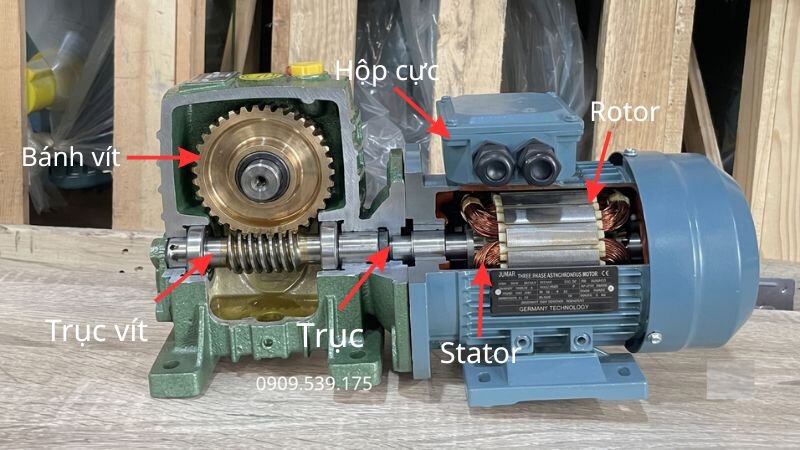

Main structure of the WPDA 200 Gear Motor 11kW 15Hp

The WPDA 200 Gear Motor 11kW 15Hp has a simple structure consisting of two main parts:

• 3-phase 11kW 15Hp Electric Motor
  • Motor housing: Cast from heavy-duty cast iron, electrostatically painted to resist rust and abrasion, performing well in industrial environments.
  • Stator: Made of 100% copper wire, increasing work efficiency, saving energy, and reducing operating costs for the system.
  • Rotor: Made of high-technical steel, helping the motor rotate evenly and transmit force powerfully.
  • Cooling fan: The fan system helps dissipate heat quickly, protecting the motor when working at high intensity.
• WPDA 200 Worm Gearbox
  • Worm shaft: Hardened alloy steel, capable of handling high loads with low wear.
  • Worm gear: Premium copper alloy, precisely meshed to ensure smooth and stable speed reduction.
  • Oil seal: Prevents lubricating oil leakage, protecting the shaft from dust and impurities.
  • Lubricating oil: Helps the system operate smoothly, reduces friction, and extends equipment lifespan.

Technical specifications of the WPDA 200 Gear Motor 11kW 15Hp

Below is the detailed technical specification table of the WPDA 200 Gear Motor 11kW 15Hp

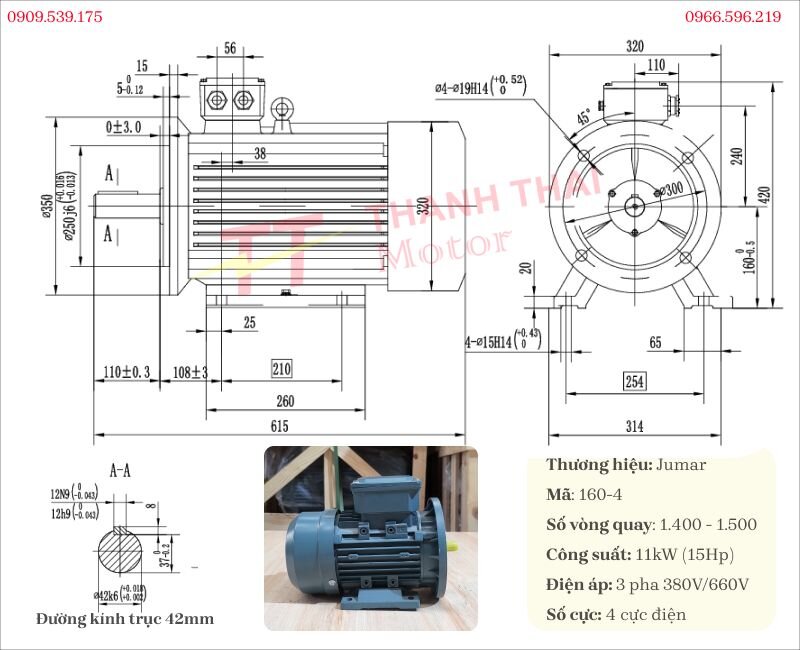

Technical specifications of the 3-phase 11kW 15Hp electric motor

The 3-phase 11kW 15Hp electric motor features a sturdy design, stable operating performance, and high durability

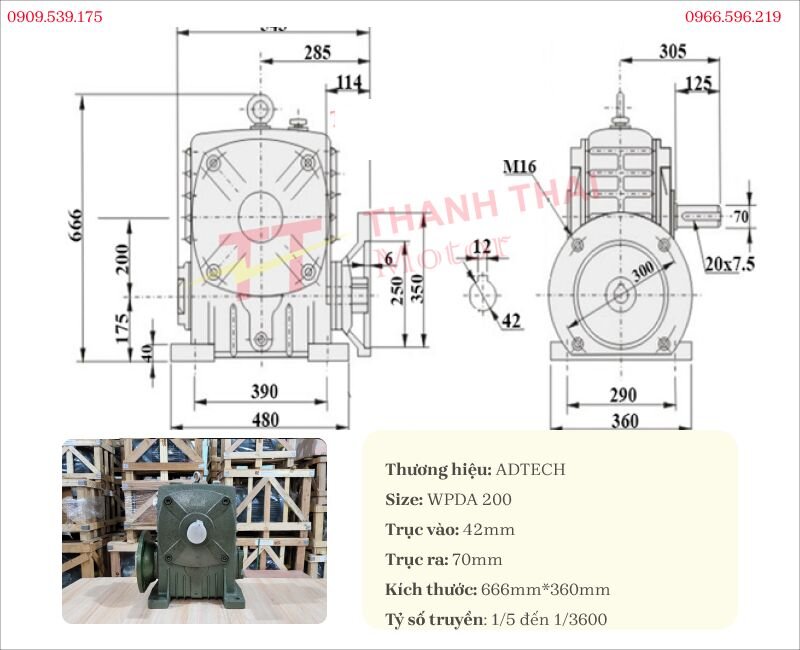

Technical specifications of the WPDA 200 gearbox

The WPDA 200 gearbox is built with a sturdy structure, ensuring stable power transmission

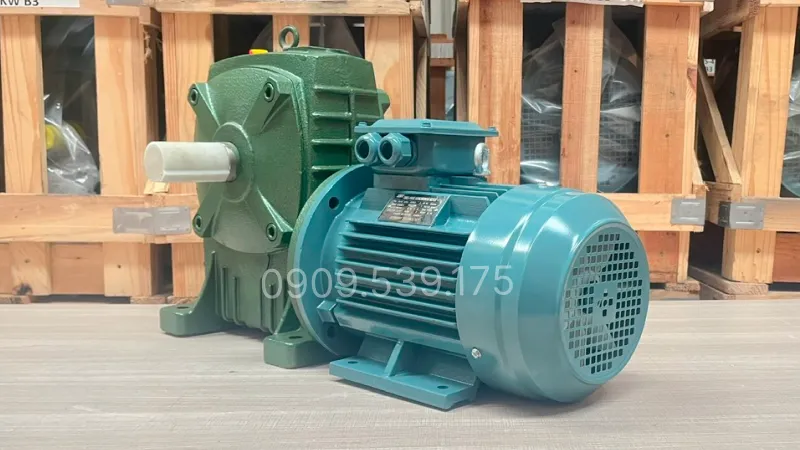

Practical applications of the WPDA 200 Gear Motor 11kW 15Hp

The 3-phase gear motor is widely used in various industries, especially in systems requiring high power and high torque, such:

• Conveyor lines and material handling conveyors in manufacturing plants.
• Concrete mixers, crushers, presses, and heavy industrial equipment.
• Hoisting winches, overhead cranes, inclined conveyors, and cargo elevators.
• Food processing machines, packaging machines, vibrating screens, and automated mechanical equipment.

Detailed installation process guide

Guide on installing the electric motor onto the worm gearbox:

• Step 1: Place the motor and WPDA gearbox on a stable flat surface, accurately aligning the shaft positions to ensure concentricity during assembly.
• Step 2: Proceed to tighten the connecting bolts between the motor flange and the gearbox housing to securely fix the entire drive assembly.

The WPDA gear motor installation guide video helps users clearly understand the assembly process, check coaxiality, and connect properly according to technical standards. The visual and easy-to-apply content supports stable operation and minimizes errors during use. Watch more detailed summary videos at Thành Thái Motor.
