WPA 250 Gear Motor 15kW 20Hp

Thanh Thai Motor would like to introduce to our customers another product line, the WPA 250 Gear Motor 15kW 20Hp. This is a device that helps reduce rotational speed while maintaining stable operating productivity. Thanh Thai Motor offers a 24-month warranty policy from the date of purchase, with nationwide delivery.

Design overview of WPA 250 Gear Motor 15kW 20Hp

Worm gear motor (worm gear reduction motor) features an exterior design with an electrostatic paint coating and 100% sturdy cast iron external material, helping the equipment resist fading and scratches during use and transportation. It is a worm gearbox assembled with a 3-phase electric motor.

Detailed structure of WPA 250 Gear Motor 15kW 20Hp

WPA 250 Gear Motor 15kW 20Hp combines an electric motor installed with a WPA gearbox.

It is a WPA 250 worm gearbox installed with a 3-phase 15kW 20Hp electric motor via pulley and shaft coupling.

• 15kW 20Hp electric motor:
  • Stator: The internal component of the motor, the stationary part made of 100% solid, sturdy copper.
  • Rotor: The rotating internal component of the motor, made of durable, rust-resistant thin-rolled steel sheets; the rotor rotates due to the magnetic field generated by the stator.
  • A cooling fan is installed at the rear of the motor to cool the motor during operation.

• WPA 250 gearbox:
  • Worm shaft: Detailed structure made of stainless steel, helping the equipment operate smoothly and reducing loud noise.
  • Worm wheel: High-technical structure cast from thin-rolled steel sheets, helping the equipment rotate faster without overheating, which leads to damage.

Specifications of WPA 250 Gear Motor 15kW 20Hp

WPA 250 Gear Motor 15kW 20Hp is composed of a 3-phase 15kW 20Hp electric motor and a WPX 250 gearbox. Below are the detailed specifications of each component making up the product.

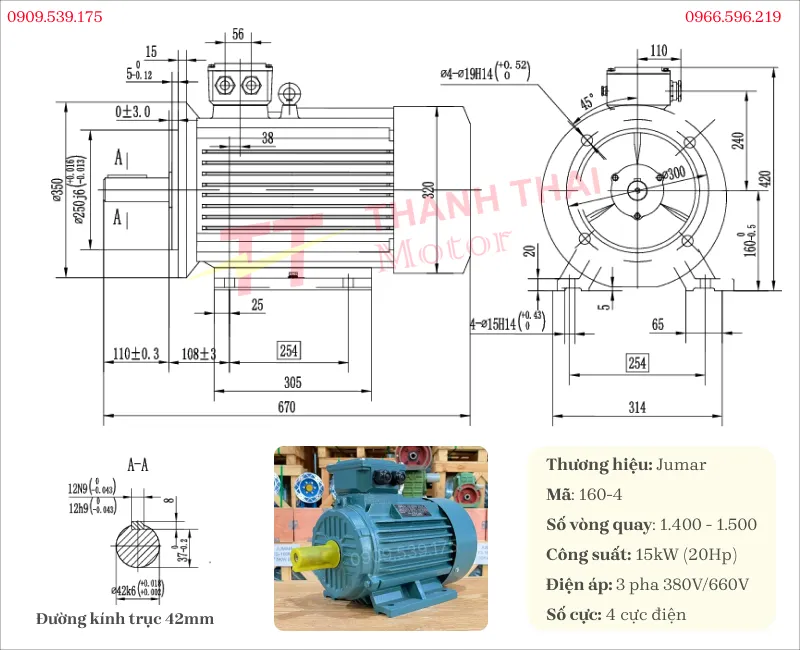

Specifications of 3-phase 15kW 20Hp electric motor

To ensure the correct type and suitable installation method, customers can refer to the specification table of the 3-phase 15kW 20Hp electric motor below. The parameters are fully compiled to support the design and synchronization of the drive system.

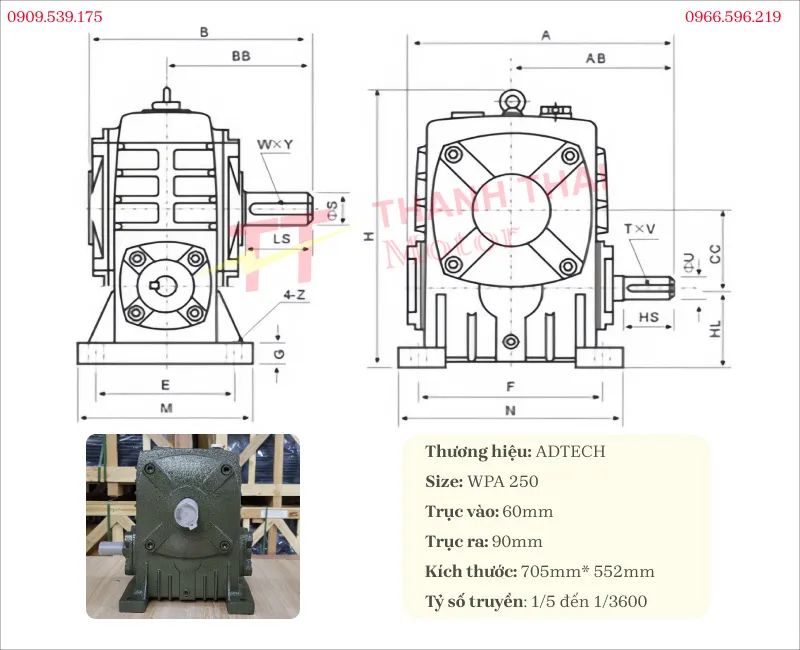

Specifications of WPA 250 gearbox

The technical specifications of the WPX 250 gearbox are presented in detail below.

Practical applications of WPA 250 Gear Motor 15kW 20Hp

WPA 250 Gear Motor 15kW 20Hp has many common advantages as follows:

• Widely used for large-scale industrial plants such as wood pressing plants and rice milling plants.
• Used in lifting infrastructure and conveyor belts in the food production and building materials industries.
• Commonly used for steel rolling machines and mini stone crushers requiring large and stable power transmission.

To help customers have a more visual look at the structure and practical operating capacity of the product, Thanh Thai Motor has provided a gear motor video with complete information on dimensions, installation methods, and operating principles. In addition, the comprehensive video library is regularly updated, supporting customers in easily selecting the right model for their needs.

WPA 250 Gear Motor 15kW 20Hp is an ideal drive solution for industrial systems requiring large torque and continuous operation. With a sturdy structure, stable performance, and high durability, the product meets various applications in production and automation well. To receive the latest quotation or consultation on choosing the appropriate transmission ratio, please contact Thanh Thai Motor via Hotline 0909.539.175 for prompt and accurate support.
