WPDS 200 Worm Gearbox

The WPDS 200 Worm Gearbox is a large-scale industrial transmission device designed with perpendicular input and output shafts, specialized for drive systems requiring high torque and high durability in large-capacity machinery systems. With high load capacity, stable mechanical durability, and good transmission efficiency, let’s explore this gearbox product in more detail and its practical applications in heavy industries with Thanh Thai Motor.

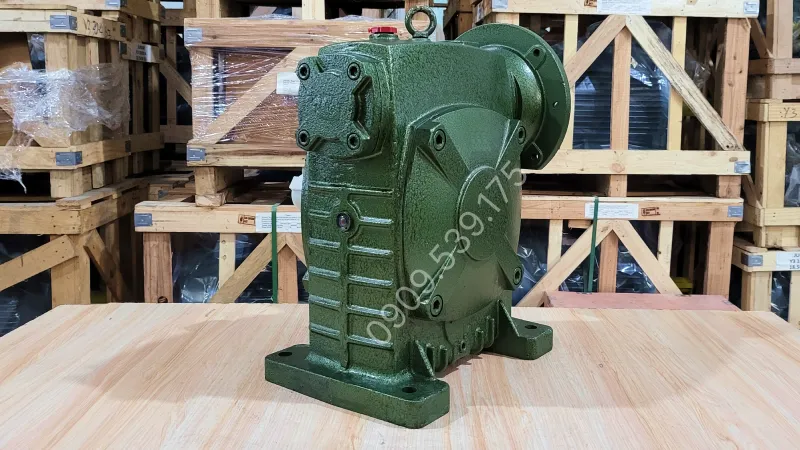

General Design of the WPDS 200 Worm Gearbox

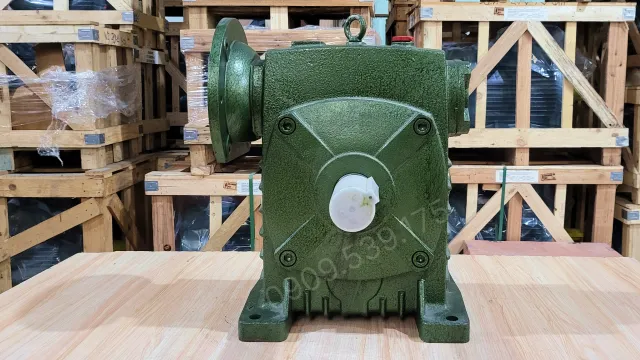

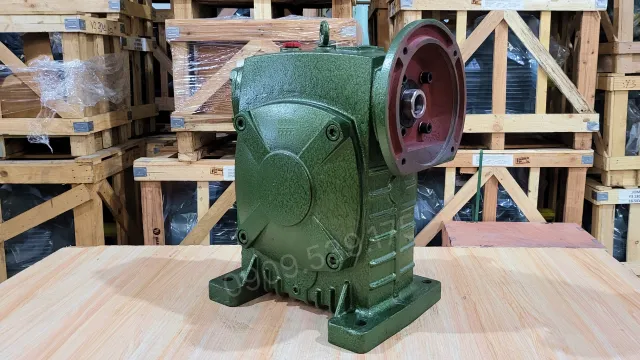

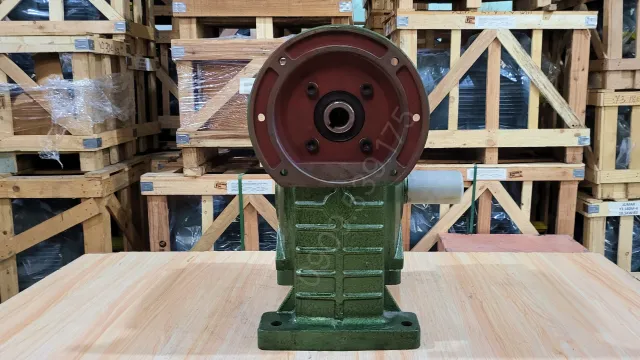

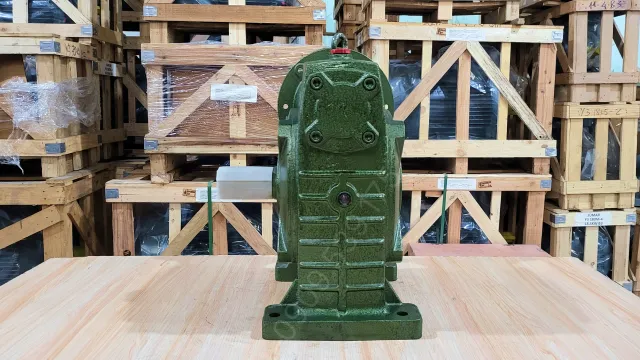

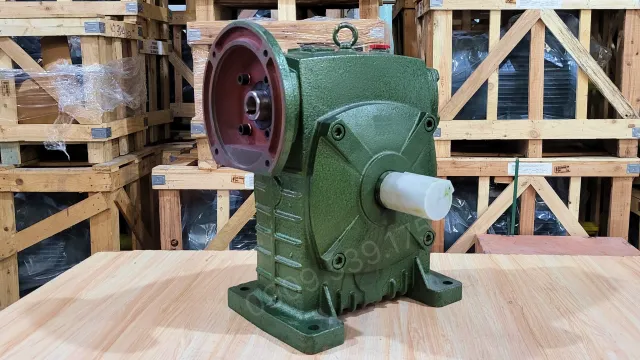

The worm gearbox features a perpendicular input-output shaft design, creating a compact structure while still ensuring high transmission efficiency. The housing is made of high-strength cast iron, helping protect internal components from impacts and environmental influences. The gearbox can be connected directly to a 3-Phase Electric Motor to form a complete gear reducer, simplifying installation and operation.

The worm and worm gear combination connects directly with an electric motor to form a complete gear motor, supporting the motor in reducing the output speed and ensuring machinery operates at the required speed.

Internal Structure of the WPDS 200 Worm Gearbox

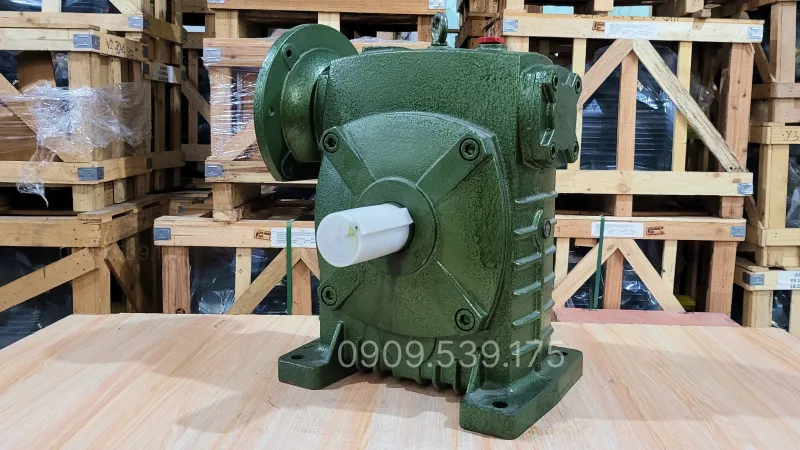

The internal structure of the WPDS 200 consists of precisely machined components using high-quality materials:

• Worm shaft: Made of hardened alloy steel, wear-resistant and capable of handling heavy loads.
• Worm gear: Uses a special bronze alloy to reduce friction during meshing and increase transmission efficiency.
• Bearings and oil seals: Help the shaft rotate stably, prevent oil leaks, and extend operating life.
• Meshing system: The worm shaft and worm gear mesh together via a helical mechanism, providing high torque and high gear reduction efficiency.

The transmission mechanism of the WPDS 200 operates smoothly, minimizing vibration and noise, meeting high technical requirements in industrial production.

WPDS 200 Gearbox Specifications

WPDS 200 Gearbox drawing and specifications

Functions and Applications of the WPDS 200 Worm Gearbox

The WPDS 200 gearbox is an ideal choice for systems requiring reduced rotation speed while increasing pulling force, commonly used in industries such:

• Heavy industry: Grinders, large-capacity presses, winches, steel rolling mills.
• Conveyor and screw conveyor systems: Stable transmission in sorting, packaging, and logistics lines.
• Building materials industry: Used for concrete mixers, brick pressing machines, large-capacity feeders.
• Environmental industry: Sludge pumps, wastewater treatment equipment.
• Wood processing and food industry: Drives for saws, industrial agitators, compressors.

Instructions for Adding Oil to the Worm Gearbox

Properly adding lubricating oil will help the worm gearbox operate stably, reduce friction between transmission parts, and enhance the equipment’s service life.

• Step 1: Before performing, disconnect the power source to ensure safety. For a used gearbox, open the drain plug to remove all old oil and then tighten it back securely. If it is a new gearbox, you can proceed with filling oil directly.
• Step 2: Open the oil filler plug and slowly pour the appropriate lubricating oil into the gearbox. Monitor the oil sight glass throughout the filling process; stop when the oil level reaches about half of the sight glass to avoid overfilling.
• Step 3: After adding enough oil, tightly close the oil filler plug, check the joint positions and oil seals to ensure no leakage occurs. Finally, clean any oil on the surface before putting the equipment into operation.

The WPDS worm gearbox is manufactured with a sturdy cast iron housing, capable of high load-bearing capacity and stable operation under various industrial conditions. The instructional gearbox video from Thanh Thai Motor will assist users in fully grasping the correct technical procedures for adding oil, checking oil levels, installation, and maintenance. Watch more through the video compilation at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
