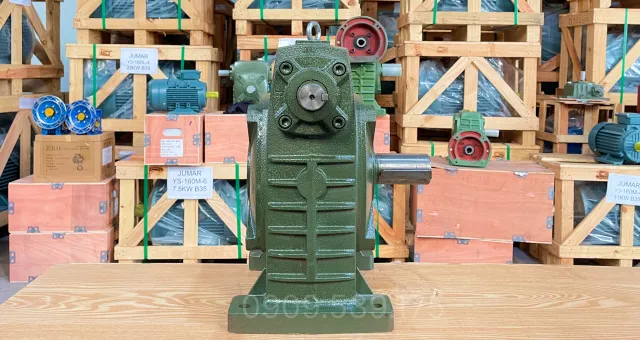

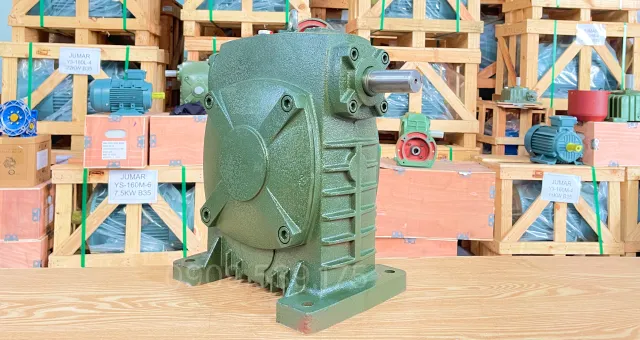

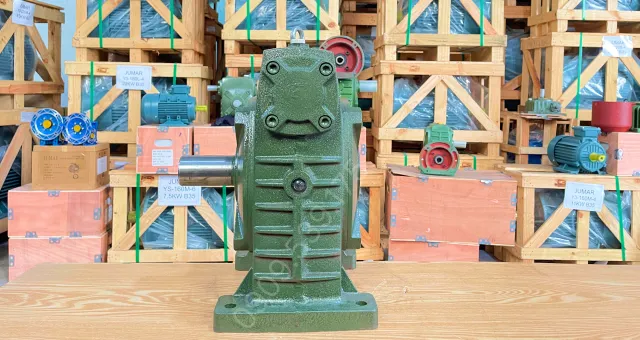

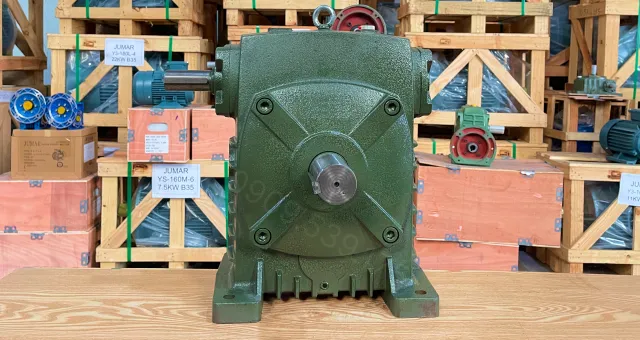

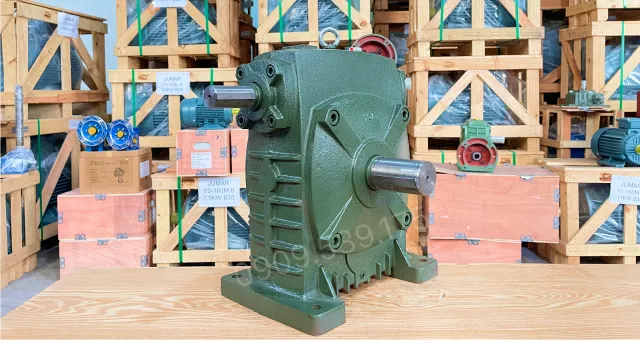

WPS Worm Gearbox 200

WPS Worm Gearbox 200 is an important transmission device, widely applied in industrial machinery systems. With a sturdy design, high durability, and a reasonable price, this gearbox product features a special structure with the output shaft perpendicular to the input shaft, helping to transmit power efficiently under various operating conditions. Let’s explore the details of the structure, application, and outstanding advantages of the WPS 200 gearbox series with Thanh Thai Motor right below!

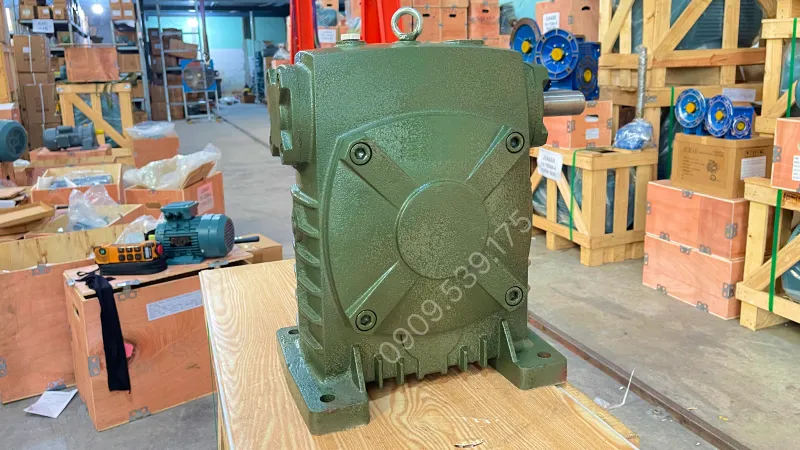

How is the design of the WPS Worm Gearbox 200?

Worm gearboxes are usually cast from durable cast iron material. The worm shaft of the WPS Worm Gearbox 200 is machined from steel capable of withstanding high frictional force. The worm wheel of the gearbox is made of pure copper, helping to reduce wear during movement. The gearbox housing is coated with electrostatic paint to prevent corrosion.

In addition, for the device to operate, this gearbox is often combined with an electric motor via pulleys and couplings to form a complete and synchronized gear motor.

Internal structure of the WPS Worm Gearbox 200

Below are the main internal structural components of the WPS Worm Gearbox 200, helping you better understand the parts and operating principles of this device.

• Worm shaft: Made from high-grade alloy steel, capable of good load-bearing and effective corrosion resistance. The rotating worm shaft creates frictional force to accurately transmit torque to the worm wheel.
• Worm wheel: Manufactured from pure copper or copper alloy, helping to reduce friction during operation and increase durability for the device. The worm wheel closely meshes with the worm shaft, ensuring smooth and efficient deceleration capability.
• Transmission gear set (if equipped): The gears are precisely machined and tightly meshed to transmit power from the input shaft to the output shaft, supporting an increase in gear ratio when necessary.
• Housing body: Made from high-load-bearing cast iron, capable of protecting internal components from physical impacts and external environments.
• Ball bearing: Helps the shafts rotate smoothly, reduces friction, and contributes to increasing the lifespan of the gearbox.
• Oil seal: Prevents lubricating oil from leaking out, while preventing dust from entering inside, keeping components operating stably.

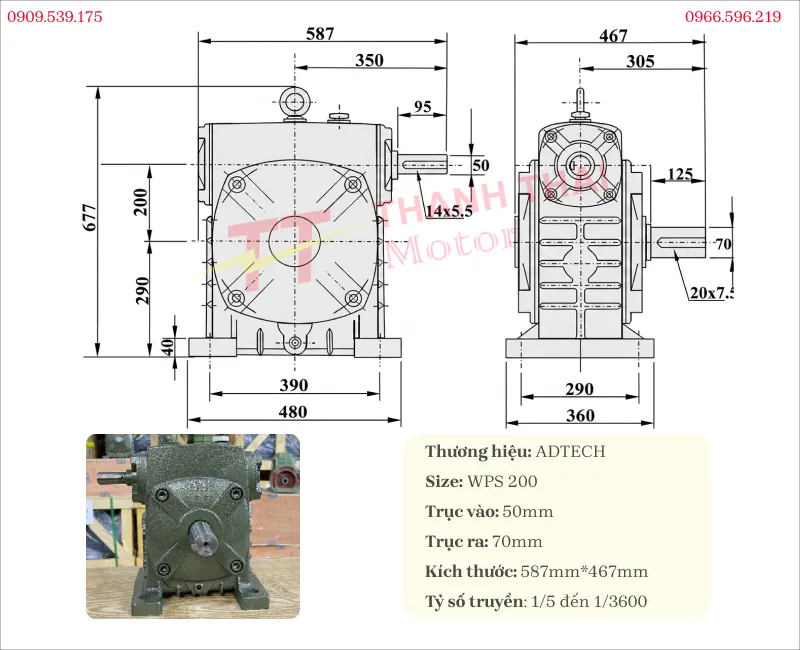

Specifications of the WPS 200 gear motor

The specifications of the WPS 200 gear motor are presented in the table below, showing basic information about the size, dimensions, and shaft diameter of the product.

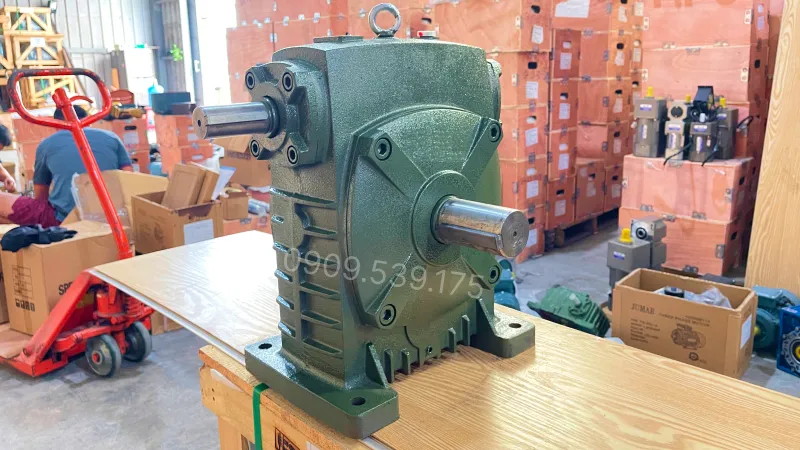

Applications of the WPS Worm Gearbox 200

The WPS Worm Gearbox 200 is designed to reduce rotational speed from the electric motor, while increasing torque to meet operating requirements in various industries such:

• Conveyor machines in food production and processing plants, helping to effectively adjust speed and load.
• Material mixers in the construction, chemical, and animal feed production industries, ensuring stability and uniformity during operation.
• Hydraulic presses and metal rolling machines, increasing torque to help equipment operate more powerfully and accurately.
• Equipment in the agricultural sector such as plows, harvesters, and threshing machines, supporting speed reduction and powerful transmission.
• Machinery in mineral mining, oil and gas, and other heavy industries, ensuring high efficiency and durability in harsh working environments.

Guide to adding oil for WPS worm gearbox

• Preparation: Completely turn off the power source to ensure safety. Place the gearbox in a balanced position according to the actual mounting direction.
• Location identification: Find the breather plug (or oil filling screw) located on the top side of the WPS gearbox. Remove this screw.
• Adding oil: Use a funnel to slowly pour oil in. Stop when the oil level reaches the 1/3 mark on the oil sight glass (if any). For sizes like WPS 100, the standard oil volume is about 1.50 liters.
• Check and completion: Install and tighten the breather screw. Wait about 10 minutes for the oil to stabilize before operating the machine.

You can watch the gearbox video to actually observe the structure, transmission principles, and installation methods of the WPS 200 series. In addition, the summary video of Thanh Thai Motor also introduces many models of worm gearboxes with different sizes and capacities, helping you easily compare and choose the right product for your usage needs.
