Worm Gearbox WPDA 200

The WPDA 200 worm gearbox is a large-scale drive device designed to handle high loads in industrial mechanical systems. With a sturdy structure, stable transmission efficiency, and the ability to adapt to harsh working environments, this gearbox product is an ideal choice for manufacturing industries requiring durable and precise operation.

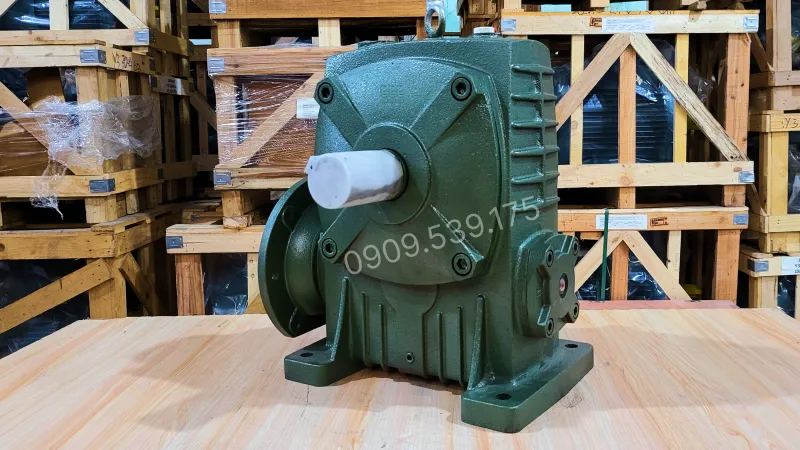

Overview design of the WPDA 200 worm gearbox

The worm gearbox is manufactured with a monolithic cast iron structure, ensuring superior mechanical durability and resistance to deformation when operating continuously under heavy loads. The equipment surface is coated with high-quality electrostatic paint, which increases corrosion resistance, rust resistance, and withstands the effects of humid or dusty environments.

The input and output shafts are arranged at a 90-degree right angle, providing flexibility in changing the transmission direction. When combined with an electric motor, the worm gearbox WPDA 200 creates a powerful gear motor, suitable for large production lines or transmission systems requiring high torque.

Structure of the WPDA 200 worm gearbox

• Worm shaft: Made of quenched alloy steel, precision machined, capable of high wear resistance and load transmission.
• Worm gear: Cast from high-grade alloy bronze, providing good self-lubricating ability, reducing friction, and extending service life.
• Bearings: Precisely assembled, smooth operation, reducing vibration and maintaining stable transmission efficiency.
• Oil seals and heat-resistant/oil-resistant gaskets: Help protect against dust, water, and prevent oil leakage.
• Worm and worm gear meshing mechanism: Optimized according to standard gear ratios, providing precise reduction capabilities as required.

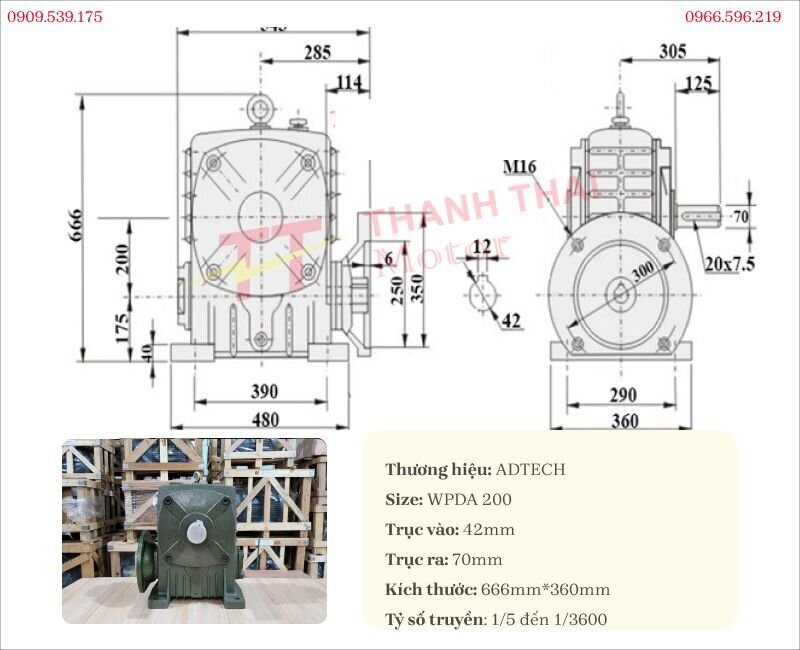

Technical specifications of the WPDA 200 gearbox

The WPDA 200 gearbox is built with a sturdy structure, ensuring a stable transmission process

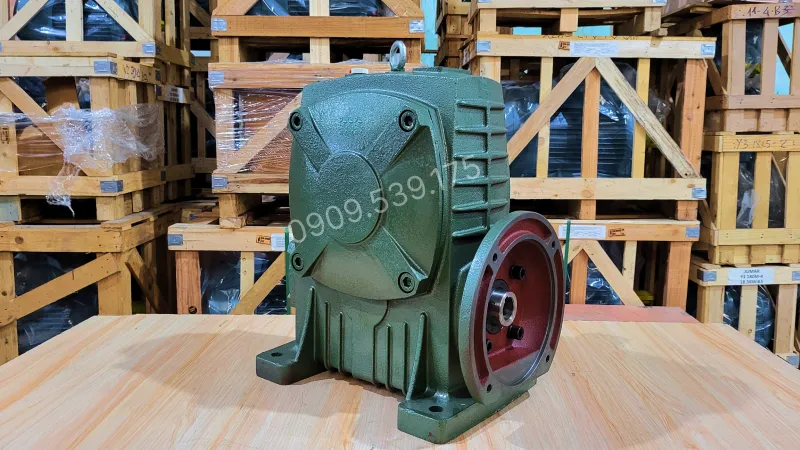

Applications of the WPDA 200 worm gearbox

• Building materials manufacturing industry: Concrete mixers, stone crushers, large-capacity brick press machines.
• Environmental treatment industry: Sludge dewatering machines, chemical mixers, wastewater pumps.
• Food and agricultural product processing industry: Heavy-duty conveyors, mixers, dryers.
• Mechanical manufacturing industry: Steel rolling lines, stamping machines, CNC lathes.
• Large industrial conveyor systems: Heavy material handling, automatic assembly lines.
• Seaport and logistics industry: Lifting and lowering systems, handling large quantities of goods.

How to add oil to the worm gearbox

Adding oil correctly helps the gearbox operate stably, limits wear, and maintains transmission efficiency over a long period.

• Step 1: Completely disconnect the power source. If the gearbox has been used, drain the old oil completely through the drain plug and tighten it securely. For a new gearbox, oil can be added directly.
• Step 2: Remove the oil filling plug and slowly add oil. Observe the oil level sight glass, stop when the oil level is approximately in the middle of the glass.
• Step 3: Tighten the oil filling plug securely, check the joints, and wipe off any oil clinging to the surface of the gearbox before operation.

The WPDA worm gearbox features a sturdy cast iron housing, operates smoothly, and well meets various industrial transmission applications. Follow the instruction videos of Thành Thái Motor to properly execute the oil filling, installation, and equipment usage procedures. You can also explore many compilation videos to update your knowledge and useful technical experience.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
