Close-Coupled Vacuum Pump 4.0kW 5.5HP

The Close-Coupled Vacuum Pump 4.0kW 5.5HP is a water pump (water pump motor) product and a gas pump operating in a vacuum environment. The pump features an optimized design, efficient operation, smooth operational design, and performs well in the industrial sector.

General design of the Close-Coupled Vacuum Pump 4.0kW 5.5HP

The vacuum pump belongs to the 3-phase water pump series, designed with an eye-catching dark blue appearance. The pump casing is made of cast iron or stainless steel. The motor is designed with the pump head and electric motor, specifically a 3-phase electric motor integrated into a single block, making it very compact and suitable for space-limited areas.

Structure of the Close-Coupled Vacuum Pump 4.0kW 5.5HP

The Close-Coupled Vacuum Pump 4.0kW 5.5HP has a compact coaxial design, consisting of two main parts: the electric motor and the vacuum pump head. Detailed structure includes:

• Electric motor: Uses a 4.0kW (5.5Hp) motor typically using 3-phase voltage (380V), with a cast iron or cast aluminum outer casing for good heat dissipation, pure copper wire winding, and an integrated rear cooling fan.
• Vacuum pump head: Consists of a pump chamber containing an impeller system (or piston/oil ring depending on the type) made of high wear-resistant alloy. This part is responsible for suctioning air or gas to create a negative pressure environment.
• Pump shaft and mechanical seal: The stainless steel shaft transmits power directly from the motor to the impeller, combined with a high-temperature and high-pressure resistant mechanical seal to prevent air from entering the pump chamber.
• Coupling and base: Details connecting the motor and pump head on a sturdy base frame, helping to reduce vibration during operation.

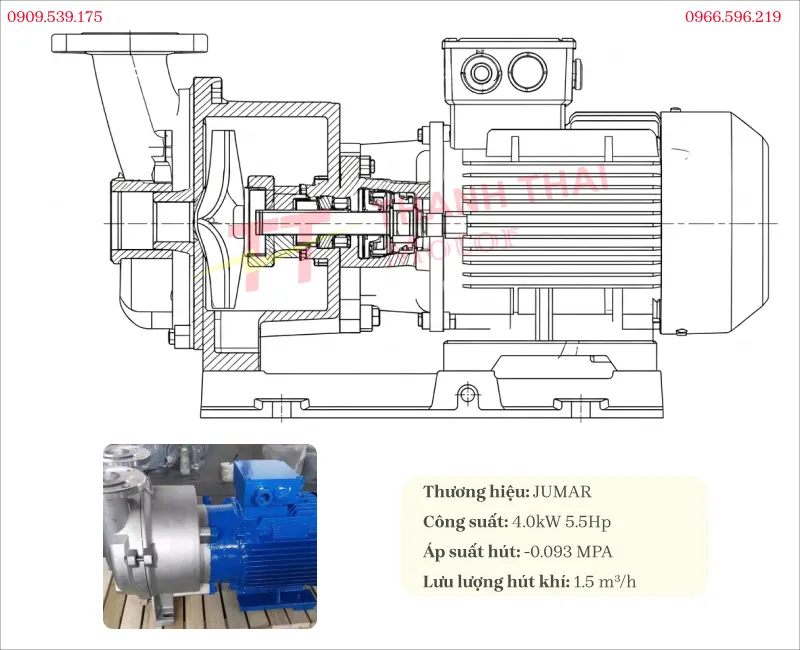

Specifications of the Close-Coupled Vacuum Pump 4.0kW 5.5HP

The specifications of the Close-Coupled Vacuum Pump 4.0kW 5.5HP below help you clearly understand the power, suction airflow, vacuum pressure, and cooling water volume of the equipment before choosing.

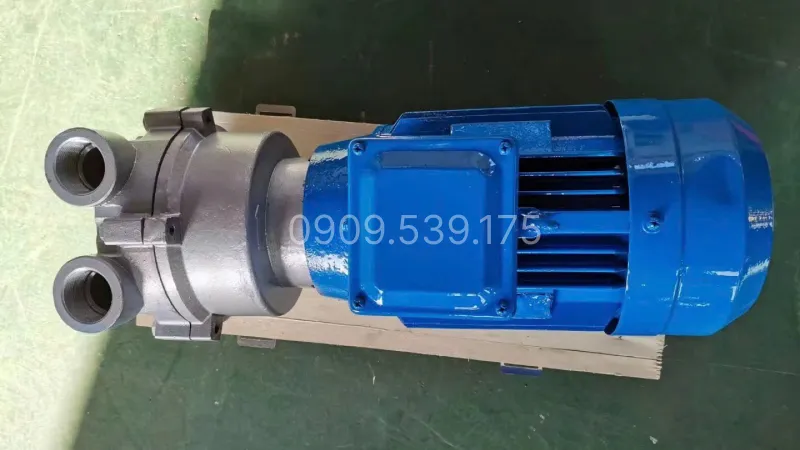

Applications of the Close-Coupled Vacuum Pump 4.0kW 5.5HP

The Close-Coupled Vacuum Pump 4.0kW 5.5HP is commonly used in many industrial fields and daily life:

• Product packaging machines, foods requiring long-term preservation.
• Used in pharmaceutical and chemical manufacturing plant environments.
• Wood processing industry: Extracting sawdust and wood chips.
• Hospital and medical room sanitation.
• Used when transporting perishable products over long distances.
• Clearing dust in water pipes and water lines.

Operating instructions for the Close-Coupled Vacuum Pump 4.0kW 5.5HP

System installation

• Machine placement: Place in a dry, cool place, on a flat and securely fixed surface.
• Electrical connection: Install an electrical panel with magnetic contactor and thermal overload relay for overload protection.
• Rotation test: Flick the switch on and off to check the motor rotation direction according to the arrow on the machine body.
• Pipeline connection: The suction pipe must be absolutely tight; it is recommended to install a check valve and dust filter.

Start-up and operation process

• Step 1: Open all valves on the suction and discharge pipes.
• Step 2: Supply cooling water (for water ring pumps) or check oil circulation (for oil ring pumps).
• Step 3: Press the Start button on the control panel.
• Step 4: Listen to the operating sound; the machine must run smoothly without abnormal noise.
• Step 5: Monitor the pressure gauge to check if the required vacuum level is achieved.

Shut-down process

• Step 1: Close the shut-off valve on the suction pipe to prevent oil or water from being sucked back into the system.
• Step 2: Press the Stop button on the control panel.
• Step 3: Close the cooling water supply (for water ring pumps).
• Step 4: Drain all liquid in the pump chamber if the machine is stopped for a long time during winter.

The Close-Coupled Vacuum Pump 4.0kW 5.5HP is suitable for many production systems requiring stable vacuum generation, continuous operation, and high durability. To refer to practical installation and operation methods, you can watch Thành Thái Motor‘s water pump videos. In addition, summary videos will help you learn more about various pump lines and other industrial equipment to choose products that suit your usage needs.
