Vacuum Pump 11kW 15Hp

The Vacuum Pump 11kW 15HP belongs to the water pump (water pump motor) and gas pump line used for pumping in a vacuum environment. This type features an optimal design, stable and quiet operating performance, and a powerful motor.

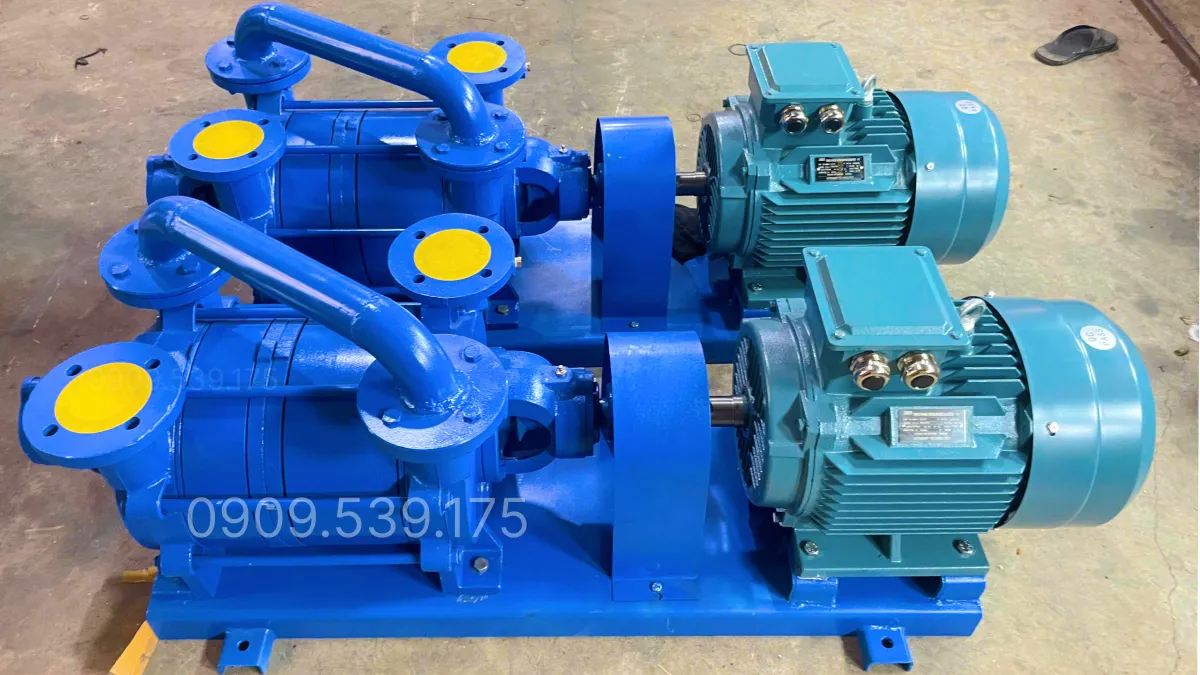

General design of the Vacuum Pump 11kW 15HP

A vacuum pump is a combination of a water pump head coupled with an electric motor, specifically a 3-phase electric motor, via a shaft coupling.

The vacuum pump housing features an eye-catching blue color, and the powder coating helps protect the pump from environmental harmful factors such as rust or acid. In addition, the vacuum pump also features a base design to help prevent the pump from shaking.

Detailed structure of the Vacuum Pump 11kW 15HP

The Vacuum Pump 11kW 15HP belongs to the 3-phase water pump line and consists of the following main components:

• Rotor assembly: Transmits rotational motion to create suction force and maintain the pump’s working cycle.
• Vanes: Contact the pump chamber wall to create suction and air compression chambers.
• Working chamber: Receives air from the system, performs the vacuum creation process before discharging the air out.
• Sealing and lubrication system: Limits air leakage, reduces friction between parts, and supports heat dissipation during operation.

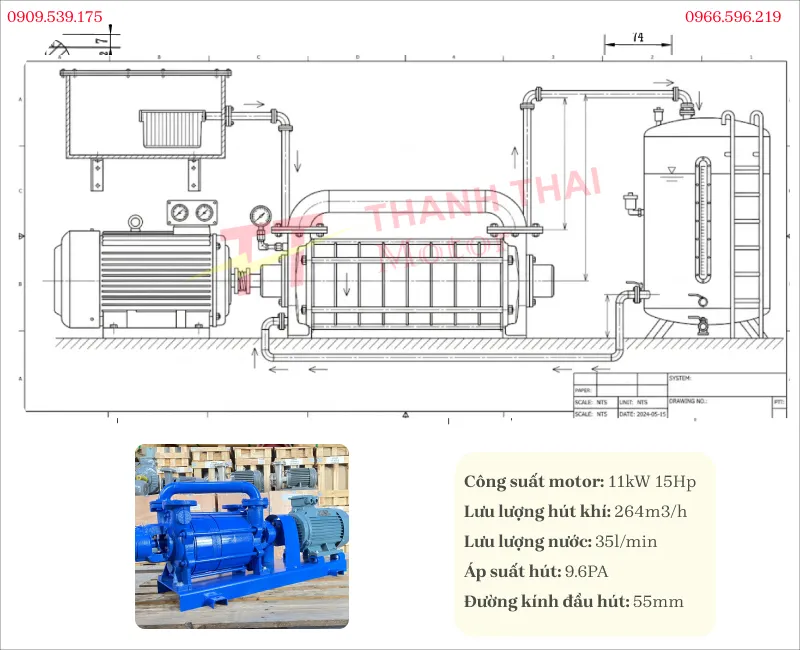

Technical specifications of the Vacuum Pump 11kW 15HP

The parameters below help select equipment suitable for flow rate and vacuum pressure requirements.

Technical specifications

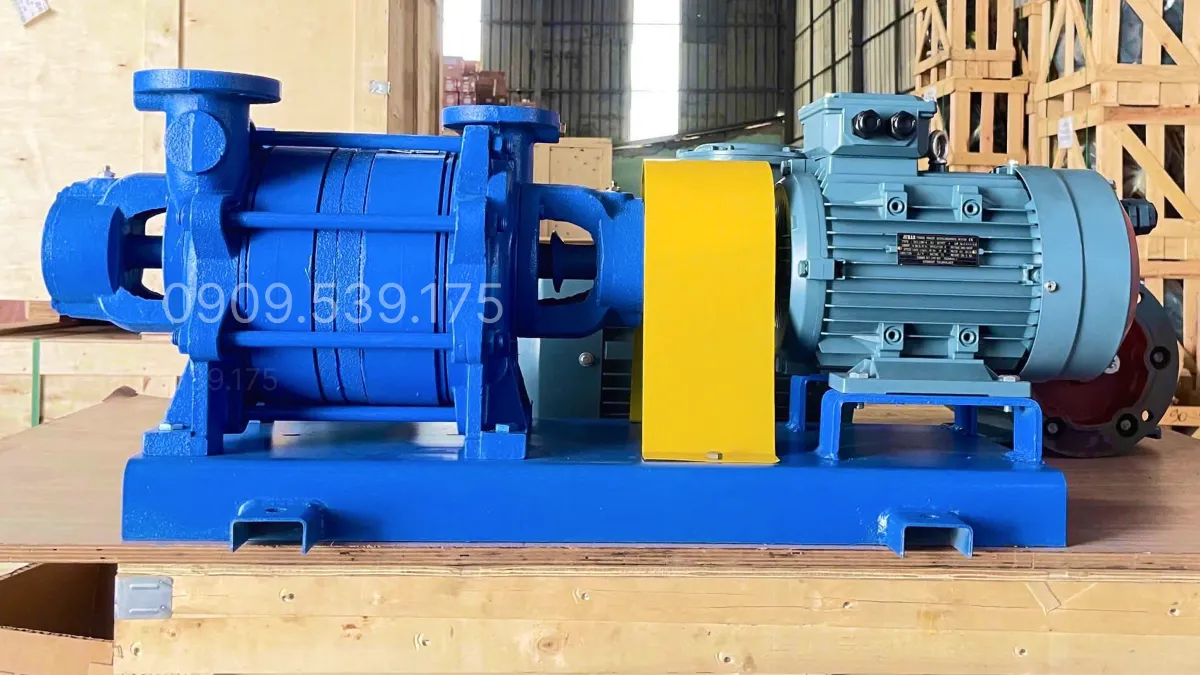

Functions and applications of the Vacuum Pump 11kW 15HP

The Vacuum Pump 11kW 15HP is most widely used in the food industry such as packaging and canning. In addition, in brick and iron factories… vacuum pumps are also used in various applications:

• At brick factories: discharging air to make bricks sturdier
• In the food industry: using vacuum pumps to remove gases from the surrounding environment, helping food preserve longer.
• Suction of gases, leather footwear manufacturing, food fermentation, and canning.
• In the paint industry, air extraction helps the paint become more durable and smooth, preventing rust.
• In the medical field: This liquid ring vacuum pump removes air in sterilization rooms to protect medical instruments from oxidation.

To learn more about the structure, working principles, and how to select suitable equipment, you can watch the summary video of various pump lines currently used in many industrial systems. In addition, the water pump video also provides further information on the structure, characteristics, and applications of other pump lines, making product selection more convenient.

User guide for the Vacuum Pump 11kW 15HP

To use the vacuum pump, the following issues should be noted:

• When the pump is not operating for a long time, it should be rotated regularly using a pipe wrench; this must be done at least once a week to prevent the impeller from sticking and damaging.
• Initially, jog the motor 1 or 2 times before turning it on completely. During this process, you need to verify that the motor current is less than or equal to the rated current indicated on the motor nameplate.
• Bearing inspection must be performed periodically every 3-6 months at both ends of the pump shaft and both ends of the motor.
• If the pump is not used for a long time, use a pipe wrench to turn it regularly, ideally doing so weekly.
• This is to prevent the impeller from jamming.
