Vacuum Pump 5.5kW 7.5Hp

The Vacuum Pump 5.5kW 7.5Hp is a gas pump and water pump (water pump motor) operating in a vacuum environment. This type features an optimized design, performs well in vacuum and wet environments, operates smoothly with a powerful motor, and produces low noise, making it suitable for use in the paint manufacturing, papermaking, and packaging industries.

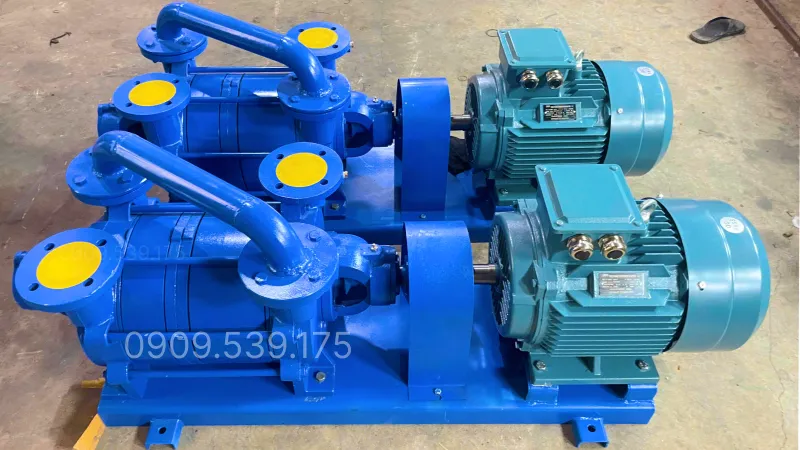

How is the Vacuum Pump 5.5kW 7.5Hp designed?

The 3-phase Vacuum pump is constructed with 1 suction port and 1 discharge port, capable of drawing in impurities for use in vacuum applications.

Additionally, the part connected to the pump head is an electric motor, specifically a 3-Phase Electric Motor with a robust design and a housing made of thick cast iron or aluminum.

Internal construction of the Vacuum Pump 5.5kW 7.5Hp

A vacuum pump is a line of 3-phase water pump with a construction consisting of the following main components:

• 3-Phase Electric Motor 5.5kW 7.5Hp: Features a stator wound with 100% pure copper and a rotor as the rotating part. This is the primary power source for the vacuum pump’s operation.
• Vacuum pump head: The location where gases and liquids are suctioned and discharged.
• Base frame: Helps secure the machine, preventing noise and ensuring smooth operation.

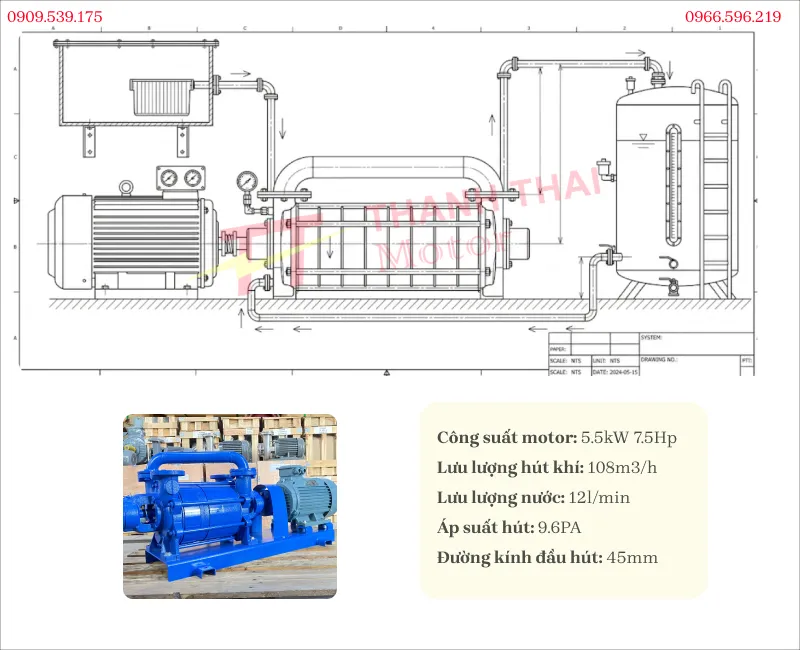

Technical Specifications:

• Power: 5.5kW (Belongs to the water pump category above 3.7kW).
• Suction air flow: 1800 l/min; m3/h: 108 (within the water pump segment above 50m3/h).
• Suction pressure: 9.6 Pa.
• Cooling water flow rate: 12 l/min.
• Suction port diameter: 45 mm.

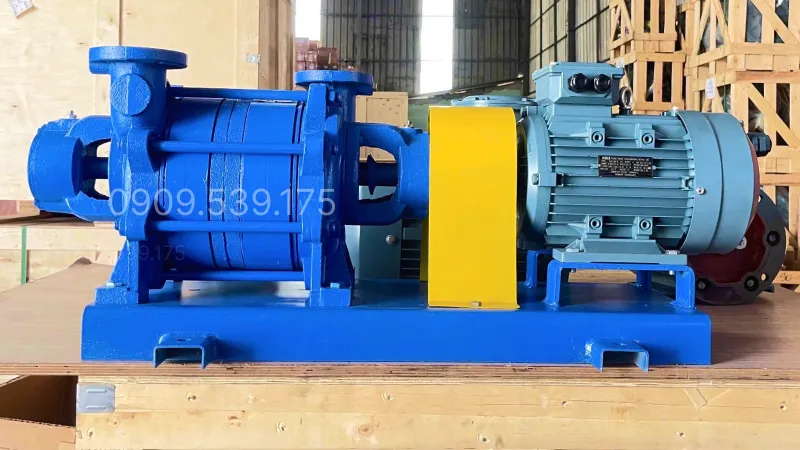

Functions and applications of the Vacuum Pump 5.5kW 7.5Hp

The Vacuum Pump 5.5kW 7.5Hp is most commonly applied in the food technology industry, such as in packaging, wrapping, and canned goods. It is also used in brick and steel factories; vacuum pumps are also utilized in storage tanks such as:

• Brick factories: Using a vacuum pump to remove air from the clay helps improve the density of the bricks.
• Food industry: Advantages and disadvantages of using a cooling water stream.
• Metallurgy industry: Removing air, including water vapor, to avoid porosity or any trapped impurities and voids-preventing the degradation of mechanical properties like load-bearing strength.
• Paper processing: Resistance to variation by removing foreign particles (dissolved gases) from the water.
• Vacuum pumps remove air from brick molding materials: the resulting bricks are of higher quality and more durable.

Outstanding advantages of the Vacuum Pump 5.5kW 7.5Hp

The vacuum pump has the following advantages:

• Dimensions suitable for the installation environment, operating smoothly without generating noise.
• Easy to use with the advantage of high, stable pumping force, meeting the requirements for various pumps in factories and enterprises.
• Thorough vacuuming, reaching near-zero pressure, providing maximum support for the customer’s work.
• Compact device that is easy to use and can be easily installed in limited spaces with restricted areas.
• The vacuum pump is easily installed, anti-vibration, and requires no periodic maintenance, with high and stable productivity.

User manual for the Vacuum Pump 5.5kW 7.5Hp

Points to note when using a vacuum pump:

• Select an installation location and place it on a flat, even surface.
• Carefully check bolts and screws to ensure they are in good condition, then tighten them securely.
• Ensure the water inlet line is not positioned higher than the motor (which can lead to damage).
• Check the power supply to see if it corresponds to the direction of the indicator arrow and connect it correctly to match.
