Vacuum Pump 7.5kW 10HP

The Vacuum Pump 7.5kW 10HP is a line of water pumps (pump motors) and gas pumps trusted for their outstanding design, powerful motors, smooth operation, and long lifespan. This Vacuum pump is used in industrial applications such as the paint and packaging industries.

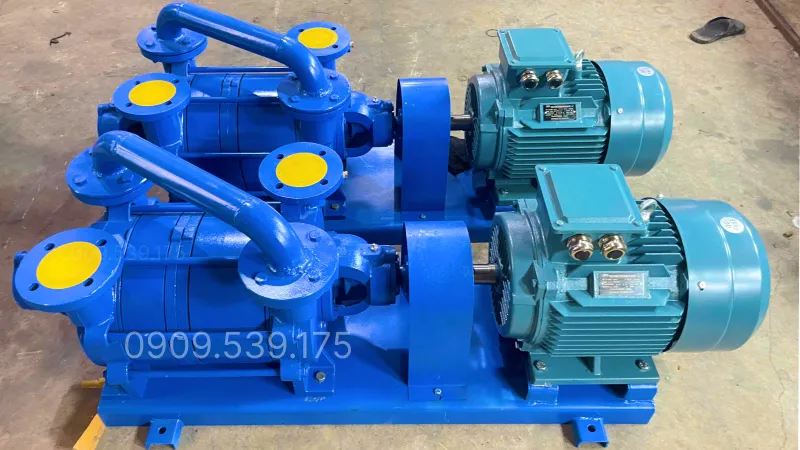

Overview design of Vacuum Pump 7.5kW 10HP

The Vacuum Pump 7.5kW 10HP features a structure including a single suction inlet and a single discharge outlet, effectively suctioning impurities to create a vacuum.

The Vacuum pump is a combination of a water pump head and an electric motor, specifically a 3-phase electric motor installed via an engine coupling.

Internal structure of Vacuum Pump 7.5kW 10HP

This Vacuum pump belongs to the 3-phase water pump line and consists of the following main components:

• 3-phase electric motor 7.5kW 10HP: This is the main power supply component for the machine, featuring a rotor as the moving part and a stator as the stationary part with windings made from 100% pure copper.
• Pump head: Made from thick cast iron, featuring suction and discharge pipes for pumping liquids and gases.
• Base frame: The component that fixes the pump head and pump body to prevent vibration during operation.

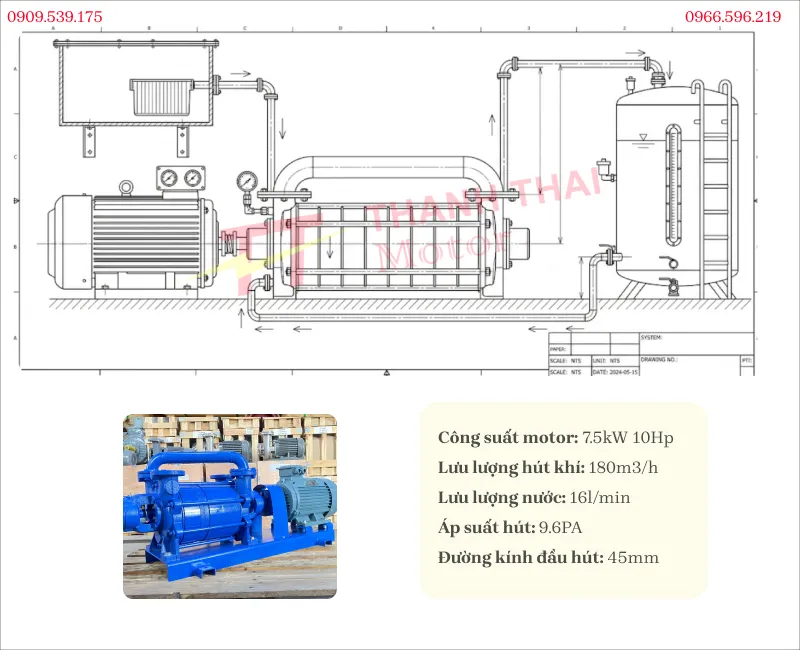

Technical specifications:

• Power: 7.5kW, belonging to the water pump line above 3.7kW.
• Suction air flow: 3000 l/min; m3/h: 180 (in the water pump segment above 50m3/h).
• Suction pressure: 9.6 Pa.
• Cooling water flow: 16 l/min.
• Suction inlet diameter: 45 mm.

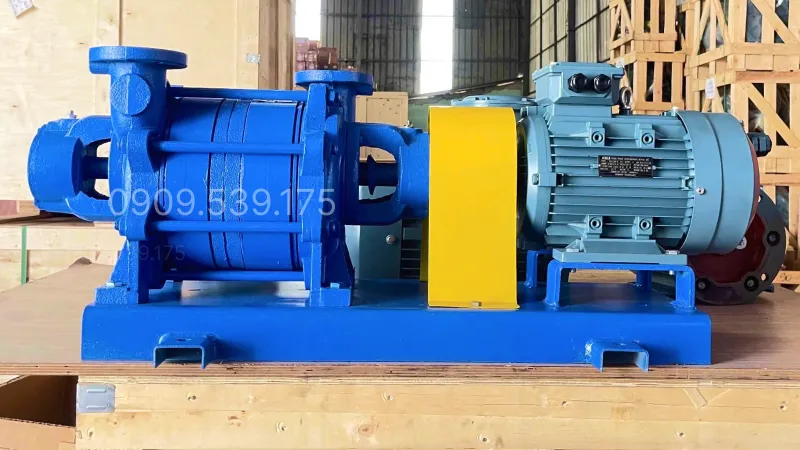

Functions and applications of Vacuum Pump 7.5kW 10HP

The Vacuum Pump 7.5kW 10HP is most commonly used in the food industry for packaging and canning. Additionally, it is used in brick and steel factories…

• Vacuum pumps are applied as supplements in many storage tanks. In brick factories, they suction air out to make the bricks more solid.
• In the food industry, vacuum pumps are used to remove gases from the external environment so that food can be preserved longer.
• Brick making: Used to suction air from brick molding materials, making the bricks stronger and more durable.
• Vacuum pumps find their way into many storage tanks.
• In brick factories, they suction air out to make the bricks more solid by removing gas from the external environment, and are thus used in the food industry to preserve food for a longer duration.
• Brick manufacturing is another application where vacuum pumps are used to suction air in brick molding materials, as it makes the bricks stronger and more durable.

See detailed video about the Vacuum pump product

Advantages of Vacuum Pump 7.5kW 10HP

This 3-phase Vacuum pump offers the following advantages:

• Suitable for the intended installation site.
• Simple user interface.
• A machine with a super powerful 10 horsepower motor that also has high durability.
• Energy-saving motor made of 100% high-quality copper wire.
• Lifespan can reach 7 - 10 years.
• Longest genuine warranty on the market from 2 - 3 years.
• Thorough dust suction reaching nearly zero levels to provide maximum support for customers’ work.

User manual for Vacuum Pump 7.5kW 10HP

When using a Vacuum pump, the following points should be considered:

• Choose an installation location where the pump can be installed on a flat and stable surface.
• Check if all bolts and screws have been tightened.
• Ensure the water inlet is not higher than the motor (to avoid damage).
• Check the power connection for rotation based on the arrow indicator after confirming the correct power source.
