Vacuum Pump 30kW 40Hp

Vacuum Pump 30kW 40Hp is a water pump (water pump motor) and gas pump device in a vacuum environment. It is designed with many outstanding advantages, sturdy build, smooth operation, low noise, and energy saving. Due to these advantages, the pump is suitable for applications in various industries such as painting, packaging, etc.

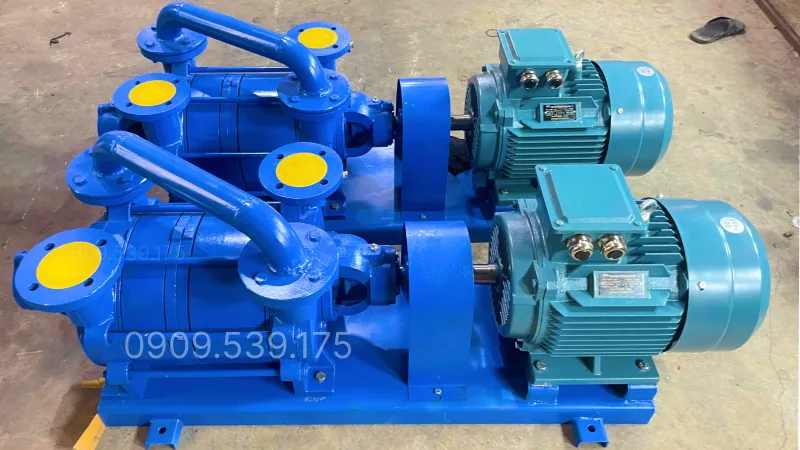

Overall design of Vacuum Pump 30kW 40Hp

Overall, the vacuum pump is designed with the pump head and pump body assembled together via a coupling. The pump body is an electric motor, specifically a 3-phase electric motor.

The pump head has a structure consisting of 2 main parts: the suction port and the discharge port. With strong vacuum suction capabilities, the 3-phase vacuum pump easily removes impurities to create a specific vacuum environment.

Detailed structure of Vacuum Pump 30kW 40Hp

Internal components are arranged by function to create a vacuum and maintain operating capability under heavy load conditions.

• Pump chamber: Receives air from the system and performs the negative pressure generation process.
• Drive rotor: Rotates synchronously with the motor to drive the entire vacuum suction mechanism.
• Vanes: Move within the pump chamber to create a continuous air suction and discharge cycle.
• Bearings and main shaft: Support stable rotational movement, reduce vibration, and increase working precision.
• Lubrication system: Supplies oil to friction points to reduce wear and support cooling during operation.

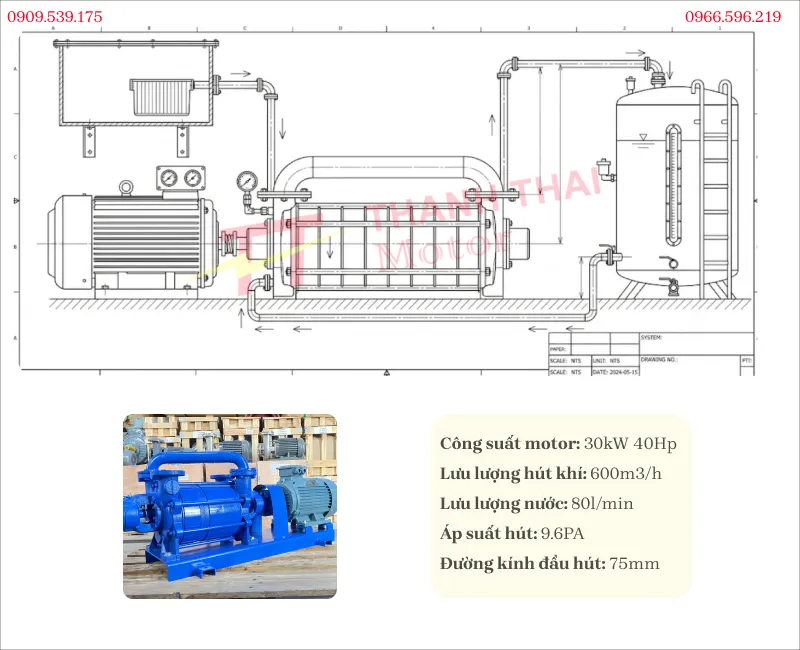

Specifications of Vacuum Pump 30kW 40Hp

The parameters below are the basis for selecting equipment suitable for the scale and requirements of the system.

Technical specifications

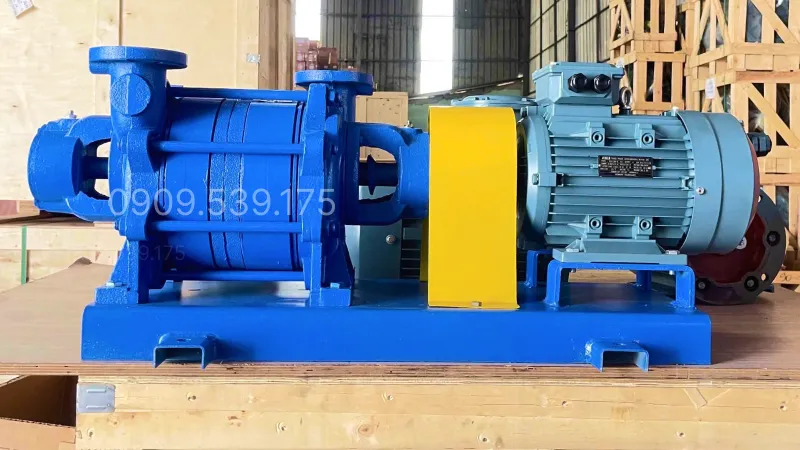

Applications of Vacuum Pump 30kW 40Hp

Vacuum Pump 30kW 40Hp is used in systems requiring large suction flow rates and continuous operation.

• Food processing lines: Provides a vacuum source for packaging and product preservation systems.
• Chemical industry: Combined with drying, filtering, and material processing equipment in a vacuum environment.
• Plastic and composite manufacturing: Supports pressing, shaping, and defoaming processes in products.
• Material handling systems: Suction and transportation of powders, granules, or lightweight materials via negative pressure.

To learn more about the structure, operating principle, and how to select suitable equipment, you can refer to the summary video of pump series currently used in various industrial fields. In addition, the water pump video also provides more information on the structure, characteristics, and applications of other pump lines, facilitating the equipment selection process.

Operating instructions for Vacuum Pump 30kW 40Hp

To use the vacuum pump, the following issues should be noted:

• Read the instructions carefully before installing the machine.
• Choose a suitable installation location; it should be installed on a flat, non-uneven surface.
• Check and tighten bolts and screws.
• Ensure the incoming water line is not higher than the motor (to avoid potential damage).
• Use a suitable power supply for connection and rotate in accordance with the directional arrow.
• Avoid using the pump at ambient temperatures lower or higher than room temperature.
• Disconnect the power when not in use.
