Close-Coupled Vacuum Pump 2.2kW 3Hp

The Close-Coupled Vacuum Pump 2.2kW 3Hp belongs to the water pump line (water pump motor) featuring a pump head design directly connected to the electric motor (electric motor), specifically a 3-phase electric motor (3-phase electric motor). This device is used in applications such as packaging, painting industries, etc., thanks to its modern design, robust motor, and long lifespan.

Overview design of the Close-Coupled Vacuum Pump 2.2kW 3Hp

The vacuum pump belongs to the 3-phase water pump line (3-phase water pump motor) impressing customers with its eye-catching design, externally painted in dark blue. The motor casing is made of cast iron or stainless steel.

Especially, the motor is designed with the pump head and motor integrated into a single unit, making the equipment very compact, helping the Close-Coupled Vacuum Pump 2.2kW 3Hp fit well in places with limited space.

Structure of the Close-Coupled Vacuum Pump 2.2kW 3Hp

The equipment consists of the following components:

• Electric motor (Motor): Usually uses 3-phase voltage (380V), with a 3Hp capacity generating high torque to help the machine operate stably.
• Pump chamber: Made of anti-rust material (stainless steel or cast iron), where the air suction and compression process takes place.
• Impeller: Usually rotary vanes (oil ring) or star impellers (water ring), installed eccentrically to create variable volumetric chambers.
• Suction / discharge port: Where piping is connected to intake air/steam and discharge it outside.
• Seals and bearings: Ensure absolute tightness during the vacuum extraction process and help the shaft rotate smoothly.
• Cooling system (for water/oil ring pumps): Includes water/oil supply valves, cooling tanks, and oil/water separators to protect the equipment.

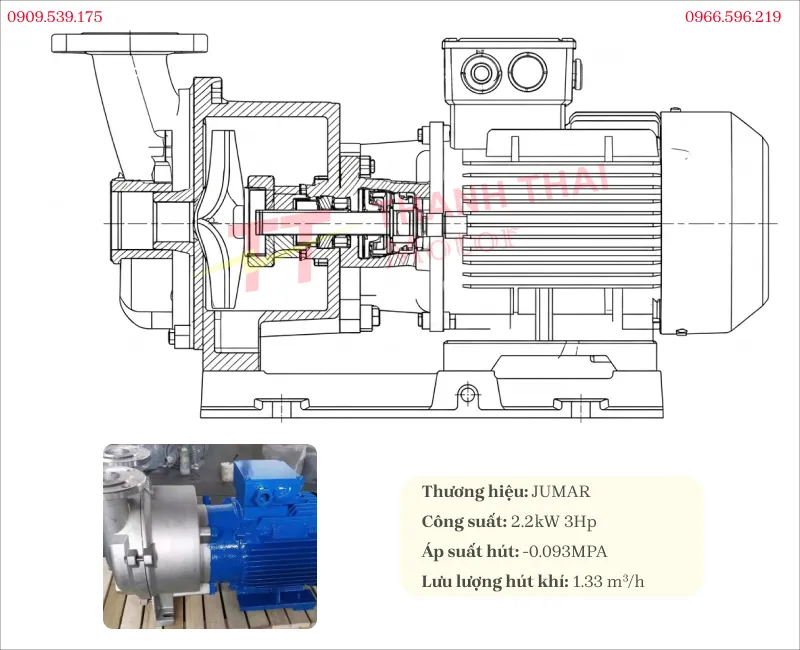

Specifications of the Close-Coupled Vacuum Pump 2.2kW 3Hp

The specifications of the Close-Coupled Vacuum Pump 2.2kW 3Hp below provide important parameters regarding power, suction flow rate, vacuum pressure, and cooling water volume to help you easily choose the right product.

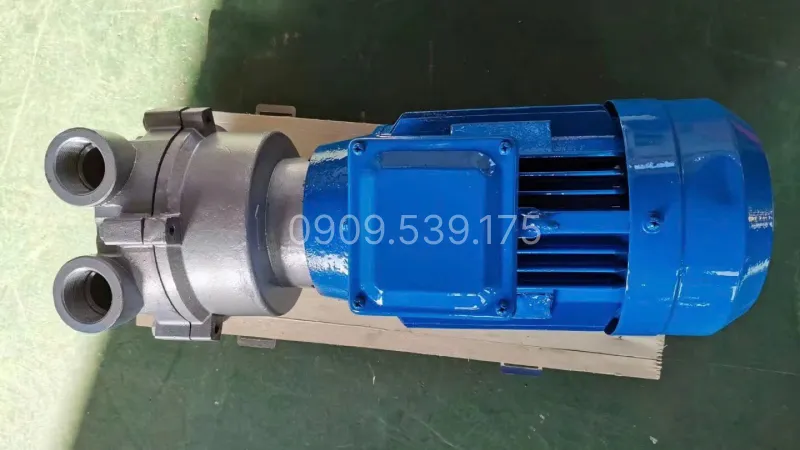

Applications of the Close-Coupled Vacuum Pump 2.2kW 3Hp

This motor-type water pump is very commonly used in industries as well as in daily life:

• Used in packaging products and foods that require long-term preservation.
• Used in chemical and pharmaceutical manufacturing environments and plants.
• In wood processing industries: extracting sawdust and wood chips.
• Cleaning classrooms, offices, medical rooms, and fume hoods.
• Used during long-distance transportation of perishable products.
• Helping to clean dust in water pipes.

User guide for the Close-Coupled Vacuum Pump 2.2kW 3Hp

Pre-operation inspection

• Ensure the pump is placed on a flat, firmly secured surface to avoid strong vibrations during operation.
• Check the 220V or 380V power grid (depending on the model) to ensure it matches the specifications on the motor.
• Check the lubricating oil level (for oil-ring vacuum pumps) or priming water supply system (for water-ring pumps) to prevent the machine from running dry upon startup.
• Check and clean the inlet air filter to ensure no debris or dirt enters the pump chamber.

Starting and operating the machine

• Open the priming water supply valve or check the flow of sealing water (if using a water-ring pump) to create an effective cooling and sealing liquid ring.
• Turn on the power switch, listen to the motor sound to check for any abnormal noise.
• Slowly open the suction valve (gate valve) to allow the system to start evacuating air, avoiding sudden opening that could overload the motor.
• Monitor the vacuum pressure gauge to ensure the equipment reaches the required pressure level for practical application.

The Close-Coupled Vacuum Pump 2.2kW 3Hp is a suitable solution for systems requiring stable vacuum generation, durable operation, and easy installation. To see how the equipment operates in practice, you can refer to Thành Thái Motor‘s water pump video. Additionally, the compilation video will help you explore many other pump lines and industrial equipment, supporting you in choosing the product that suits your usage needs.
