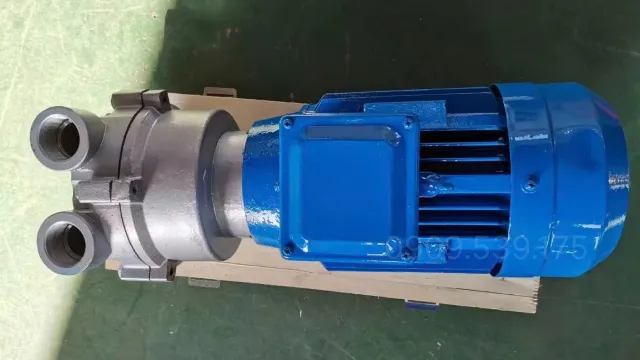

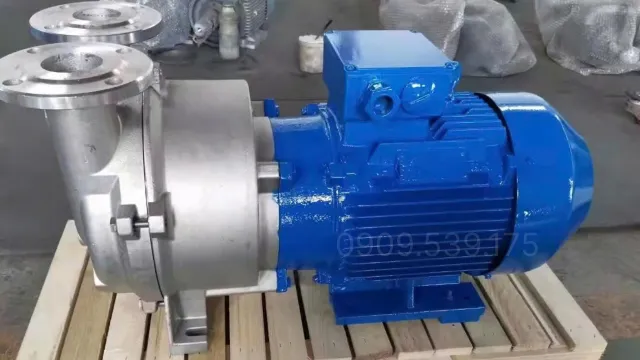

Close-Coupled Vacuum Pump 1.5kW 2Hp

The Close-Coupled Vacuum Pump 1.5kW 2Hp is a product belonging to the water pump line (water pump motor), used to pump liquids or vacuum in a vacuum environment. It features a modern design, durability with a long lifespan, a strong motor, and smooth operation.

Regarding the Design of the Close-Coupled Vacuum Pump 1.5kW 2Hp

This vacuum pump belongs to the 3-phase water pump line, impressing customers with its eye-catching design and dark blue exterior paint. The motor casing is made of cast iron or stainless steel.

In particular, the pump is designed with the pump head and electric motor (specifically a 3-phase electric motor) integrated into a single unit, making the equipment very compact and helping the Close-Coupled Vacuum Pump 1.5kW 2Hp suitable for areas with limited space.

Structure of the Close-Coupled Vacuum Pump 1.5kW 2Hp

The equipment is composed of the following parts:

• Electric motor: Power of 1.5kW (equivalent to 2Hp), typically using a 3-phase voltage (380V, 50Hz) to operate at a rotational speed of about 2900 – 3400 rpm.
• Pump chamber: Contains water or working liquid, serving as the location where air suction and compression take place.
• Impeller: The main moving part positioned eccentrically relative to the pump chamber. When rotating, it creates centrifugal force throwing water outward, forming a liquid ring concentric with the pump casing.
• Pump shaft: Directly connects the motor and the impeller, transmitting powerful rotational force.
• Suction and discharge ports: Where the air to be sucked is received and the air-water mixture is discharged.
• Mechanical seal & Bearings: Prevent liquid from leaking into the motor and help the machine operate smoothly and durably.

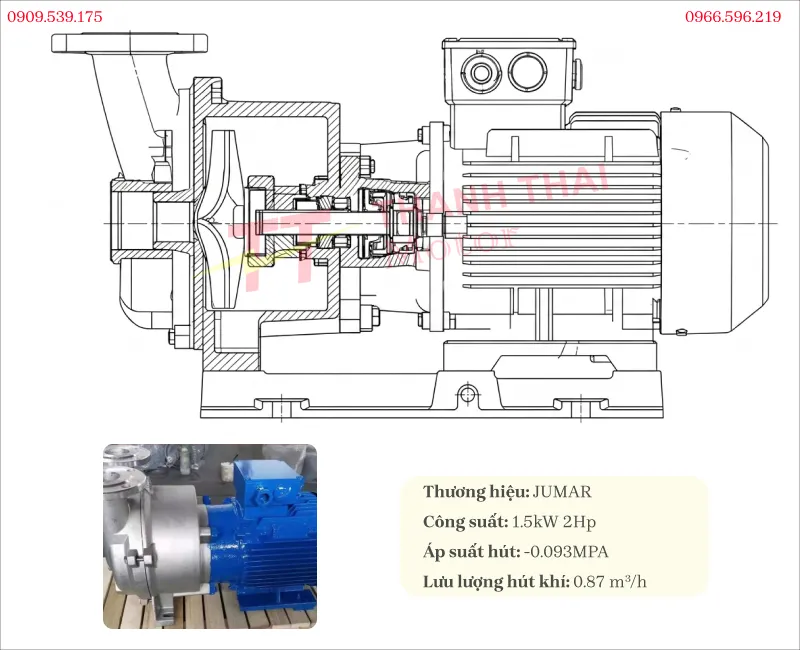

Technical Specifications of the Close-Coupled Vacuum Pump 1.5kW 2Hp

The technical specifications of the Close-Coupled Vacuum Pump 1.5kW 2Hp below help you easily evaluate suction capacity, working pressure, and select equipment suitable for your usage needs.

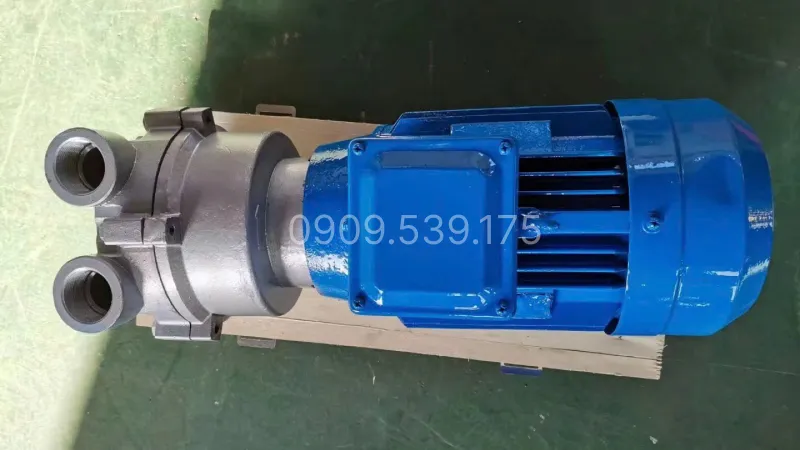

Applications of the Close-Coupled Vacuum Pump 1.5kW 2Hp

The Close-Coupled Vacuum Pump 1.5kW 2Hp motor is a type of water pump, widely used in both industrial sectors and daily life:

• Vacuum suction in glass manufacturing.
• Production of tires and rubber.
• Vacuum suction in glass and wood transfer.
• Vacuum suction in ore dressing and mineral plants.
• Used in packaging and food production lines.

Instructions for Using the Close-Coupled Vacuum Pump 1.5kW 2Hp

Operating the Close-Coupled Vacuum Pump 1.5kW 2Hp correctly helps optimize performance and extend machine lifespan. Below is the detailed process for each stage from inspection, operation to maintenance.

Before Operation

• Check and select a flat, dry installation position, avoiding humid environments or corrosive chemicals.
• Securely fix the pump base with bolts to prevent strong vibrations when the motor is running.
• For oil-sealed pump lines, check the oil level through the sight glass, ensuring the oil amount is at the standard mark (usually between Min/Max marks).
• Check the power supply, safely connect wires, and include grounding to prevent electrical leakage.

During Operation

• Turn on the machine start switch and monitor the rotation direction of the cooling fan blade (it must rotate in the correct direction indicated by the arrow on the pump body).
• Monitor the motor noise; if abnormal sounds or strong vibrations occur, immediately disconnect the power to check.
• Regularly check the oil level to ensure uniform oil circulation and good cooling for the pump chamber.
• Observe the pressure gauge (if available) to ensure the vacuum degree meets work requirements.

The Close-Coupled Vacuum Pump 1.5kW 2Hp well meets vacuum generation needs in many production fields thanks to its stable operation, compact structure, and high durability. To refer to practical installation and operation methods, you can watch the water pump video from Thanh Thai Motor. In addition, the comprehensive video will help you learn about many other pump lines and industrial equipment to choose products that suit your usage needs.
