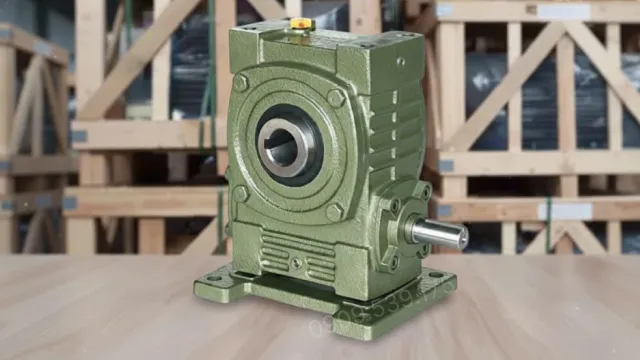

WPWKA 175 Worm Gearbox

The WPWKA Worm Gearbox 175 is designed for stable transmission with high torque, suitable for various industrial machinery systems. The housing is solidly constructed with high load capacity, ensuring durability in continuous working environments. The equipment is precisely machined, helping the machine operate smoothly and minimizing vibration and noise. Diverse transmission ratios support optimal speed adjustment according to the requirements of each application. The product is easy to install, convenient to maintain, and well meets long-term production needs.

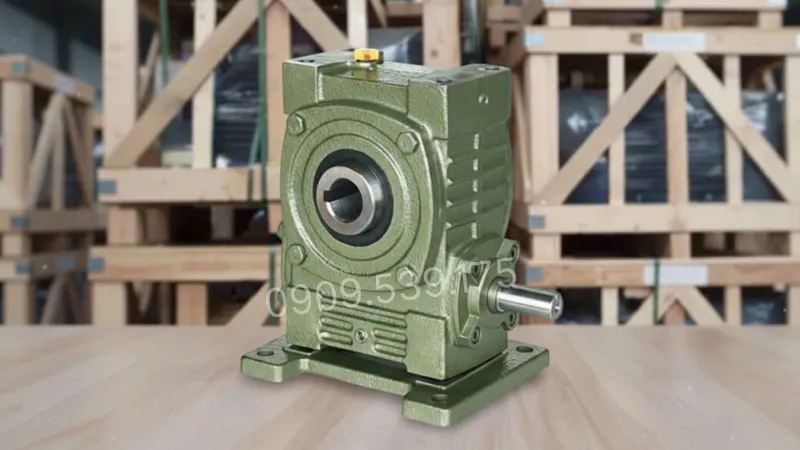

Overview design of the WPWKA 175 gearbox

A gearbox (worm gearbox) also known as a worm gear reducer, provides large reduction capabilities and high transmission torque. The housing is solidly cast, with good load capacity and effectively protects internal components, helping the device maintain long-term durability. The worm and worm wheel transmission set is precisely machined, ensuring smooth machine operation, minimizing vibration and noise. The gearbox is assembled with an electric motor to create a gear motor product line with powerful performance.

Detailed structure of the WPWKA 175 worm gearbox

• Housing: Cast from durable alloy, high load capacity, protecting the entire internal transmission and reducing vibration during operation.
• Worm shaft: Precisely machined, high load capacity, creating sliding motion for effective speed reduction.
• Worm wheel: Made of bronze or special alloy, perfectly meshed with the worm shaft to transmit smooth and stable torque.
• Bearings: Support smooth shaft rotation, reduce friction, and increase the service life of the transmission set.
• Oil seals: Prevent oil leakage and dust ingress, keeping the operating environment clean and stable.
• Lubrication system: Uses specialized lubricating oil to reduce friction, lower temperature, and extend component life.
• End covers and mounting flanges: Support device fixation, easy disassembly, and convenient maintenance or component replacement.

Specifications of the WPWKA 175 worm gearbox

The WPWKA 175 worm gearbox is designed with a sturdy structure, high torque transmission capability, and stable operation under various working conditions. Below are the basic technical specifications of the product for customers to easily select and install.

Applications of the WPWKA 175 worm gearbox

With a durable structure and high stability, this worm gearbox well meets the requirements in various industrial machinery systems.

• Used in feeders, extruders, and bulk material handling equipment.
• Used to adjust speed and create stable pulling force for goods transportation lines.
• Supports deep speed reduction and generates high torque to operate heavy-duty equipment.
• Operates durably in aerators, sludge dewatering machines, and low-speed rotating equipment.

Guide to adding oil for the WPWKA worm gearbox

• Preparation: Disconnect all connected power sources to ensure absolute safety. Choose specialized lubricating oil for gearboxes, for example: industrial gear oil with ISO VG 320 viscosity.
• Cleaning: Use a clean cloth to wipe dust around the oil filling hole, oil drain hole, and oil sight glass to prevent dust particles from falling inside the gearbox.
• Opening the bolt: Unscrew the oil filling bolt (usually located on the top face).
• Adding oil: Slowly pour oil into the filling hole. Observe the oil sight glass until oil flows out from the sight glass, which is sufficient. The standard oil amount usually accounts for 1/6 to 1/3 of the capacity or height of the gearbox.
• Completion: Wait for excess oil to drain completely, then screw and tighten the oil sight bolt and oil filling bolt.

The WPWKA Worm Gearbox 175 is suitable for various transmission systems requiring high torque and stable operation. To learn more about the structure, working principles, and application capabilities of the product, you can refer to the gearbox video produced by Thanh Thai Motor. In addition, the summary video will help you view more gearbox series and other transmission solutions.
