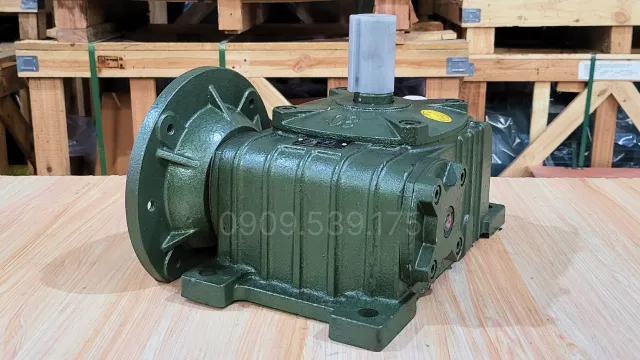

WPDO 200 Worm Gearbox

The Wpdo 200 Worm Gearbox is a premium product line with a special right-angle design between the input and output shafts, large dimensions, suitable for high-power transmission systems. With high load capacity, high torque, and superior durability. Let’s explore the detailed structure of this gearbox and its applications in industry and production lines with Thanh Thai Motor.

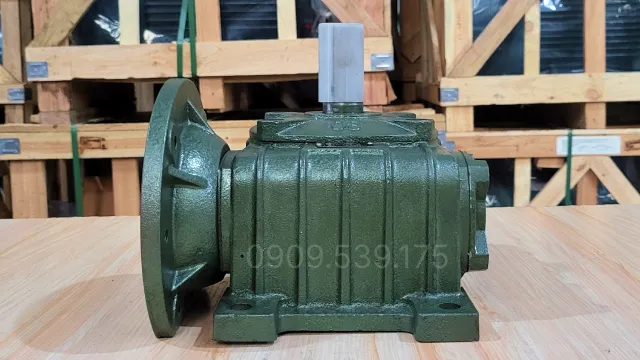

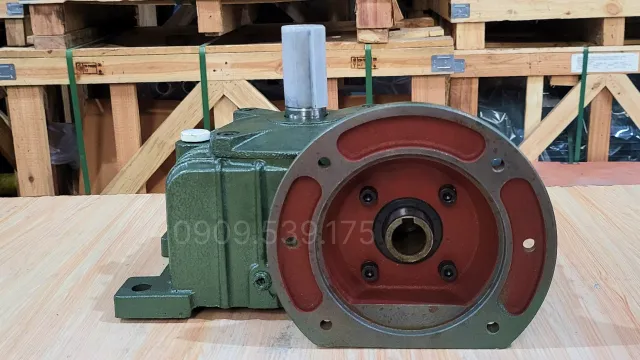

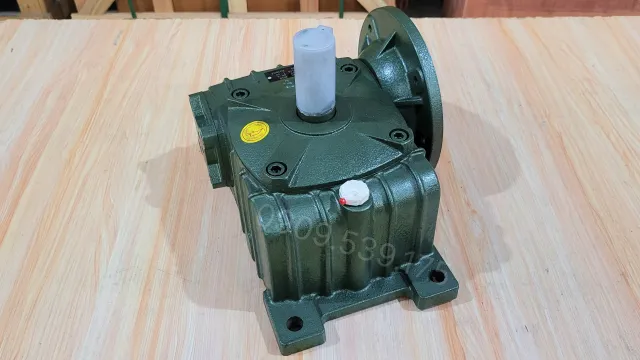

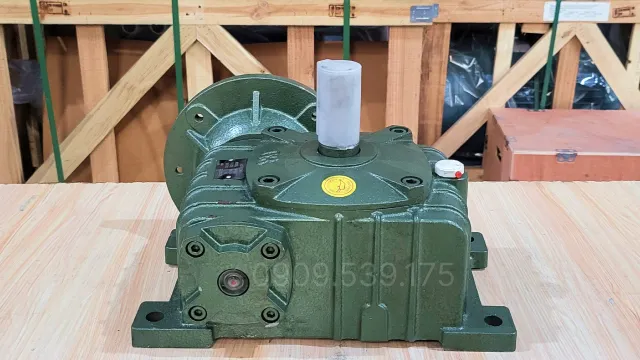

Overview design of the Wpdo 200 Worm Gearbox

The WPDO 200 gearbox has a rectangular box structure with sturdy edges, a high-strength cast iron housing, ensuring durable operation over a long period. The device features a right-angle shaft design between the input and output. The exterior of the gearbox is coated with anti-rust electrostatic paint, enhancing oxidation resistance and tolerance to humid environments and industrial chemicals.

The worm gearbox combines directly with the electric motor to form a gear motor, helping to reduce pressure on the motor, limit breakdowns, and make the system more durable.

Detailed structure of the Wpdo 200 Worm Gearbox

The WPDO 200 consists of the following main components working together to ensure transmission efficiency:

• Worm shaft: Manufactured from alloy steel and heat-treated to enhance load capacity and reduce wear during operation.
• Worm gear: Machined from copper alloy, helping to transmit torque stably and reduce friction between contact surfaces.
• Bearing: Supports precise shaft rotation, reduces vibration, and extends the lifespan of the transmission system.
• Oil seal: Retains lubricating oil inside the housing while preventing dust and moisture from entering internal components.

Technical specifications of the Wpdo 200 Worm Gearbox

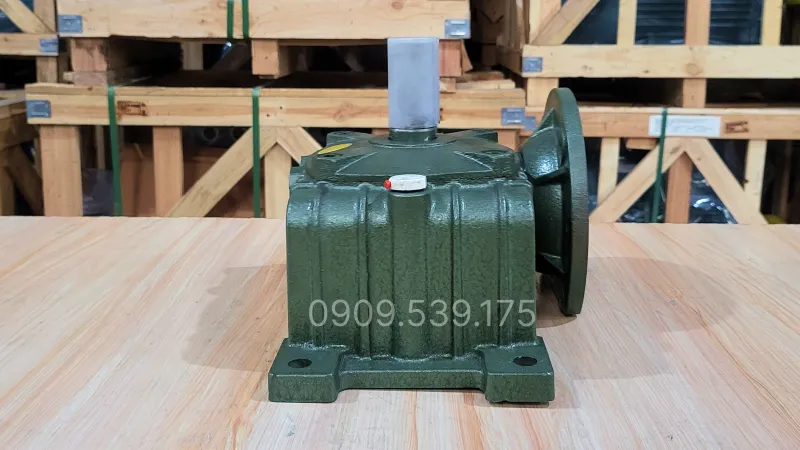

Functions and applications of the Wpdo 200 Worm Gearbox

The WPDO 200 gearbox is specialized for systems requiring high transmission power and continuous operation, such as:

• Heavy industrial conveyor systems, cement and brick conveyor belts.
• Presses and rolling machines in metallurgy and mechanical manufacturing industries.
• Fertilizer and animal feed production lines.
• Equipment requiring increased torque such as crushers, mixers, and large-capacity industrial agitators.
• Lifting systems, winches, and cranes in the construction and transportation industries.

Guide to selecting a gearbox according to motor power

To select a gearbox according to motor power, it is necessary to accurately determine the motor parameters and system operating requirements before making a choice.

Step 1: Determine the motor power

Check the rated power on the motor nameplate or technical documentation as a basis for selecting the gearbox.

Step 2: Determine operating requirements

Determine input speed, output speed, torque, load, and working conditions to calculate the appropriate gear ratio.

Step 3: Select the gearbox model

Compare the technical specifications of each model, including power, gear ratio, torque, and load capacity before deciding.

Step 4: Check installation capability

Compare shaft dimensions, flanges, mounting types, and connection parameters to ensure the gearbox can be coupled with the motor and equipment.

If practical examples are needed, users can watch gearbox videos to learn about the structure and installation methods. In addition, comprehensive videos also share much content on selecting motors, gearboxes, and transmission solutions for various applications.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
