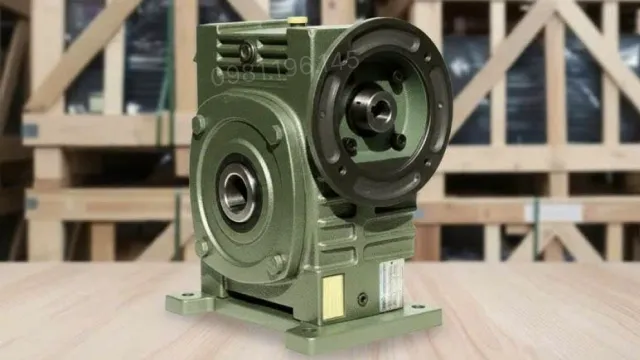

WPDKS 175 Worm Gearbox

The WPDKS 175 Worm Gearbox features a sturdy yet compact design, making it easy to install in various machinery systems. It has a solid cast iron housing with a smooth, powder-coated surface to prevent rust, protecting the equipment from dust and harsh industrial environments.

The gearbox can be installed vertically or horizontally, combined with a precise hollow output shaft, facilitating direct connection with an electric motor to create a gear motor or other transmission mechanisms without complex adjustments, ensuring stable transmission force and synchronous operation.

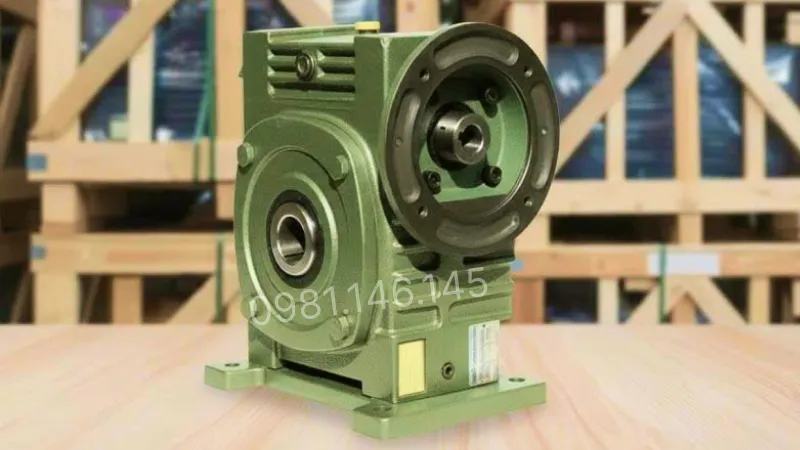

General Design of the WPDKS 175 Worm Gearbox

This is a gearbox line that helps generate high reduction force and stable operation even during continuous work. The sturdy cast iron housing and precision-machined surface enhance durability and heat dissipation. The flexible output shaft design makes it easy to assemble with various types of machinery, suitable for systems requiring quiet operation, heavy loads, and a long service life.

Detailed Structure of the WPDKS 175 Worm Gearbox

The worm gearbox is manufactured with high-quality components, optimized for long service life and high transmission efficiency:

• Housing: One-piece cast iron, high load-bearing capacity, protecting internal mechanisms from impact and dust.
• Worm shaft: Quenched alloy steel, precise helical threads, efficient power transmission, and reduced wear.
• Worm gear: Durable alloy bronze, high self-lubricating capability, enhancing service life during continuous operation.
• Bearings: Help the shaft rotate stably, reduce vibration, and increase precision.
• Covers and oil seals: Prevent oil leaks and dust, protecting internal components.

Technical Specifications of the WPDKS 175 Worm Gearbox

To choose the right model suitable for the transmission system, users can refer to the following basic specifications:

Technical Specifications

Practical Applications of the WPDKS 175 Worm Gearbox

The WPDKS 175 worm gearbox is suitable for heavy industrial systems and equipment requiring high power transmission:

• Heavy-duty conveyors, high-capacity production lines.
• Lifting machines, heavy-load lifting tables.
• Rotation mechanisms, industrial turntables.
• High-capacity mixers and agitators.
• Heavy industrial automation systems and large-scale mechanical equipment.

Instructions for Adding Oil to the WPDKS Worm Gearbox

To add oil to the WPDKS worm gearbox correctly, follow these steps:

Step 1: Drain all old oil

Open the oil drain plug at the bottom of the gearbox to let the old oil drain completely. Prepare an oil collection tray, then clean the drain plug and reinstall it in the correct position.

Step 2: Open the oil filler plug

Remove the oil filler plug or breather plug on the gearbox housing to prepare for adding new oil and allow the oil to flow in easily.

Step 3: Add new oil

Use a funnel to slowly pour lubricating oil into the gearbox. Gear oil with an ISO VG 320 or ISO VG 460 viscosity grade should be used, depending on the operating conditions of the equipment.

Step 4: Check the oil level

Observe the oil sight glass and add oil to the specified level or about 2/3 of the oil sight glass. Do not overfill to avoid affecting operation.

Step 5: Completion and inspection

Reinstall the oil filler plug, wipe off any remaining oil on the gearbox housing, and check the threads and sealing gaskets before putting the equipment into operation.

In addition to this article, you can refer to the summary video on the Thanh Thai Motor channel for more instructions on maintenance and oil replacement. Meanwhile, the gearbox video will provide information on the structure, oil filling procedure, and inspection of worm gearbox lines.
