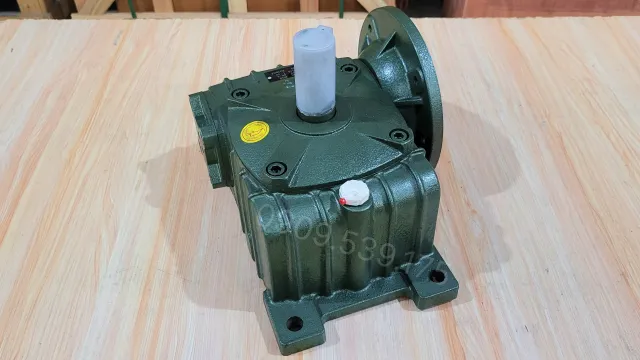

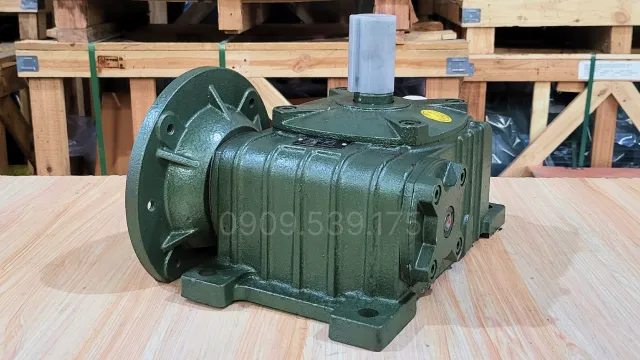

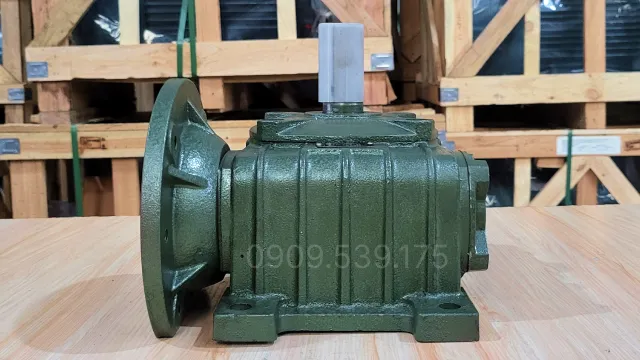

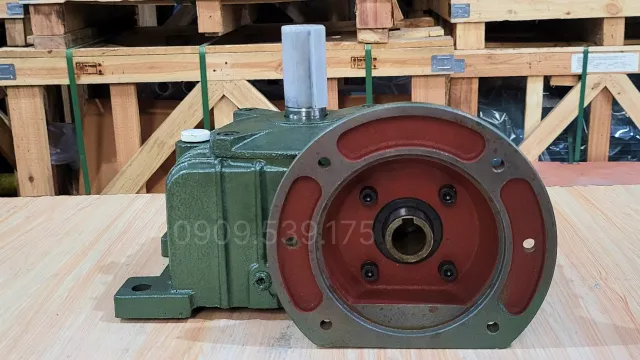

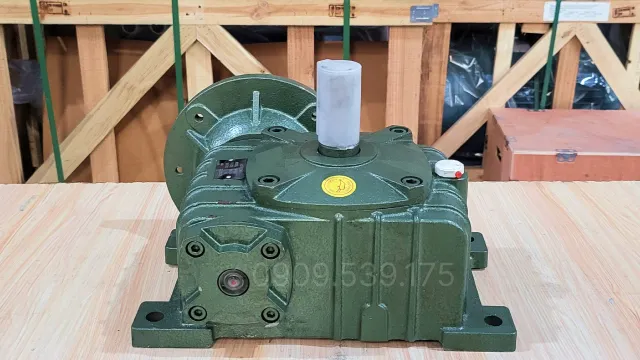

WPDO 135 Worm Gearbox

The WPDO 135 Worm Gearbox is a drive unit specially designed for industrial systems requiring high torque and long-term stable operation. With a sturdy structure, high-grade materials, and high load capacity, the gearbox provides optimal transmission efficiency in harsh working environments. The product is flexibly applied in various industries such as wastewater treatment, food processing, mechanical manufacturing, and agriculture.

General Design of WPDO 135 Worm Gearbox

The WPDO 135 Worm Gearbox is built with a robust structure, featuring a thick, one-piece cast iron housing that enhances impact resistance, reduces vibration, and minimizes deformation during continuous operation. The surface is coated with high-quality electrostatic paint, effectively preventing rust, moisture, and corrosion in dusty or mildly chemical environments.

The input and right-angle output shafts are arranged perpendicularly, making it convenient to place equipment in confined spaces or flexibly change the rotation direction. The worm gearbox can be directly integrated with an electric motor to form a gear motor, optimizing the power transmission process.

Detailed Structure of WPDO 135 Worm Gearbox

The main components of the WPDO 135 are designed to ensure stable power transmission and a long service life:

• Worm shaft: Made of high-strength alloy steel, heat-treated to increase hardness, ensuring stable force transmission and minimizing wear during operation.
• Worm gear: Machined from heavy-duty bronze alloy with self-lubricating properties, reducing friction and operating temperature.
• Bearing: High-quality bearings imported from reputable brands ensure smooth rotation, reduced vibration, and extended equipment lifespan.
• Oil seal and protective cover: Prevent dust, water, and lubricating oil leakage, effectively protecting internal components from external impacts.

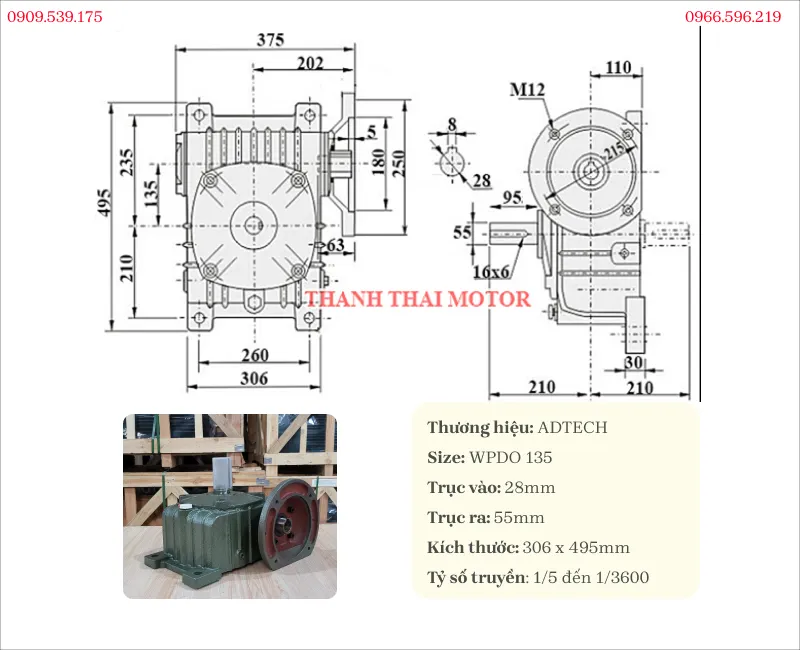

Specifications of WPDO 135 Worm Gearbox

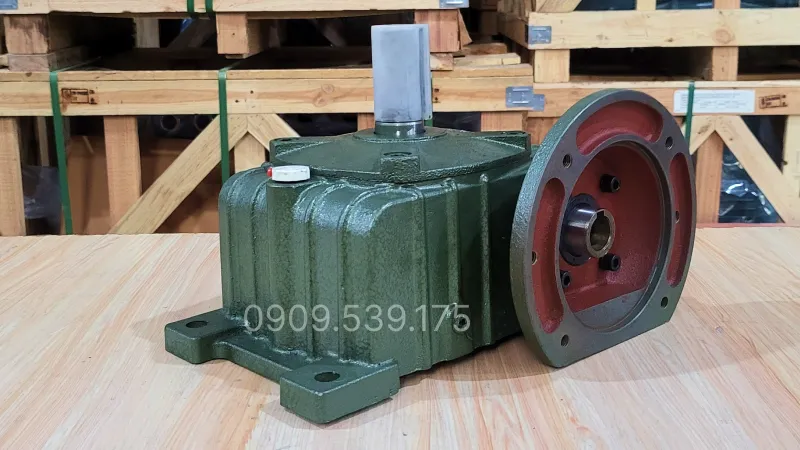

Functions and Practical Applications of WPDO 135 Worm Gearbox

The WPDO 135 is used in various industrial drive systems:

• Industrial conveyor belts: Used in material, goods, and product transportation lines.
• Mixers: Applied in mixing construction materials, animal feed, chemicals, and production raw materials.
• Agitators: Used for stirring solutions, paints, chemicals, and industrial liquids.
• Presses and rolling machines: Supporting power transmission in heavy-duty mechanical systems.
• Automatic production lines: Applied in various equipment requiring speed reduction and torque increase.

Guide to Choosing a Gearbox According to Motor Power

To choose a gearbox according to motor power, follow the steps below:

Step 1: Determine motor power

Check the rated power on the nameplate or in the motor technical documentation. This parameter is used to select the appropriate gearbox.

Step 2: Determine system requirements

Check input speed, required output speed, load, and torque to determine the gear ratio that meets working requirements.

Step 3: Select gearbox model

Compare motor parameters with the gearbox technical specifications. Choose a model with power, torque, and gear ratio suitable for operating conditions.

Step 4: Check installation parameters

Compare shaft diameter, flange dimensions, mounting type, and connection parameters to ensure the gearbox can be coupled with the motor.

Besides this article, you can refer to the gearbox video to learn about the structure, selection methods, and installation instructions of each product line. In addition, the summary video on the Thanh Thai Motor channel will provide more content about motors, gearboxes, and industrial drive applications.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
