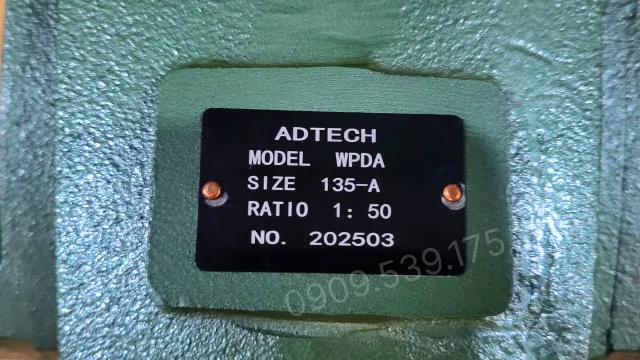

WPDA 135 Worm Gearbox

The WPDA 135 worm gearbox is a specialized mechanical transmission device, widely applied in industrial production lines thanks to its efficient speed reduction and high torque transmission capability. With a right-angle input-output shaft configuration, the gearbox is particularly suited for limited installation systems or those requiring changes in transmission direction. This is the optimal choice for businesses requiring a durable, stable, smoothly operated transmission solution with minimized maintenance costs.

Overview Design of WPDA 135 Worm Gearbox

The WPDA 135 worm gearbox is designed with a sturdy structure, and the housing is made of thick solid cast iron, providing high load-bearing capacity and resistance to deformation during continuous operation under heavy-duty conditions. The outer surface is coated with high-grade electrostatic paint, preventing oxidation and corrosion, making it suitable for production environments with dust, high humidity, or mild chemicals.

The input and output shaft structures are arranged at a 90-degree right angle, facilitating easy changes in transmission direction without taking up much installation space. Worm gearboxes are typically directly coupled with an electric motor to form a high-capacity gear motor combination, optimizing torque transmission efficiency and reducing output rotation speed.

Internal Structure of WPDA 135 Worm Gearbox

The WPDA 135 worm gearbox features a precisely machined worm and worm gear transmission structure, ensuring efficiency and durability:

• Worm shaft: Manufactured from hardened alloy steel, offering high load capacity and excellent wear resistance.
• Worm gear: Made of high-grade copper alloy with self-lubricating properties, helping to reduce friction, lower heat, and extend working life.
• Bearings: Genuine imports ensuring smooth rotation, reduced vibration, and guaranteed transmission efficiency.
• Covers and oil-resistant rubber seals: Protect the transmission assembly from dirt, water, or oil leaks.
• Worm and worm gear meshing mechanism: Designed with standard gear ratios (e.g., 1/10, 1/20, 1/30…), providing diverse choices for various technical requirements.

Technical Specifications of WPDA 135 Worm Gearbox

The WPDA 135 worm gearbox features a durable design, precise machining, and excellent load-bearing capacity

Common Applications of WPDA 135 Worm Gearbox

• Construction materials industry: Mortar mixers, brick pressing machines, raw material crushers.
• Water treatment and environmental industry: Sludge dewatering machines, settling tank agitators, water filters.
• Food and packaging industry: Food conveyors, ingredient mixers, filling machines.
• Mechanical engineering industry: Metal processing lines, lathes, stamping machines.
• Agriculture and processing industry: Oil presses, feed pellet mills, agricultural product sorting conveyors.
• Conveyor systems: Industrial conveyors, packaging conveyors, heavy-duty conveyors.

Guide to Adding Oil for Worm Gearbox

To ensure the worm gearbox operates durably, reduces friction, and minimizes damage during operation, proper oil replenishment is extremely important.

Step 1: Drain old oil (if already used)

Before changing the oil, completely disconnect the power source to ensure safety. Then open the drain plug to let all the old oil flow out. Once the oil has been completely drained, tighten the drain plug securely. For new equipment, this step can be skipped.

Step 2: Add new oil

Open the oil filling plug and slowly pour in new oil. During the filling process, observe the oil sight glass to monitor the oil level. When the oil reaches about the middle of the glass, stop to avoid overfilling.

Step 3: Completion and inspection

After filling with oil, tightly close the oil filling plug and recheck all assembly positions. At the same time, thoroughly clean any excess oil on the surface of the gearbox before putting the equipment into operation.

The WPDA worm gearbox features a sturdy cast iron housing, operates smoothly, and is suitable for various industrial transmission systems. Through the instruction video of the gearbox by Thanh Thai Motor, you will clearly understand the process of adding oil, installation, and using the equipment effectively. In addition, follow more summary videos to update many useful tips and technical knowledge.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
