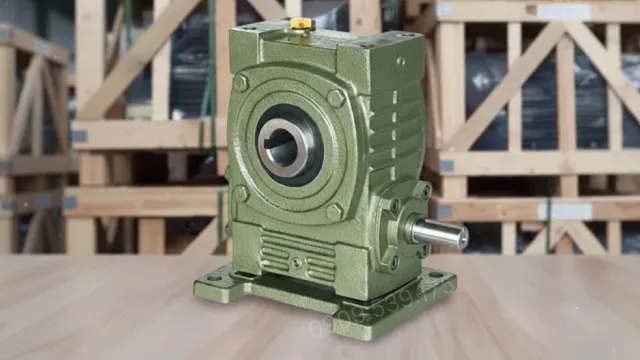

Worm Gearbox WPWKA 135

The Worm Gearbox WPWKA 135 is designed to generate high torque and ensure stable operation for industrial machinery. The housing is made of durable materials, capable of high load-bearing and effectively protecting internal components. The electric motor helps the equipment operate smoothly, minimizing vibration and noise. A diverse and flexible gear ratio meets various technical requirements.

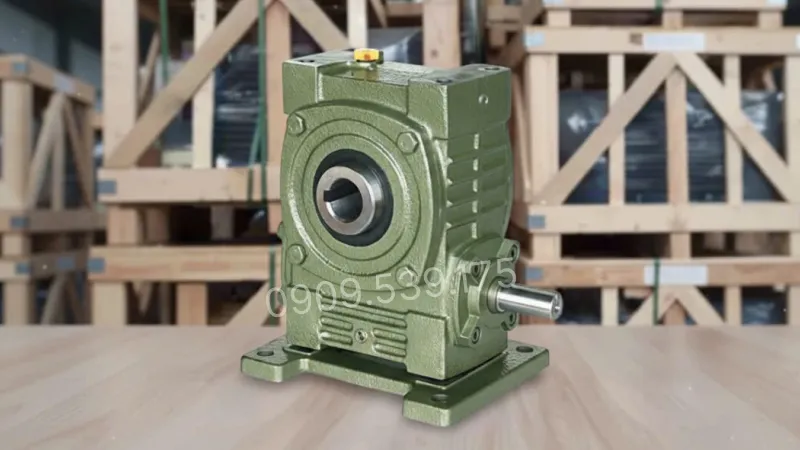

General Design of Worm Gearbox WPWKA 135

This worm gearbox provides efficient speed reduction and high torque for industrial equipment. The sturdy housing withstands high loads and protects the entire internal transmission mechanism. The worm and worm gear are finely machined to ensure smooth operation, reduced vibration, and low noise. The diverse gear ratio can be easily adjusted to suit the technical requirements of each application. Its compact design facilitates convenient installation in various working spaces and quick maintenance.

Detailed Structure of Worm Gearbox WPWKA 135

The Worm Gearbox WPWKA 135 consists of the following basic components:

• Housing: Made of durable alloy, high load-bearing capacity, protecting the entire internal mechanism.
• Worm: Precisely machined, efficient torque transmission, smooth and stable operation.
• Worm gear: Made of wear-resistant material, meshing smoothly with the worm to ensure transmission efficiency.
• Bearings: Support smooth rotation of the worm and worm gear, reducing friction and extending equipment life.
• Oil seals: Prevent oil leakage and dust ingress, maintaining a clean working environment for the transmission.
• Lubrication system: Reduces friction, lowers temperature, and helps the transmission operate stably and continuously.
• Flanges and protective covers: Provide secure fixing points, convenient for installation and maintenance.
• Fixing screws: Securely link components, maintaining structural stability during operation.

Technical Specifications of Worm Gearbox WPWKA 135

The table below provides the technical specifications of the Worm Gearbox WPWKA 135 to assist in equipment selection and installation.

Applications of Worm Gearbox WPWKA 135

The worm gearbox is widely used in industrial systems where deep speed reduction, increased torque, and stable operation are required.

• Lifting equipment and hoists: Enhance safety, ensure precise motion control, and operate smoothly.
• Agitators and chemical processing equipment: Ensure uniform rotational speed in specialized industrial environments.
• Automated packaging lines: Provide precise motion for robots, sorting conveyors, and packaging machines.
• Agricultural and construction machinery: Increase traction and reduce speed for heavy-duty outdoor working equipment.
• Wastewater treatment and environmental systems: Operate durably in aerators, sludge dewatering machines, and low-speed rotating equipment.

Oil Filling Instructions for WPWKA Worm Gearbox

• Determine oil type: Use mineral-based or synthetic oils with an ISO VG base viscosity ranging from 220 to 460 (e.g., Shell Omala S2 G 320, Mobilgear 600 XP 320, or equivalent industrial gear oils).
• Determine oil quantity: WPWKA series gearboxes operate on an oil-bath lubrication principle. The oil level must completely submerge a portion of the worm gear teeth. Absolutely do not overfill.
• How to fill oil: Clean the area around the oil filling hole (located on top of the housing). Remove the oil plug, use a funnel to slowly pour oil until the standard level is reached (check visually or via the dipstick).
• Maintenance schedule: The first oil change should take place after approximately 500 initial operating hours to remove metal shavings. Subsequent oil changes should be performed every 2,500 – 3,000 operating hours.

The Worm Gearbox WPWKA 135 is a suitable choice for machinery systems requiring high traction and low output speeds for extended operating periods. Featuring a robust design and a durable worm and worm gear transmission, the product well meets various industrial demands. Additionally, you can refer to additional gearbox videos and summary videos from Thanh Thai Motor to update yourself with more product lines and useful information about this equipment.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
