From 4.100.000₫
Product Introduction
Mechanical Speed Variator 1.1kW 1.5Hp is a specialized mechanical speed variator that operates on the planetary gear principle, providing flexible speed variation and excellent load capacity in harsh environments.
24-month warranty – Nationwide fast delivery – Full CO/CQ documentation.
Mechanical Speed Variator 1.1kW 1.5Hp is a product with a function similar to a gearbox, capable of manual speed adjustment via a control knob without affecting the machine’s operation. This is an important device in electrical and automation systems. Let’s explore this gearbox in detail and its practical applications across various industries with Thanh Thai Motor.

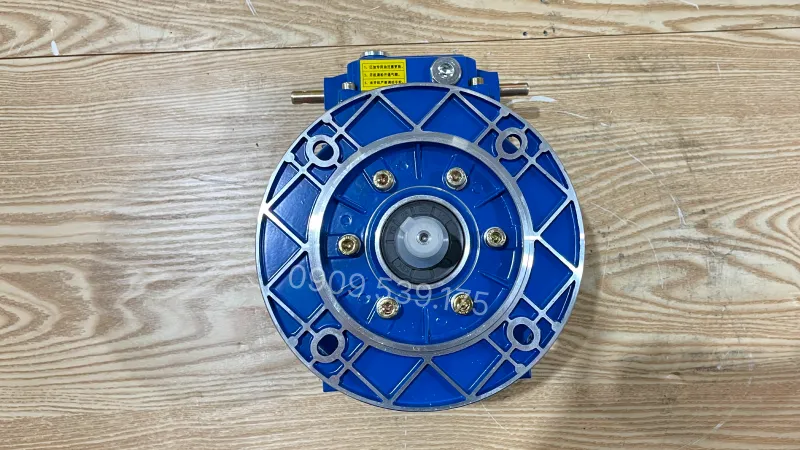

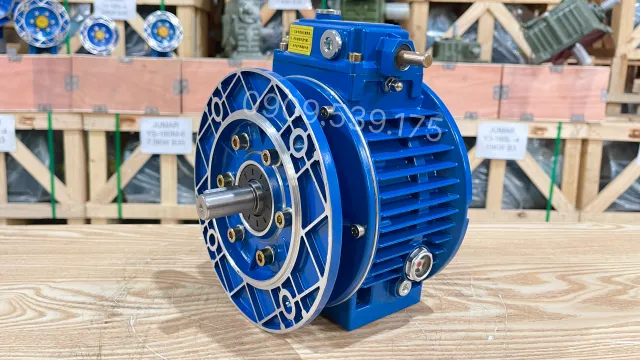

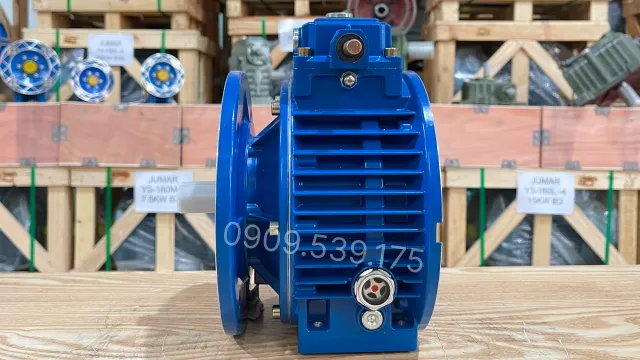

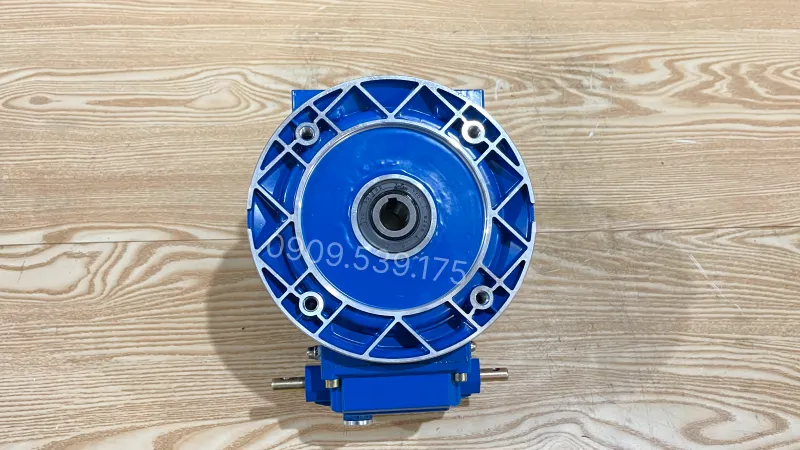

The mechanical speed variator (UDL) series features a general blue or gray design with a speed control knob on the side, allowing users to easily select the motor speed.
The mechanical speed variator is combined with an electric motor to operate more efficiently and powerfully, forming a complete gear motor assembly commonly used in packaging, food processing, and garment production lines. The mechanical speed variator helps flexibly control conveyor speeds, ensuring products are transported on schedule and minimizing technical errors.
Mechanical Speed Variator 1.1kW 1.5Hp has a simple structure while ensuring stable power transmission and effective speed adjustment.
Mechanical Speed Variator 1.1kW 1.5Hp is manufactured with two popular mounting types: foot mount and flange mount, meeting various installation needs on drive systems.

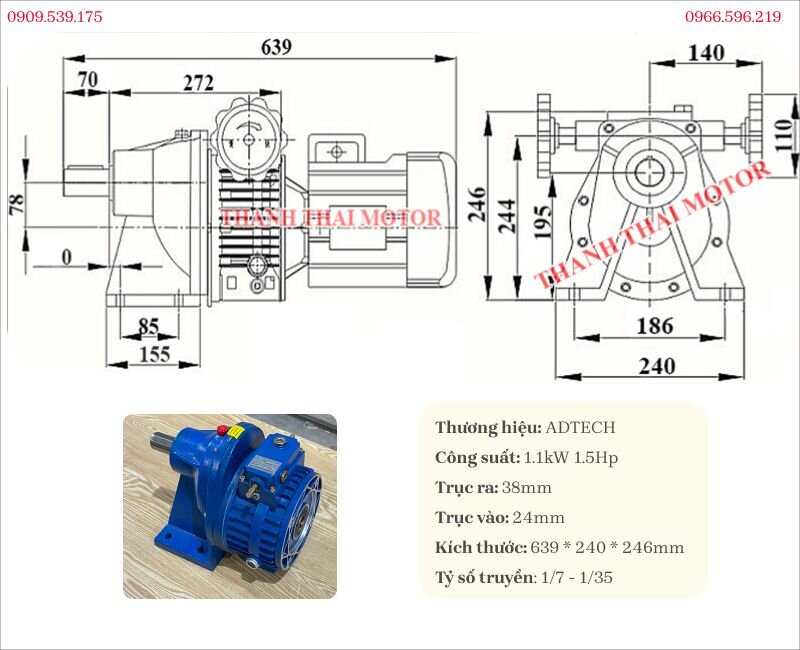

The foot-mounted version is suitable for systems with a fixed machine base or frame, making installation and maintenance quick and easy.
Technical Specifications
| Model | B3 |
| Input/Output shaft diameter | 38mm |
| Output shaft diameter | 24mm |
| Mounting type | Foot mount |
| Dimensions | 639mm * 240mm * 246mm |
| Rotational speed | 40 to 200 rpm |

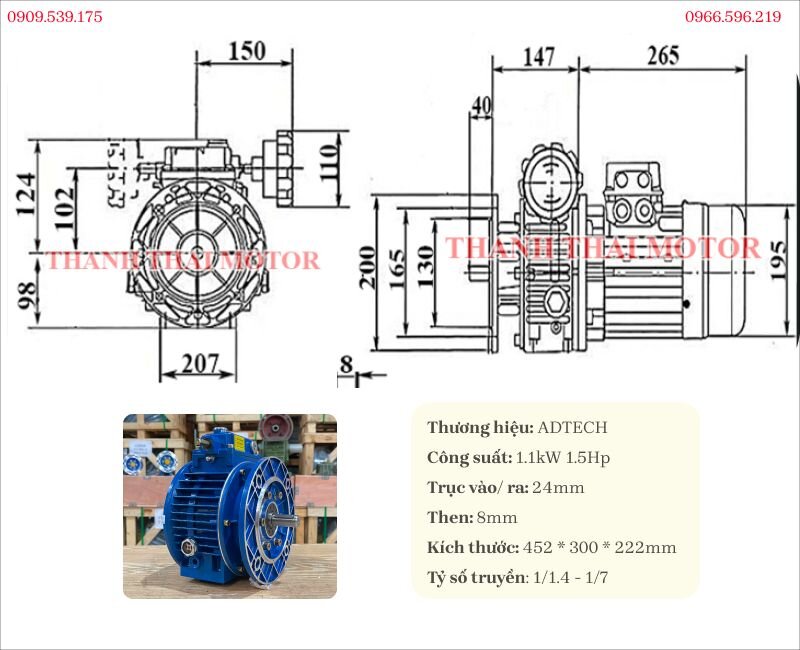

The flange-mounted type is designed to connect directly with the equipment, helping to optimize installation space and increase the rigidity of the entire drive system.
Technical Specifications
| Model | B5 |
| Input/Output shaft diameter | 24mm |
| Keyway | 8mm |
| Mounting type | Flange mount |
| Dimensions | 528 x 300 x 270mm |
| Gear ratio | 1/1.4 – 1/7 |
| Rotational speed | 100 to 2000 rpm |
The speed variator is widely used in industries such:
To choose the right product and install it correctly, users need to understand the meaning of the markings printed on the gearbox nameplate.
Step 1: Identify the model
Observe the model to recognize the gearbox series, dimensions, and mounting type of the device.
Step 2: Read the gear ratio
Check the gear ratio to determine the output speed corresponding to the motor’s input speed.
Step 3: Check technical specifications
Read parameters such as power, torque, input speed, output speed, and other technical data provided by the manufacturer.
Step 4: Verify the mounting style
Check the foot mount, flange mount, shaft direction, and installation position symbols to select the appropriate connection method for the drive system.
You can refer to the gearbox video to learn how to read the nameplate and identify the markings on each product line. In addition, the comprehensive video also provides more information on structure, operating principles, gear ratio selection methods, and practical gearbox installation instructions.
When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:
Warranty up to 24 months
Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.
Nationwide Delivery
We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.
Products meeting European quality standards with German technology
Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.
Competitive prices, good discounts for dealers and bulk customers
Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.
Full certification documents: CO, CQ,...
Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:
| Product Type | Mechanical Speed Variator |
| Rated Power | 1.1kW (1.5HP) |
| Power Range | 0.37kW – 5.5kW |
| Frequency | 50Hz |
| Voltage | 220/380V |
| Material | Cast Iron and Aluminum Housing |
| Mounting Type | Foot Mounted (B3), Flange Mounted (B5) |
| Place of Manufacture | German Technology, Assembled in China |
| Brand | ADTECH |
| Warranty Period | Up to 24 Months |
| Shaft Diameter | 38mm |
| Key | 10 |
| Dimensions | 639mm * 240mm * 246mm |
| Output Shaft Speed | 20 to 800 RPM |
| Shaft Diameter | 24mm |
| Key | 8 |
| Dimensions | 452mm * 300mm * 222mm |
| Output Shaft Speed | 10 to 2000 RPM |
