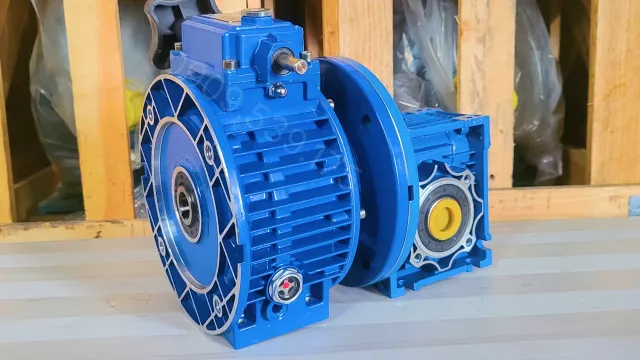

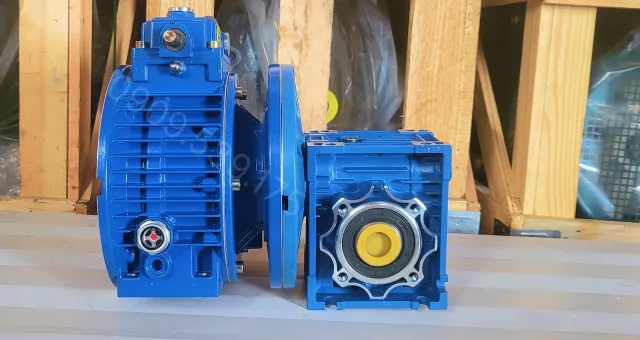

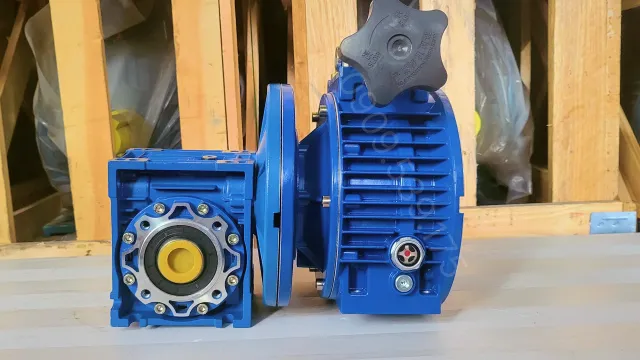

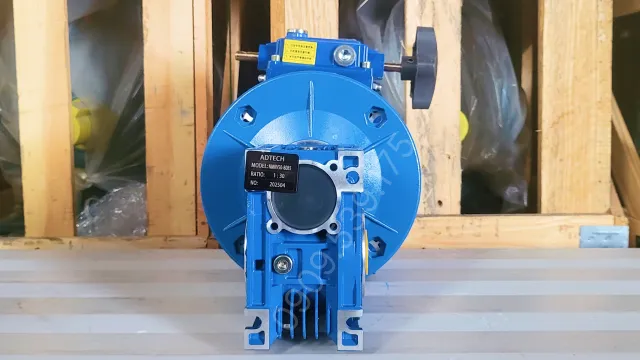

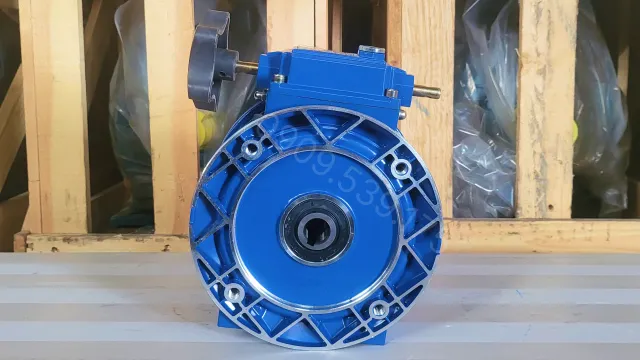

2-Stage UDL 0.8kW – NMRV 63 Gearbox

The 2-Stage UDL Variable Speed Gearbox 0.8kW – NMRV 63 Worm Gearbox is a gearbox combined from a mechanical speed variator (UDL) and an NMRV gearbox (NMRV worm gearbox). The drive assembly features a compact size, easy installation, and suitability for various automated mechanical systems. This is an optimal choice for applications requiring a wide speed variation while ensuring high performance and durability, offering flexible speed control, smooth, stable, and durable operation.

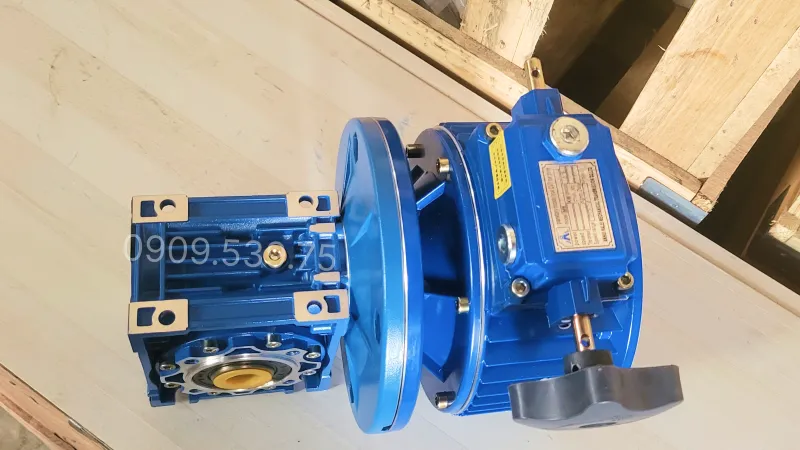

Overview design of the 2-Stage UDL Variable Speed Gearbox 0.8kW – NMRV 63 Worm Gearbox

The 2-stage gearbox is manufactured according to industrial standards with a sturdy aluminum alloy and cast iron housing, making the product lightweight, fast-dissipating heat, and corrosion-resistant, suitable even in harsh working environments. This mechanical speed variator (UDL) is directly combined with the 2-stage NMRV gearbox, forming a compact yet powerful 2-stage drive unit that optimizes torque and provides flexible speed control.

Detailed structure of the 2-Stage UDL Variable Speed Gearbox 0.8kW – NMRV 63 Worm Gearbox

The 2-stage UDL 0.37kW – NMRV 63 gearbox consists of a 0.8kW 1Hp mechanical speed variator combined with an NMRV 63 gearbox, forming a compact and flexible 2-stage transmission system.

• Connected with an electric motor, 3-phase electric motor with high-quality transmission gears
• The 3-phase electric motor 0.8kW 1Hp combines with the UDL mechanical speed variator to form a lightweight two-stage transmission system.
• Shaft gearbox, using hardened steel material for efficient, durable transmission and a long lifespan.
• Mechanical speed adjustment knob, allowing easy quick-slow speed changes.
• Breather plug and oil cap, balancing pressure, reducing heat, and ensuring efficient lubrication.
• The input shaft connects to the motor via the UDL unit, while the output shaft of the NMRV 63 gearbox provides large torque, stable speed, and smooth operation.
• Thanks to optimal design and high-quality materials, the UDL – NMRV 63 ensures high transmission efficiency, stable operation over a long period, and low maintenance requirements.

Technical specifications of the 2-Stage UDL Variable Speed Gearbox 0.8kW – NMRV 63 Worm Gearbox

The 2-Stage UDL Variable Speed Gearbox 0.8kW – NMRV 63 Worm Gearbox is combined from a 0.8kW UDL mechanical speed variator and an NMRV 63 gearbox. Below are the technical specifications of each component in the drive assembly.

Technical specifications of the 0.8kW 1Hp UDL mechanical speed variator

The table below presents the technical specifications of the 0.8kW 1Hp UDL mechanical speed variator, including dimensions, shaft diameter, gear ratio, and adjustable speed range.

Technical specifications of the NMRV 63 gearbox

The technical specifications of the NMRV 63 gearbox are listed below, including size, input shaft diameter, output shaft diameter, keyway, and overall product dimensions.

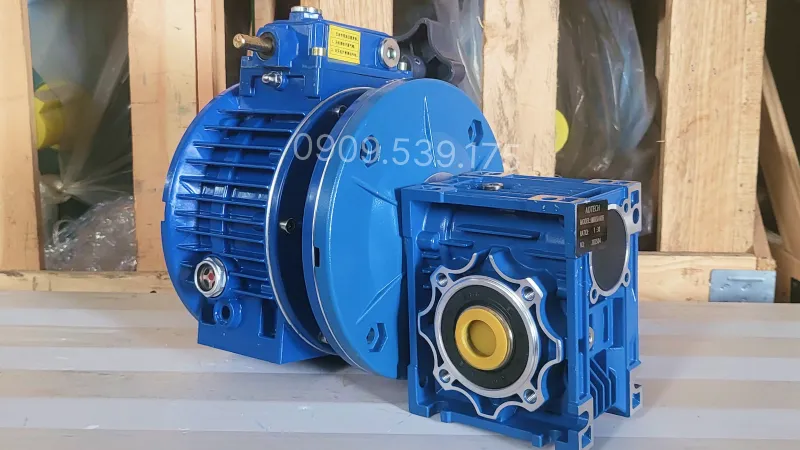

Applications of the 2-Stage UDL Variable Speed Gearbox 0.8kW – NMRV 63 Worm Gearbox

The 2-stage gearbox is widely applied thanks to its flexible speed change capability, large torque, and high durability:

• Industrial conveyors, production conveyor belts, goods sorting systems.
• Agitators, material mixers, dryers in the food and chemical industries.
• Vegetable packaging machines, labeling machines.
• Lifting systems, turntables, roller conveyors in mechanical engineering and logistics.
• Paper printing machines, textile weaving machines.

Instructions for installing a mechanical speed variator with an NMRV gearbox

• Step 1: Prepare the two main components including the NMRV gearbox and the mechanical speed variator.
• Step 2: Proceed with assembly by inserting the shaft of the mechanical speed variator into the input shaft hole of the NMRV gearbox, pushing the two devices closely together so that the flange fits snugly and the bolt holes align.
• Step 3: Insert the bolts into the holes on the flange and tighten them securely to firmly fix the two parts together.

The 2-Stage UDL Variable Speed Gearbox 0.8kW – NMRV 63 Worm Gearbox well meets speed adjustment and stable transmission needs in various machinery systems. To better understand the structure, operating principle, and installation process, you can refer to the gearbox video produced by Thanh Thai Motor. In addition, the summary video will provide you with more information about many other gearbox series to choose the right solution for your usage needs.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
