The 3-Phase Cycloid Gear Motor is an industrial gear motor using a 3-phase power supply, designed with a cycloidal gearbox to meet high torque transmission requirements and heavy load capacity. Thanks to its special transmission mechanism, the motor operates stably, limits vibration, and reduces wear during continuous operation. With a sturdy structure and good power transmission efficiency, the 3-Phase Cycloid Gear Motor is suitable for many industrial machinery systems such as conveyors, agitators, mixers, and automated production lines where high durability and reliability are required.

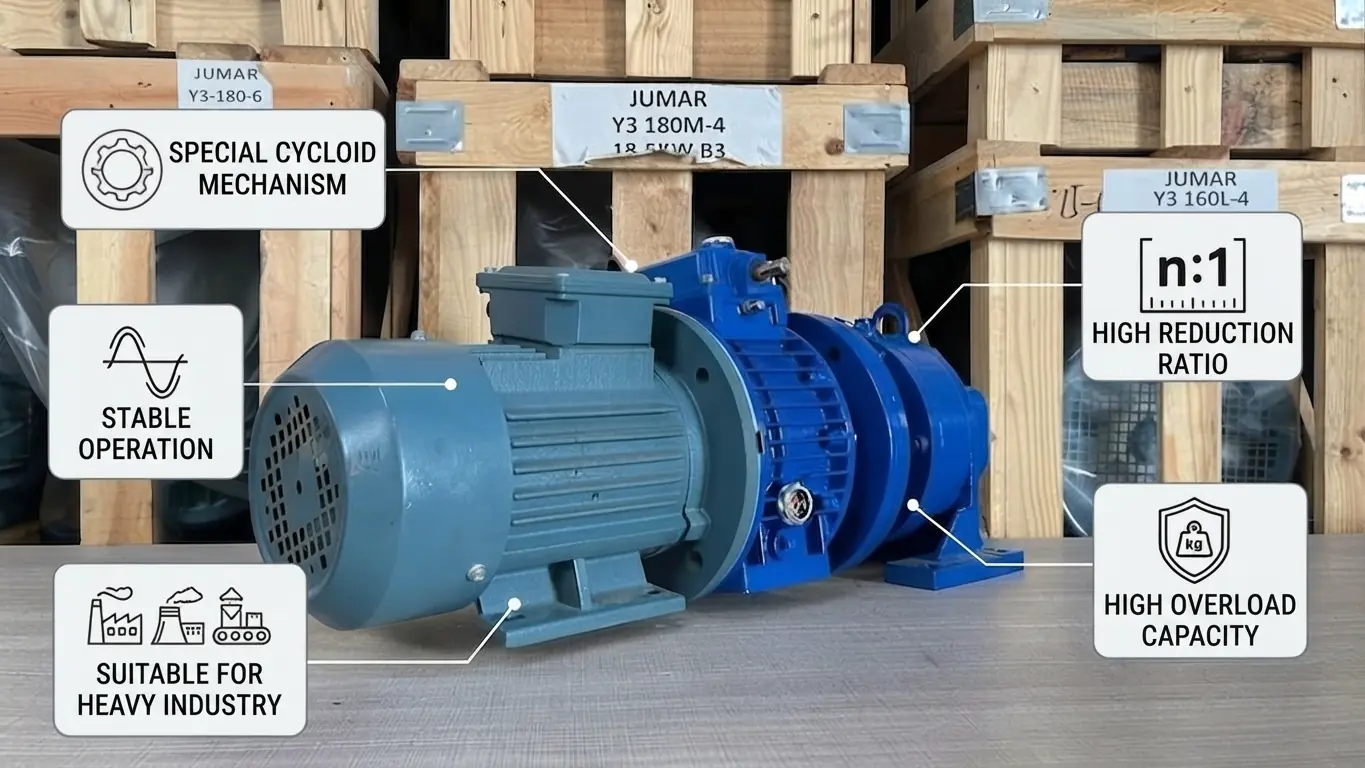

Characteristics of 3-Phase Cycloid Gear Motor
The 3-Phase Cycloid Gear Motor is a drive system using a cycloidal gear reduction mechanism, standing out for its high overload capacity, large transmission ratio, and superior operational durability. The product is widely applied in industrial manufacturing sectors thanks to its ability to work stably under heavy load and continuous conditions.
- Special Cycloidal transmission mechanism: Uses a cycloid disc combined with power transmission pins to distribute the load evenly across multiple contact points, reducing pressure on individual components.
- High overload capacity: The specialized power transmission design allows the gearbox to withstand impact loads and heavy weights much better than many conventional gearboxes.
- Large transmission ratio: Can achieve very high transmission ratios within a compact size, suitable for applications requiring low output speeds.
- Stable operating efficiency: Low vibration and even torque transmission capability help the system operate stably for a long time.
- Suitable for heavy industrial environments: Commonly used in mining, cement, metallurgy, conveyors, and heavy-load production lines.
Applications of 3-Phase Cycloid Gear Motor
The 3-Phase Cycloid Gear Motor is widely chosen in industrial drive systems thanks to its good load-bearing capacity, high torque, and stable operation under continuous working conditions.
Manufacturing
- Conveyor and material handling systems: Used in production conveyor lines, helping the goods transportation process run smoothly and stably, limiting vibration when loads change.
- Automated production lines:Cycloid gear motors support production lines to operate continuously and accurately, reducing mechanical wear and enhancing durability for the entire system.
Industrial & Mechanical
- Industrial stirring and mixing equipment: Suitable for agitators and mixers in the food, chemical, and environmental treatment industries, ensuring stable rotation speed and long-term working efficiency.
- Heavy-duty drive systems: Applied in winding, pulling, lifting equipment, and industrial mechanical machinery, meeting the requirements of powerful power transmission and safe operation.
3-Phase Cycloid Gear Motor Price at Thanh Thai Motor
Below is the 3-Phase Cycloid Gear Motor Price list at Thanh Thai Motor to help you easily choose.
Criteria for Selecting 3-Phase Cycloid Gear Motor
Cycloid gear motors come in various configurations regarding power, reduction stages, and output torque. To select the right equipment for the system, users need to carefully review actual operating requirements to ensure working performance and long-term lifespan.
- Determine required output torque: This is the most crucial parameter when selecting a cycloidal gearbox. Insufficient torque will cause the equipment to degrade quickly or fail to handle the load.
- Choose the appropriate transmission ratio: The transmission ratio determines the output speed of the system. It is necessary to cross-reference the actual operating speed of the machinery before selection.
- Evaluate load characteristics: Applications with shock loads, continuously changing loads, or frequent starts should choose models with a higher safety factor.
- Check installation space: It is necessary to determine the foot-mounted, flange-mounted, or hollow shaft design to match the existing design of the system.
- Consider working environment conditions: Dusty environments, high humidity, or high temperatures may require specialized protection versions.
To better understand the structure, transmission principles, and experience in choosing the right model for each application, you can refer to the compiled video collection of gear motor videos produced by Thanh Thai.
Frequently Asked Questions
What are the advantages of a cycloid gear motor compared to conventional gearboxes?
Cycloids have higher overload capacity, larger transmission ratios within the same size, and better load distribution thanks to multiple engaging points simultaneously.
Can a 3-Phase Cycloid Gear Motor be connected in a star-delta configuration?
Yes. Many 3-phase cycloid motor lines support star (Y) or delta (Δ) wiring depending on the operating voltage. Users need to check the wiring diagram on the motor label before connecting the power supply.
What is the speed in rpm of a 3-Phase Cycloid Gear Motor?
The input speed of the motor is typically 750 rpm, 960 rpm, 1450 rpm, or 2900 rpm. After passing through the cycloidal gearbox, the output speed will decrease according to the selected transmission ratio.
