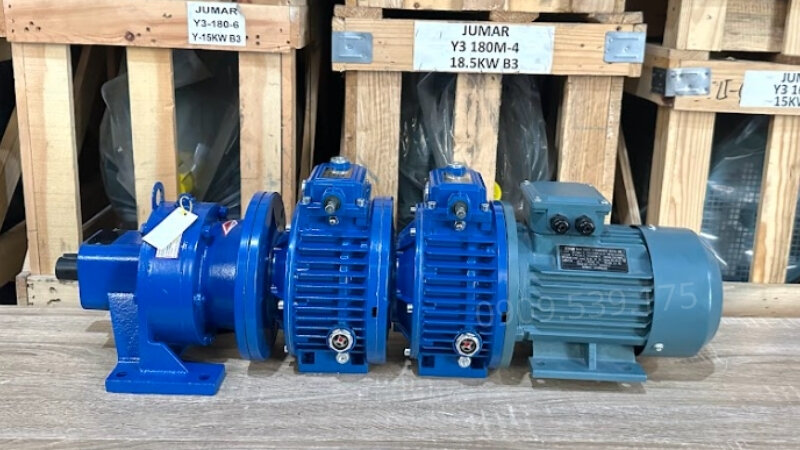

What are Cycloid Gear Motors?

Cycloid gear motors are a specialized line of gear motors designed for heavy-duty applications, engineered by combining an electric motor and a gearbox with a special transmission structure. Thanks to a unique eccentric disk mechanism, Cycloid gear motors deliver high torque, high load capacity, and stable operation over long periods. This equipment helps machinery operate powerfully, smoothly, and durably even when working continuously under heavy load conditions.

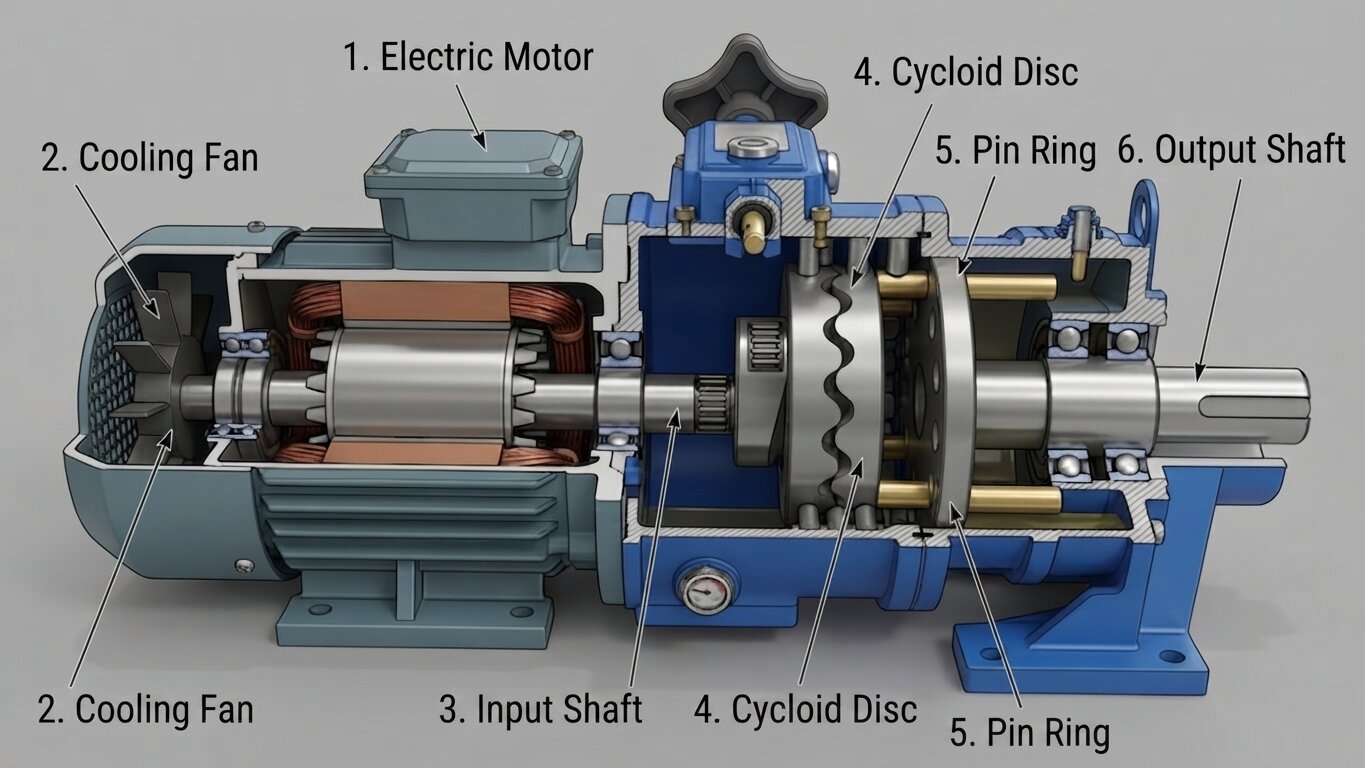

Structure of Cycloid Gear Motors

Cycloid gear motors are a special type of gearbox designed to operate based on a cycloid gear mechanism, ensuring smooth transmission, high load capacity, and high durability in heavy industrial environments. The structure of the device includes the following main components:

• Electric Motor: Acts as the initial rotational motion source, supplying energy for the entire system to operate.
• Input Shaft: Receives motion from the motor and transfers it into the internal reduction mechanism.
• Cycloidal Disc: The most crucial component, featuring a special disc with a cycloidal profile that creates eccentric motion and executes the reduction process.
• Pin Ring: A system of fixed surrounding pins that combine with the cycloidal disc to create precise and stable reduction motion.
• Output Shaft: Transmits the reduced torque externally to operate machinery.
• Gearbox Housing: Made from cast iron or high-strength steel to protect the internal mechanism and ensure rigidity during heavy-duty operations.
• Bearings and Oil Seals: Help reduce friction, support smooth operation, and retain internal lubricating oil, increasing the equipment’s lifespan.

Cycloid Gear Motors Explained

Cycloid gear motors operate based on an eccentric transmission mechanism combining a cycloidal disc and a fixed pin system inside the gearbox. When the electric motor rotates, the input shaft creates an eccentric motion, causing the cycloidal disc to oscillate along a special trajectory. During this process, the contact points between the cycloidal disc and the pin ring continuously change, creating a powerful reduction effect while still ensuring the transmission of large torque to the output shaft. Thanks to the simultaneous multi-point meshing mechanism, the system helps reduce vibration, increase accuracy, and withstand loads much better than many conventional gearboxes.

Classification of Cycloid Gear Motors

Cycloid gear motors are diversely classified to meet different requirements regarding power, transmission ratios, mounting styles, and working conditions in specific industrial applications.

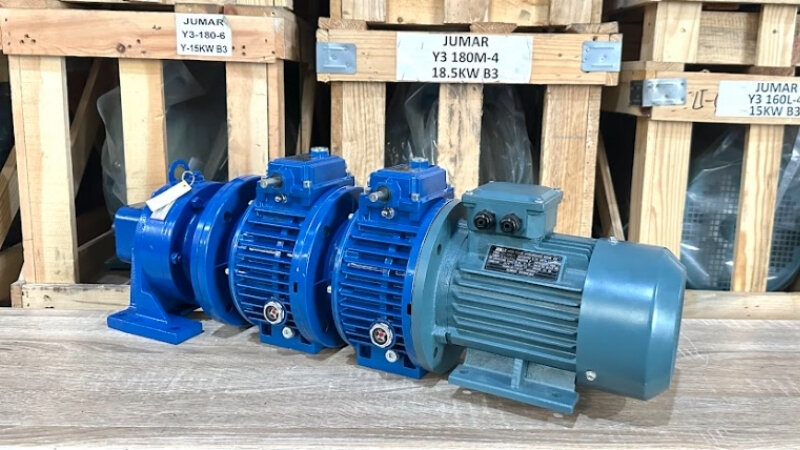

3 Phase Cycloid Gear Motor

3 phase Cycloid gear motors are gear motors using a 3-phase power supply, specially designed for industrial machinery systems operating with heavy loads and high frequencies. Thanks to their ability to provide powerful torque, 3 phase Cycloid gear motors help equipment operate stably, minimize shaking, and ensure long-term working performance. This product line is especially suitable for manufacturing plants, industrial zones, and automated production lines requiring high durability.

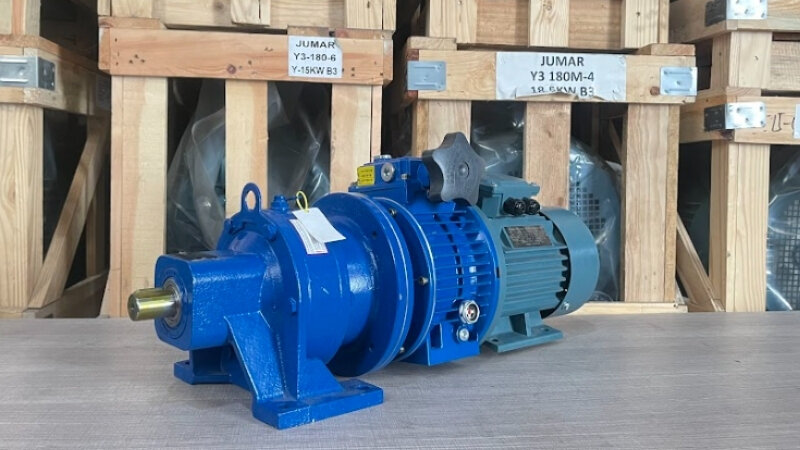

Cycloid Gear Motor Under 1.1kW

This is a group of small-capacity Cycloid motors, suitable for light to medium-load applications where extremely large torque is not required. With a compact size, easy installation, and low power consumption, Cycloid gear motors under 1.1kW are commonly used in small-scale machinery, short conveyor systems, or simple automation equipment, helping to optimize investment costs while ensuring operational efficiency.

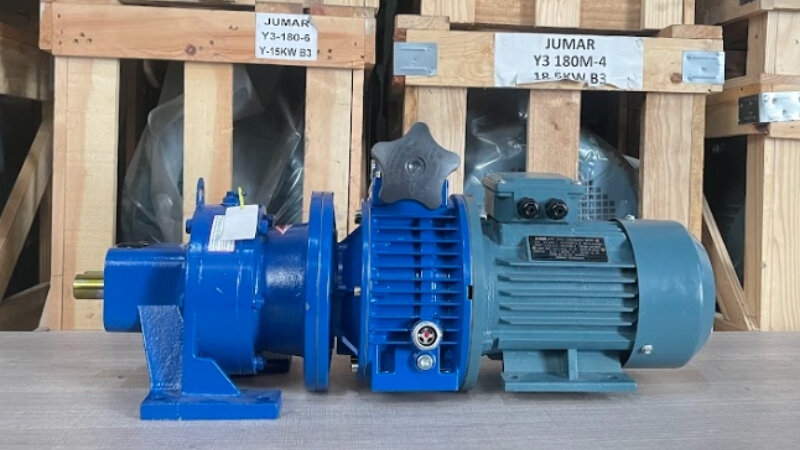

Cycloid Gear Motor From 1.1kW to 3.7kW

Belonging to the medium-capacity group, this Cycloid gear motor line well meets common industrial transmission requirements. The motor has a stable load-bearing capacity, operating continuously and durably over long periods. Thanks to high output torque and good accuracy, Cycloid gear motors from 1.1kW to 3.7kW are widely applied in industrial conveyor systems, agitators, mixers, lifting equipment, and automated production lines.

Practical Applications of Cycloid Gear Motors

Thanks to their high load capacity and stable operation, Cycloid gear motors are widely used in many industrial fields, typically:

• Heavy-duty conveyor systems: Cycloid motors help conveyors operate smoothly, move large quantities of goods safely, limit load slipping, and reduce mechanical wear.
• Lifting and heavy towing equipment: Applied in electric winches, overhead cranes, cable pullers, industrial elevators, etc., helping to control speed accurately and ensure safety when lifting heavy materials.
• Industrial agitators and mixers: Used in the food, chemical, wastewater treatment, and cement industries, Cycloid gear motors help maintain stable torque, evenly mix materials, and ensure continuous production processes.

Cycloid Gear Motors Prices

Below is the latest update on Cycloid Gear Motors Prices at Thanh Thai Motor with various power ranges and transmission ratios, suitable for heavy-duty industrial transmission systems.

Criteria for Purchasing Cycloid Gear Motors

To choose the right Cycloid gear motor and ensure long-term operational efficiency, customers need to consider the following important criteria:

• Power and working load: Accurately determine the actual load to choose a motor with suitable power, avoiding overload or excess power that causes waste.
• Transmission ratio (output speed): It is necessary to choose the correct reduction ratio to ensure the operating speed matches the machinery requirements.
• Required torque: For heavy-duty systems, prioritize the Cycloid line capable of handling large torque and stable operation.
• Working conditions: Consider dusty, humid, high-temperature environments or continuous operation to choose the type with appropriate durability and protection capabilities.
• Mounting style: Check foot-mounted, flange-mounted, or output shaft configurations to ensure compatibility with the existing system.
• Quality and brand: Prioritize Cycloid lines with good bearings, durable materials, and reputable brands to ensure long service life.

Customers can also refer to the gear motor video compilation category for a more visual view of each product line, making equipment selection more accurate and suitable for practical usage requirements.

Frequently Asked Questions [FAQ]

What are the advantages of Cycloid motors compared to other gearboxes?

This line has good shock load capacity, large transmission ratios, high durability, and stable operation in continuous heavy-duty environments.

Why are Cycloid motors used for heavy loads?

Because of their good shock load capacity, stable power transmission, and resistance to damage when working continuously in harsh environments.

Do Cycloid motors require gearbox oil?

Yes. Periodic oil changes and checks are necessary to ensure the gear mechanism operates stably and lasts longer.
