Vibratory Equipment 0.1kW

The Vibratory Equipment 0.1kW is the most efficient vibrating device for small and medium-volume material handling systems. With a power of 0.1kW, the product provides moderate vibration force, suitable for production lines that require continuous operation while saving energy. The modern, sturdy, and easy-to-install design makes this motor a popular choice in industrial and agricultural applications.

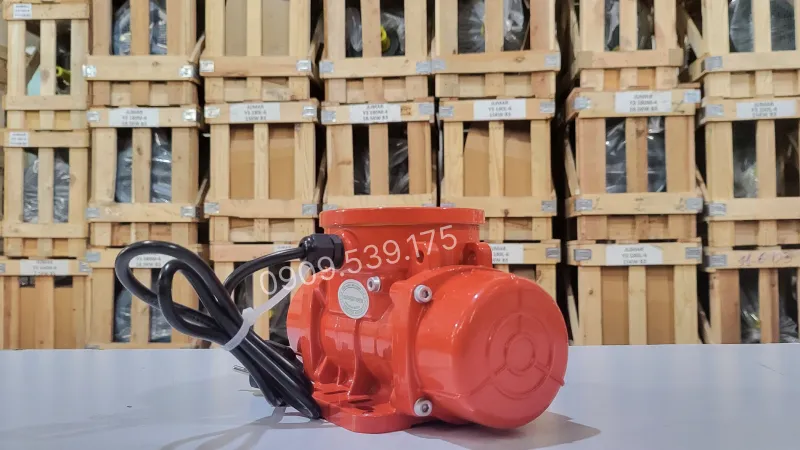

General design of the Vibratory Equipment 0.1kW

The Vibratory Equipment 0.1kW is optimized for operating efficiency and mechanical durability. The outer casing is coated with electrostatic paint in orange or red-colors that are easily observed and recognized in production areas. The body is made of monolithic cast iron, increasing load-bearing capacity and helping the motor operate stably under harsh working conditions.

A prominent design feature is the sturdy base mount, allowing for easy fixation on flat surfaces or equipment. The power cord is neatly arranged for convenient connection, and the wire material has good heat resistance. The specification label is attached in an easily visible position, fully displaying important parameters such as power, speed, voltage, number of poles, and product model.

Detailed structure of the Vibratory Equipment 0.1kW

The internal structure of the Vibratory Equipment 0.1kW is calibrated to ensure stable vibration performance and long service life. The main components include:

• Housing: Made of pure cast iron with high thickness, increasing impact resistance, preventing vibration cracking, and providing good heat dissipation during continuous operation.
• Rotor: The rotating part of the motor, transmitting torque to the shaft and vibration hammer, precisely balanced to ensure stable vibration force.
• Stator: Wound with pure copper wire, heat-treated to enhance insulation and durable operation.
• Vibration hammer (eccentric weight): Mounted symmetrically at both ends of the shaft, creating vibration through eccentricity when rotating. Adjustable to change the vibration amplitude as needed.
• Motor shaft: Finely machined, connecting the rotor to the vibration hammer. Able to withstand continuous vibration loads thanks to high-grade bearings.
• Bearings: Installed at both ends of the shaft, helping the motor run smoothly, minimizing friction, and increasing equipment lifespan.

What are the types of Vibratory Equipment 0.1kW?

The product is supplied with three rotational speed versions to meet various operating requirements.

3-Phase 2-Pole Vibratory Equipment 0.1kW (3,000 – 3,600 rpm)

The 2-pole version is suitable for equipment requiring high vibration frequency.

Technical specifications

3-Phase 4-Pole Vibratory Equipment 0.1kW (1,500 – 1,800 rpm)

The 4-pole version is suitable for systems requiring medium vibration speed.

Technical specifications

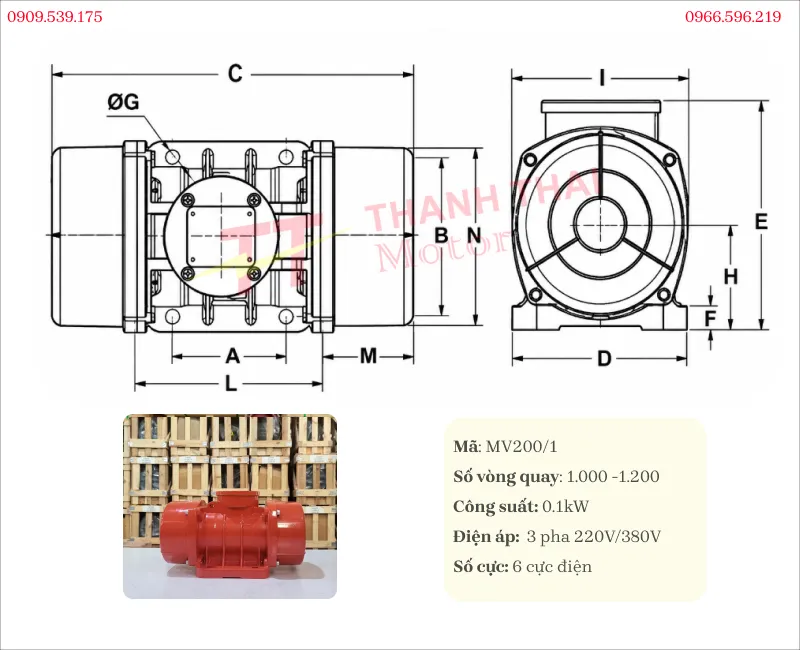

3-Phase 6-Pole Vibratory Equipment 0.1kW (1,000 – 1,200 rpm)

The 6-pole version is suitable for equipment requiring low vibration speed and stable vibration force.

Technical specifications

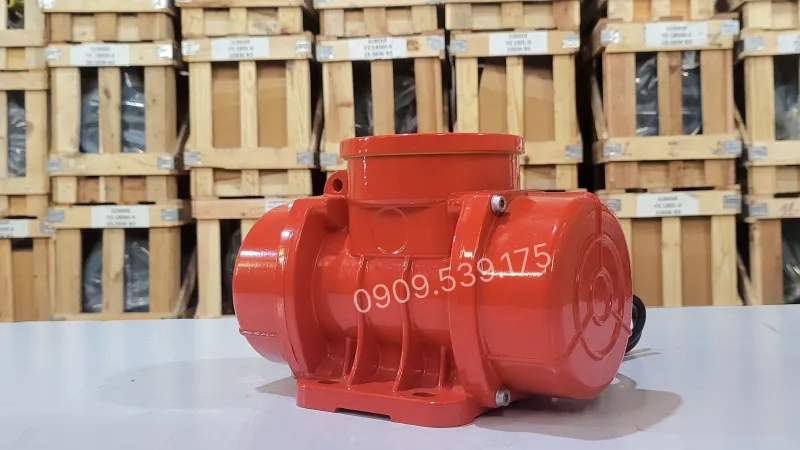

Practical applications of the Vibratory Equipment 0.1kW

Thanks to its compact design, energy-saving features, and easy installation, the Vibratory Equipment 0.1kW is flexibly used in many production fields:

• Screening machines for rice, flour, and agricultural seeds.
• Vibrating feeder hoppers in automated packaging lines.
• Mold separation equipment in metal or plastic casting workshops.
• Vibration systems for impurity removal in coffee and agricultural products.
• Production lines requiring gentle and uniform vibration.

To explore more vibratory equipment lines with various capacities and speeds, you can watch the summary video. Additionally, the vibratory motor video will help you learn about the structure, operating principle, how to adjust the vibration force, and select the appropriate model for each device.

Warranty policy, commitments when purchasing vibratory equipment from Thanh Thai Motor

• Official Warranty up to 24 months: Each vibratory equipment product distributed by Thanh Thai Motor comes with an official warranty of up to 24 months.
• Nationwide Shipping: We deliver to all provinces and cities. Products are carefully packaged and rigorously inspected before leaving the warehouse.
• Powerful Vibration Technology: Our products utilize modern technology and are constructed from premium materials - generating strong, uniform, and powerful vibration forces.
• Best Price - High Discounts: We offer competitive prices for vibratory equipment, along with many preferential policies for customers purchasing in large quantities or entering long-term cooperation.
• Quality Commitment: All vibratory equipment supplied by Thanh Thai Motor uses 100% pure copper wire.
• Full CO - CQ Documents: We provide full Certificates of Origin (CO) and Certificates of Quality (CQ).
