Vibratory equipment 1.1kW 1.5Hp

The 1.1kW 1.5HP Vibratory Equipment is a specialized vibratory equipment designed to generate mechanical oscillation using an eccentric weight system mounted on the shaft. The device is used in vibrating screen systems, feeders, vibrating conveyors, concrete vibrating tables, and many production lines requiring continuous vibration force. The 1.1kW power rating well meets medium to heavy-load equipment.

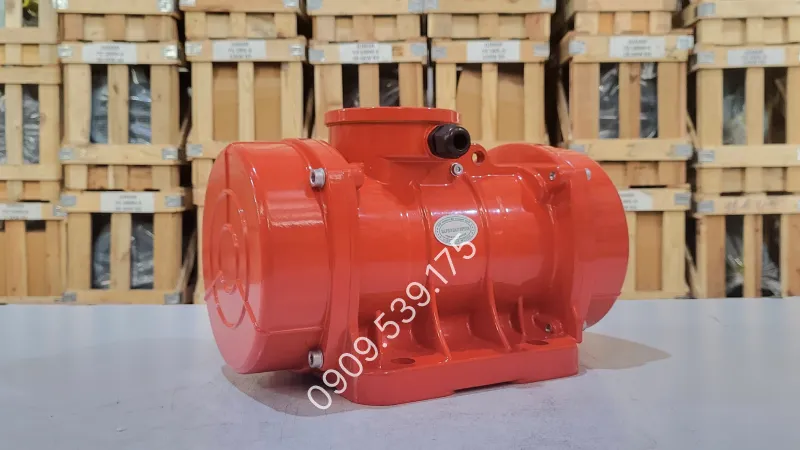

General design of the 1.1kW 1.5HP Vibratory Equipment

The vibratory equipment features an attractive blue or orange exterior housing. The motor housing is flexibly manufactured from cast iron or aluminum material, allowing users to easily choose the appropriate motor material. Additionally, the equipment features a structure with 2 vibration hammers on both sides, making it easy for users to operate.

Detailed structure of the 1.1kW 1.5HP Vibratory Equipment

Internal components are synchronously machined to maintain vibration force and ensure continuous working capability.

• Stator: Class F copper winding, creating a stable magnetic field and withstanding high operating temperatures.
• Rotor: Dynamically balanced, transmitting rotational movement to both shaft ends and the weight assembly.
• Eccentric weight: Generates vibration force through rotational movement and can change the opening angle to adjust the vibration amplitude.
• Heavy-duty bearing: Withstands continuous vibrations, helping the shaft rotate stably and extending motor lifespan.
• Motor housing: Protects internal components, supports heat dissipation, and provides dust resistance according to IP65 standards.

What types of 1.1kW 1.5HP Vibratory Equipment are available?

The product is supplied with three different rotational speed versions, meeting each system’s requirements for vibration frequency and vibration force.

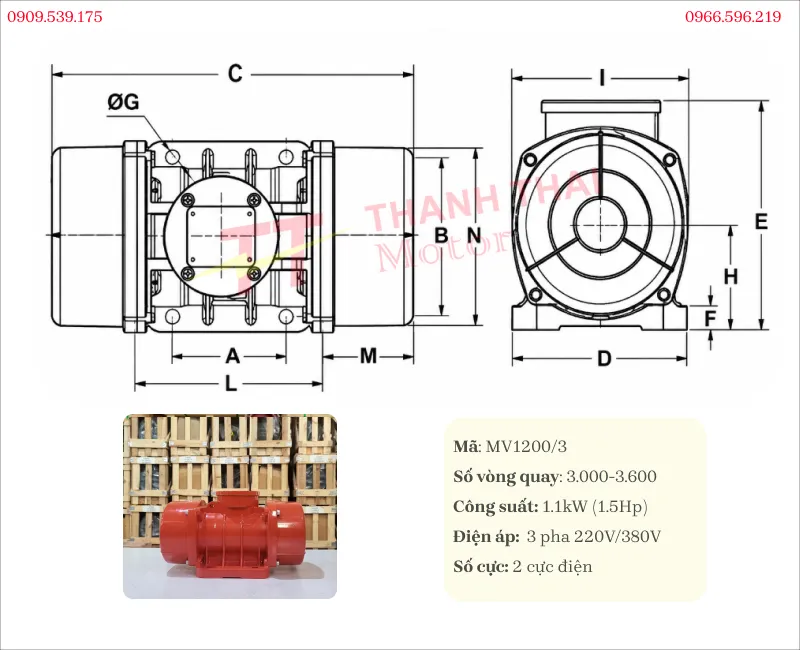

3-phase 2-pole (2 Poles) 1.1kW 1.5HP Vibratory Equipment (3,000 – 3,600 rpm)

The 2-pole version is suitable for equipment requiring high vibration speed and continuous duty cycles.

Technical specifications

3-phase 4-pole (4 Poles) 1.1kW 1.5HP Vibratory Equipment (1,500 – 1,800 rpm)

The 4-pole version is used for systems requiring medium vibration speed and stable operation.

Technical specifications

3-phase 6-pole (6 Poles) 1.1kW 1.5HP Vibratory Equipment (1,000 – 1,200 rpm)

The 6-pole version generates oscillation at low speed, suitable for equipment requiring large vibration amplitude.

Technical specifications

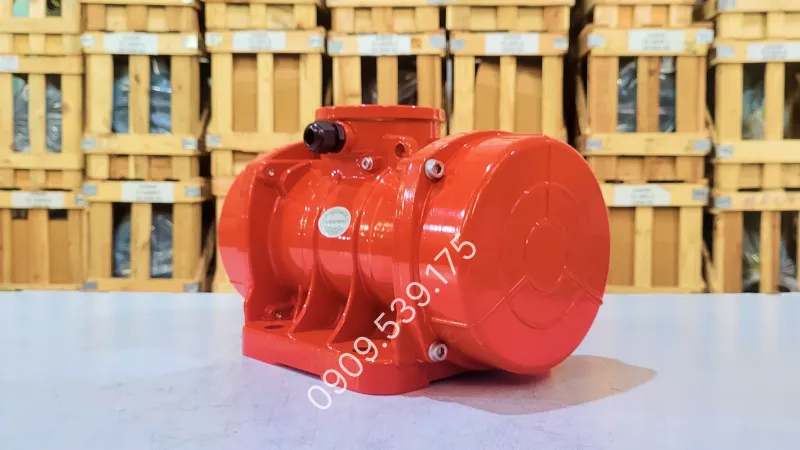

Applications and benefits of the 1.1kW 1.5HP Vibratory Equipment

The 1.1kW 1.5HP Vibratory Equipment is widely used in industrial manufacturing fields such as: Sand and stone leveling in construction, physical therapy machines, coffee and fruit sorting machines, beauty support machines, belly fat reduction machines, etc.

Using the equipment to replace supporting tools will help us a lot, such:

• Manufactured according to modern technology.
• Saves time and user effort.
• Increases work efficiency.
• Suitable for many fields due to high applicability.
• Smooth and continuous operation without noise.
• Low cost, energy-saving.
• Easy to disassemble and transport.
• In construction screening: Using floor vibration helps speed up the process by creating pressing force on the concrete surface, making sand/stone screening and concrete consolidation firmer and increasing aesthetic appeal.
• In food factories: Vibration screening helps quickly classify sizes, making size selection and product categorization easier.

To refer to more vibratory equipment lines with various capacities and speeds, you can watch the summary video being updated. Additionally, the vibratory equipment video will help you learn about the structure, operating principle, how to adjust vibration force, and select equipment suitable for each practical application.

Warranty policy, commitments when purchasing vibratory equipment from Thanh Thai Motor

• Official Warranty up to 24 months: Each vibratory equipment product distributed by Thanh Thai Motor comes with an official warranty of up to 24 months.
• Nationwide Shipping: We deliver to all provinces and cities. Products are carefully packaged and rigorously inspected before leaving the warehouse.
• Powerful Vibration Technology: Our products utilize modern technology and are constructed from premium materials - generating strong, uniform, and powerful vibration forces.
• Best Price - High Discounts: We offer competitive prices for vibratory equipment, along with many preferential policies for customers purchasing in large quantities or entering long-term cooperation.
• Quality Commitment: All vibratory equipment supplied by Thanh Thai Motor uses 100% pure copper wire.
• Full CO - CQ Documents: We provide full Certificates of Origin (CO) and Certificates of Quality (CQ).
