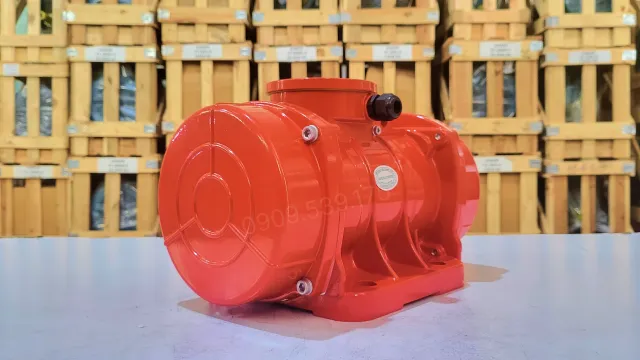

Vibratory Equipment 1.5kW 2Hp

The Vibratory Equipment 1.5kW 2Hp is an electric motor series that generates vibration using an eccentric weight system installed at both ends of the shaft. The equipment is used in vibrating screens, vibrating conveyors, feeders, concrete vibration tables, and many material handling systems. With a power of 1.5kW, the motor well meets applications requiring large vibration forces and continuous operation times.

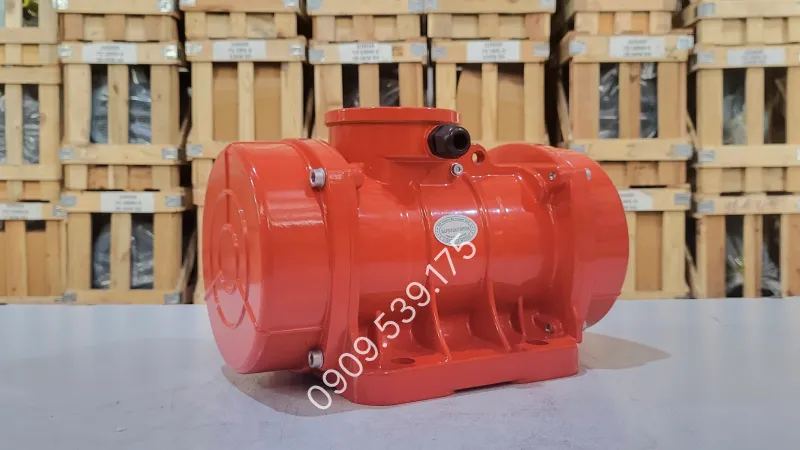

Design and Structure of Vibratory Equipment 1.5kW 2Hp

Typically, the vibratory motor features a modern design with a blue or orange outer casing. The motor housing can be made of cast iron or aluminum. In addition, the Vibratory Equipment 1.5kW 2Hp has a convenient structure with 2 vibration hammers on both sides. With a diverse material construction (cast iron or aluminum), it provides consumers with multiple options, thereby helping them choose the most suitable motor type for their intended use.

Detailed Structure of Vibratory Equipment 1.5kW 2Hp

The components are arranged synchronously to maintain a stable vibration force and ensure the ability to work under various conditions.

• Stator: Class F copper winding, creates a stable magnetic field and withstands high working temperatures.
• Rotor: Dynamically balanced, transmitting rotational motion to the eccentric weight assembly at both ends of the shaft.
• Eccentric weight: Creates vibration oscillations and allows adjustment of the vibration force according to the requirements of each equipment.
• Heavy-duty bearings: Withstand continuous loads and vibrations, helping the shaft rotate accurately.
• Motor housing: Protects the transmission assembly, supports heat dissipation, and meets the IP65 protection class.

What Types of Vibratory Equipment 1.5kW 2Hp Are Available?

The motor is manufactured with three rotational speed versions including 2-pole, 4-pole, and 6-pole to meet individual vibration frequency requirements.

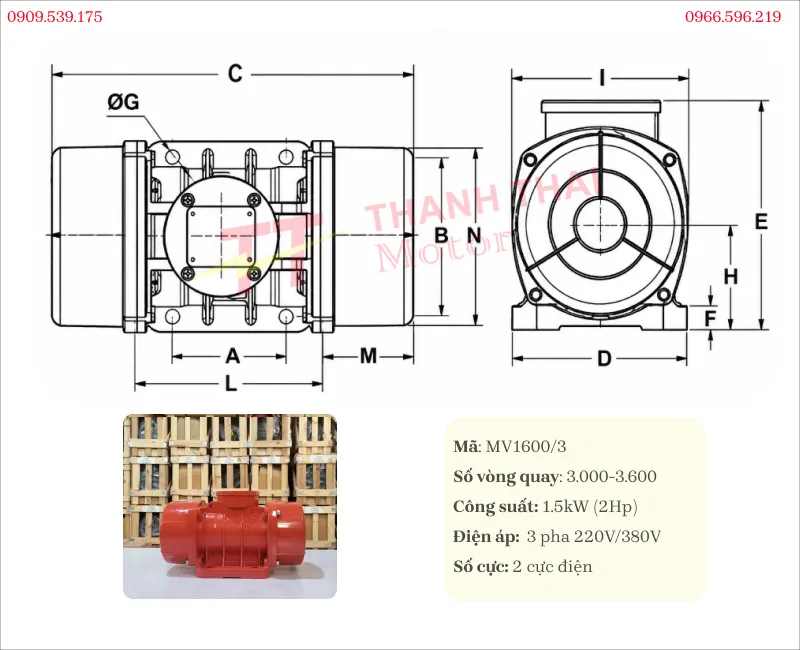

3-Phase 2-Pole Vibratory Equipment 1.5kW 2Hp (3,000 – 3,600 rpm)

The 2-pole version is suitable for equipment requiring high vibration speed and continuous duty cycles.

Specifications

3-Phase 4-Pole Vibratory Equipment 1.5kW 2Hp (1,500 – 1,800 rpm)

The 4-pole version is selected for systems requiring medium vibration speed and stable vibration force.

Specifications

3-Phase 6-Pole Vibratory Equipment 1.5kW 2Hp (1,000 – 1,200 rpm)

The 6-pole version generates oscillation at low speed, suitable for equipment requiring large vibration amplitudes.

Specifications

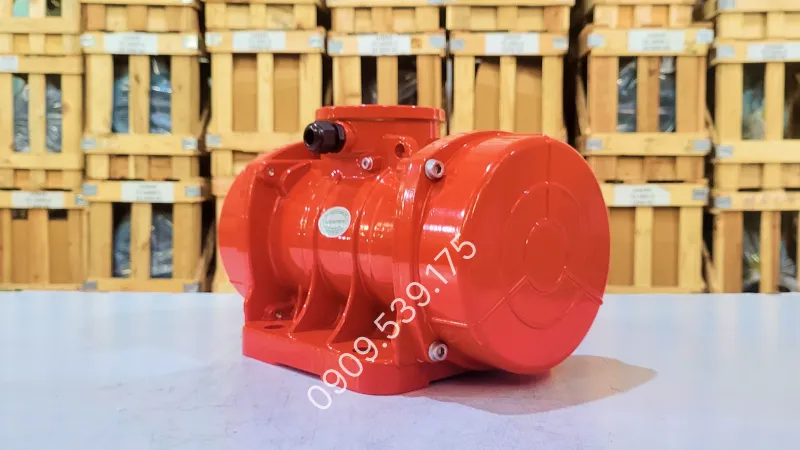

Applications and Benefits of Vibratory Equipment 1.5kW 2Hp

The Vibratory Equipment 1.5kW 2Hp is widely used in industrial manufacturing fields such as leveling sand and gravel in construction, smoothing concrete surfaces, massage machines, physiotherapy equipment, etc.

Using vibratory motors to replace auxiliary tools will bring us many benefits such as:

• Helping save time and effort for users.
• Increasing work efficiency.
• High applicability, suitable for various fields.
• Operating independently and continuously without causing noise.
• Low cost and energy saving.
• In construction screening: Using floor vibration supports faster work by generating pressing force on the concrete surface, making sand/gravel screening and concrete ramming sturdier while enhancing aesthetics.
• In food factories: Vibrating screens support quick size classification, making size sorting and product categorization much easier.

To explore more vibratory motor lines with various capacities and speeds, you can watch the summary video currently being updated. In addition, the vibratory motor video will help you learn about the structure, operating principle, how to adjust the vibration force, and select equipment suitable for each practical application.

Why Should You Buy Vibratory Equipment 1.5kW 2Hp and Concrete Vibrating Tables?

At Thanh Thai Motor, customers will find it easier to choose products:

• 1-phase and 3-phase vibratory motors are always available in large quantities in stock.
• Always offering price discount policies when customers purchase in large quantities.
• Reasonable prices.
• Commitment to standard-compliant sales, imported directly from the factory.
• Thanh Thai Motor’s staff provides enthusiastic consultation and support.
• Durable motor quality and long service life.
• Long-term warranty policy and product exchange support.
• Experienced consultants providing accurate advice.

Contact Thanh Thai Motor for the best support! Hotline: 0909539175
