Vibratory Equipment 0.18kW

The Vibratory Equipment 0.18kW features a robust design and stable vibration generation capabilities. Known as a reliable vibrating motor, the 0.18kW vibratory equipment is an ideal choice for manufacturing units looking for an efficient vibration solution without high investment or operating costs.

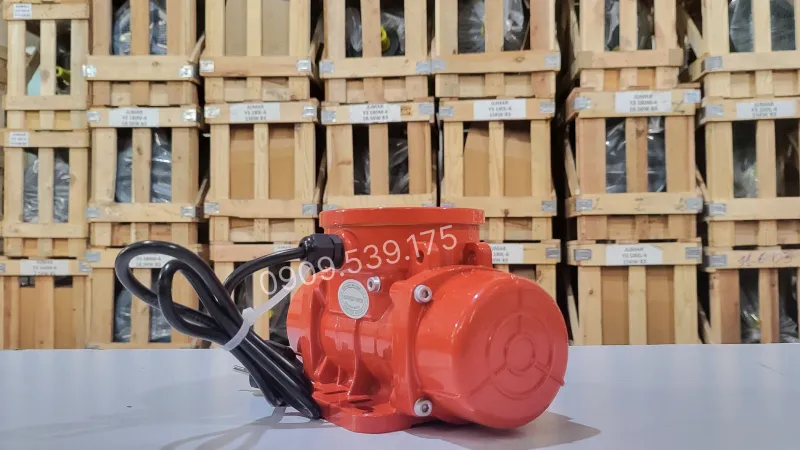

Overall design of the Vibratory Equipment 0.18kW

The Vibratory Equipment 0.18kW is designed for durability and ease of installation. The motor housing is made of solid cast iron with a powder-coated finish in striking colors, helping to prevent dust accumulation, resist oxidation, and allow for easy monitoring during operation.

The base is symmetrically designed and securely bolted to the equipment. The outgoing power cables are firmly secured to prevent loosening under heavy vibration conditions. The parameter nameplate is mounted externally for easy monitoring, containing complete information: voltage, speed, power, frequency, number of poles, and product code.

Detailed structure of the Vibratory Equipment 0.18kW

Each component in the vibratory equipment is machined for high precision, quality, and continuous working capability:

• Motor body: Made of high-quality, thick, and rigid cast iron, which helps reduce external vibration transmission and increases overall durability.
• Rotor: Precisely machined and dynamically balanced to ensure even vibration and prevent shaft misalignment during rotation.
• Stator: Wound with pure copper wire, well insulated, and operates stably at high temperatures.
• Vibration weights: Installed symmetrically at both ends of the shaft, with adjustable amplitude to suit different strong or light vibration needs.
• Motor shaft: Heat-treated and precision-ground to ensure hardness and efficient power transmission.
• Bearings: Specialized types for vibratory equipment, helping to reduce friction and extend rotational lifespan.
• Connection wires: Heat-resistant copper wires with secure terminals, ensuring electrical safety in all working conditions.

What types of Vibratory Equipment 0.18kW are available?

The motor is produced in three rotational speed versions to meet various application requirements.

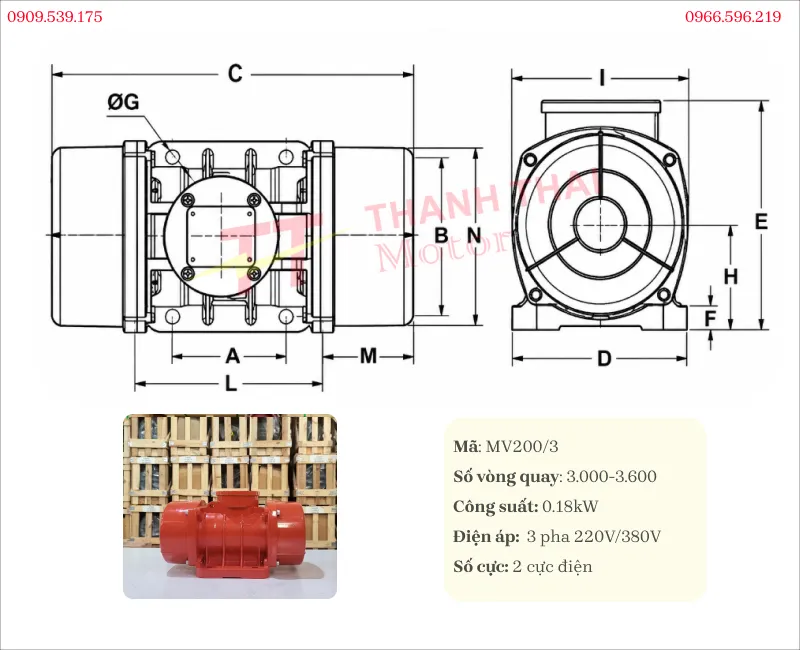

3-phase 2-pole Vibratory Equipment 0.18kW (3,000 – 3,600 rpm)

The 2-pole version is suitable for equipment requiring high vibration frequency.

Specifications

3-phase 4-pole Vibratory Equipment 0.18kW (1,500 – 1,800 rpm)

The 4-pole version is suitable for systems requiring medium vibration speed.

Specifications

3-phase 6-pole Vibratory Equipment 0.18kW (1,000 – 1,200 rpm)

The 6-pole version meets applications requiring low vibration speed and stable oscillation.

Specifications

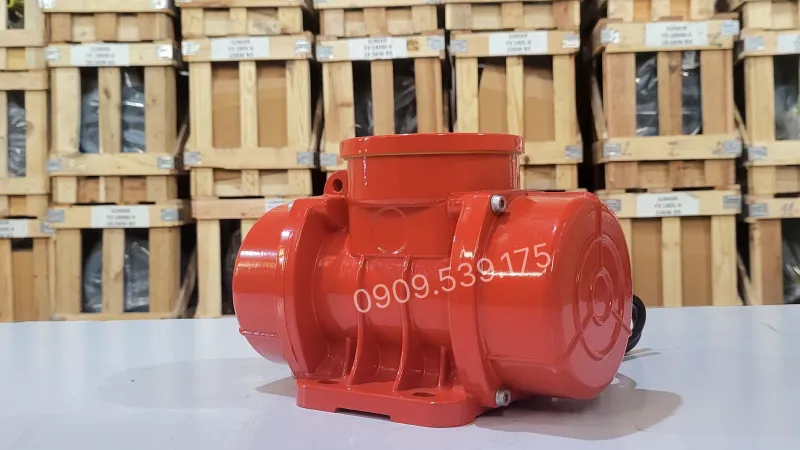

Practical applications of the Vibratory Equipment 0.18kW

With moderate yet continuous vibration generation capabilities, the Vibratory Equipment 0.18kW is suitable for many common applications such as:

• Screening machines for agricultural products, impurities, particle sorting, or small raw materials.
• Vibratory feeding hoppers for automated production lines.
• Light vibration molding equipment, plastic, cement, or metal casting molds.
• Sieving and sorting systems for powder, coffee, bran, and animal feed.
• Food processing machinery requiring efficient impurity separation via vibration.

To explore more vibratory equipment lines with various capacities and speeds, you can watch the summary video. In addition, the vibratory equipment video will help you learn about its structure, operating principles, how to adjust vibration force, and how to select a suitable motor for each specific application.
