Mini Vibratory Equipment 0.02kW

The Mini Vibratory Equipment 0.02kW is a small-capacity vibratory equipment line, specialized in generating vibration for equipment requiring low vibration force. With a compact design, this vibratory equipment is suitable for installation on mini screening machines, vibrating chutes, feeding hoppers, and automated equipment in various manufacturing fields.

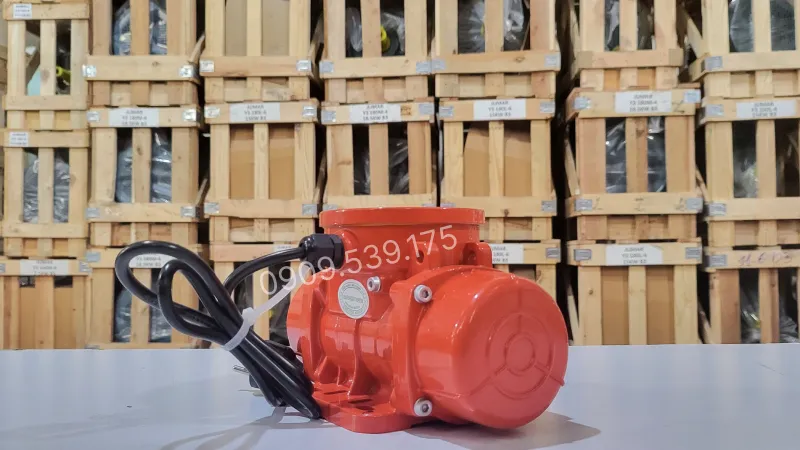

Design and Structure of Mini Vibratory Equipment 0.02kW

The mini vibratory equipment 0.02kW, available in 1-phase and 3-phase options, is designed in orange color. The motor housing is manufactured from diverse materials such as sturdy and durable cast iron or aluminum. Additionally, the exterior features a structure with 2 vibration hammers on both sides. The vibration hammer consists of multiple steel plates; when users want to reduce the vibration force, they simply need to reduce the number of these steel plates.

Detailed Structure of Mini Vibratory Equipment 0.02kW

Inside the motor are detail assemblies that coordinate with each other to create stable vibrational motion.

• Stator core: Conducts magnetism and fixes the winding, helping to form a rotating magnetic field.
• Copper winding: Responsible for creating a magnetic field when energized, using Class F insulation material.
• Rotor shaft: Receives motion from the rotor and transmits it to the vibration generating unit.
• Eccentric weight assembly: Generates centrifugal force when rotating, adjustable to change the vibration force.
• Sealed bearings: Help the shaft rotate accurately, limit dust, and reduce wear during operation.

Types of Mini Vibratory Equipment 0.02kW

Depending on the required rotational speed of the equipment, users can choose one of the versions below.

Mini Vibratory Equipment 0.02kW 3-Phase 2 Poles (3,000 – 3,600 rpm)

The 2-pole series creates a high vibration frequency, suitable for equipment requiring rapid oscillation.

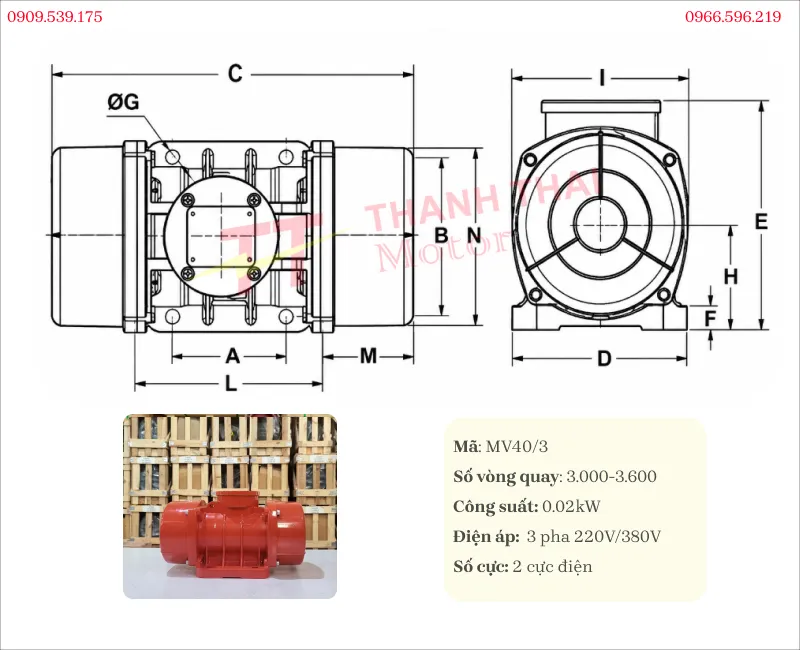

Specifications

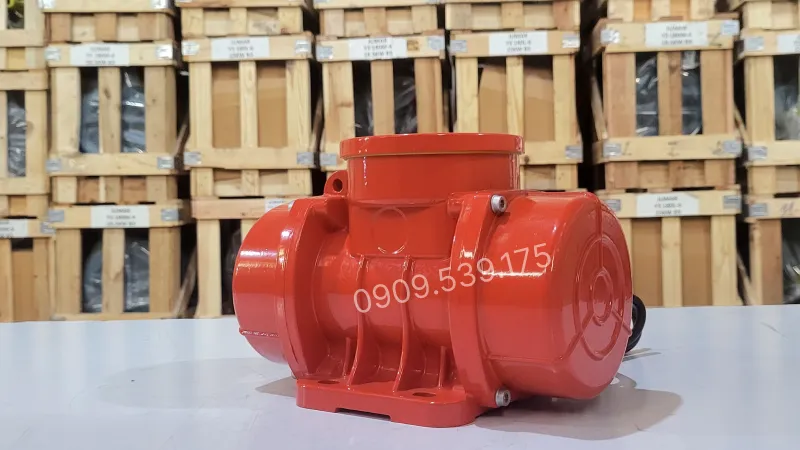

Applications and Benefits of Mini Vibratory Equipment 0.02kW

The Mini Vibratory Equipment 0.02kW is widely used in small equipment such as: handheld massagers, massage machines, home physical therapy machines, wheat flour sifting machines, corn flour sifting machines, etc.

The mini vibratory equipment 0.02kW is commonly used in many fields due to its versatility and prominent advantages as follows:

• Manufactured using modern European technology.
• The motor housing is made of various materials, suitable for multiple application purposes.
• Low cost, high operating efficiency.
• Moderate vibration level, suitable for many household appliances.
• Precise dimension classification.
• Easy to disassemble, transport, and clean.
• Simple to use.
• High machine lifespan, easy maintenance.

To learn more about other models, you can view the summary video. In addition, the vibratory equipment video will provide detailed information about the structure, working principle, method of adjusting vibration force, and guidance on selecting the motor for each practical application.

Warranty policy, commitments when purchasing vibratory equipment from Thanh Thai Motor

• Official Warranty up to 24 months: Each vibratory equipment product distributed by Thanh Thai Motor comes with an official warranty of up to 24 months.
• Nationwide Shipping: We deliver to all provinces and cities. Products are carefully packaged and rigorously inspected before leaving the warehouse.
• Powerful Vibration Technology: Our products utilize modern technology and are constructed from premium materials - generating strong, uniform, and powerful vibration forces.
• Best Price - High Discounts: We offer competitive prices for vibratory equipment, along with many preferential policies for customers purchasing in large quantities or entering long-term cooperation.
• Quality Commitment: All vibratory equipment supplied by Thanh Thai Motor uses 100% pure copper wire.
• Full CO - CQ Documents: We provide full Certificates of Origin (CO) and Certificates of Quality (CQ).
