WPX 200 Worm Gearbox

The WPX 200 worm gearbox is a high-capacity transmission device specialized for industrial mechanical systems requiring strong traction. With a perpendicular input and output shaft structure combined with a sturdy design, it not only helps reduce rotational speed but also significantly increases torque for the motor. The gearbox product is suitable for applications such as presses, heavy-duty conveyors, and industrial mixers, contributing to improved operational efficiency and saving maintenance costs for businesses.

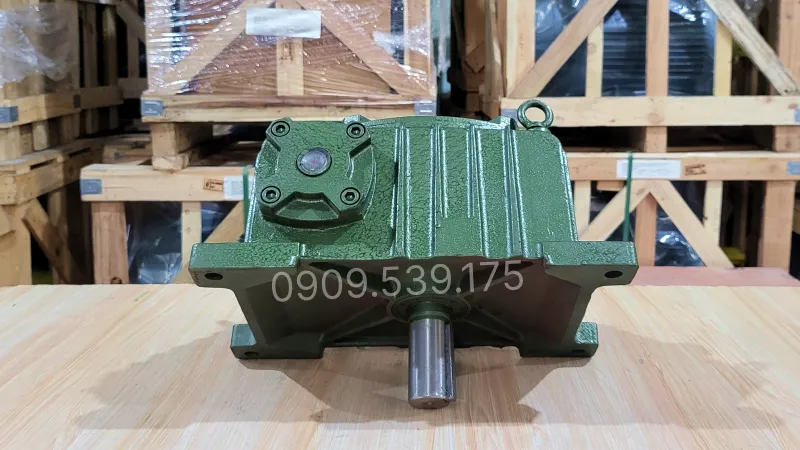

Overview design of the WPX Worm Gearbox 200

The worm gearbox boasts precise mechanical design and high durability, manufactured with a sturdy monolithic structure. The outer casing uses solid cast iron material, coated with high-grade electrostatic paint to help the equipment resist rust, corrosion, and impacts from humid or chemical-laden environments. The perpendicular input and output shaft design allows for flexible installation, optimizing space, and is especially suitable for restricted machinery spaces.

When combined with an electric motor, the WPX gearbox becomes an ideal gear motor transmission system capable of reducing input rotational speed while simultaneously increasing output torque. This mechanism not only helps machines operate more powerfully but also enhances stability, saves energy, and extends equipment lifespan-very suitable for continuously operating mechanical systems such as production lines, industrial agitators, or conveyors.

Structure of the WPX Worm Gearbox 200

The structure of the WPX 200 gearbox includes many precisely machined components using high-grade materials to ensure durability and transmission efficiency:

• Housing: Made of one-piece cast iron with high hardness, excellent impact resistance, and optimal protection of internal components from dust, moisture, and mechanical collisions.
• Worm shaft: Machined from rust-resistant alloy steel, heat-treated to increase hardness, wear resistance, and withstand large torsional forces over long periods.
• Worm gear: Uses high-grade copper alloy with self-lubricating capabilities, reducing contact friction and improving operating performance.
• Ball bearings and roller bearings: Installed at critical rotation points, helping to limit vibration, reduce noise, and extend the lifespan of the rotation.
• Oil seal: Helps prevent lubricating oil leakage, ensures a sealed environment, and prevents dust and moisture from entering and damaging components.
• Electrostatic paint coating: Applied to the outside of the entire housing, providing good corrosion and oxidation resistance, suitable for humid or chemical environments.

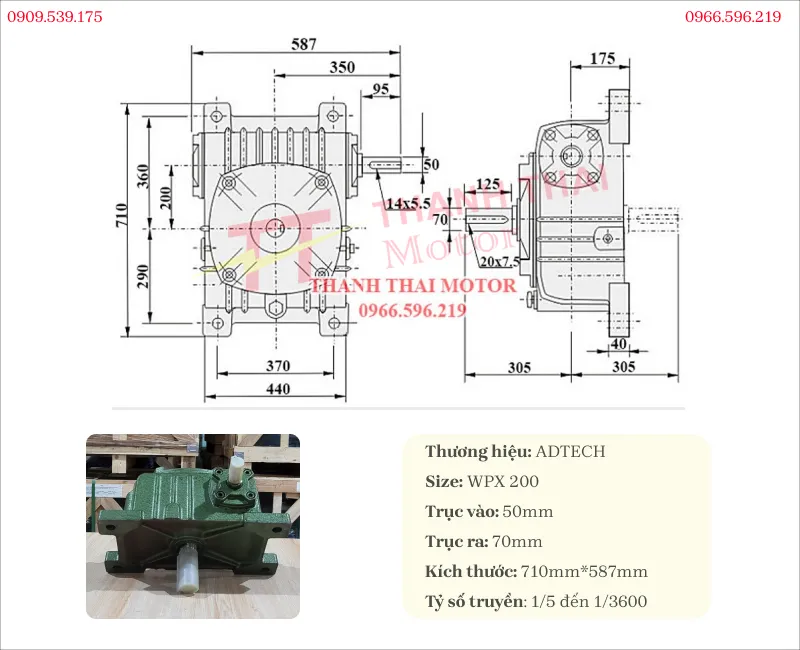

Technical specifications of the WPX Worm Gearbox 200

The perpendicular shaft design and compact style make the WPX Worm Gearbox 200 easy to install in tight spaces according to the technical specifications below:

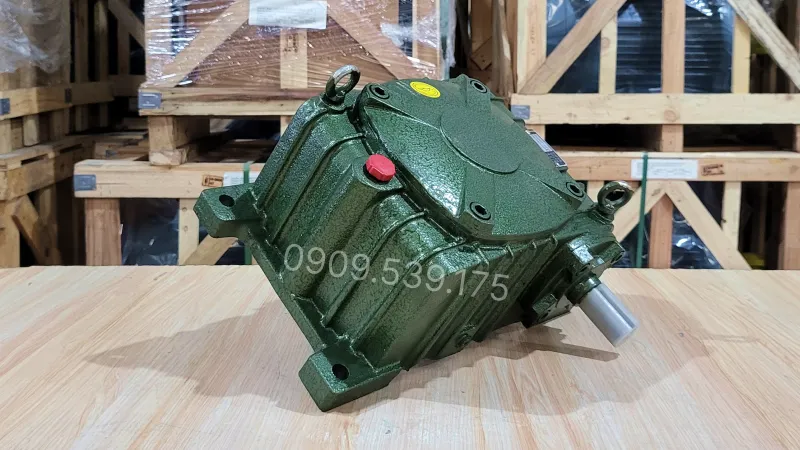

Applications of the WPX Worm Gearbox 200

The WPX Worm Gearbox 200 is an ideal choice for industries requiring high transmission performance, specifically:

• Heavy industry: Used for heavy-load conveyors, steel rolling mills, crane systems, and high-capacity presses.
• Manufacturing and mechanical engineering: Installed in lathes, drilling machines, metal processing machines, helping to precisely adjust speed and traction.
• Water treatment industry: Applied in aeration systems and high-capacity wastewater treatment equipment.
• Food production – packaging industry: Used for mixers, heavy material agitators, and packaging conveyor belts requiring stable traction.
• Automation – civil equipment: Can be integrated into sliding gate systems, elevators, industrial robot systems, or control equipment.

Instructions on how to add oil to the WPX worm gearbox

Proper and periodic oil filling is a key factor in helping the gearbox operate smoothly, reducing friction, and extending the lifespan of the worm and worm gear. Below are the steps to follow:

• Choose the right oil type: Use industrial lubricant with appropriate viscosity (usually mineral-based gear oil ISO VG 320 or 460 depending on environmental conditions).
• Identify locations: Open the breather cap (on top) and the oil level check plug (on the side) of the gearbox.
• Add oil: Pour oil slowly into the breather hole until oil begins to overflow at the oil level check hole.
• Check and finalize: Wait for the oil to stabilize, tightly close the check plug and breather cap. Ensure that the seals do not leak before operating the machine.

With outstanding advantages in durability, high load-bearing capacity, and a space-optimizing perpendicular shaft design, the WPX Worm Gearbox 200 is the perfect transmission solution for current heavy industrial machinery systems. Investing in quality equipment not only helps increase operating efficiency but also optimizes long-term maintenance costs for businesses.

See more gearbox videos and summary videos to gain more experience in choosing equipment that suits your usage needs.
