Worm Gearbox WPO 200

The Worm Gearbox WPO 200 provides an efficient drive solution thanks to its perpendicular input and output shaft design. This gearbox not only optimizes transmission capabilities but also ensures durability and stable operation. Let’s follow this article to learn more about the prominent features of the device and why it has become a top choice in many industrial applications.

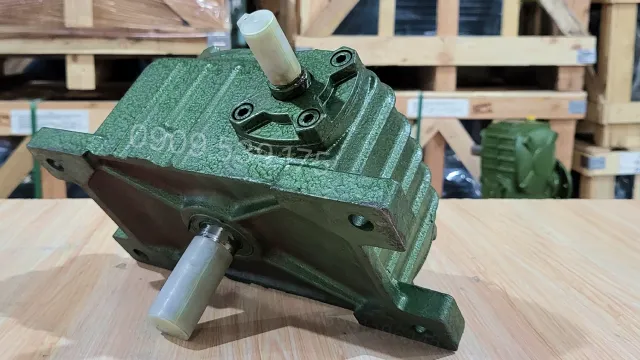

Overview design of the Worm Gearbox WPO 200

The worm gearbox is designed with robustness and durability, ensuring a high load-bearing capacity. The outer housing of the WPO gearbox is made of sturdy cast iron, protecting internal components from environmental impacts. With perpendicular input and output shafts, product installation becomes easier, especially in confined spaces.

This gearbox must be combined with an electric motor, especially a 3-phase electric motor to form a complete gear motor system. This design not only optimizes performance but also ensures continuous and efficient operation.

Detailed structure of the Worm Gearbox WPO 200

Inside the WPO 200 gearbox, there are main components such as the worm shaft and worm gear made from stainless steel and bronze alloy. The tight connection between these components ensures the generation of necessary torque and effectively reduces rotational speed.

• Worm shaft: Manufactured from high-grade stainless steel, ensuring superior durability and excellent load-bearing capacity throughout use.
• Worm gear: Crafted from high-quality bronze alloy, reducing friction, enhancing transmission efficiency, and extending product lifespan.
• Meshing mechanism: The worm shaft and worm gear mesh precisely, generating powerful torque and efficiently reducing rotational speed.
• Drive optimization: This structure not only ensures optimal speed reduction efficiency but also helps the device operate smoothly and stably in various applications.

Technical specifications of the Worm Gearbox WPO 200

Technical specifications help users select the correct equipment according to load requirements and installation dimensions.

Functions and applications of the Worm Gearbox WPO 200

With high power and stable operating capacity, the WPO 200 gearbox is commonly applied in fields requiring durable operation such as:

• Steel and metallurgy industry: supporting power transmission for rolling mills, presses, and steel pulling systems.
• Waste and wastewater treatment: installed in sorting conveyors, sludge dewatering presses, exhaust fans, etc.
• Mining and building materials industry: used for stone crushers, cement mixers, and material handling systems.
• Agricultural and aquatic processing: suitable for freezing lines, food processing, and mass packaging.

Instructions for distinguishing the input and output shafts of a gearbox

To correctly identify the input and output shafts of a gearbox, you can follow these steps:

Step 1: Identify the connection side with the motor

Observe the end of the gearbox with a flange or motor mounting position. This is the input shaft, where motion is received from the motor.

Step 2: Identify the connection side with the load

Observe the remaining shaft end of the gearbox. This is the output shaft, responsible for transmitting motion and torque to the working equipment.

Step 3: Check external components

Observe the base, flange, connecting bolts, oil filler hole, and oil drain hole to determine the structure and mounting type of the gearbox.

Step 4: Check assembly parameters

Compare the shaft diameter, flange dimensions, and bolt hole spacing with the specifications of the motor and equipment to be connected.

Step 5: Check before use

Recheck the positions of the input shaft, output shaft, and connection points to ensure the gearbox is ready for installation and operation.

Besides this article, you can refer to the gearbox video to learn more about the structure, operating principle, and installation instructions of various gearbox lines. At the same time, the compilation video on the Thanh Thai Motor channel will provide more content about motors, gearboxes, and industrial transmission solutions.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The Worm Gearbox WPO 200 is an ideal solution for industrial systems requiring strong power transmission, durability, and stable operation. With a sturdy design, easy installation, and high performance, it is a reliable choice for many current manufacturing industries. If you are looking for a safe, powerful, and long-term efficient drive unit, the WPO 200 gearbox is a suggestion not to be missed. Contact Thanh Thai Motor immediately for the most accurate consultation support!
