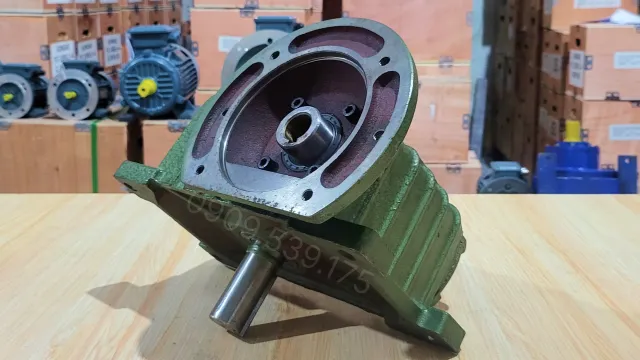

WPDX Worm Gearbox 250

The WPDX Worm Gearbox 250 is a high-capacity power transmission device series, featuring a perpendicular input and output shaft design that effectively increases torque and reduces speed for motors. With a durable, heavy-load structure, the product is widely used in conveyor systems and heavy industrial machinery requiring high performance and long-term durability. Let’s explore the details of this gearbox and its applications in heavy industries with Thanh Thai Motor.

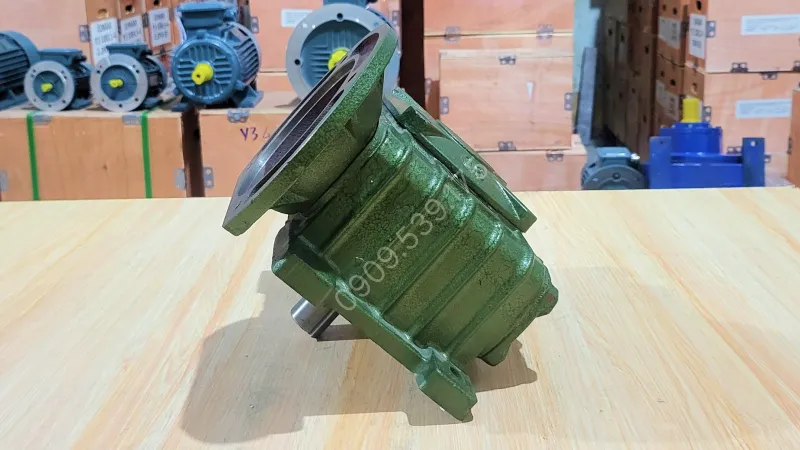

Overview design of the WPDX Worm Gearbox 250

The WPDX 250 gearbox is designed as a sealed unit with perpendicular input and output shafts, facilitating installation in various positions. The solid cast-iron monolithic housing offers high load-bearing capacity and is coated with an anti-rust electrostatic paint layer.

Inside is a precisely meshed worm and worm gear transmission system, which helps the device reduce speed stably, minimize vibration, and limit energy consumption. The gearbox is often directly connected to a high-capacity 3-phase electric motor to form a complete gear motor unit.

The worm gearbox directly combines with an electric motor to form a complete gear motor, which works excellently for conveyors, agitators, presses, packaging machines, water treatment systems, etc.

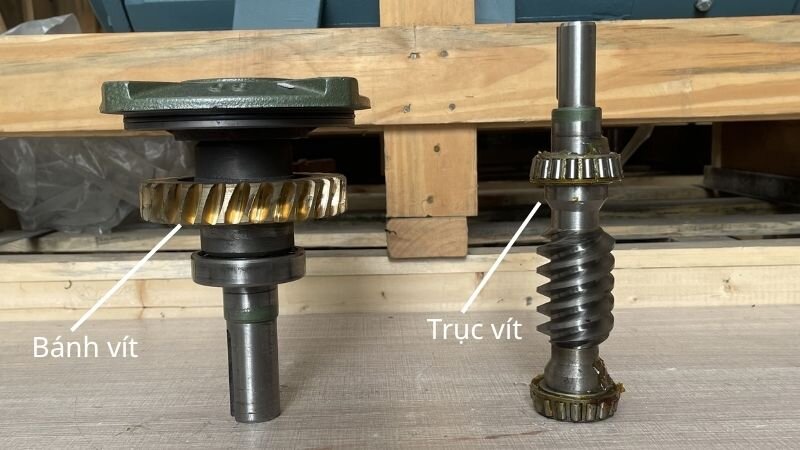

Internal structure of the WPDX worm gearbox

The internal worm shaft and worm gear structure of the WPDX gearbox allows pressure to be evenly distributed over a large contact area, thereby eliminating the risk of worm gear tooth deformation under heavy loads.

• Worm shaft: Made from stainless alloy steel, hardened to resist wear, ensuring stable transmission over a long period.
• Worm gear: Cast from high-grade copper alloy, offering good meshing, efficient power transmission, and low heat generation.
• Bearing: Uses high-quality bearings to increase load capacity and limit noise.
• Housing: Monolithic cast iron, sturdy, fully powder-coated to prevent oxidation and corrosion.
• Lubricating oil: Features a separate oil reservoir and filling hole to ensure low friction and long service life.

Specifications of the WPDX Worm Gearbox 250

When integrating the WPDX 250 into a system, the specifications of the WPDX Worm Gearbox 250 serve as a basis to ensure synchronization. This series features a hollow input shaft on the side and a downward-facing solid output shaft, and can be coupled with a 3-phase electric motor of 15kW 20Hp.

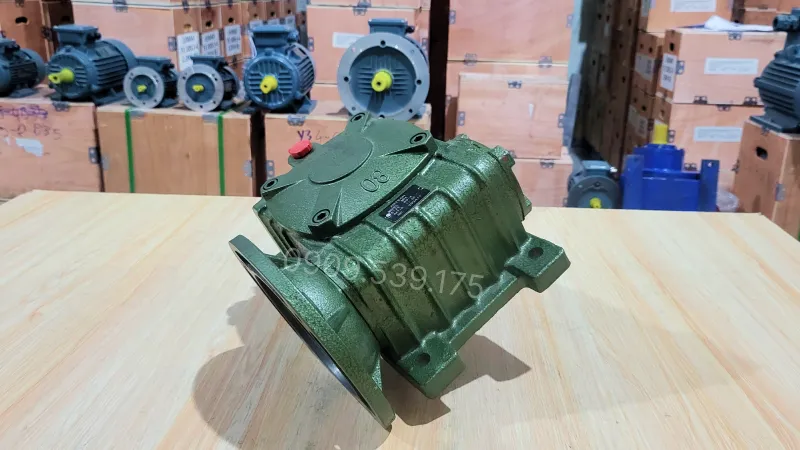

Applications of the WPDX Worm Gearbox 250

The WPDX 250 gearbox is used in the following fields:

• Heavy industry: Heavy-duty conveyor systems, winches, stone crushing plants, steel rolling mills, hydraulic presses.
• Machine manufacturing: Automated production lines, packaging machines, cable winding machines.
• Mining and metallurgy: Screening equipment, coal conveyors, screw conveyors.
• Food and chemical industry: High-capacity agitators and mixers.

Guide on how to fill oil for worm gearboxes

Lubricating oil plays an important role in helping the WPDX worm gearbox operate smoothly, reducing friction and protecting internal drive components. To ensure the equipment always operates stably and limits damage due to lack of oil, follow the steps below to fill oil.

• Clean the oil filling area: Clean around the oil filler plug to remove dirt, then open the plug to prevent impurities from falling into the gearbox.
• Add standard oil: Use the recommended type of lubricating oil and pour it slowly into the gearbox so that the oil distributes evenly, limiting foaming.
• Ensure proper oil level: Monitor the oil sight glass or oil level check hole and stop filling when the oil reaches the specified limit, avoiding underfilling or overfilling.
• Inspection: Reinstall the oil filler plug, tighten necessary positions, then test-run the gearbox for a short time to check lubrication performance and timely detect any signs of oil leakage.

The WPDX worm gearbox 250 features extreme weight and torque, enabling it to operate well in the harshest environments such as mining, metallurgy, and heavy industrial production line systems. The cast iron housing thickness of size 250 is calculated to absorb vibrations from crushing and pressing processes, absolutely protecting the internal bearing assembly.

Additionally, customers can watch our gearbox videos and summary videos to discover more gearbox lines distributed by Thanh Thai Motor.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
