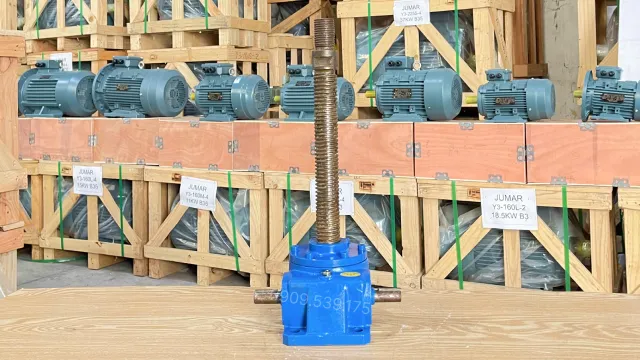

Screw Jack Gearbox SWLD25 SWL25

Screw Jack Gearbox SWLD25 SWL25 is a product utilizing a worm and nut mechanism to convert the rotary motion of the motor into precise lifting, lowering, or pushing motion. This type of gearbox is designed for heavy-duty applications, ensuring stability, safety, and flexible installation in any industrial system.

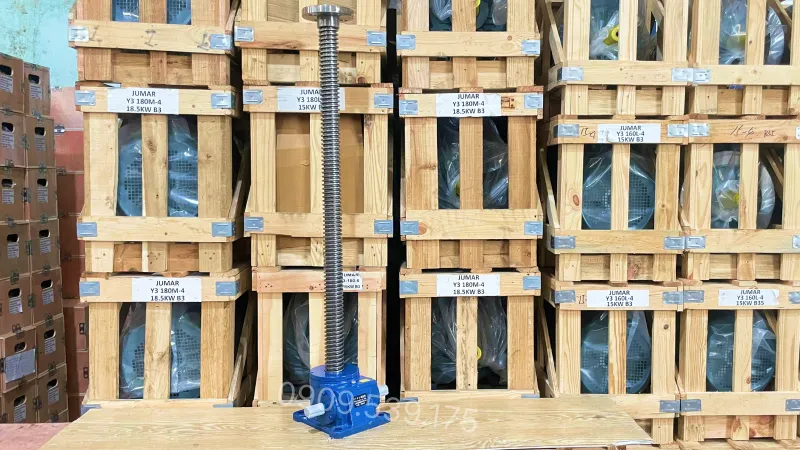

What is the design of Screw Jack Gearbox SWLD25 SWL25 like?

SWLD25 SWL25 gearbox features a sturdy, balanced, and modern overall design, ensuring both aesthetics and high technical requirements. The entire housing of the screw jack gearbox is cast in one piece from high-grade cast iron, offering excellent load-bearing capacity, rapid heat dissipation, and effective corrosion resistance in industrial environments.

The surface of the 1-stage gearbox is flat-machined, coated in blue or silver-gray paint, creating a professional look while helping prevent oxidation, dust, and grease adhesion during operation. Edges and flanges are precisely machined, ensuring high tightness when assembled with the motor or other transmission parts. The output and input shafts are clearly arranged for easy observation. The input shaft is typically flanged or plain with a keyway, facilitating easy connection with the electric motor to create a gear motor product.

Structure of Screw Jack Gearbox SWLD25 SWL25

Screw Jack Gearbox SWLD25 SWL25 is installed with a 3-phase 75kW 100Hp electric motor and is a 1-stage lifting screw jack gearbox machined from the following components:

• Gearbox housing: Sturdy cast iron housing, wear-resistant and protects internal components, helping reduce noise and increase lifespan.
• Input/output shafts: Precisely machined shafts, heavy load-bearing, stable torque transmission, minimizing vibration.
• Screw: Wear-resistant alloy steel, precise threads, smooth speed reduction and increased output torque.
• Gears: High-strength steel, smooth meshing, reducing vibration and ensuring efficient power transmission.
• Bearings and seals: Support smooth shaft rotation, anti-friction, sealed seals protect oil and prevent dust.

Technical specifications of Screw Jack Gearbox SWLD25 SWL25

Screw Jack Gearbox SWLD25 SWL25 is a specialized lifting equipment line utilizing a worm-worm gear mechanism for stable power transmission, precise load lifting, and durable operation in industrial systems.

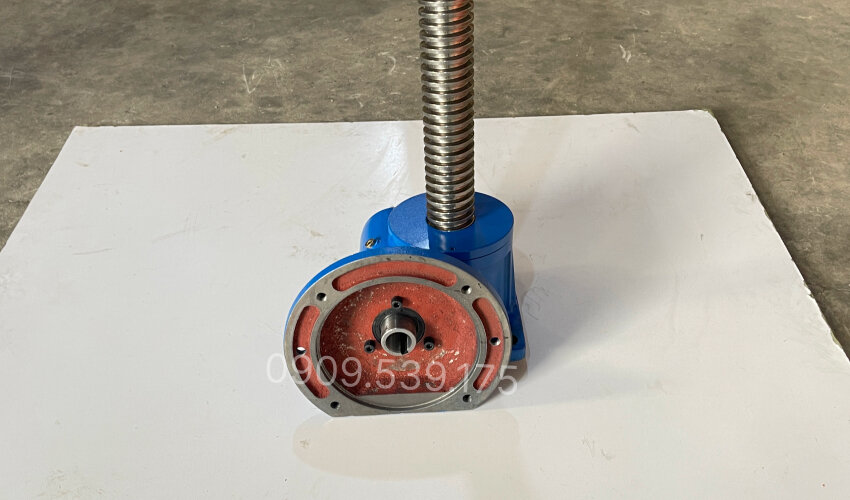

Technical specifications of SWLD25 lifting gearbox (Flange type)

The flange-type SWLD25 lifting gearbox features a compact design, easy to install directly into machinery systems, suitable for applications requiring load lifting.

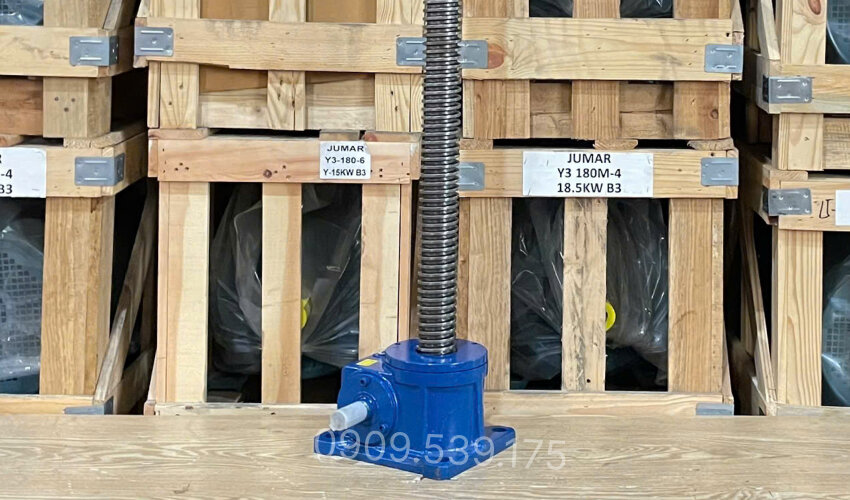

Technical specifications of SWL25 lifting gearbox (Foot mount type)

The foot mount type SWL25 lifting gearbox is solidly designed, convenient for securing on machine bases, meeting the requirements of heavy load lifting transmission with high stability.

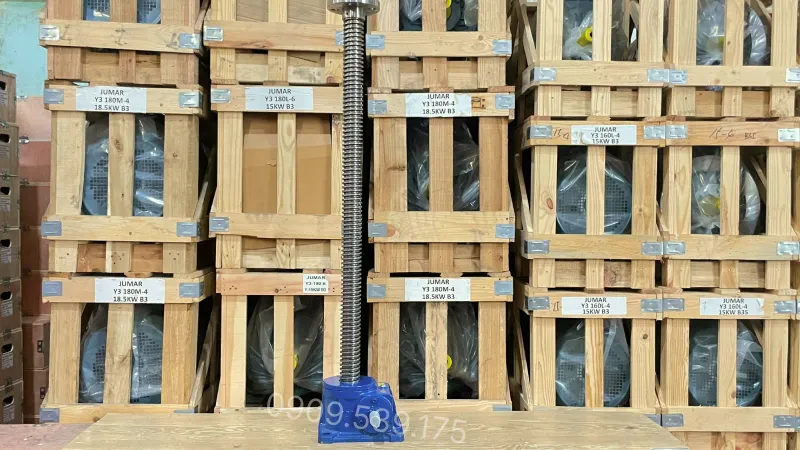

Practical applications of Screw Jack Gearbox SWLD25 SWL25

The Screw Jack Gearbox SWLD25 SWL25 series possesses many outstanding features, making it widely used in applications such as:

• Industrial conveyors.
• Drainage sluice gates.
• Crushers, presses.
• Metallurgical and mineral mining,…

Decoding the nameplate on the screw jack gearbox

• MODEL (SWLD): Product code symbol. The letters SWLD typically represent the screw jack series with an input flange for direct connection to the electric motor.
• TYPE (10T): Rated lifting capacity. 10T means the equipment has a maximum lifting capacity of 10 tons.
• RATIO (8): Gear ratio. A value of 8 (typically 8:1) indicates that when the input shaft (worm) rotates 8 revolutions, the internal worm gear rotates 1 revolution. This ratio determines the lifting speed and torque of the equipment.
• MFG. NO (YX-20241027): Manufacturing serial number. This symbol is used for factory management and product traceability, where the number sequence 20241027 may indicate the manufacturing date of October 27, 2024.

Screw Jack Gearbox SWLD25 SWL25 well meets the lifting and power transmission needs in various industrial systems thanks to its sturdy structure and stable operation. Customers can refer to additional gearbox videos from Thanh Thai Motor to learn more about commonly used product lines. Additionally, the comprehensive video section provides a lot of useful information, helping to choose the right equipment for each application.
