Screw Jack Gearbox SWLD10 SWL10

Screw Jack Gearbox SWLD10 SWL10 is a 1-stage gearbox, playing a crucial role in lifting and lowering systems. It is responsible for converting the rotational motion of the motor into linear motion to lift, lower, or move objects. Let’s explore the details of this screw jack gearbox and its practical applications in various industries with Thanh Thai Motor.

How is the Screw Jack Gearbox SWLD10 SWL10 designed?

The SWLD10 SWL10 screw jack reducer is designed to be compact and easy to install. The outer casing of the gearbox is made of gray cast iron or cast aluminum alloy, ensuring high rigidity and load-bearing capacity, helping to protect internal components from mechanical and environmental impacts. The high-quality powder coating not only enhances aesthetics but also creates a sturdy protective layer to prevent rust, corrosion, and withstand the impact of chemicals and harsh weather conditions. As a result, the service life of the gearbox is significantly extended, ensuring stable and efficient operation in complex working environments.

This gearbox is combined with an electric motor to become a complete gear motor, supporting lifting or heavy-load material handling drives.

Structure of Screw Jack Gearbox SWLD10 SWL10

Lifting screw jack gearboxes have various structural types, but they generally consist of the main components: screw shaft – nut, gearbox, and output shaft:

• Screw shaft – nut: The screw shaft features helical threads and is made of hardened steel to withstand high friction and heavy loads. The nut moves along the screw shaft and is made from sturdy, wear-resistant materials.
• Gearbox: This is the main transmission component, which reduces the rotational speed of the motor to increase torque, helping to reduce the load on the motor and extend equipment lifespan.
• Output shaft: Responsible for converting gear rotational motion into crane mechanism operations.

Technical Specifications of Screw Jack Gearbox SWLD10 SWL10

The Screw Jack Gearbox SWLD10 SWL10 is a lifting equipment series utilizing a worm gear and screw mechanism, providing stable transmission, precise load lifting, and suitability for various industrial machinery applications.

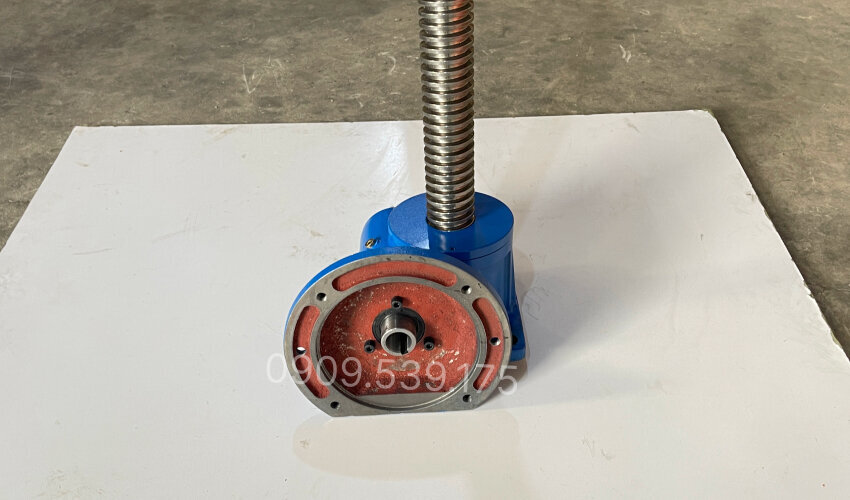

Technical Specifications of SWLD10 Lifting Gearbox (Flange Type)

The flange-type SWLD10 lifting gearbox features a compact design, convenient for connecting with motors and transmission systems, well-met with lifting capacity requirements from 2.1 tons to 3 tons.

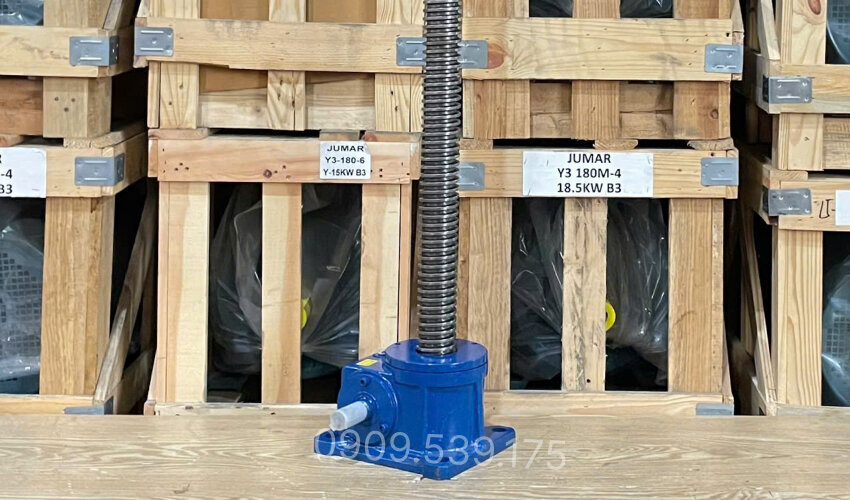

Technical Specifications of SWL10 Lifting Gearbox (Foot Mount Type)

The foot-mount SWL10 lifting gearbox possesses a sturdy structure, easily secured to machine frames, helping the system operate stably in industrial lifting applications.

Applications of Screw Jack Gearbox SWLD10 SWL10

The Screw Jack Gearbox SWLD10 SWL10 is widely applied in numerous fields, from industry to daily life, including:

• In industry:
  • Used in lifting machines, overhead cranes, and conveyors to lift goods and raw materials.
  • Controlling the movement of machine tables and main spindles.
  • Used in automation systems to control the position of machine parts.
• In construction:
  • Moving elevator cabins.
  • Lifting construction materials.
  • Lifting heavy objects at construction sites.
• In agriculture: Controlling parts of plows, harvesters, etc.

Decoding the Nameplate on the Screw Jack Gearbox

• MODEL – SWLD: This is the flange-mounted lifting screw gearbox type designed to connect directly with electric motors.
• TYPE – 10T: Symbolizes the maximum lifting capacity of the device, which is 10 tons.
• RATIO – 8: The transmission ratio of the gearbox is 1/8. This means that when the input shaft rotates 8 turns, the lifting screw shaft will perform one unit of movement (depending on the screw thread pitch).
• MFG. NO – YX-20241027: Serial number or production management code of the device for traceability and warranty purposes.

The Screw Jack Gearbox SWLD10 SWL10 is suitable for medium-load lifting applications with stable and continuous operation, such as lifting tables, elevators, and automated production lines. Customers can refer to Thanh Thai Motor’s gearbox video and comprehensive video library to learn more about the product in practice and select the appropriate solution.
