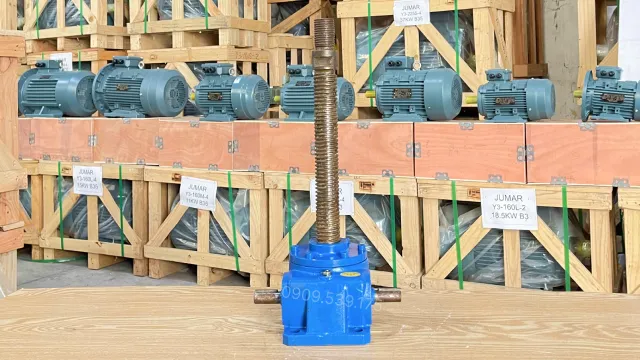

Worm Gearbox SWLD35 SWL35

Worm Gearbox SWLD35 SWL35 is a premium transmission gearbox designed to deliver stable and durable operational performance for industrial systems. With a sturdy structure, high-quality screw and gears, the product helps achieve smooth speed reduction while increasing torque for the output shaft. The flexible design in SWLD35 flange type or SWL35 foot-mounted type allows easy installation into various types of machinery, from conveyors, packaging machines to precision mechanical equipment.

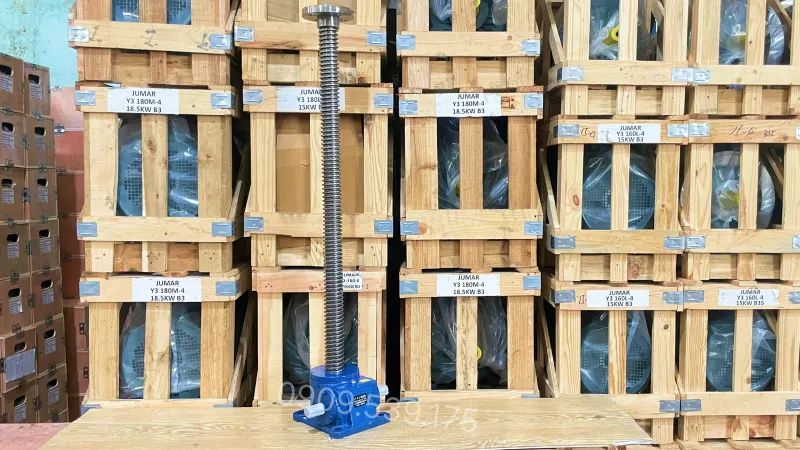

Exterior design of the Worm Gearbox SWLD35 SWL35

Worm screw jackgearboxes are manufactured from cast iron or solid die-cast aluminum alloy, providing high rigidity and good heat dissipation. The anti-rust powder-coated surface enhances aesthetics while protecting the gearbox against environmental impacts. The input and output shafts are precisely machined and reasonably arranged for convenient installation in multiple directions, while increasing operational stability.

Detailed structure of the Worm Gearbox SWLD35 SWL35

As a 1-Stage gearbox, this equipment line is installed together with an electric motor to create a gear motor product with a compact design and powerful functionality.

The Worm Gearbox SWLD35 SWL35 has the following detailed structure:

• Housing: Excellent load-bearing capacity, protecting all internal components from impacts, dust, and wear.
• Screw: Sturdy alloy steel, precise threads, smooth movement, heavy-load capacity.
• Worm gear: Connected to the input shaft, stable power transmission, usually made of brass or high friction-resistant alloy steel.
• Shaft: Can be hollow or solid shaft, suitable for various electric motors, specifically the 3-Phase Electric Motor and drive mechanisms.
• Bearing: Supports smooth shaft rotation, minimizes friction, prevents oil leakage, and extends gearbox lifespan.

Technical specifications of the Worm Gearbox SWLD35 SWL35

SWLD35 and SWL35 worm screw jack gearboxes are manufactured with two mounting styles: flange and foot-mounted, suitable for various lifting systems. Below are the technical specifications for each version.

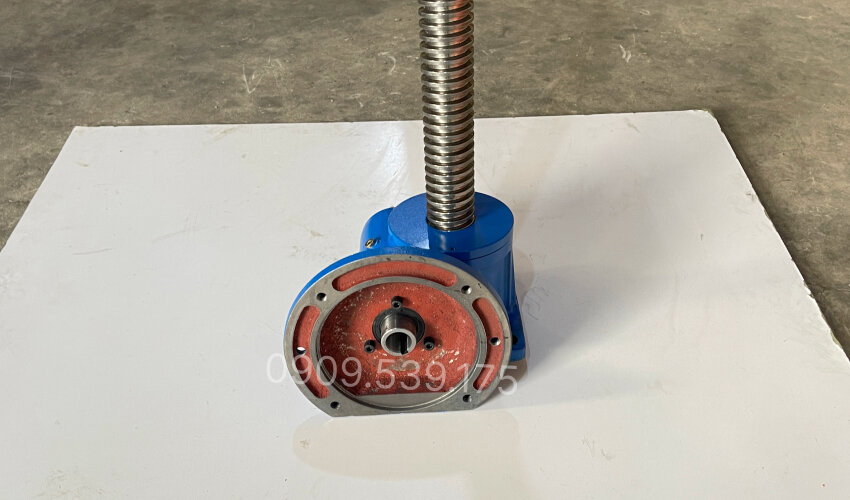

Technical specifications of SWLD35 lifting gearbox (Flange)

Below are the technical specifications of the SWLD35 flange-type lifting gearbox for reference when selecting products.

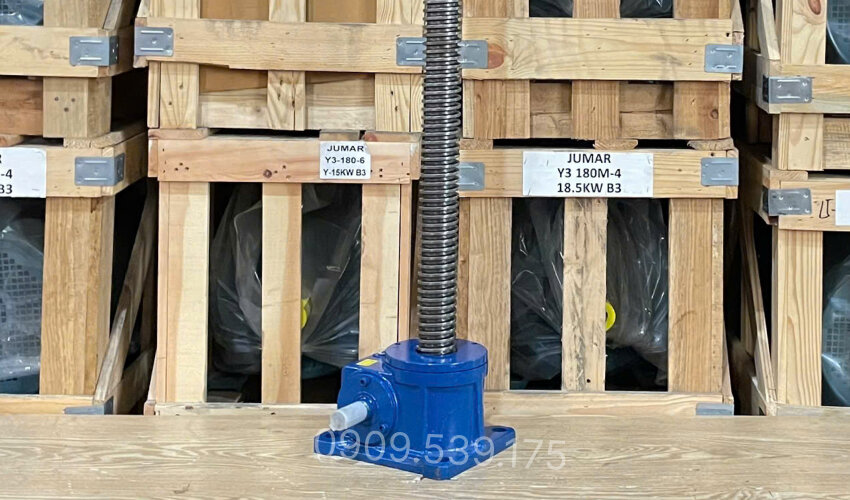

Technical specifications of SWL35 lifting gearbox (Foot-mounted)

The table below summarizes the technical specifications of the SWL35 foot-mounted lifting gearbox, facilitating installation and use.

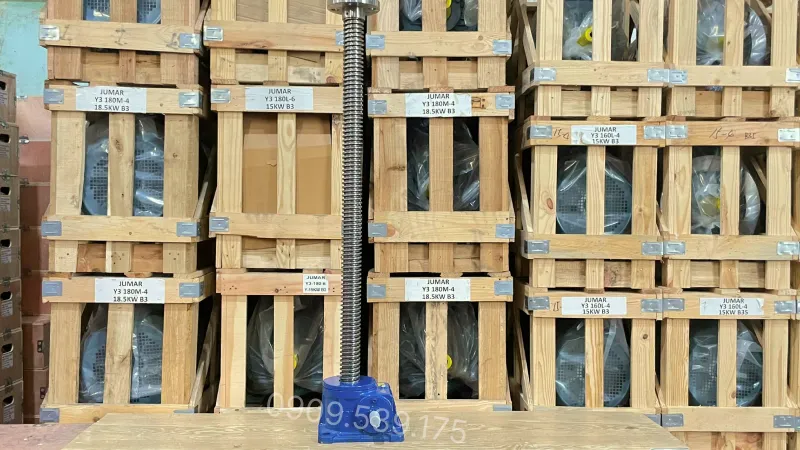

Common applications of the Worm Gearbox SWLD35 SWL35

Worm Gearbox SWLD35 SWL35 is widely trusted in many practical applications such:

• Conveyors in factory production lines.
• Food and agricultural processing machinery.
• Lifting tables and lifting equipment.
• Sluice gates in hydroelectric systems.

Decoding the nameplate on the worm screw jack gearbox

• MODEL – SWLD: This is the product line code of the lifting worm screw jack gearbox with an input flange for direct connection to an electric motor.
• TYOE (TYPE) – 10T: The load capacity symbol of the equipment. “10T” means the maximum load capacity or lifting force is 10 tons.
• RATIO – 8: The transmission ratio of the gearbox. This index indicates that the speed from the motor passing through the gearbox will be reduced by 8 times, while increasing the torque (pulling/lifting force) at the output.
• MFG. NO. – YX-20241027: Serial number or production batch number. This series of numbers helps the manufacturer manage factory release and trace product origins.

Worm Gearbox SWLD35 SWL35 is used in many lifting systems and industrial machinery thanks to its stable and durable operation. For more information before choosing, customers can refer to the gearbox video at Thanh Thai Motor. In addition, the comprehensive video category also introduces many transmission equipment lines suitable for different usage needs.
